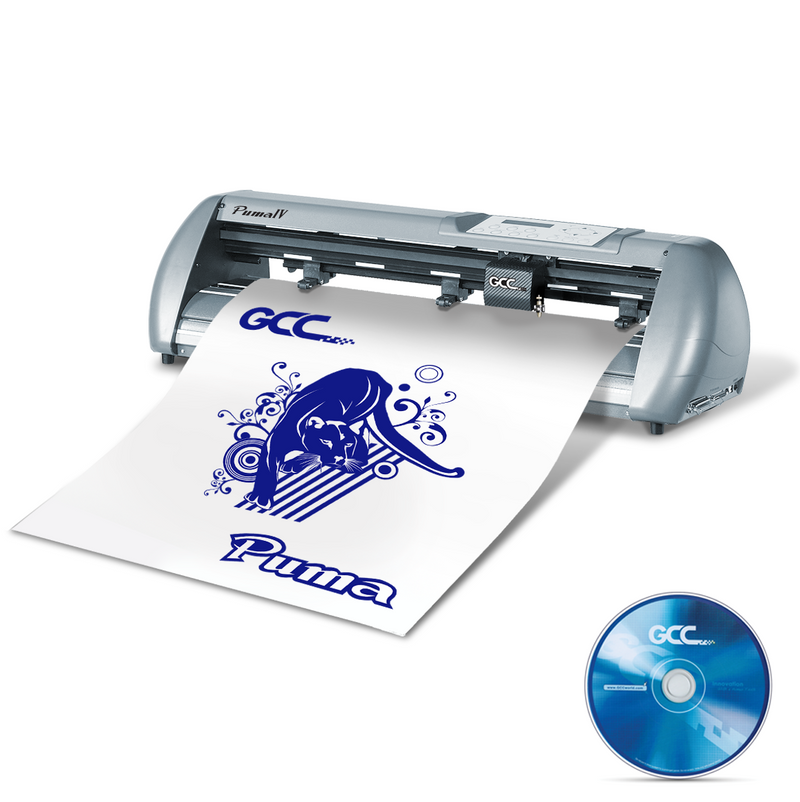

GCC Puma IV Vinyl Cutter Plotter 24" DEMO UNIT

Save 25%
SKU: 112900090G-DU

Price:
Sale price$982.50 Regular price$1,310.00

Found a Lower Price?

Stock:

Description

This is a refurbished unit and contains cosmetic blemishes. However, it is still functional and comes with a standard 1 year warranty.  ALL SALES FINAL. MUST PICK UP IN FULLERTON, CALIFORNIA.

Powered by a digitally controlled servo system, the Puma IV produces eye-catching graphics with up to 23.62 ips (1020mm/sec) cutting speed, 500g of cutting force, and five meters (16.4 feet) of tracking ability.

Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894

Features:

Wrench Icon

Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material.

Windows Icon

Windows Drivers: Puma IV includes a Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Puma IV. It is very simple and easy to make signs with Puma IV.

Rhinestone Icon

500 Grams of Cutting Force: Selectable cutting forces, ranging from 0 to 500g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.

Check

Tracking Ability: The exclusive grid drum is precisely engineers to provide superb tracking ability.

Motor Icon

Accurate and Smooth Operation: Puma IV incorporates a precision electro-mechanical design, which ensures an extremely accurate cutting capability. The state-of-the-art, closed-loop, high-speed digital servo drive system provides smooth, quiet, and fast operation.

Friendly Icon

Friendly Operation: The user-friendly control panel comes with a large 20-digit x 2-line LCD and 14 control buttons, providing easy operation and simple navigation. The LCD allows users to monitor all operational settings including offset value, quality mode, cutting speed, and force. Buttons on the Puma IV include frequently used functions such as speed, force, offset, and cut test. Puma IV provides up to 4 jobs of setting storage, including cutting speed, blade offset, force, as well as movement speed during tool-up and cutting.

Dual Port Icon

Tri-Port Connectivity: Puma IV supports tri-port connectivity with USB, serial, and ethernet ports. USB port provides faster data transmission between the computer and Puma IV. Tri-port connectivity provides sign makers with great flexibility for data transmission.

Includes GreatCut Software:

  • Professional cut plug-in for Corel DRAW, Illustrator, Freehand, and AutoCAD
  • Cutting by color
  • Multiskin
  • Plot Manager

Specifications:

  • Operational Method: Roller-type
  • Maximum Cutting Width: 590mm (23.23 in.)
  • Maximum Media Loading Width: 719 mm (28.3 in.)
  • Acceptable Material Thickness: 0.8 mm
  • Number of Pinch Rollers: 2
  • Drive: DC Servo Control
  • Cutting Force: 500 g
  • Maximum Cutting Speed (Diagonal): Up to 600 mm / sec. (24 ips)
  • Offset: 0-1.0mm (with an increase 0.025mm)
  • Mechanical Resolution: 0.009mm (0.00035 in.)
  • Software Resolution: 0.025 mm (0.00098 in.)
  • Memory Size: 4 MB
  • Interfaces: USB 2.0 & Ethernet & Serial
  • Type of Command: HP-GL, HP-GL/2
  • Contour Cutting: No
  • Configurable Origin: Yes
  • Curve & Arc Smoothing: Yes
  • Test Cut Capability: Yes
  • Repeat Function: Yes
  • Copy Function: Yes
  • Tangential Mode: Yes
  • Overcut Capability: Yes
  • Pause and Move: Yes
  • Control Panel: LCM (20 digits x 2 lines), 14 Keys, 1 Power LED
  • Power Supply: AC 100-240V, 50~60 Hz (auto switching)
  • Operation Environment: 15°-30°C (60°-86°F), 25%-75% humidity
  • Stand: Optional
  • Included Software Compatibility: Windows 7, 8, 10 (32 or 64 Bit) (Not compatible with macOS)
