Uninet DTF 24" Slim Shaker

SKU: DTFSHK6000S

Please choose: without Liftgate Service
Price:
Sale price$6,900.00 USD

Found a Lower Price?

Open Video

Why Choose HeatPressNation?

With over 15 years of experience, HeatPressNation has established itself as the trusted industry leader in heat transfer solutions, earning the confidence of thousands of satisfied customers.

Description

Uninet DTF

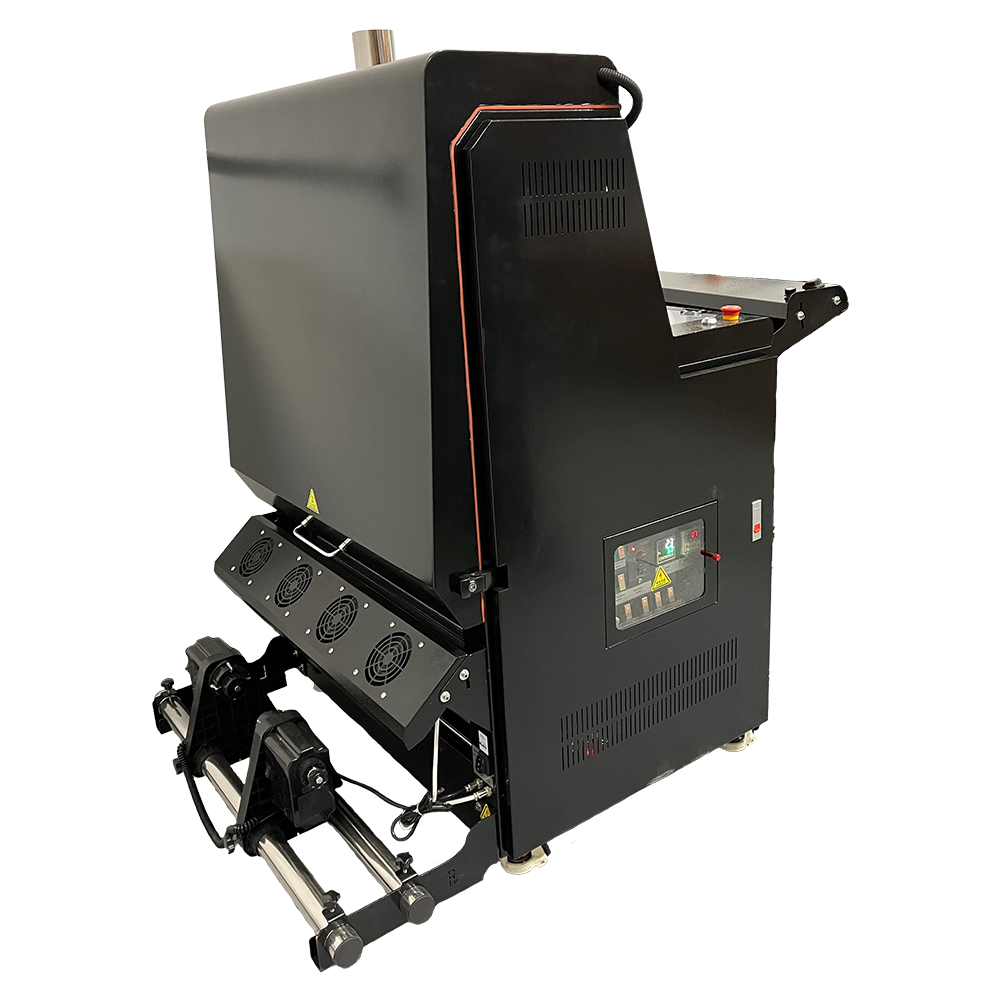

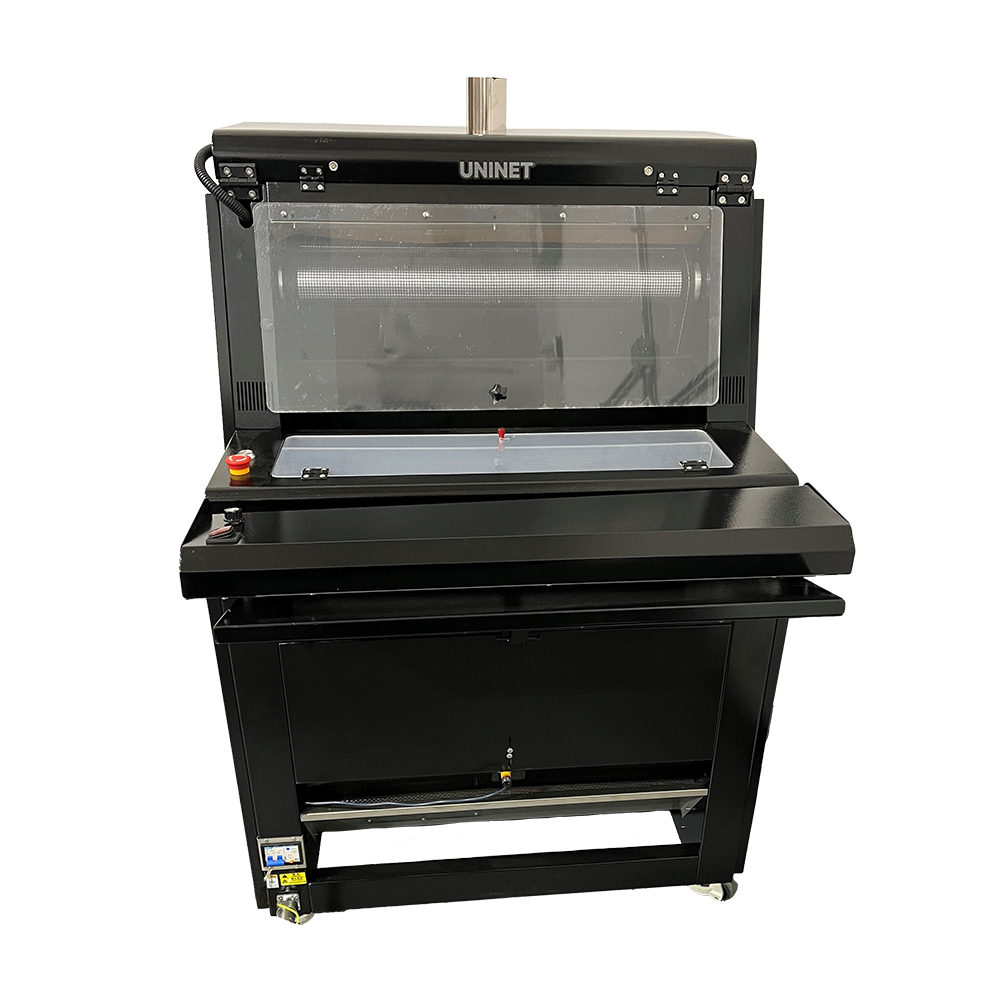

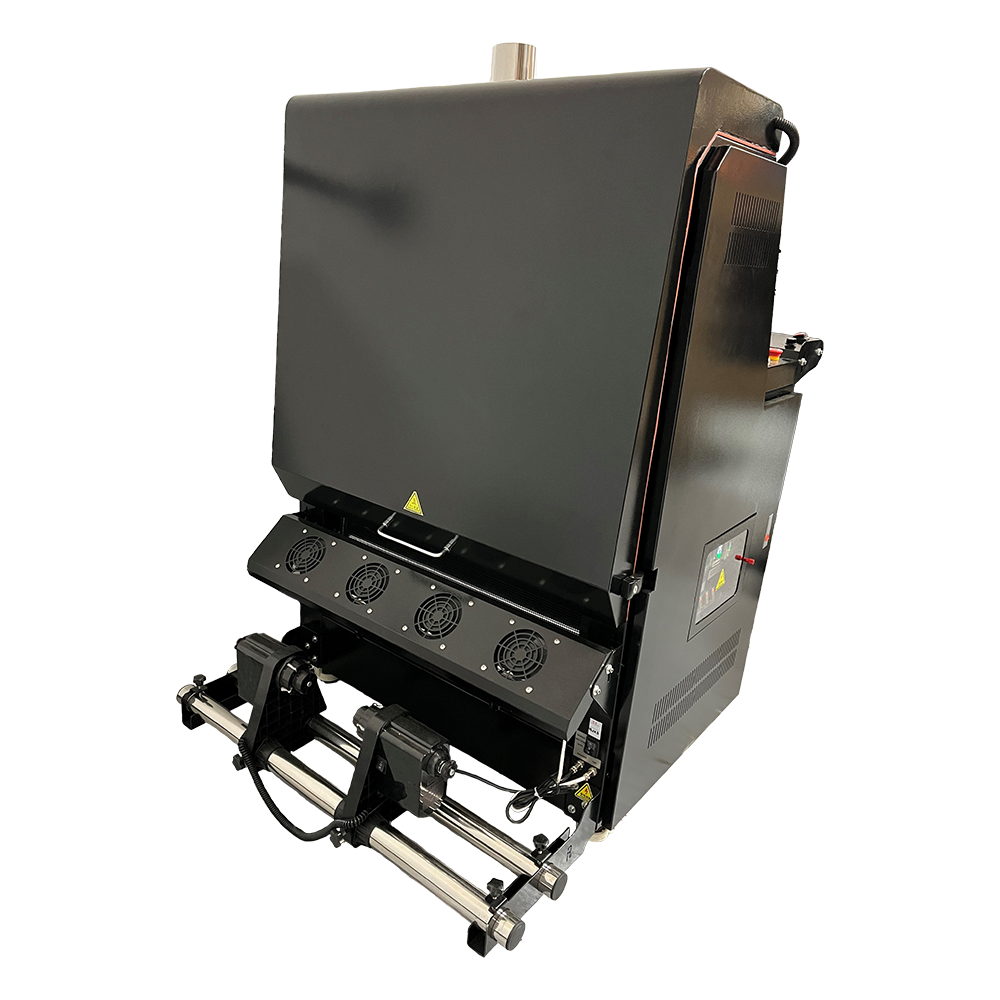

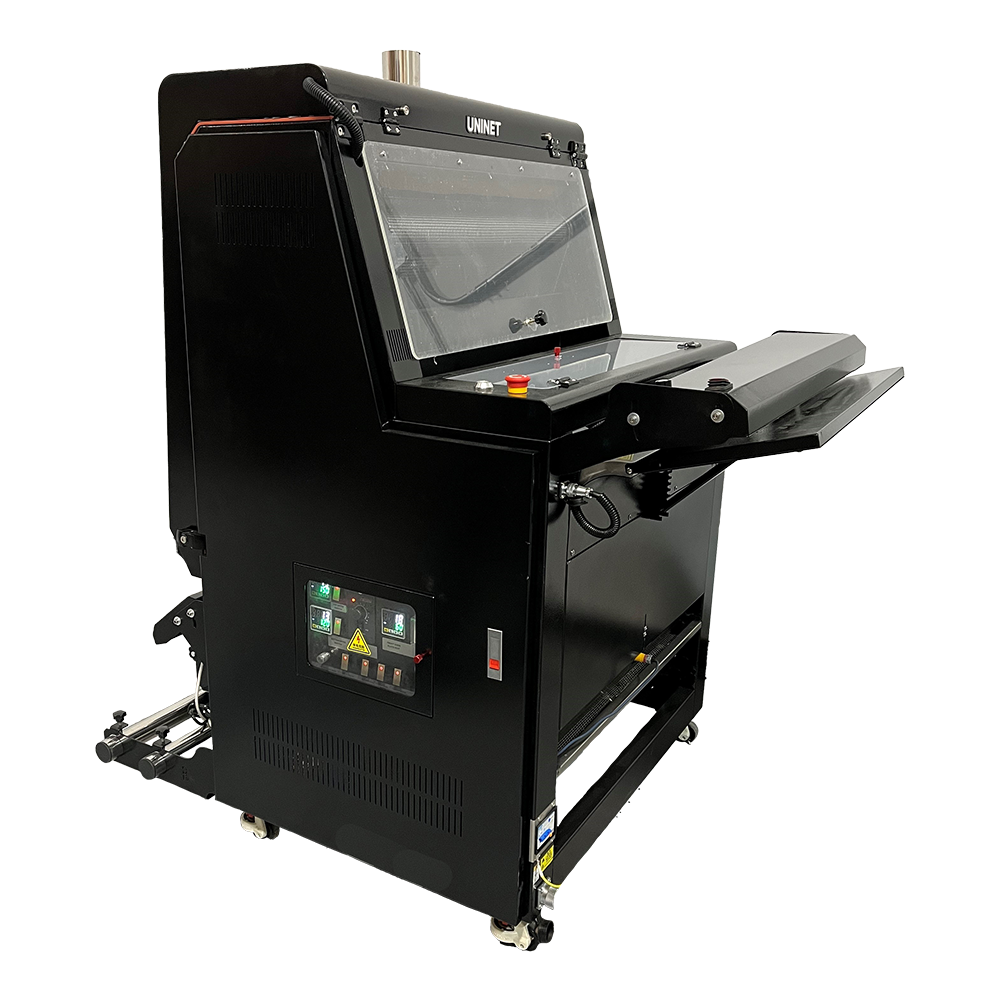

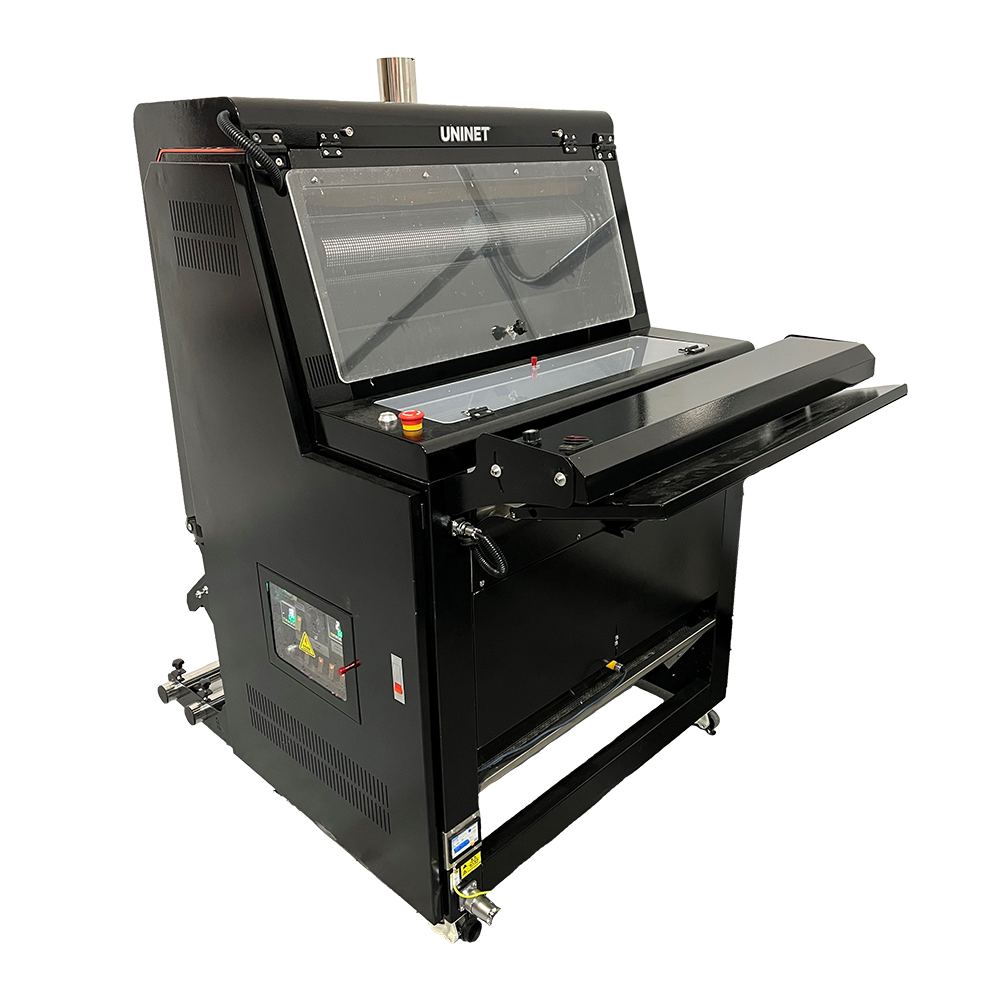

Introducing the Uninet SlimShaker™ Autp Powder Machine (with vertical space-saving technology, applies powder and cures). Space-saving shaker with a 12.7 Sq Ft footprint versus a 31.5 Sq Ft footprint seen with traditional 24" shakers! It can cure DTF film rolls and work as an in-line addition with any roll-to-roll Direct to Film printer.

The SlimShaker™ is compatible with roll capable DTF printers, including the UNINET™ series roll printers, and can also be combined with Oric, Audley, HJD, Titan, Coldesi, All American / DTF Station, Mutoh STS, Mimaki and Roland DTF™ printers and other DTF roll printers.

Furthermore, the SlimShaker ™ is compatible with all DTF™ PET Film Rolls (up to 24" in width and including popular sizes such as 13", 17" and 24") and with Powders and Films from industry-leading manufacturers.

Features:

  • Vertical Space Saving Design: offering the lowest footprint of any shaker, and with the same curing area as a long horizontal shaker. Fits through a standard U.S 36" door frame (unassembled)
  • Automatic Powder Application: Pour powder into the powdering section, and it will be applied evenly to your prints with variable adjustable speed controls.
  • Automatic Powder Removal & Powder Collect/Re-Use: Excess powder will be shaken off the film, and automatically recirculated.

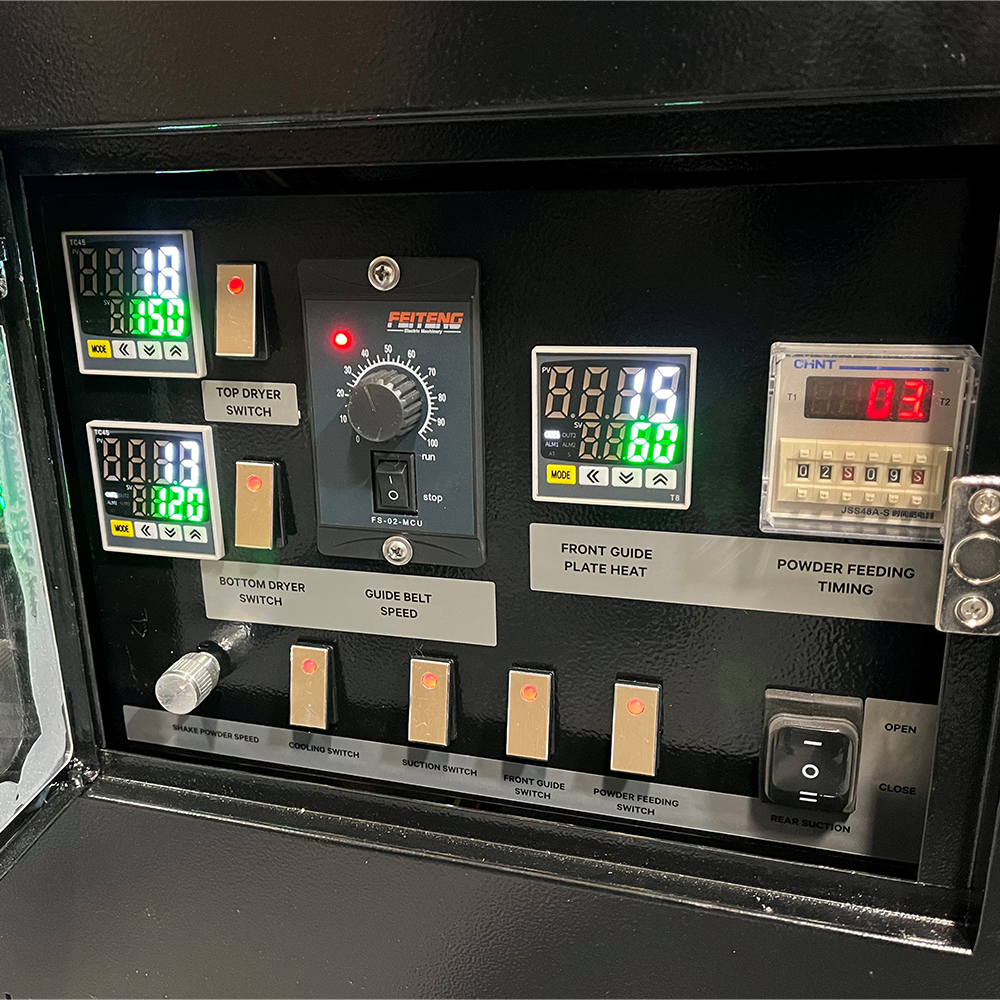

  • Dual Heat Zones: offers fine heat control and better temperature regulation than other shakers
  • Vacuum Belt Drive: minimizes friction and static build up that are the source of many user encumbrances with other shakers
  • Advanced Take-Up System: Additional tension bar to roll up the finished DTF™ films better
  • Patented Design: Patent #63440762
  • Easy-Attach Fume Exhaust Port: Easily attach any fume extractor to the existing fume-exhaust port (fume extractor not included, sold separately)

Specifications:

  • Weight: 507 lbs
  • Rated Voltage/Amps: 220V/40A
  • Dimensions :
    • 35" W (unassembled ) x 60" H x 39" L
    • Fully assembled Footprint : 47 x 60 x 39 inches

Power Requirements:

  • 30A - 240V - 2 pole outlet
  • 30A 240v 2 pole Circuit breaker x 1
  • 9 Gauge Circuit Wiring
  • Requires a grounded, three prong plug as a safety feature. This plug only fits into a grounded outlet. If the plug does not fit, the outlet may be an older, non-grounded type. Contact and electrician to have the outlet replaced. Do not use an adapter to defeat the grounding.

*This product is FINAL SALE*
