DTF Station Prestige XL2 24" Printer

SKU: BNDL-PRESTIGE-XL2-DTF-NS-T

Please Select: Without Liftgate Service
Price:
Translation missing: en.product.general.price$18,745.00 USD

Found a Lower Price?

Open Video

Why Choose HeatPressNation?

With over 15 years of experience, HeatPressNation has established itself as the trusted industry leader in heat transfer solutions, earning the confidence of thousands of satisfied customers.

Description
Warranty
Instructions

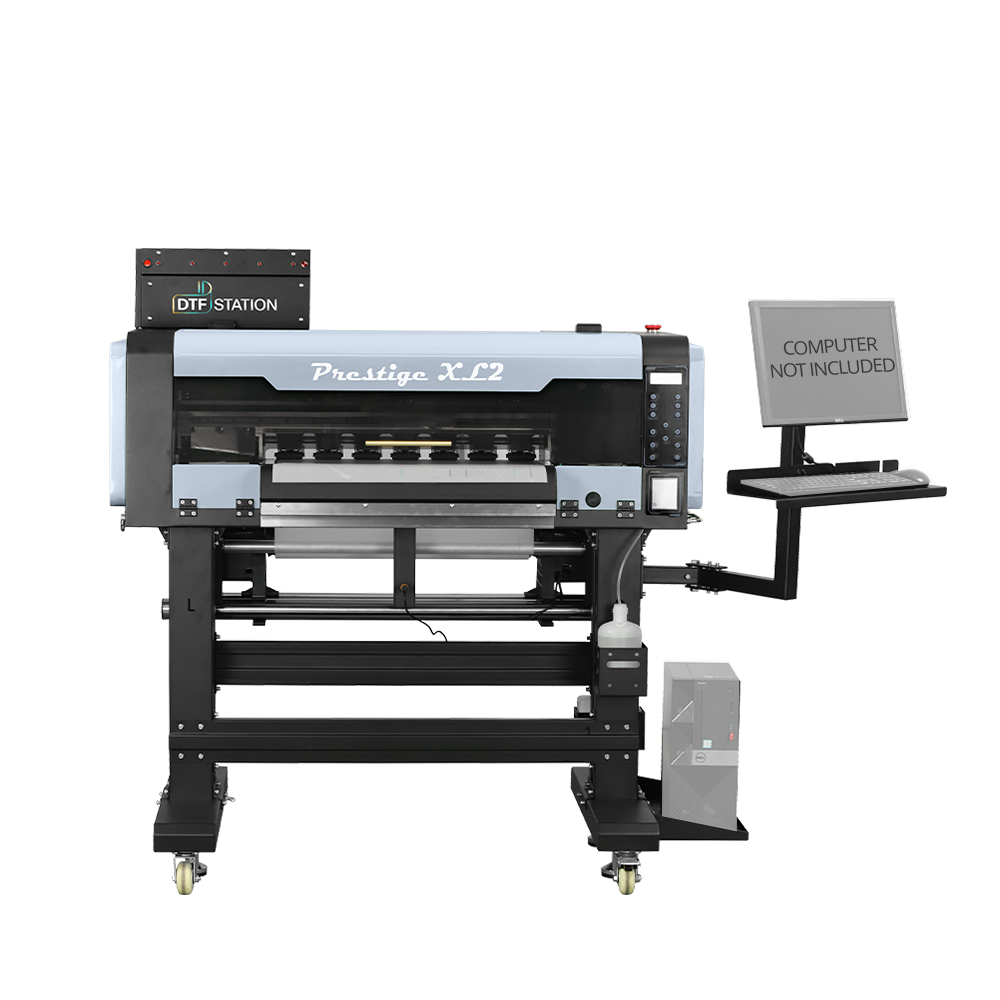

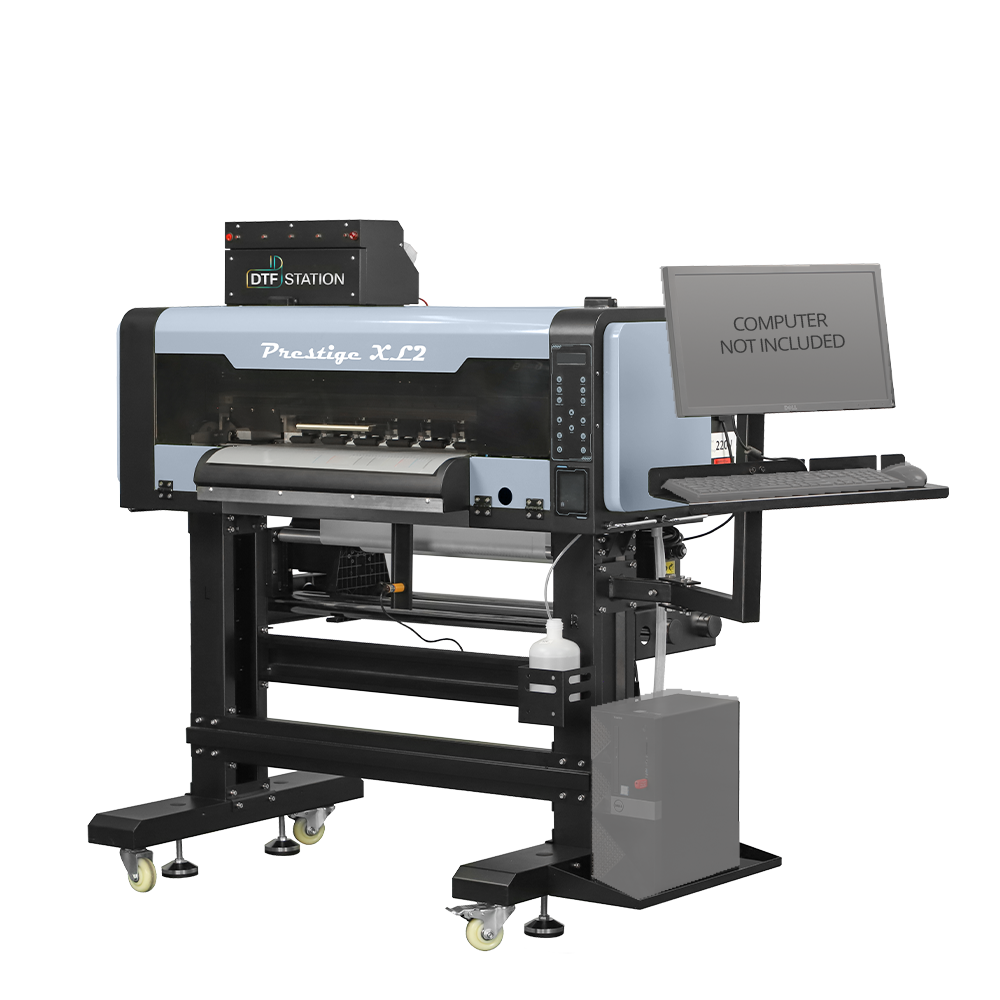

The Prestige XL2 is your perfect high-end DTF printer option, with print speeds of up to 80 - 100 sq. ft./hour, premium print quality from 2 Epson i3200 printheads, and a suite of advanced features for easy use and maintenance.

Access the speed and quality of true production DTF printing today with the Prestige XL2 DTF Printer. Plus, save when you bundle with one of DTF Station’s powder shaker & dryers for truly automatic DTF printing!

  • Require On-Site Training (not included)
    • On-Site Training + Air Travel Domestic includes:

      • One Time Accommodations such as hotel, rental car, flight ticket
      • 4~8 Training Hours Onsite

    Features and Benefits:

    • Two i3200 print heads
    • White Ink Management System (WIMS): timed white ink stirring system to circulate and maintain white ink inside printer
    • Head Strike Sensor: helps prevent damage to printhead
    • Passive Auto-Cleaning: when printer is left on, it will automatically maintain and clean printhead every 4 hours
    • Active Auto-Cleaning: during set intervals (even during printing), printer can stop to clean printhead
    • Auto-Wet Capping: printhead sits inside cleaning solution while idle, helping to prevent clogging
    • Auto Ink Alert System: informs user when ink is running low
    • Automatic Film Sensor: if film runs out/is not detected, stops printing
    • Attachment Station: Perfect for add-ons, such as the Printflo Barcode Automation System
    • Variety of adjustable settings including:
      • Belt Speed
      • Powder Shaking Power
      • Cooling
      • Suction
    • Perfect for advanced productions: Get the best DTF prints at industrial speeds
    • Advanced maintenance features: The suite of maintenance features on the XL2 ensure less downtime for non-stop production and a longer lifespan for your investment
    • Easy access/repair: intuitive, labeled board design and connections for easy access and repair

    What's Included:

    • DTF Station Prestige XL2 DTF Printer
    • DigiRIP RIP Software - including fully functional Software Trial Version (15 Day)
    • Power Cord
    • Tools
    • Ink Dampers
    • Ink Filters
    • Ink Tube
    • Ink Diverter
    • USB Dongle
    • Ribbon Cables
    • Screws
    • Feed roller components

    Not Included, but Also Needed:

    • Heat Press (used to press final print to garment - 16" x 20" recommended)
    • Humidifier (to keep the humidity above 50% in the print room)
    • Computer with Windows 10 or higher

    Upgrading from the A4 model? See the DTF Station Trade-In Program for getting a credit.

    Benefits of Direct to Film Transfers:

    Multiple Fabric Types

    Any Color, Any Material: DTF transfers seamlessly adhere to multiple fabric types, regardless of color. Decorate cotton, nylon, polyester, leather, denim, and more. Unlock a world of vibrant possibilities for your designs!

    Easy to Use

    Easy to Use: Heat and pressure are all you need to transfer your designs. No need for pretreatment spray or tricky adhesive sheets. The transfer process is so simple that you can even sell your transfers for customers to apply themselves.

    Durable

    Durable: Engineered to withstand the test of time, DTF transfers boast unparalleled durability, ensuring that your designs remain vibrant and intact through countless washes and wears.

    Soft and Stretchable

    Soft and Stretchable: DTF transfers offer a silky-smooth touch and unparalleled stretchability, ensuring maximum comfort and freedom of movement with every wear.

    Long Shelf Life

    Long Shelf Life: With proper storage, DTF transfers can last for 1 year or longer. Print your more popular designs ahead of time, and press them on your schedule.

    Printer Specifications:

    • Printer head: Dual Epson I3200 Printheads (CMYK - WWW)
    • Mainboard: Hoson
    • Interface: TCP
    • Software: DigiRIP Pro RIP Software (Compatible with Windows PC only (no tablets, Surface, etc.))
    • Printing Accuracy: 1440/2160/2880dpi
    • Maximum Print Width: 23.62"
    • Print Speed: 80-100 sq. ft. / hour (Production Resolution)
    • Printing Media: PET Film
    • Printing Interface: Gigabit network port
    • Operating System: Windows 7, Windows 10
    • Printing Software: DigiRIP RIP Software
    • Operation Environment:
      • Temperature:15℃-30℃ (60 °F-86°F)
      • Humidity:35%RH-65%RH
    • Rated Voltage: 110volts
    • Rated Current: 9amps
    • Rated Power: 800watts
    • Product Dimensions: 52.75" x 26" x 55" (LxWxH)
    • Packaging Dimensions: 58" x 43.25" x 28.5" (LxWxH)
    • Machine Weight: 339 lbs
    • Packaging Weight: 383 lbs

    System Requirements

    • Operating System: Windows
    • Minimum RAM: 8GB
    • Minimum CPU: Intel i5 2.6GHz
    • Minimum Free Storage: 5GB

    WARNING: Work in a WELL VENTILATED AREA and use protective equipment when working with DTF products and processes. It is highly recommended the use of a Fume Extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. It is not recommended to use DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize the risk of ink clogs and film buckling. Add a Fume Extractor to this package for sufficient fume extraction.

    DTF printers require daily use/maintenance! You must perform a head cleaning, nozzle check and a test print every day to ensure the printer is running smoothly and to prevent printhead and capping station clogs. Printheads and capping stations are considered consumables and are not covered under warranty if they clog. Clogs can occur even after one print, so maintenance must start the moment you install ink.

      MyExpert Support Logo

      The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support. No matter where you are in your product's life cycle, we will be here to provide support to your product and make sure you are fully covered.

      Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

      Our MyExpert Support will always be there for you so you can purchase with confidence!

      In addition, DTF Station, the manufacturer, offers a conditional 1-Year warranty on up to 2 printheads. Full printhead warranty policy. For warranty claims, we may need to involve the official DTF Station team depending on the reported issue. Be aware that the use of non-DTF Station ink, film, or other supplies will void the warranty. Details depend on training option selected. Terms & Conditions apply. Visit link for full details.
