Neenah Paper has been an industry leader in the creation, development, and improvement of heat transfer products since their first patent was granted in 1980.

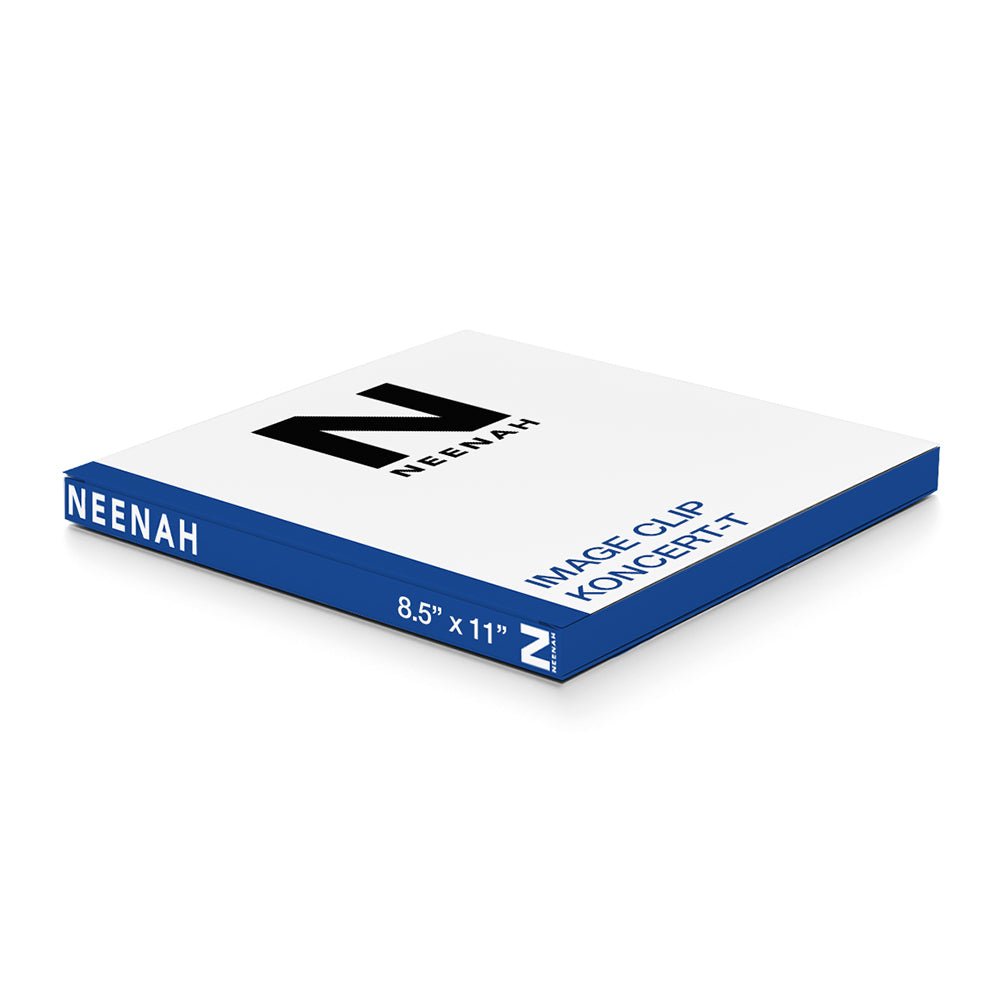

The IMAGE CLIP KONCERT-T'S Heat Transfer Paper is the perfect solution for transferring those otherwise difficult white images onto your dark fabrics. There is no need to trim the paper, as this paper is self-weeding and leaves no background plastic polymer.
Tips and Tricks for the Best Result:
- Transfer paper is intended for use with cotton, cotton blend fabrics, and synthetic fabrics.
- Compatible only with OKI pro8432WT & OKI 711WT laser printers.
- Apply to dark color fabrics only.
- Print using mirror image setting.
- When printing, use a heavy paper mode such as "transparency" or "label," as this will slow the printing process so that the toner may properly adhere to the paper.
- Stretch the transfer immediately after application to increase softness and durability.
- Do not wash the heat pressed item for 24 hours after application.
- Do not dry clean.
- Keep transfer paper in moisture resistant protective sleeve when not in use.
- For use with dark fabrics
- Requires a laser printer
- Print in reverse
- Suggested Temperature & Time: 375°F for 20 seconds
- Heavy pressure
- Cold peel
- Instruction manual
Includes: 50 printable & 50 imaging sheets (50 transfers total)
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
Neenah IMAGE CLIP KONCERT-T's Transfer Paper Care & Instructions
Temperature: 375°F (190°C)
Time: 25 sec.
Wash Temp: 105°F (40°C)
Shirt Colors: Dark colors (For transferring white images onto pastel, dark and bright colored items)
- 100% Cotton
- 100% Polyester
- 50/50 cotton/poly (Some polyester garments may experience dye migration, prior testing should be conducted)
Print the image in reversed/mirrored format in solid color – either Dark Blue or Black onto the ‘Imaging Sheet’. Imaging Sheet Backer paper color is Blue.
Prepare the substrate by ensuring the surface is clean, dry and wrinkle free.
- Place the imaged sheet (imaging sheet) to the transfer sheet (Transfer Sheet Backer Paper may be Orange or Yellow) on the heat press.
- Press 20 seconds at 250°F using medium to heavy pressure.
- Peel the papers apart while still hot in a smooth even motion.
- Place the substrate onto the heat press.
- Press the treated imaging sheet face down onto the shirt or substrate.
- Press 25 seconds @ 375°F using heavy pressure.
- Peel the paper once cold in a smooth even motion.
In order to achieve true white you have to do 2 things: First, print in the same color as your shirt. So if you want white on purple shirts, print your graphics is PURPLE to match the shirt color. If you have a red shirt print all red graphics, etc. Secondly, do a test print in gradient scale. I designed a sample page of ten identical boxes, the first box had 100% black, the second box had 90% black, third 80%, etc. All the way down to 10% color. I printed all these boxes on one sheet of koncert tee paper. My first press, I made the paper sandwich. The two sheets peel apart beautifully. I then pressed the transfer onto a scrap t-shirt (in the same color as my print). Note which box shows the true white color best. For my printer is was the 50% box. So now I can save toner by only printing 50% toner and achieve excellent white results
Must play around with the amount and color of underbase toner to get the best "white" on your garments
I have an OKI-831 TS. Unfortunately this line of transfer paper fails to produce a white image on black shirts. The images at BEST case is a pale gray throwing away any expectations of being able use this paper for its supposed purpose of printing white on black tees. What a waste!
