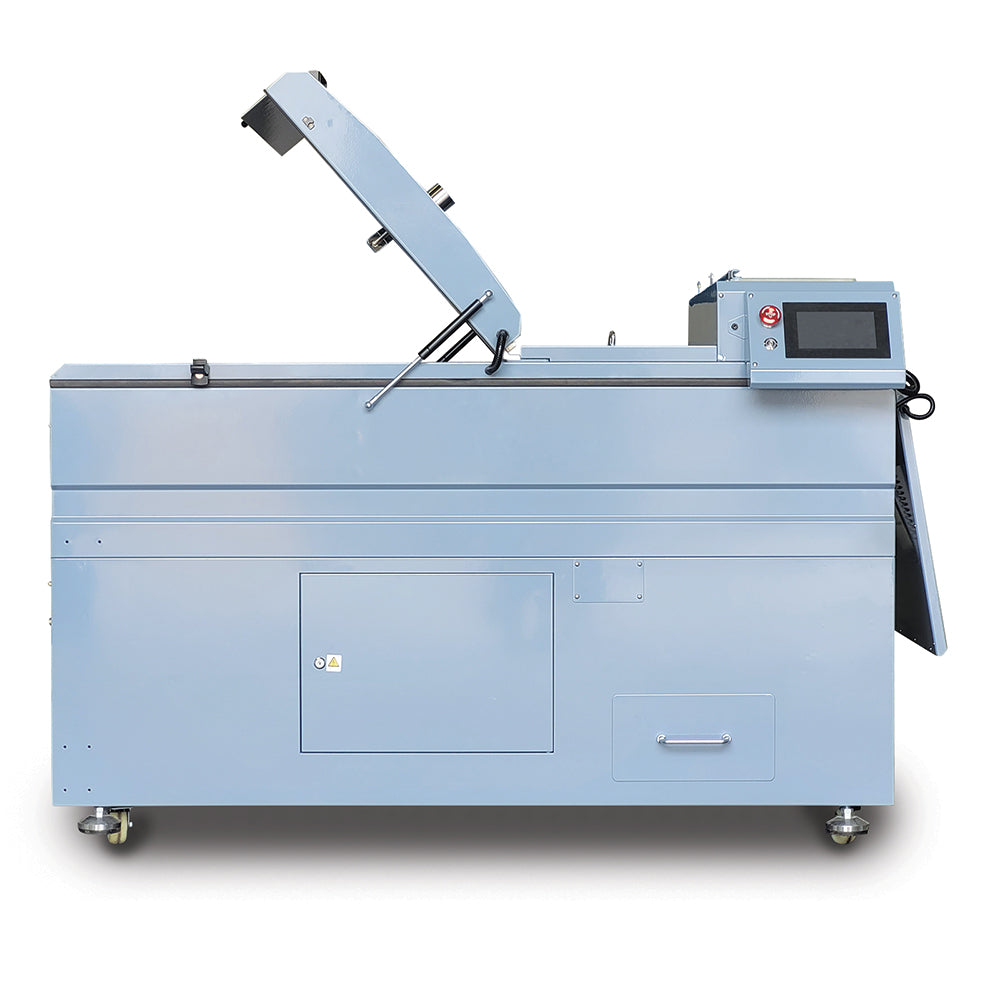

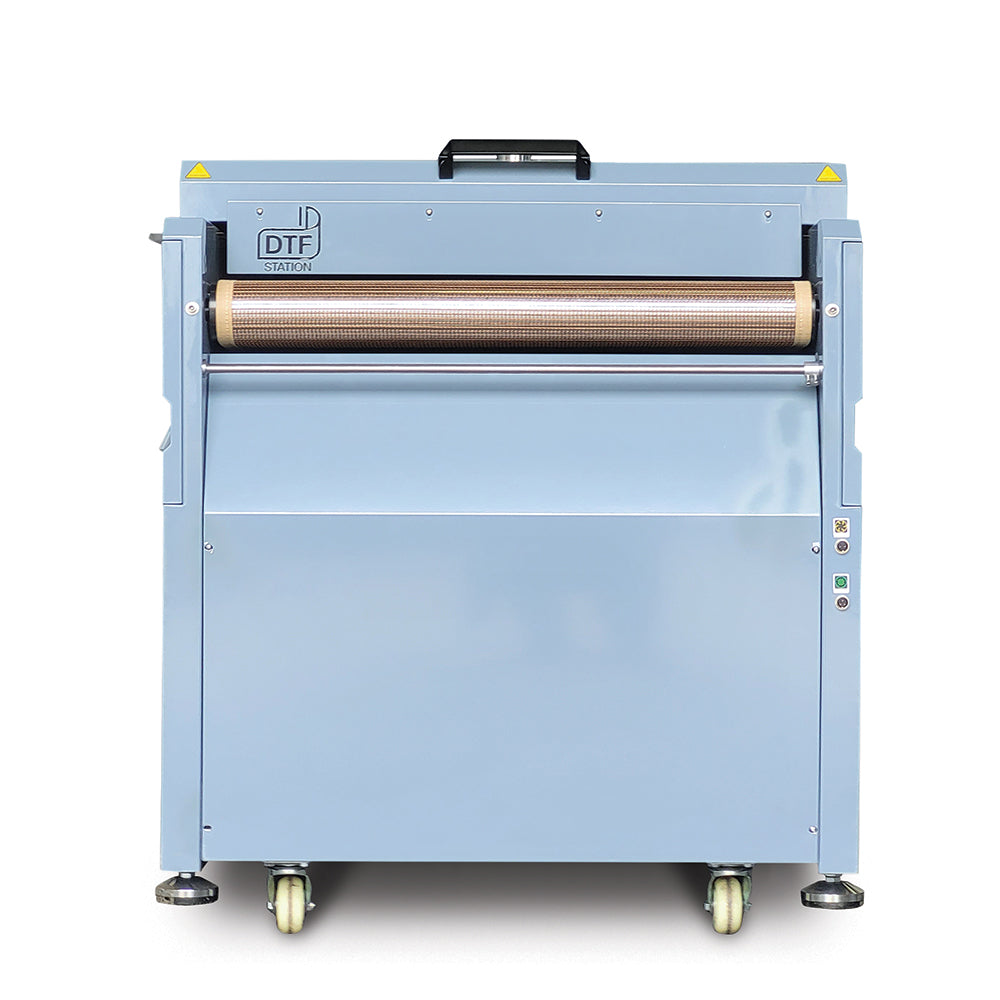

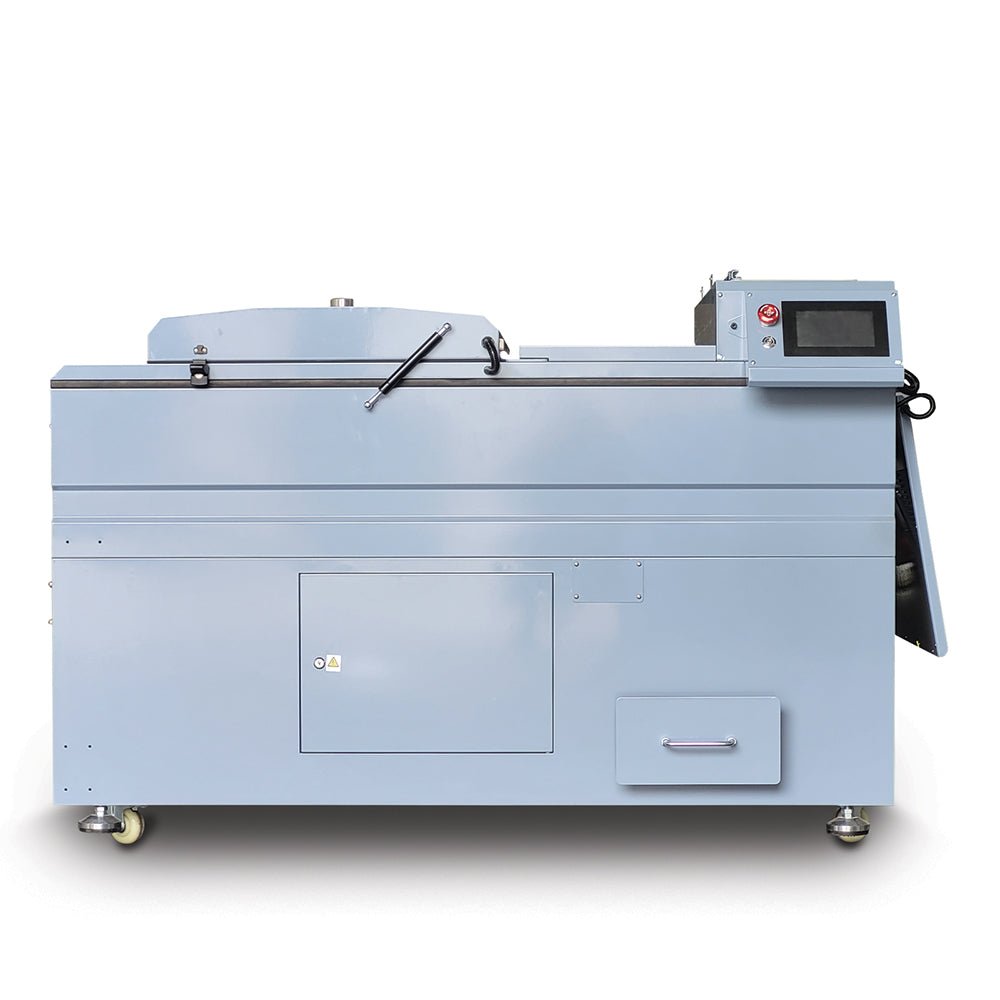

DTF Station Seismo V24 DTF Powder Shaker and Dryer

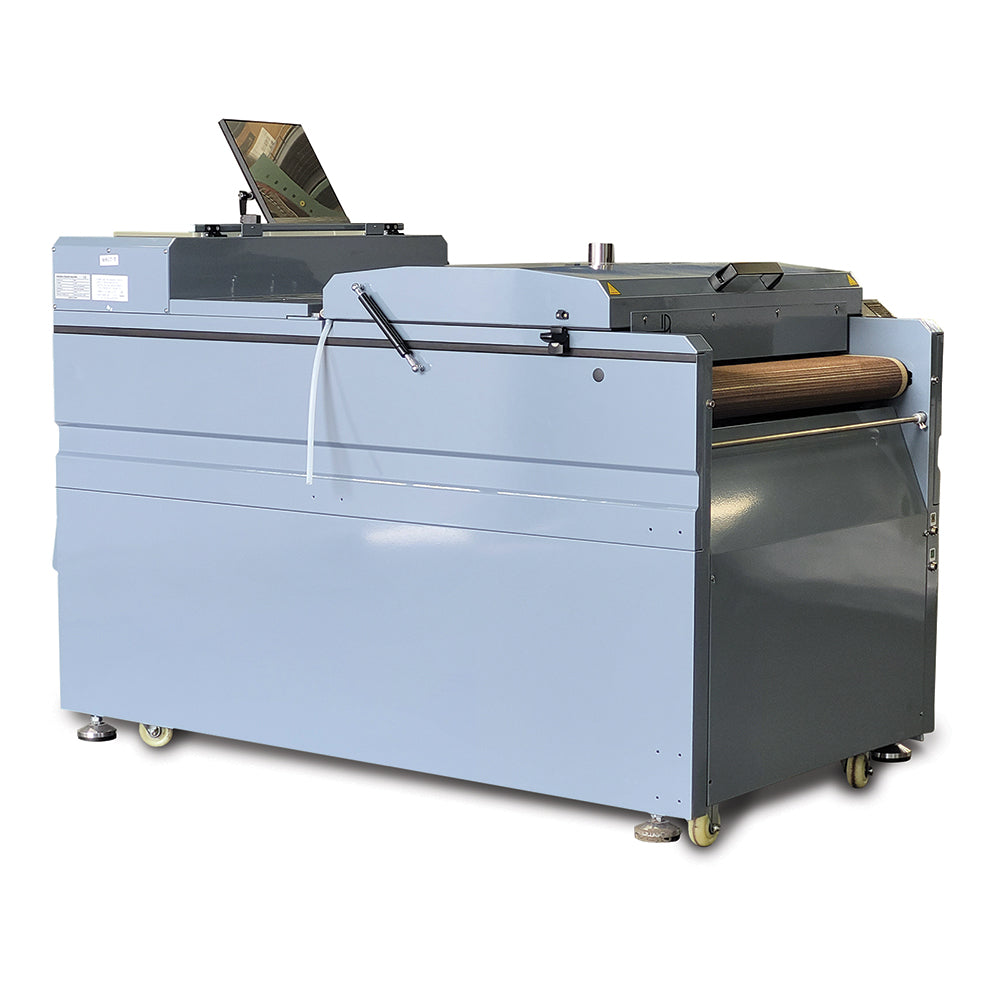

The Seismo V24 is a DTF Powder Shaker and Dryer with vacuum absorption conveying platform and touch screen display, ideal for high-speed DTF printers with two heads, like the Prestige L2 or Prestige XL2 from DTF Station.

Features and Benefits:

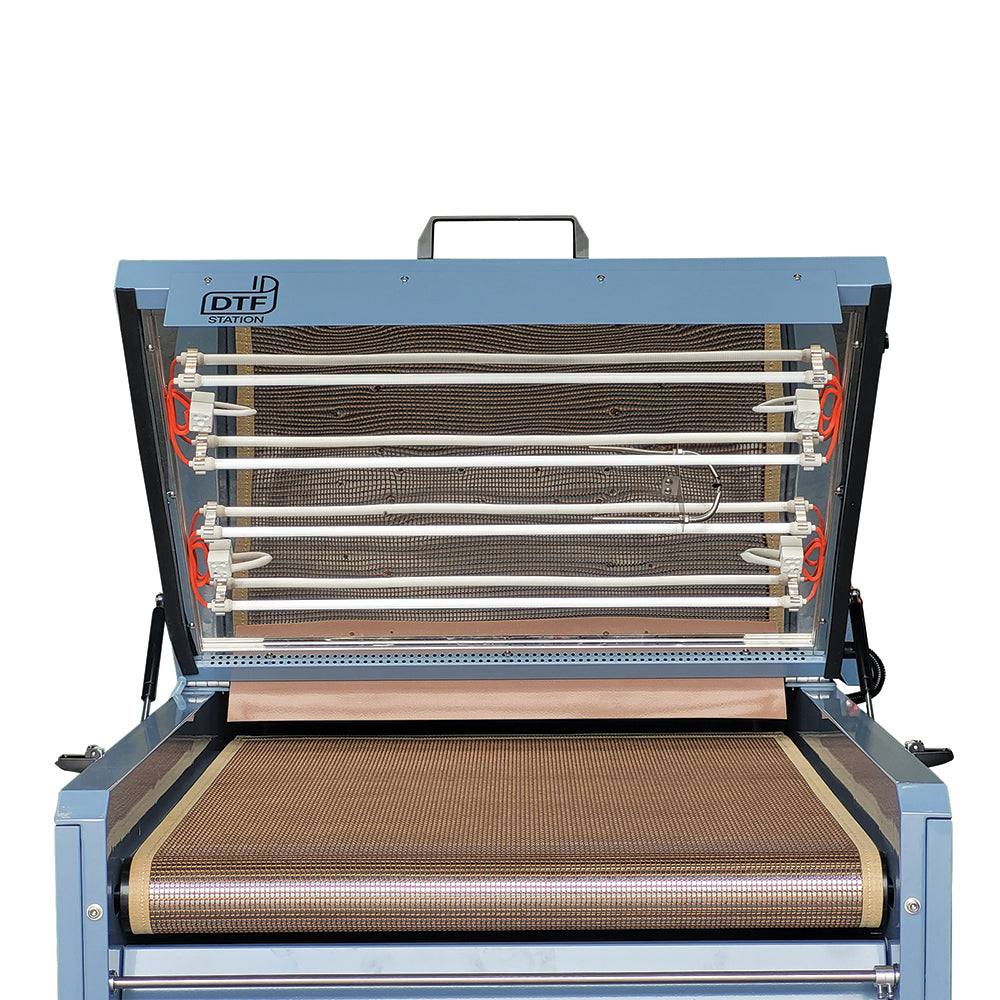

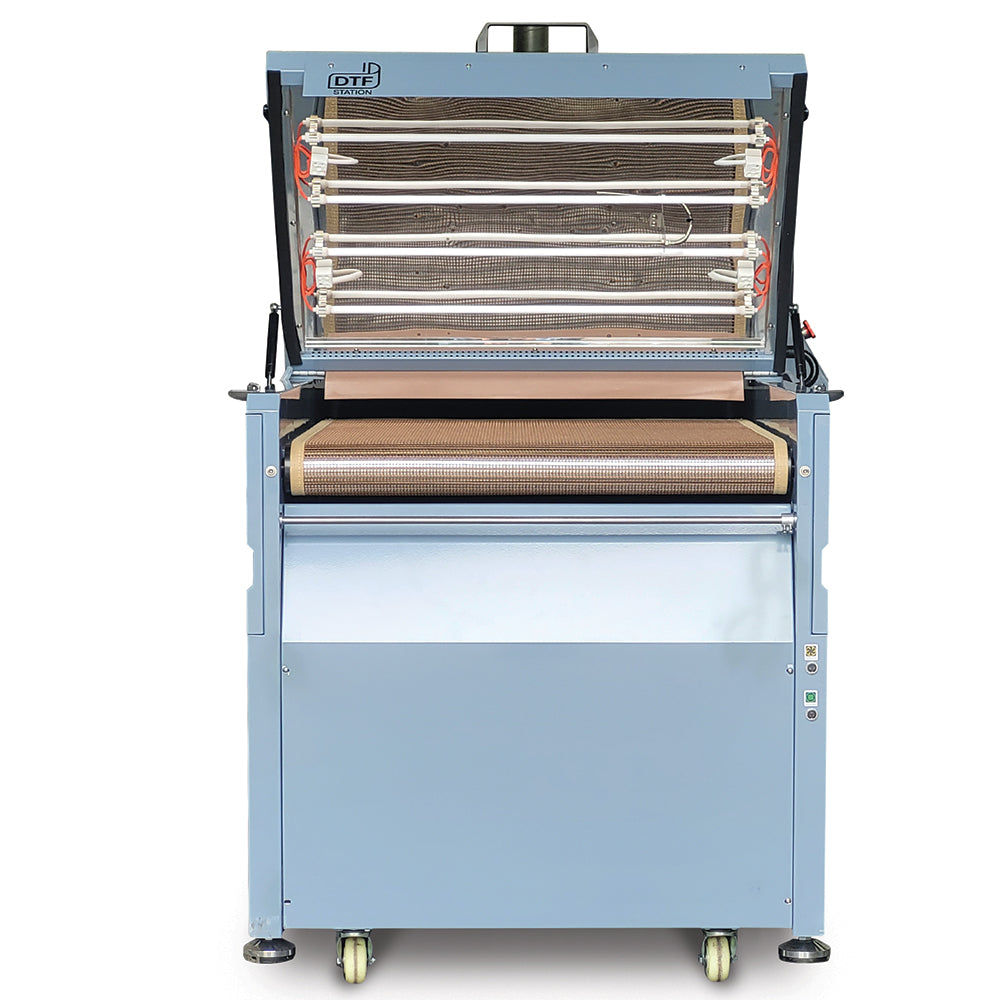

• With a warming inlet platform, automatic powder dispenser, powder removal paddle, 4 bulb tunnel dryer, and roll up at the end.
• Color reproduction is improved and protected by infrared drying and heating.

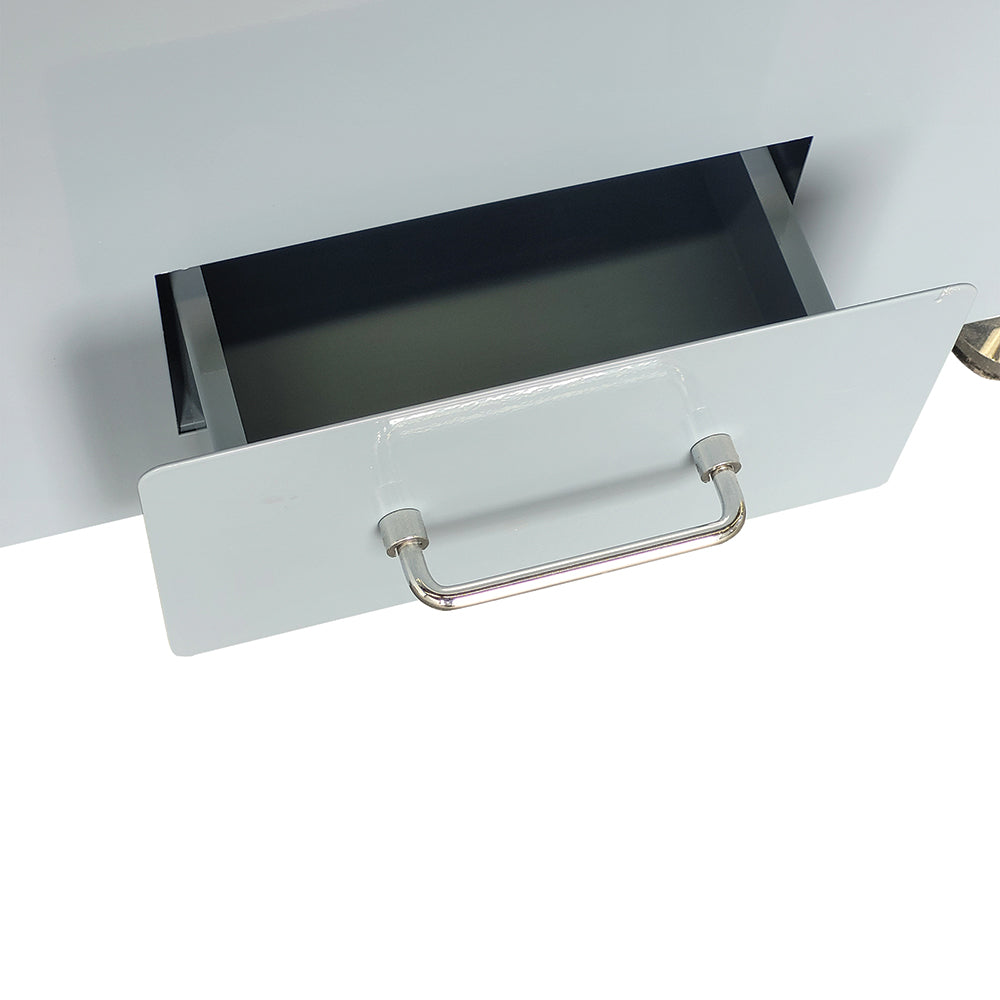

• Customized powder recycling drawer boosts efficiency.
• Control of shake powder, dusting, and curing temperature via PID.

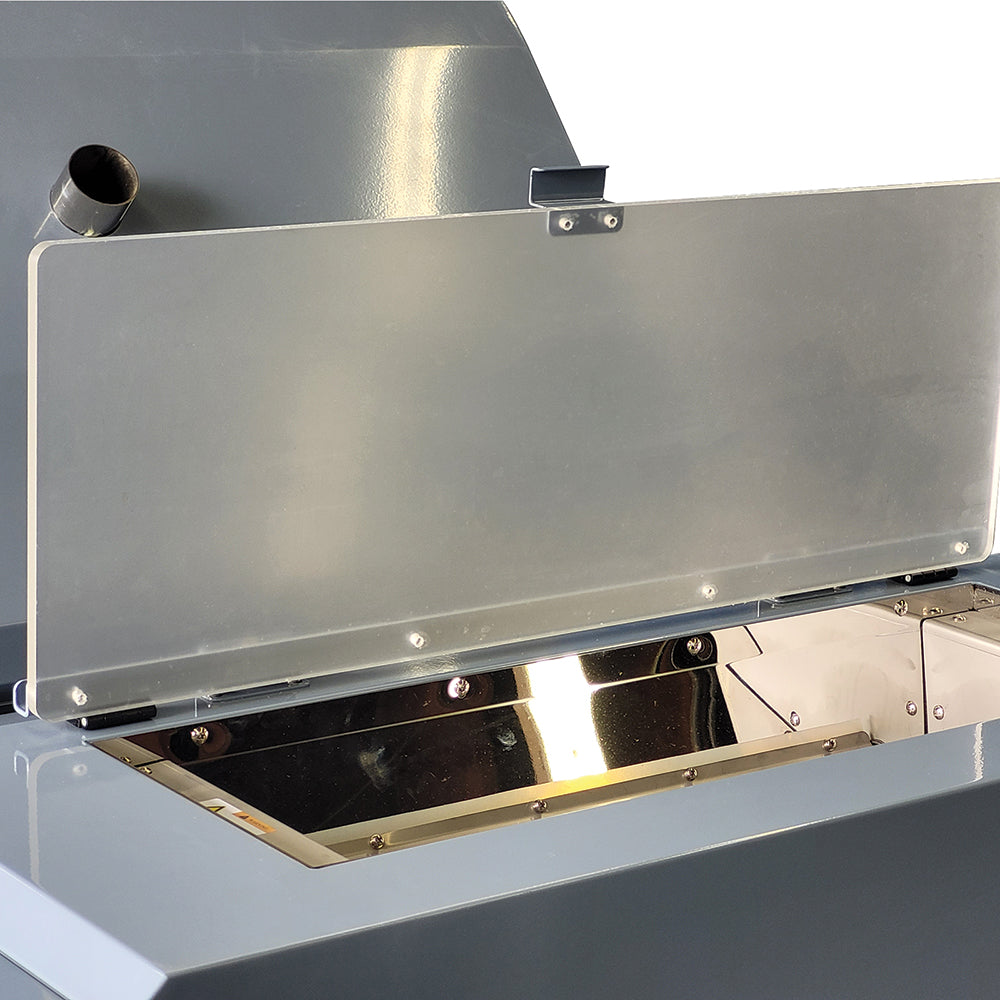

• Powder is evenly distributed thanks to automatic powder feeding.
• The vacuum absorption conveying platform keeps the printing material secure, preventing bulging, run-offs, and media waste.

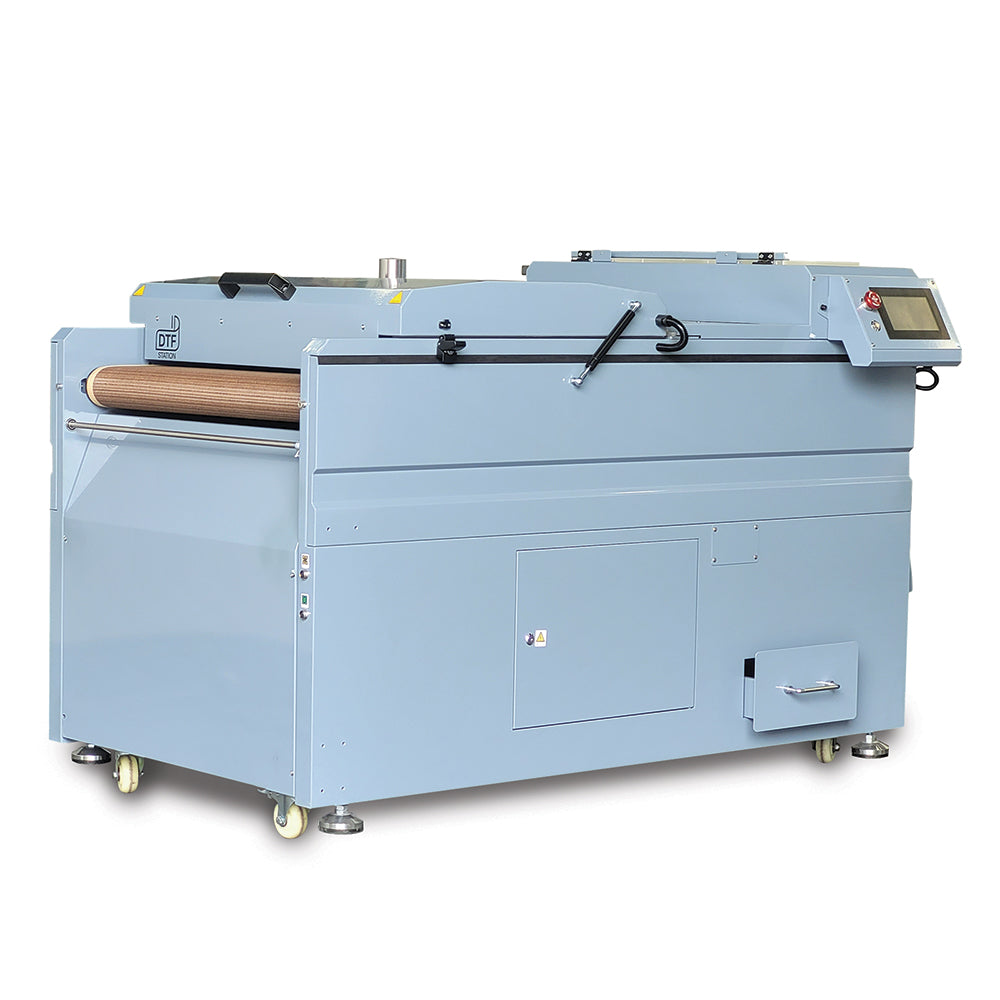

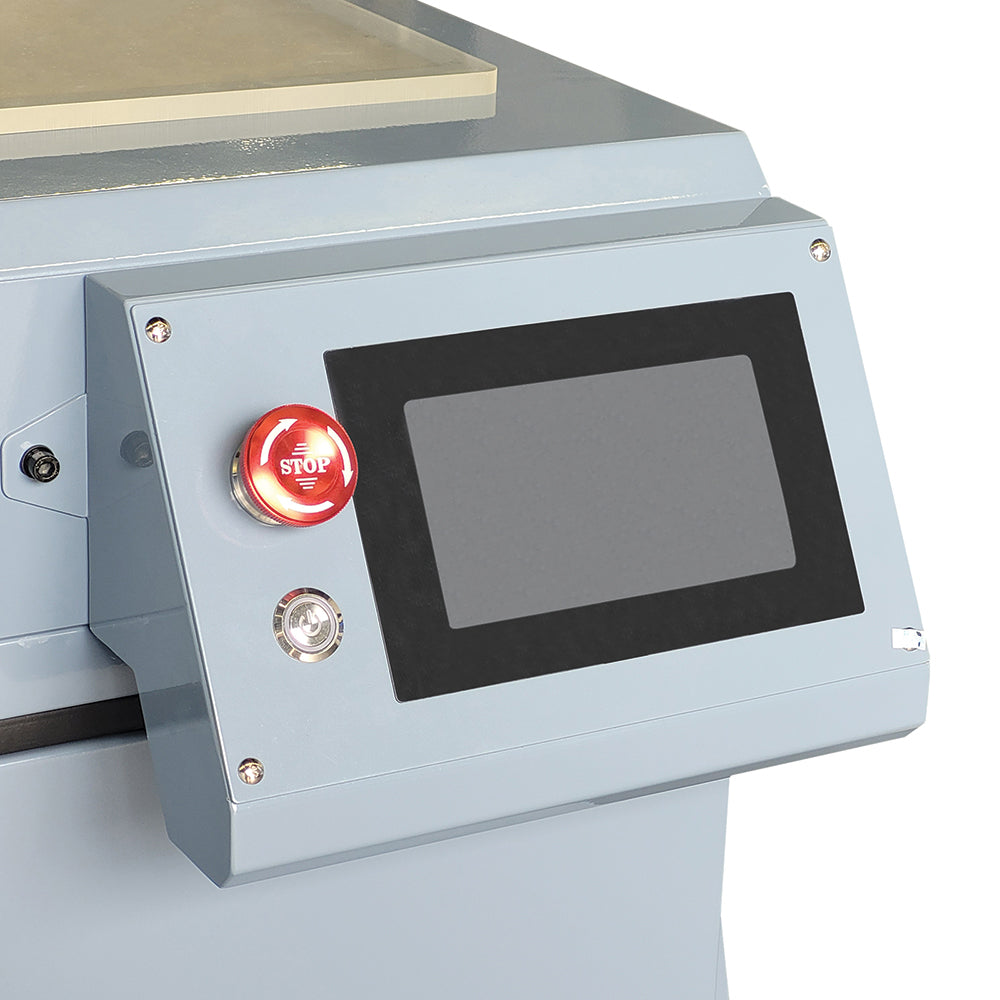

• Simple to use with a touch screen display controller.
• This all-in-one unit saves time, effort, and money by evenly spreading and melting the required amount of adhesive material directly onto your printed image.


Compatible With:

• DTF Station Prestige XL2 DTF Printer

Specifications:

• Max Film Width: 23.6"
• Functions: Shake powder control, dusting control, and curing temperature PID setting

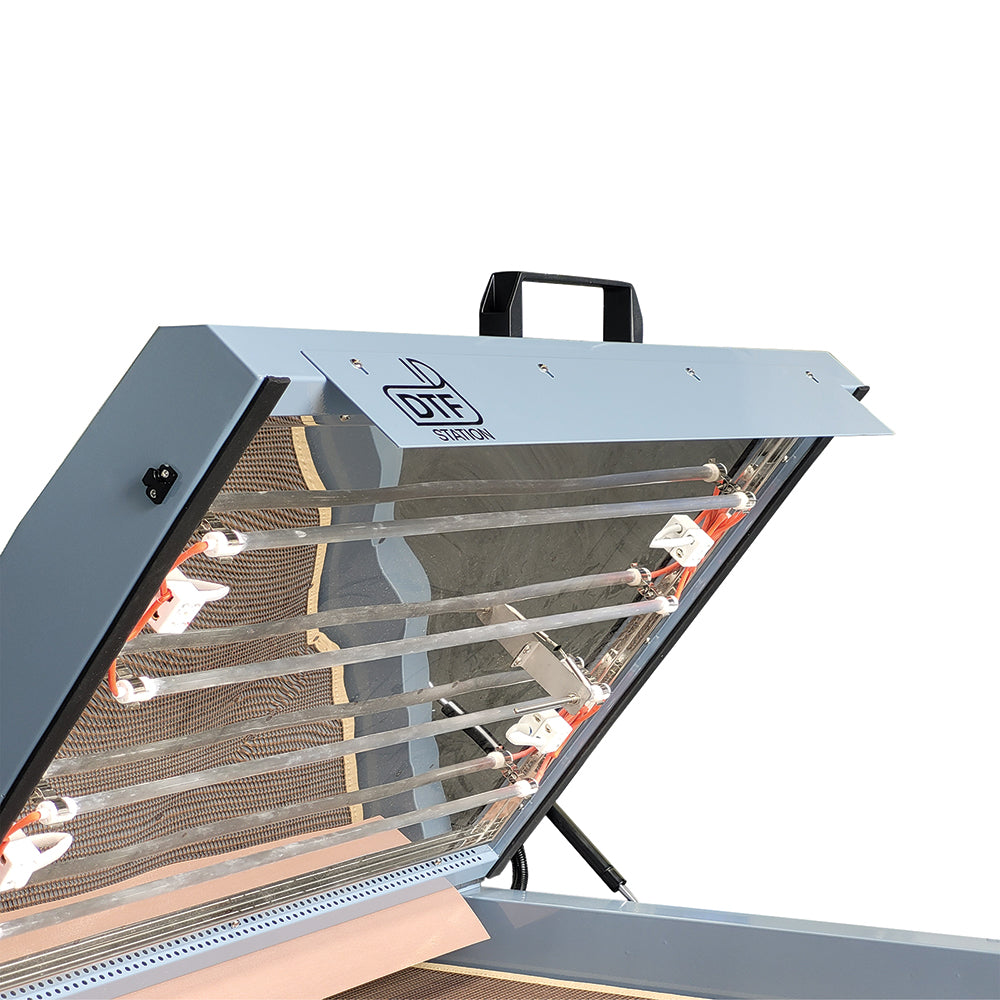

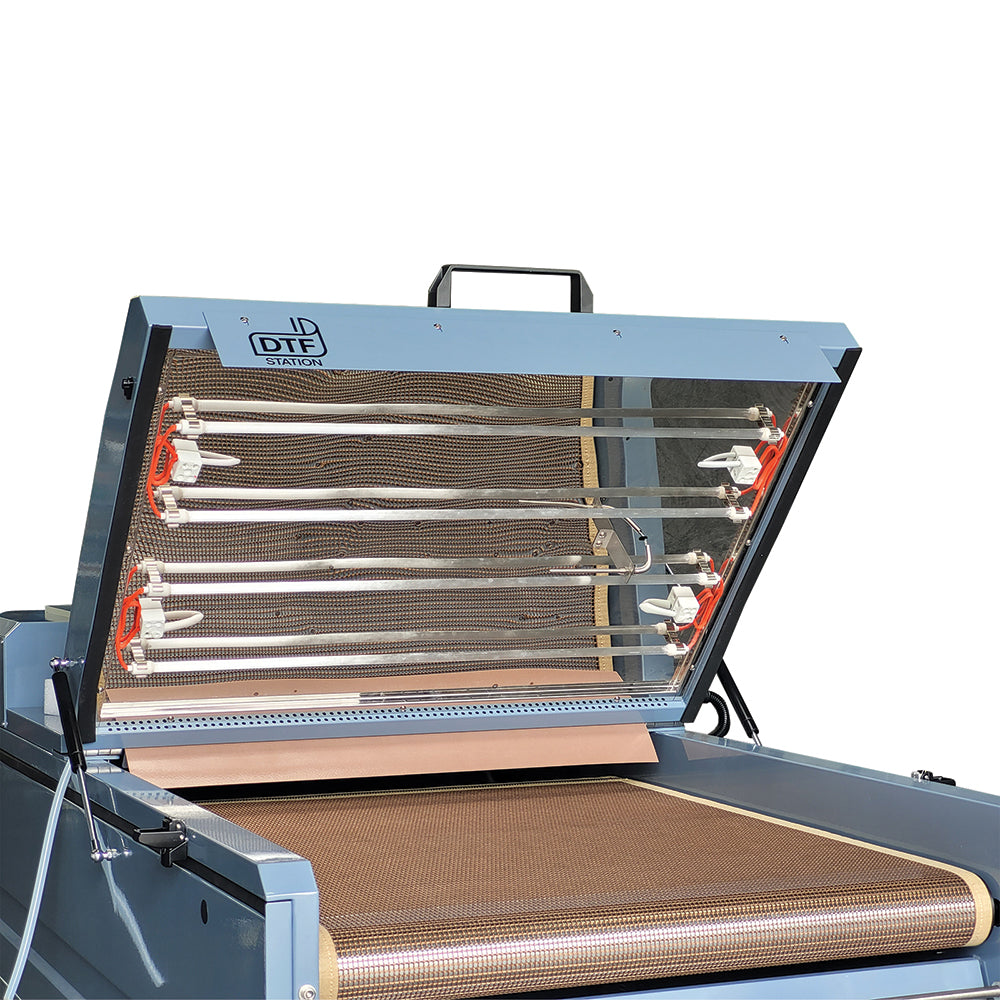

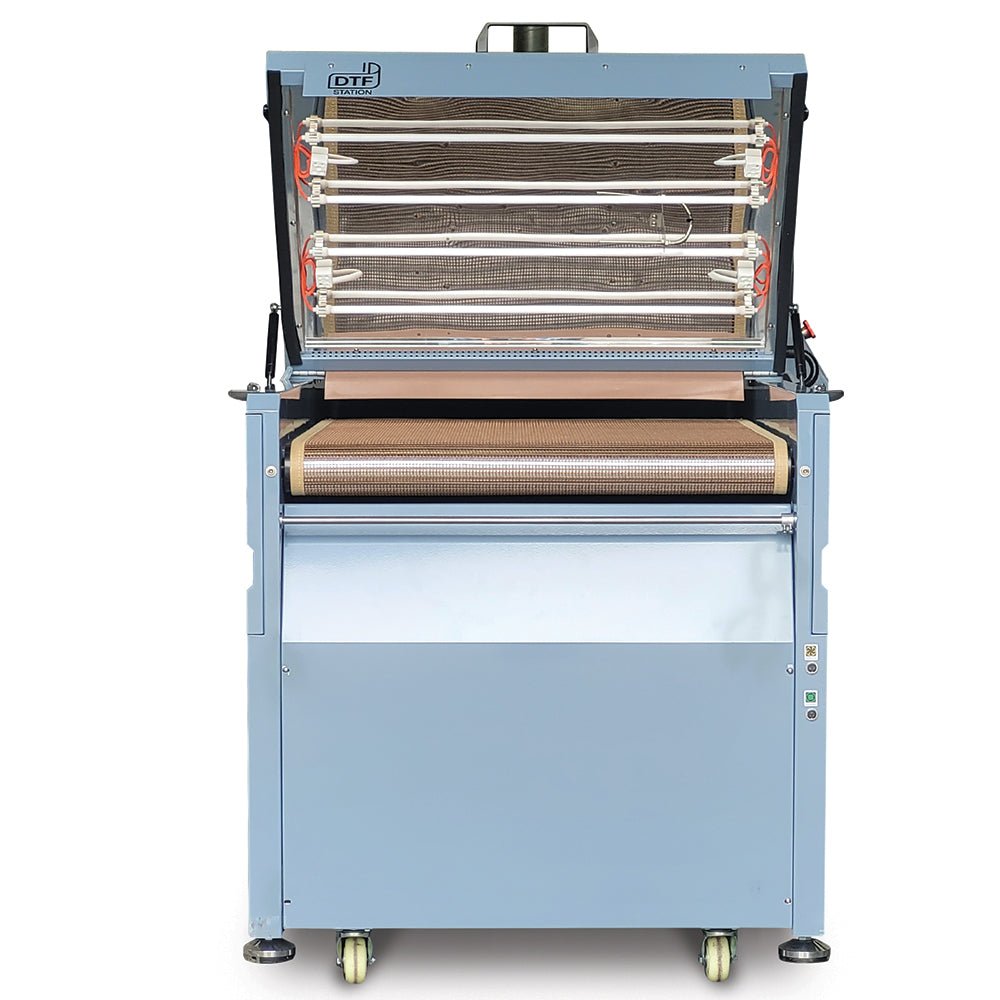

• Heating Element: Quartz infrared heat drying tube

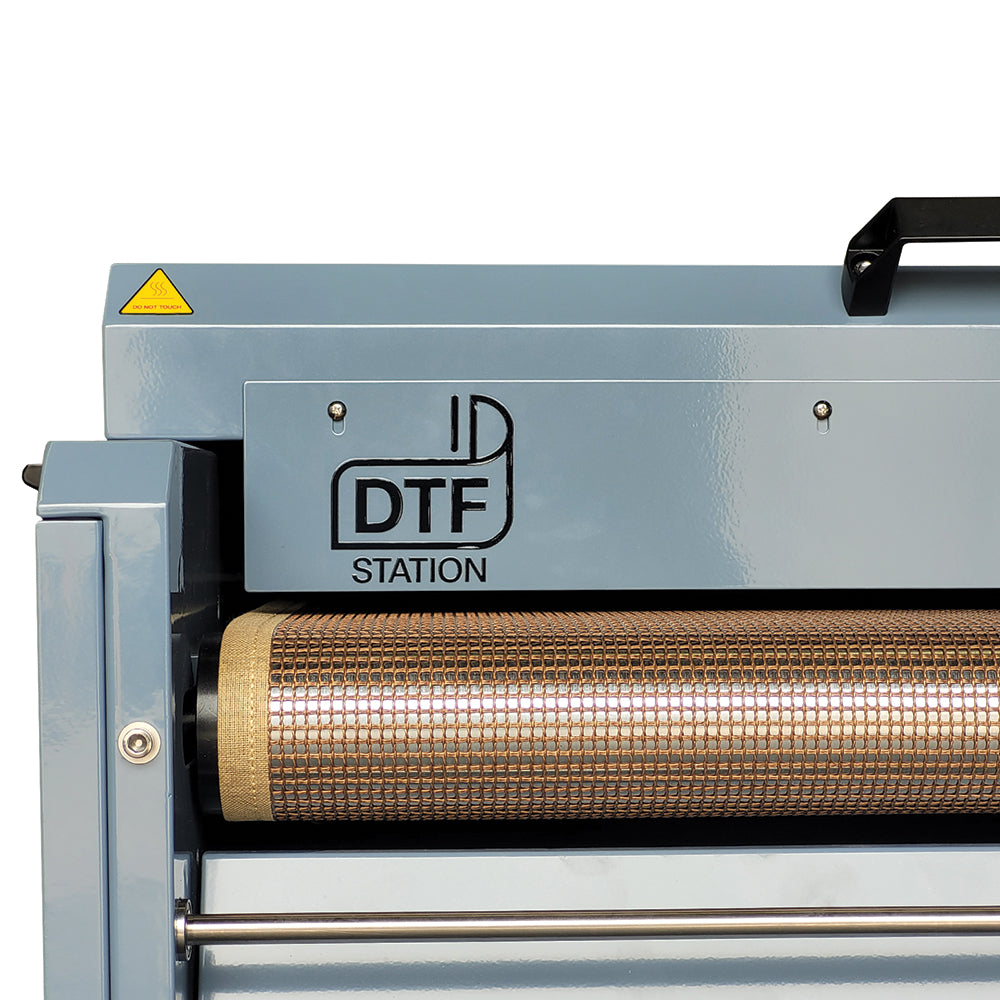

• Rewinding Function: Automatic induction rewinding
• Heating and Drying Mode: Front guide plate heating, upper drying curing
• Cooling Mode: 9 fun air cooling (2 raw)
• Machine Size: 76.9" x 39.5" x 43"
• Machine Weight: 528lbs
• Packaging Size: 70.5" x 44.1" x 44.5"
• Packaging Weight: 638lbs
• Power Supply: 220V, 50hz / 60hz, 1 phase
