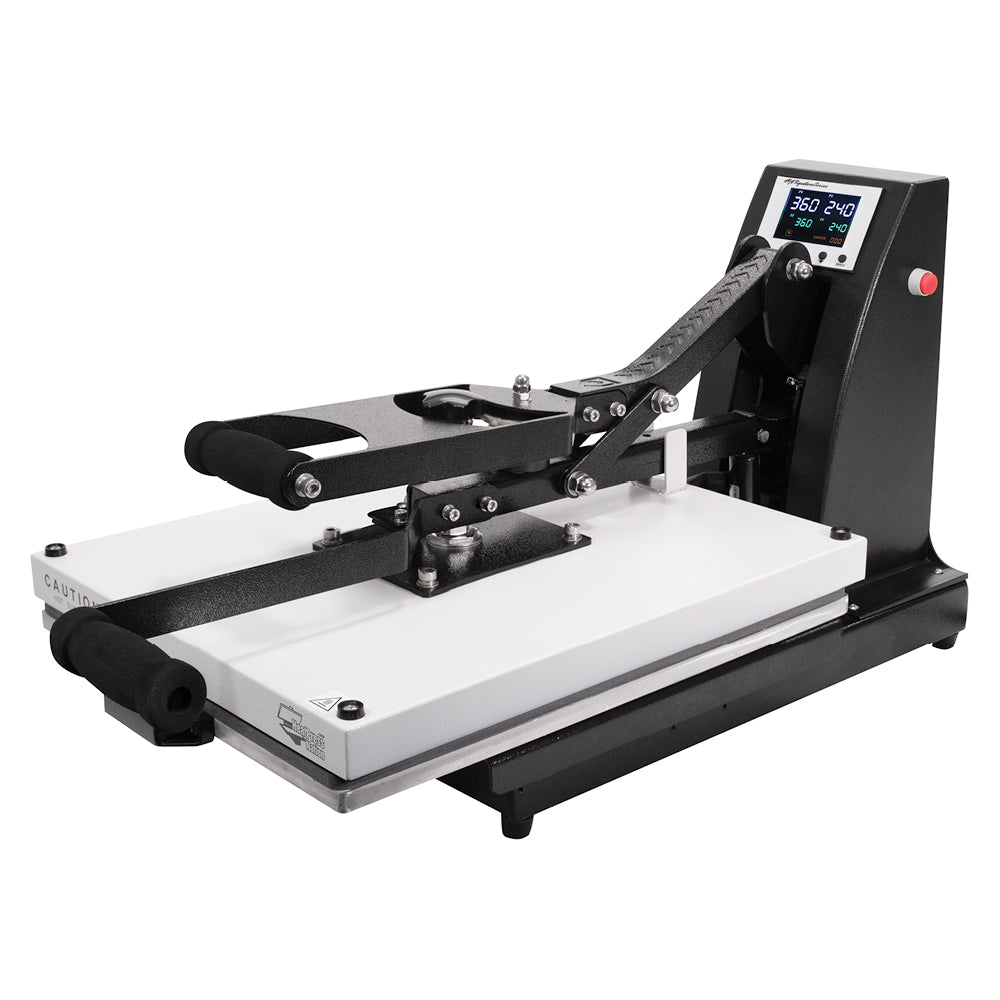

HPN Signature Series 16" x 20" Auto-Open Slide Out Drawer


Sale price$899.95

Found a Lower Price?

Learn More About MyExpert Protection Here

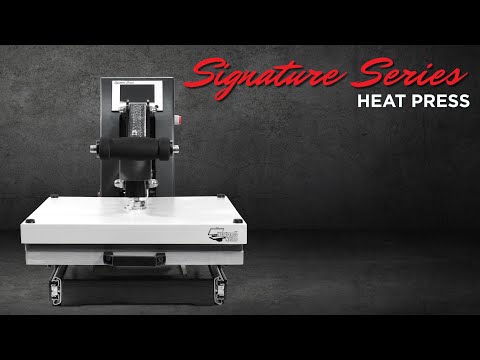

Introducing the HPN Signature Series! The quality and reliability of the HPN brand heat presses have been taken to a whole new level with the Signature Series.

The HPN Signature Series is packed with a surplus of features that surely defines why we have coined this our Signature line of heat press machines. With the inclusion of the unique bottom slide-out drawer, an enhanced time/temperature gauge, and the aiding gas shock opening mechanism, our Signature Series line of heat presses has almost certainly become a staple in the industry and a favorite among the heat transfer community. Designed to be user-friendly, high caliber and competitively priced, the HPN Signature Series line of heat press machines are sure to become a favorite of business owners and heat transfer enthusiasts everywhere.

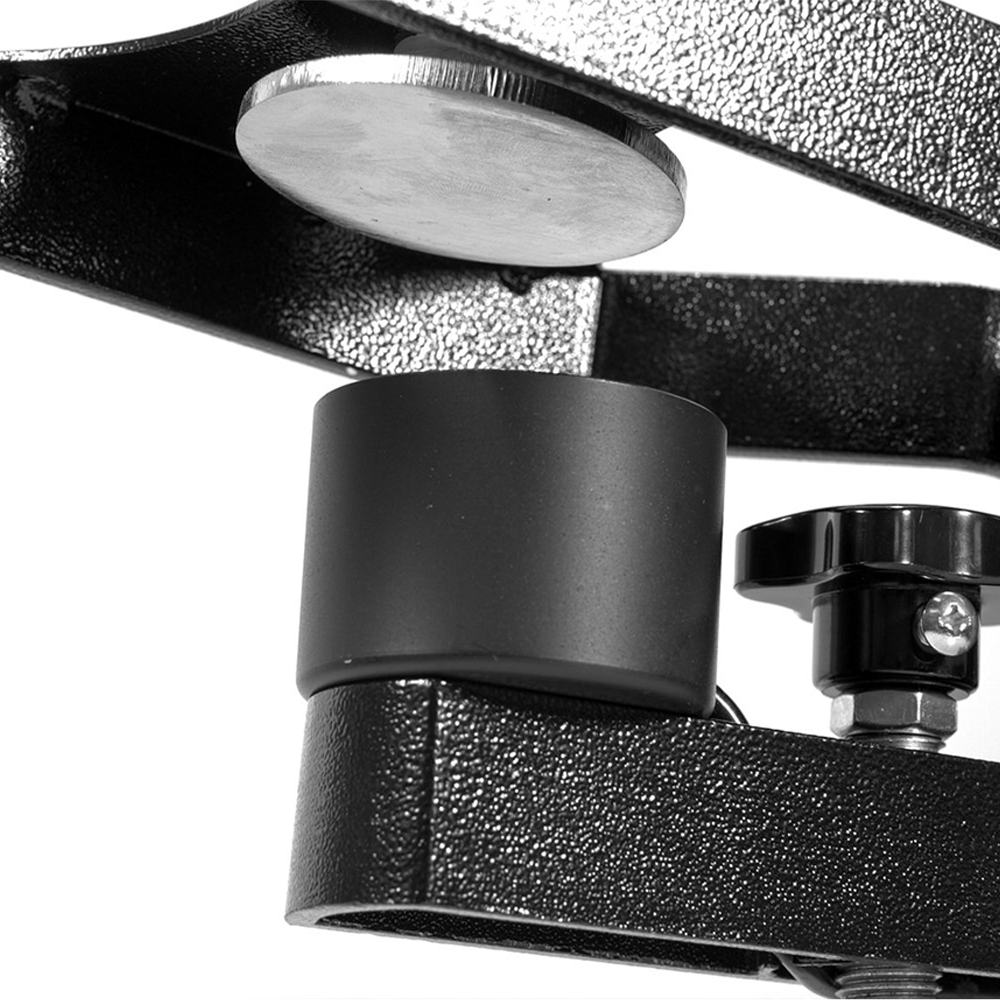

 Auto Open Magnet

Magnetic Auto-Open Release: Activated magnetically, the auto-open release feature on the HPN Signature series allows the heat press to open automatically when the timer reaches zero, giving your time to focus on other aspects of your project while your material transfers.

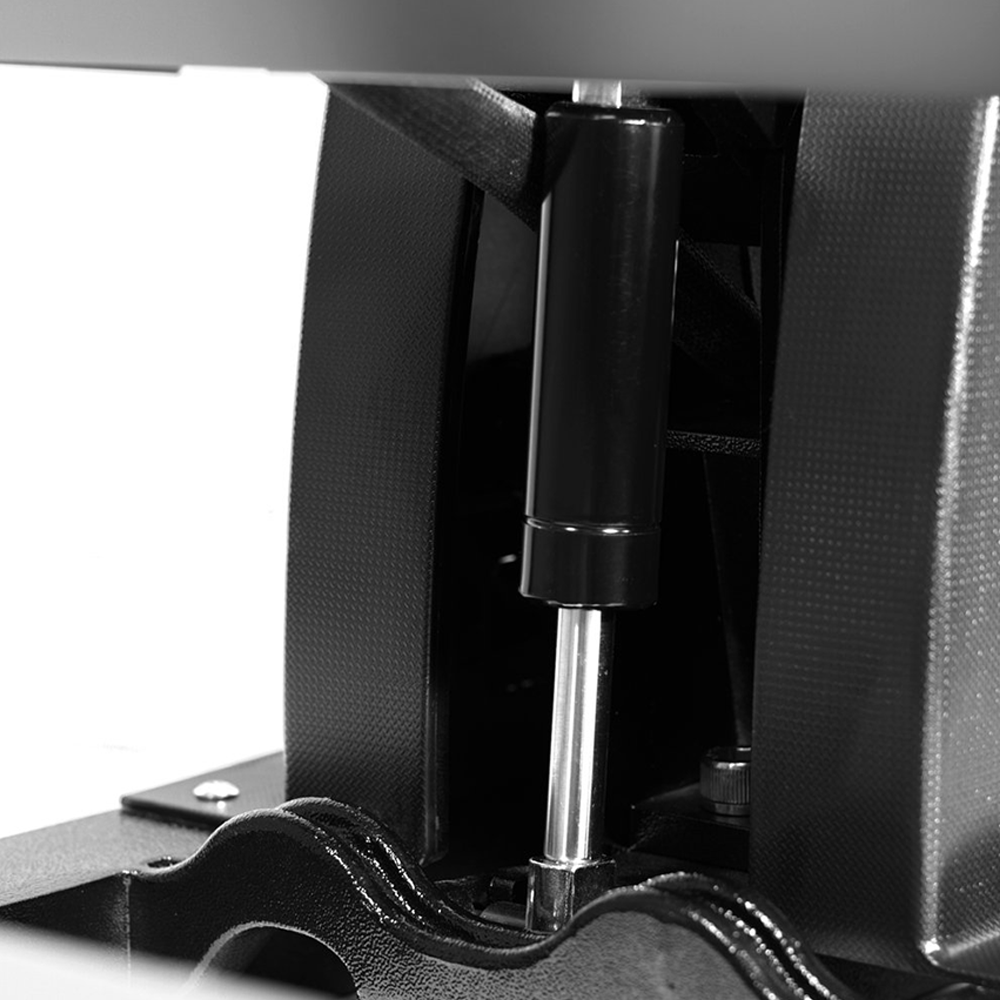

 Gas Shock

Gas Shock Opening Mechanism: The HPN Signature Series provides high pressure with smooth and easy opening and closing action. The powerful clamp mechanism is now complemented by a gas shock opening mechanism, making it one of the most comfortable to operate manual heat presses on the market today.

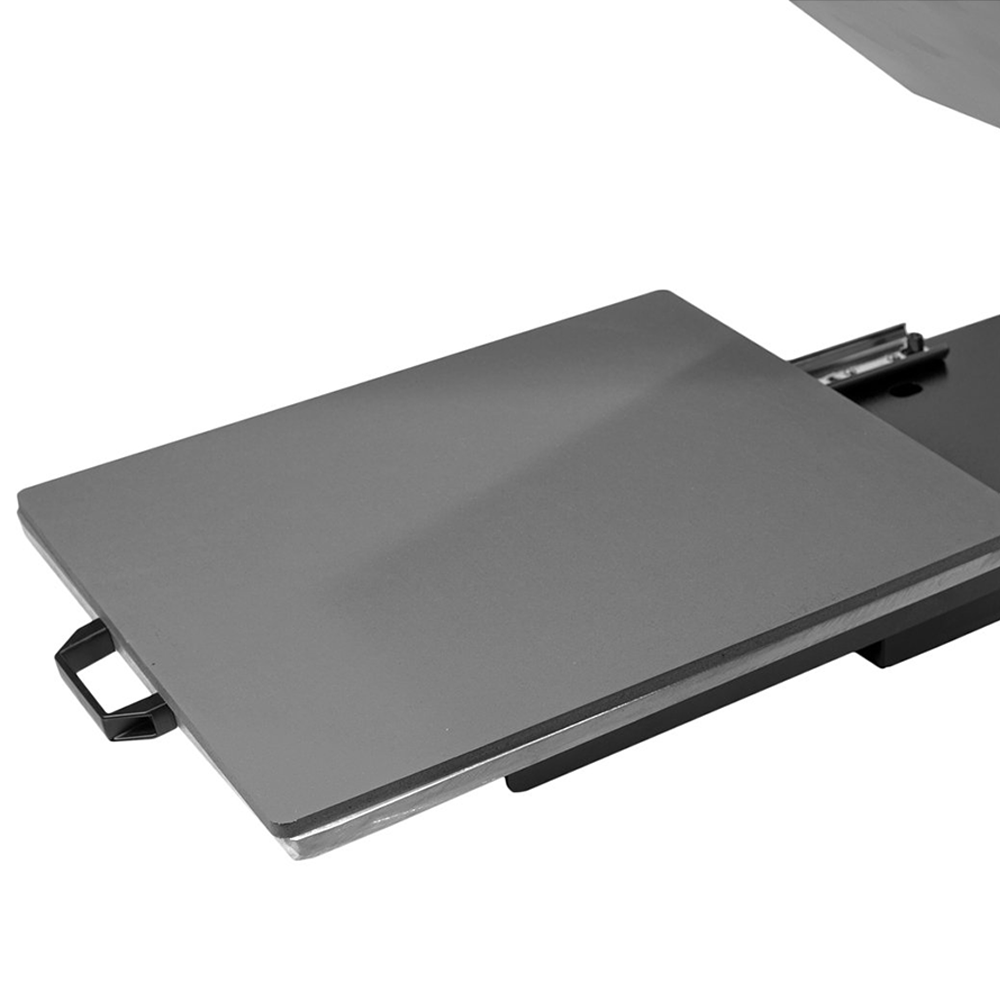

Slide Out Lower Platen

Drawer Style Lower Platen: The drawer style lower platen allows you more space to lay down your transfer material without having to put your hands directly underneath the heat. This feature provides you with increased safety while maintaining the compact nature of a clamshell heat press.

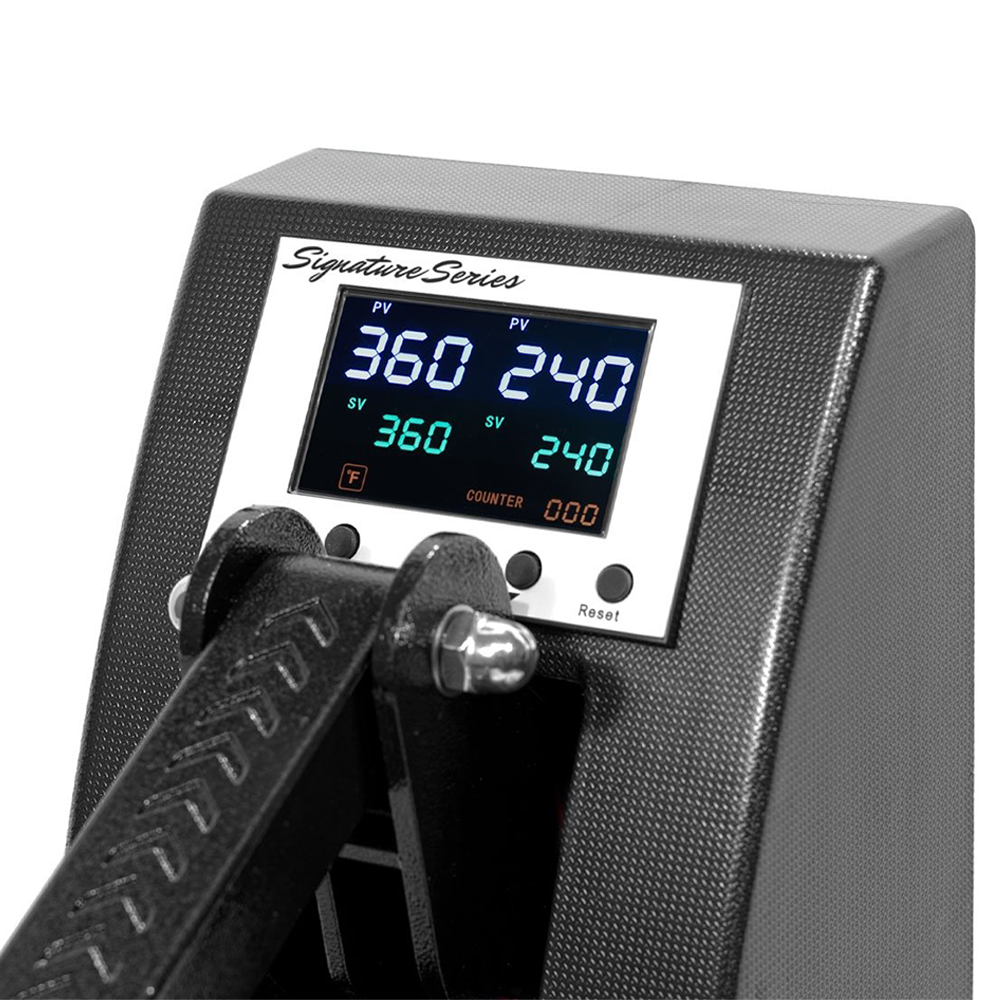

Digital Computer Gauge

Upgraded Time/Temperature Gauge: Setting the time, temperature and changing temperature scale from C to F is now easier with the HPN Signature Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds for it reaches zero to prevent overheating of your material.

  • Improved heating element for quicker heat up

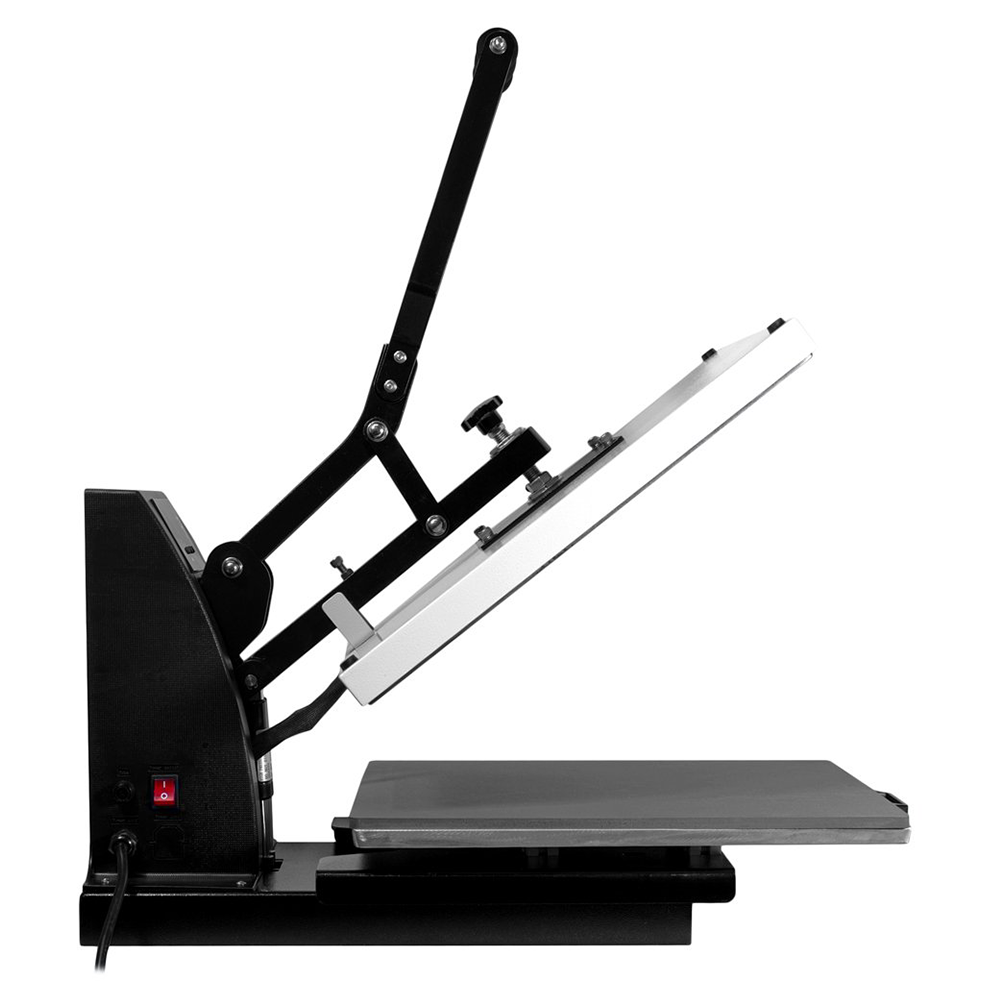

  • Opens approximately 50 degrees
  • Thick items capable (up to 1/2 inch thick)
  • Full pressure range knob
  • Reinforced structure to ensure high pressure
  • Adjustable low to high-pressure clamp
  • Solid steel welded framework
  • Complete commercial business grade

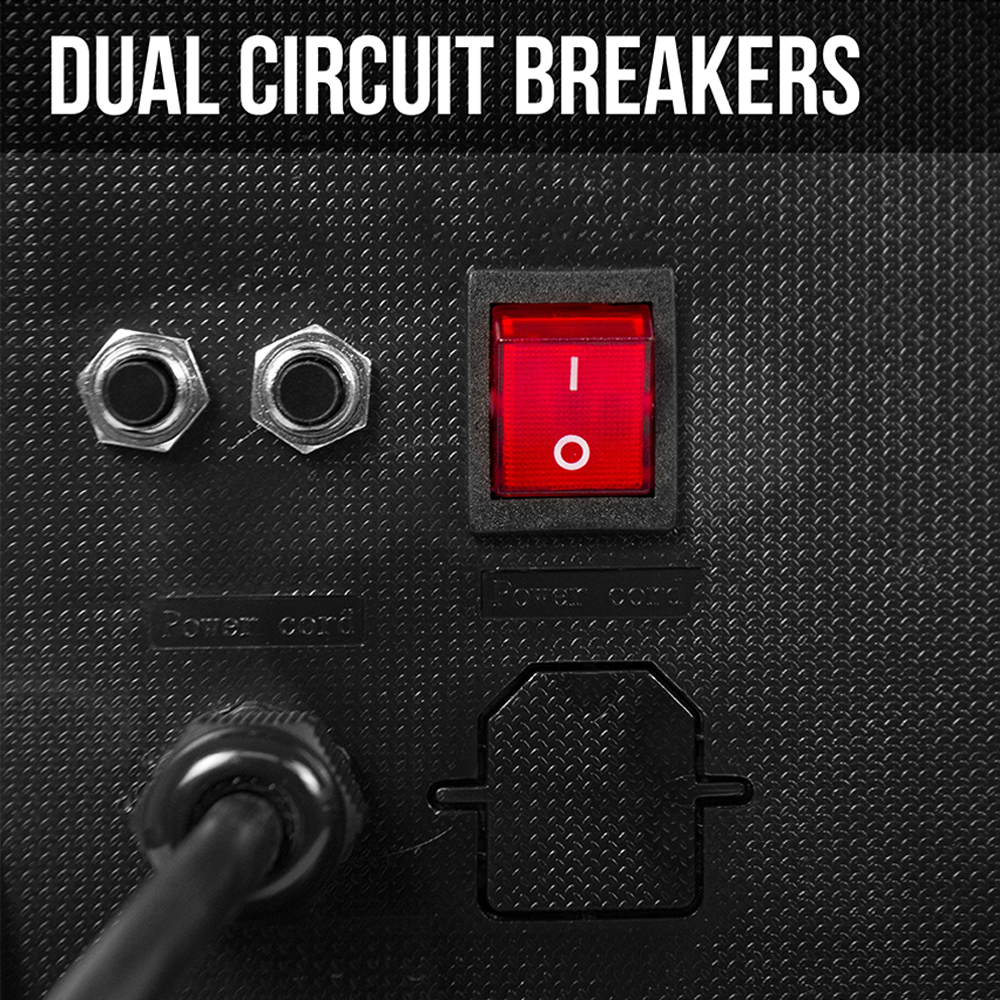

  • Dual Fuse Protection
  • Secondary Leverage Handle
  • 16" x 20" Baked-on, Non-Stick Coated Heat Platen
  • Digital Temperature Control
  • Digital Automatic Timer


  • Heat Press Style: Auto-Open/Clamshell/Drawer
  • Gauge Reading: Fahrenheit or Celsius degree measure
  • Voltage: 110V
  • Power Rating: 1600W/14 Amps
  • Maximum Temperature: 400º F
  • Time Range: 0-999 Seconds
  • Shipping Weight: 148 lbs


All Signature Series heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.

The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

Our MyExpert Support will always be there for you so you can purchase with confidence!

Extended Warranty

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.


  • 2 Years Total Coverage - $49.99
  • 3 Years Total Coverage - $79.99
  • 4 Years Total Coverage - $99.99

Add "MyExpert Protection" when adding your product to the cart
