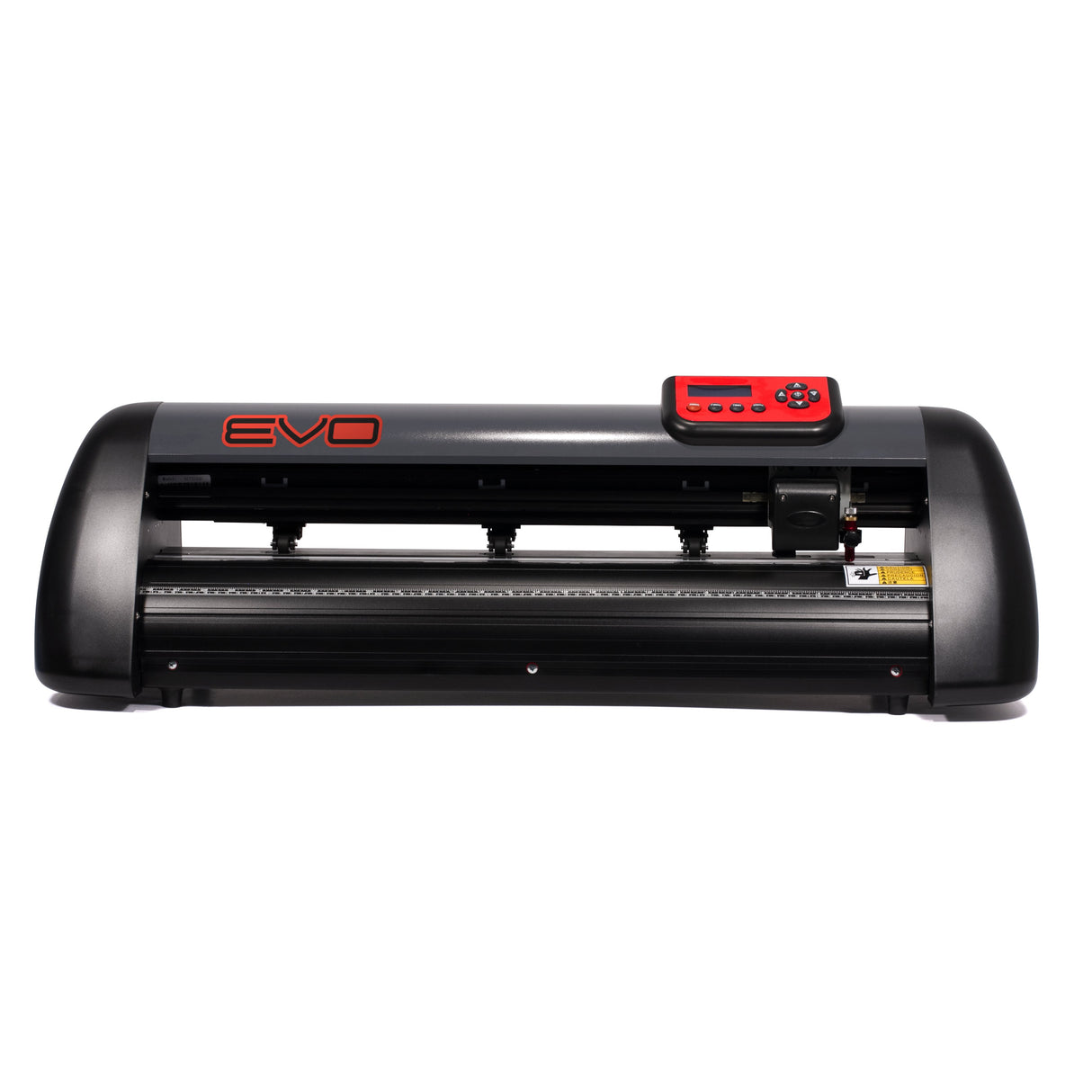

Vinyl Systems Evo 28" Cutter Plotter - Contour Cutting DC Servo Motor



Introducing the Vinyl Systems Evo: the next evolution of machines in the vinyl cutting industry. When it comes to performance and power, the Vinyl Systems Evo vinyl cutter/plotter is the best on the market. This second to none vinyl cutting machine features a reliable DC Servo motor with a cutting force of 10-800 g. What does this mean for you? Well, in short, it means that you can have all the speed and performance with none of the noise. This cutter also includes an iron alloy stand with a catch basket. Whether you're working with heat transfer vinyl or adhesive sign vinyl, the Vinyl Systems Evo will get the job done like no other.

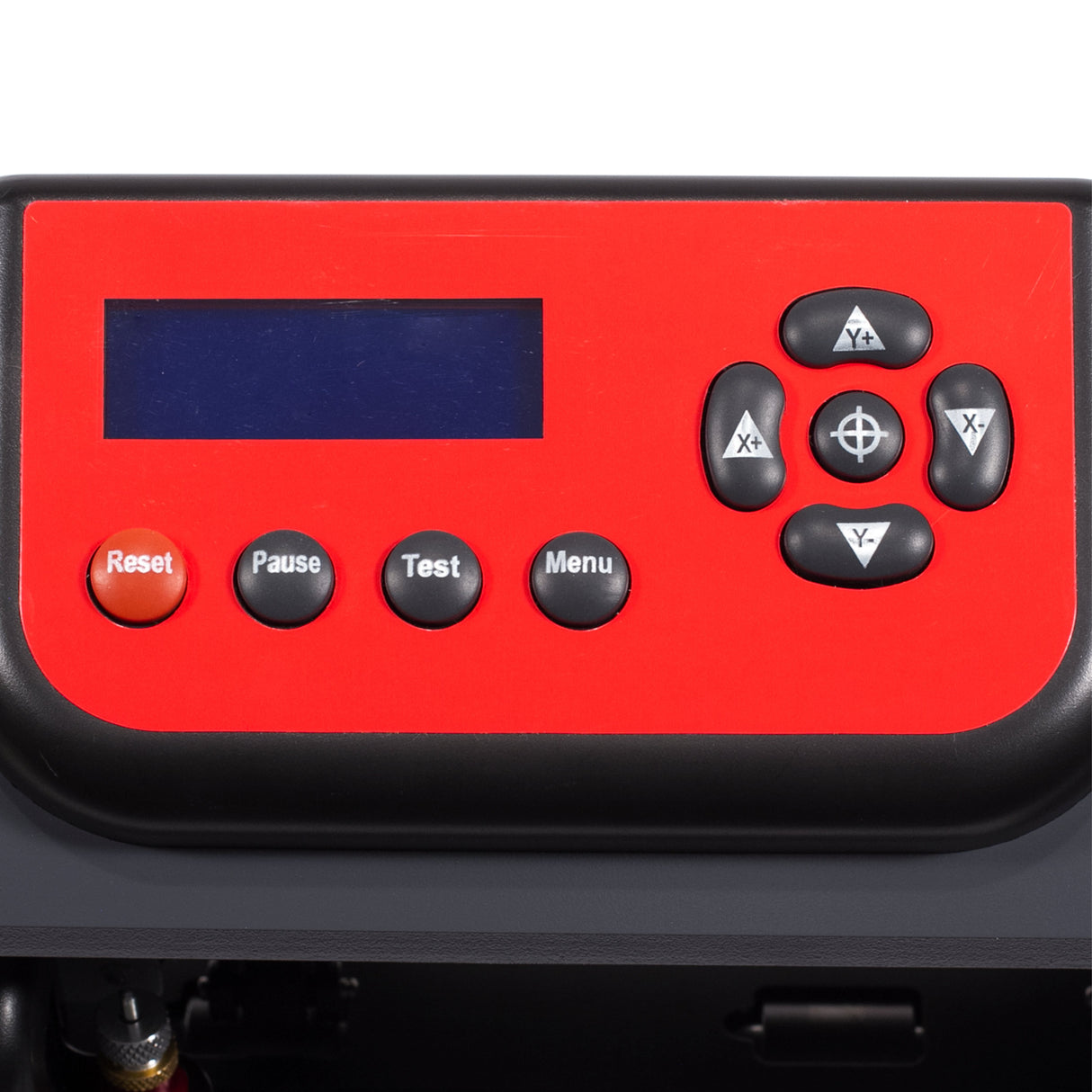

Easy To Use Interface:
The Evo's control panel features a 32-bit CPU with 1MB-4MB High-speed CACHE memory, but most notably, it is very user-friendly and easy to use.

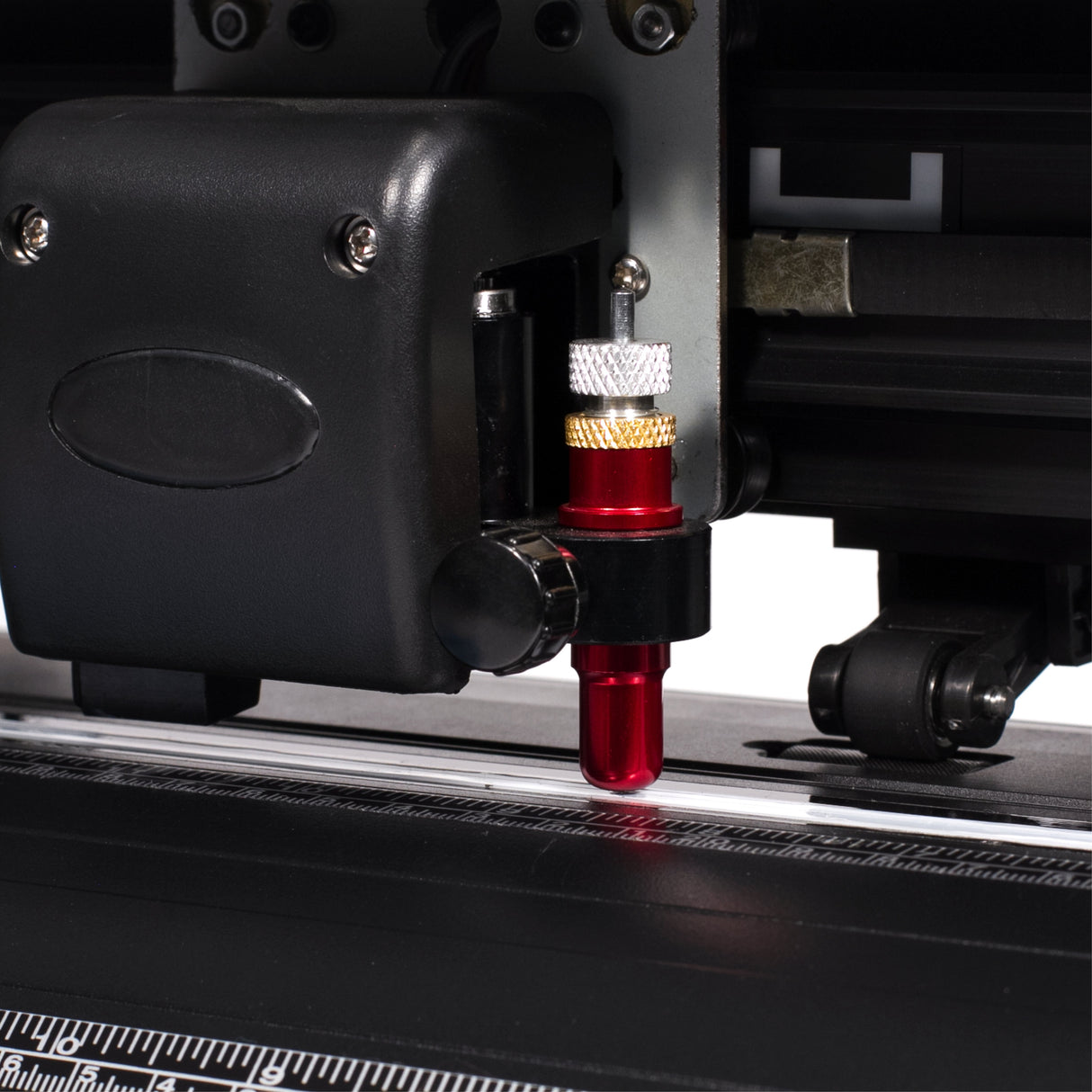

800 Grams of Cutting Force:
Digitally adjustable cutting forces, ranging from 10 to 800g, accommodate a variety of materials, including heat transfer paper, standard and flock heat transfer vinyl, sandblast, card stock, adhesive sign vinyl and more.

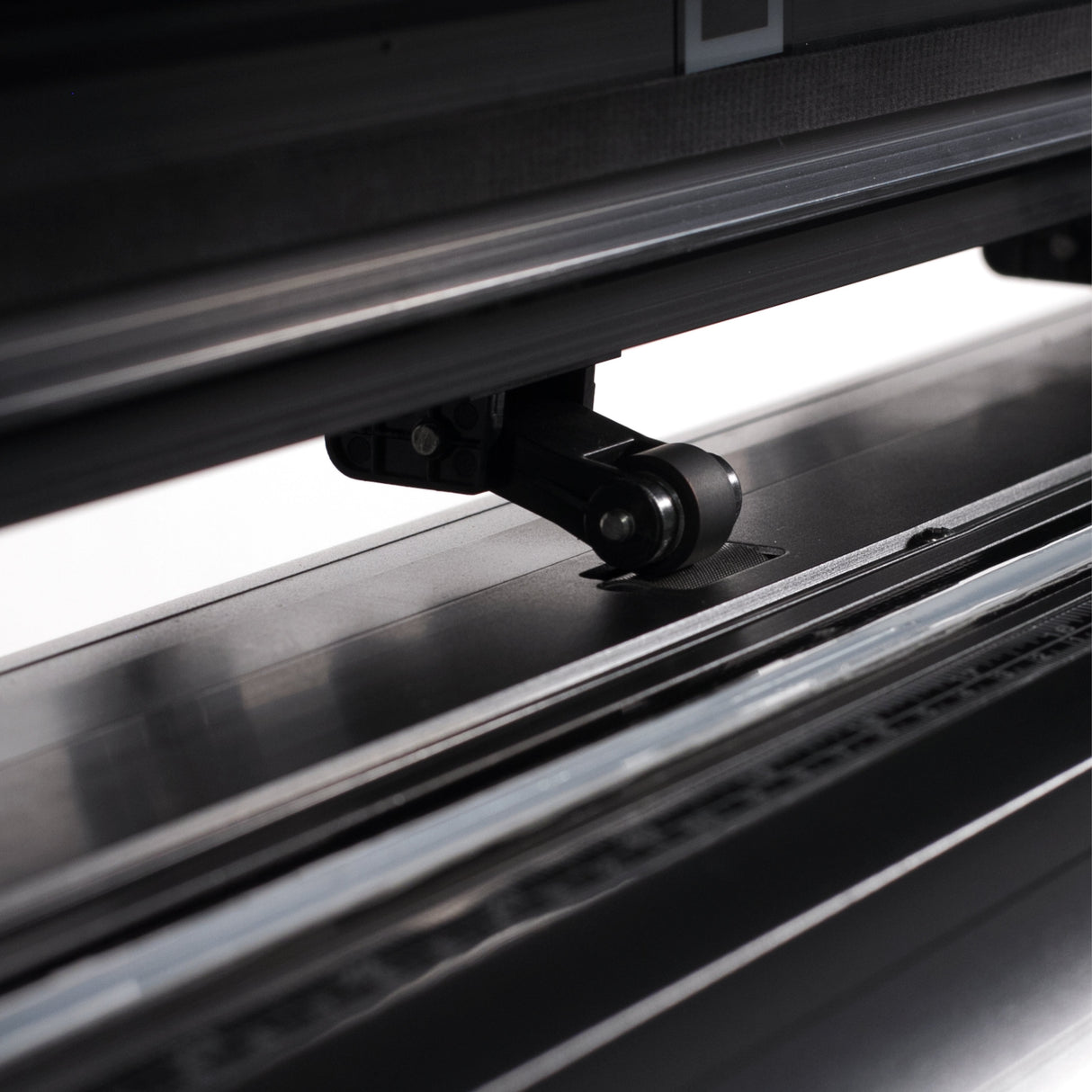

Guaranteed 3-meter tracking:
The Evo is built from the finest parts that come with every Vinyl Systems cutter. It comes from a stable drum that can guarantee 3-meter tracking to ensure quality outputs and saves you from wasted material and cost.

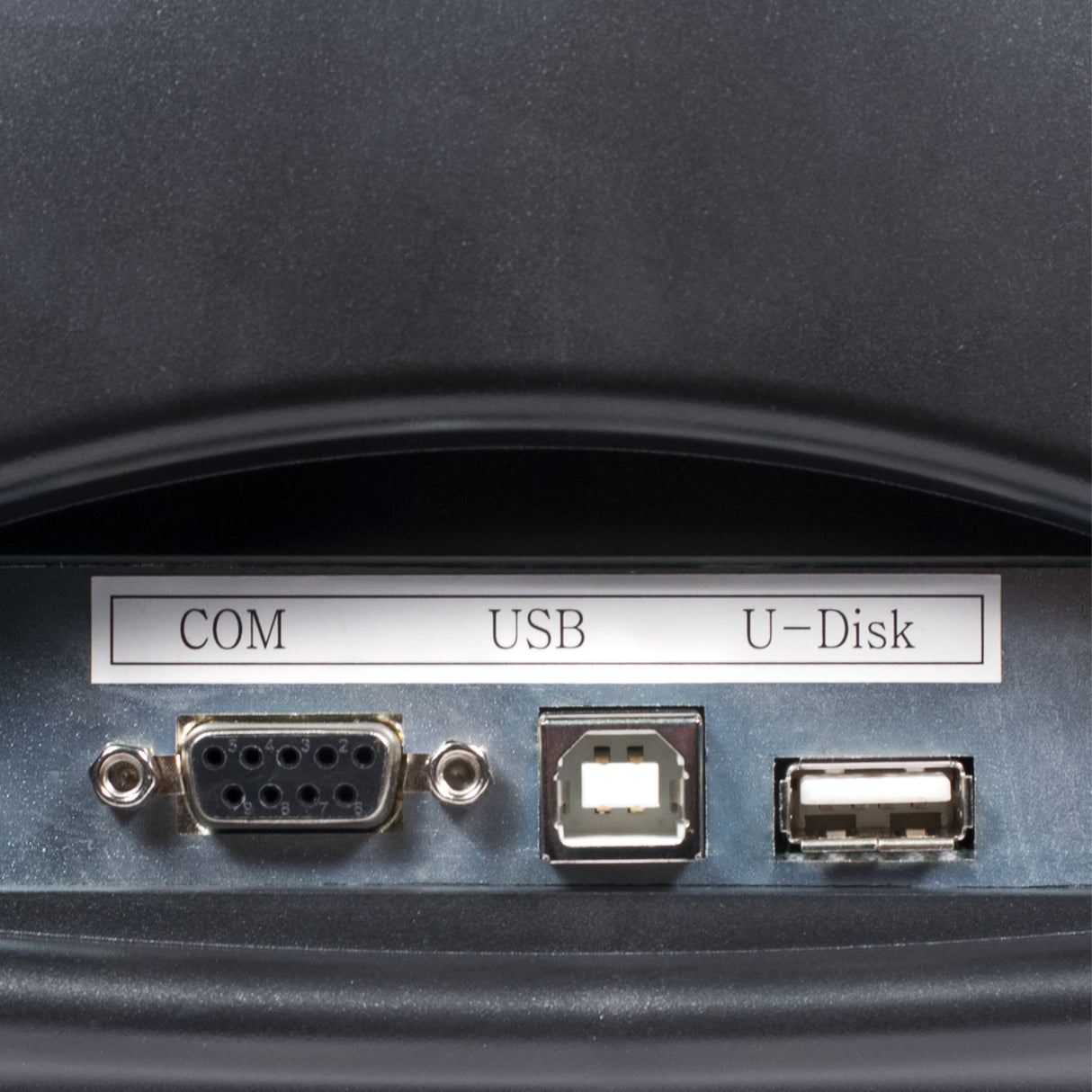

Dual-port Connectivity:
The Evo supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and vinyl cutter. Dual-port connectivity provides sign makers with great flexibility for data transmission.


  • Max. Loading Width: 720mm (28.3 in.)
  • Max. Cutting Width: 630mm (24.8 in.)
  • Material Thickness: 1 mm
  • Drive: Servo motor
  • Cutting Force: 10-800g
  • Maximum Cutting Speed: 800mm/s (31.5/s)
  • Maximum Cutting Length: 65.5 feet
  • Mechanical Resolution: 0.0254mm
  • Repeatability: 0.127mm
  • Interfaces: COM, USB, U disk
  • Type of Command: DMPL, HP-GL automatic identification
  • Stand: Iron alloy stand with basket
  • Compatibility: Windows XP, Vista, Windows 7, 8 & 10

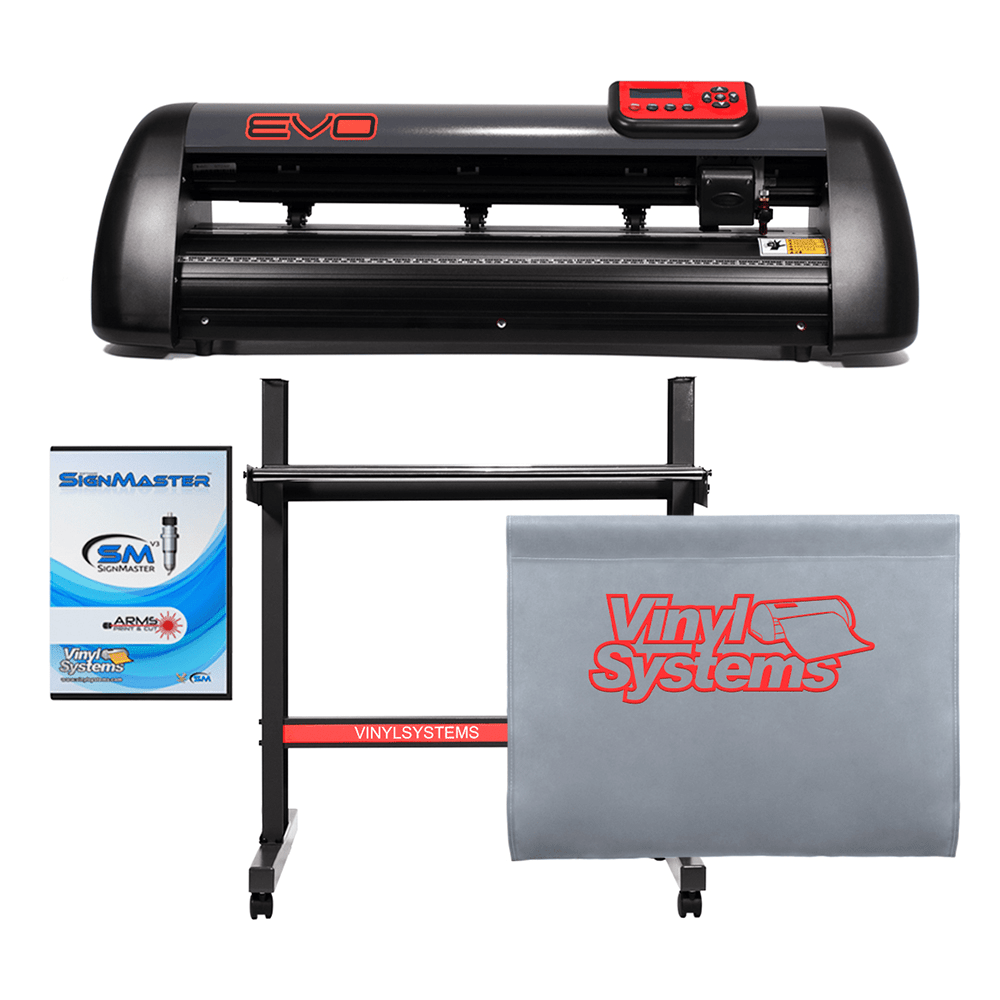

  • Vinyl Cutter / Plotter
  • Cutter Stand
  • Media Catch Basket
  • Sign Master Pro Digital Download (Required Software)
  • Dust Cover
  • USB and Power Cord
  • Documentation
