Vinyl Systems Specialist 28" Cutter/Plotter - Stepper Motor



When it comes to affordability and quality, the Vinyl Systems Specialist vinyl cutter/plotter is the best on the market. Specializing in vector cutting applications, this first rate vinyl cutting machine features a reliable stepper motor with a cutting force of 10-500g and includes an iron alloy stand with basket. Whether you're working with heat transfer vinyl or adhesive sign vinyl, the Vinyl Systems Specialist will get the job done time after time.

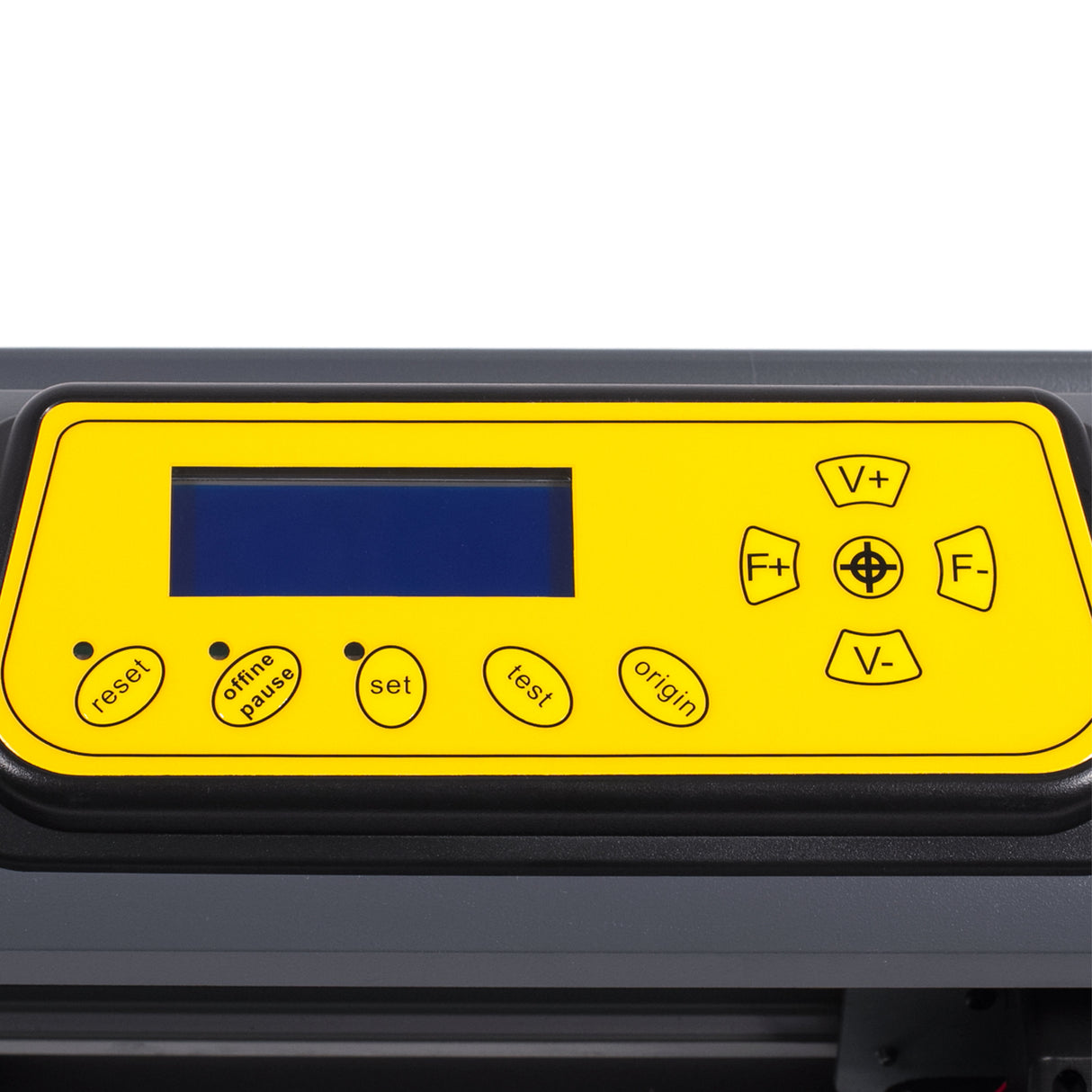

Easy To Use Interface:
The Specialist's control panel features a 32-bit CPU with 1MB-4MB High-speed CACHE memory, but most notably, it is very user-friendly and easy to use.

500 Grams of Cutting Force:
Digitally adjustable cutting forces, ranging from 10 to 500g, accommodate a variety of materials, including heat transfer paper, standard and flock heat transfer vinyl, sandblast, card stock, adhesive sign vinyl and more.

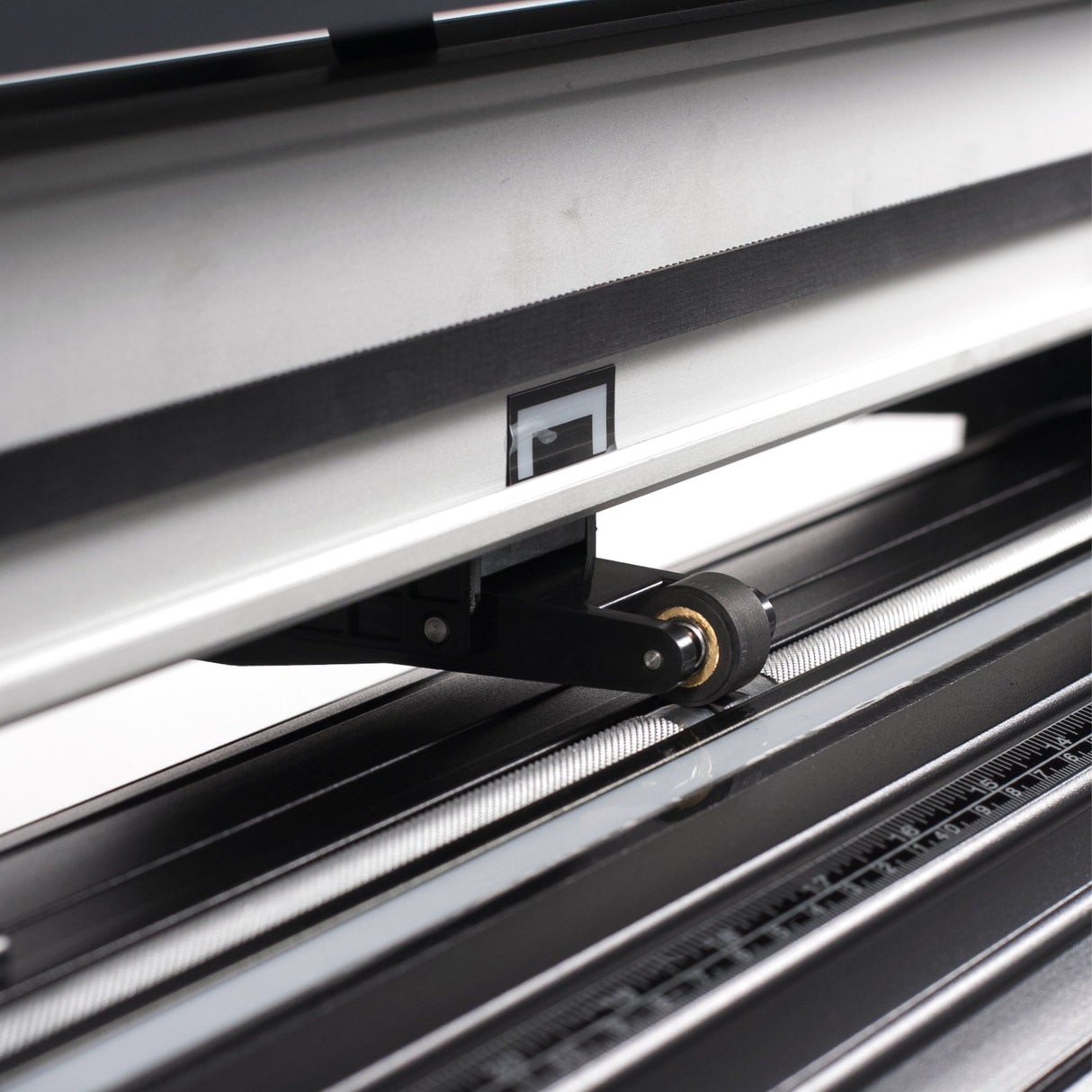

Guaranteed 3-meter tracking:
The Specialist is built from the finest parts that come with every Vinyl Systems cutter. It comes from a stable drum that can guarantee 3-meter tracking to ensure quality outputs and saves you from wasted material and cost.

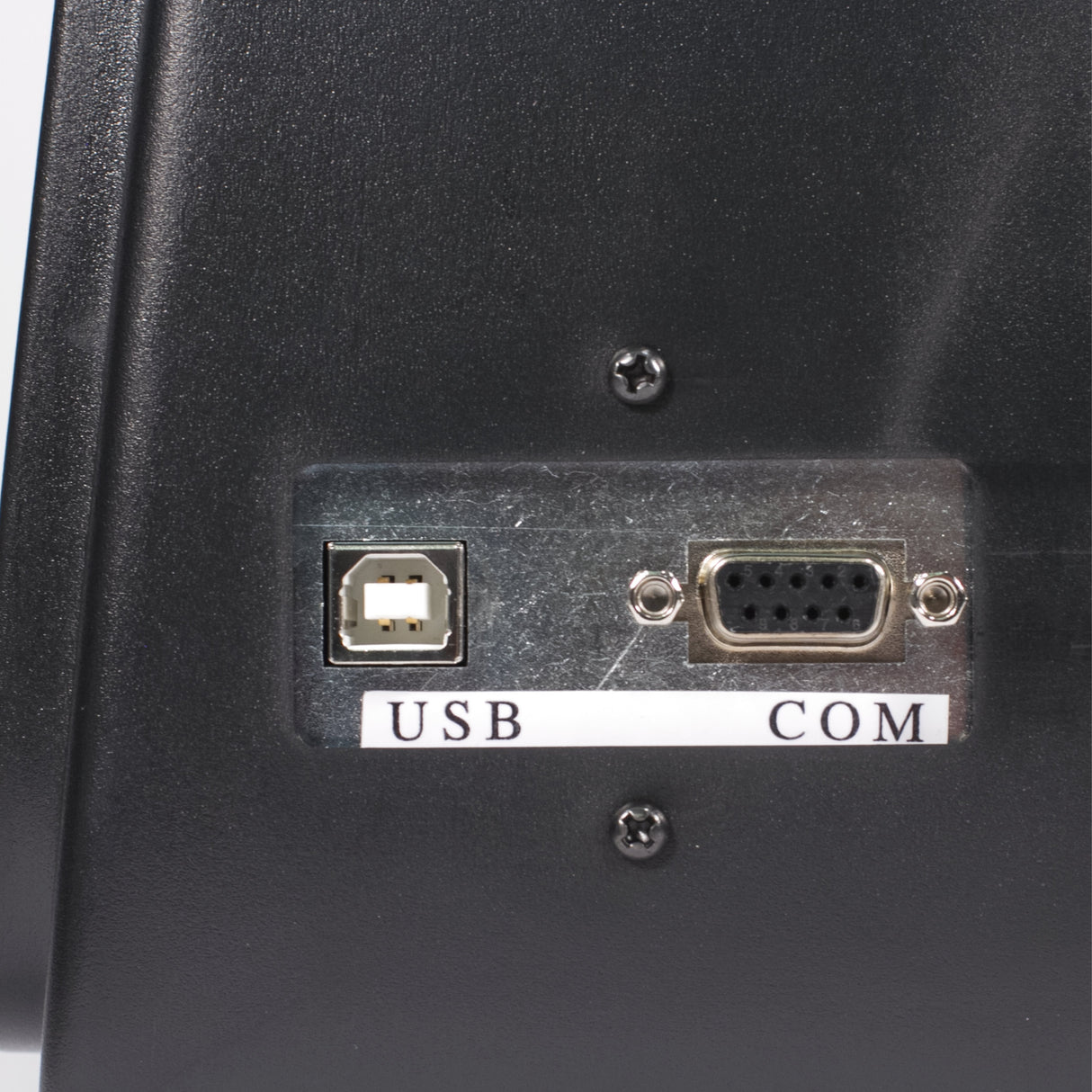

Dual-port Connectivity:
The Specialist supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and vinyl cutter. Dual-port connectivity provides sign makers with great flexibility for data transmission.

Built-In Tool Tray:
The Specialist features a built-in tool tray cut right into the body of the machine. It conveniently keeps weeding hook tools, safe media cutters or other small tools in one place and at hand so that you can focus on your project.


  • Max. Loading Width: 720mm (28.3 in.)
  • Max. Cutting Width: 630mm (24.8 in.)
  • Material Thickness: 1 mm
  • Drive: High stepping motor, micro-step driver
  • Cutting Force: 10-500g
  • Maximum Cutting Speed: 800mm/s
  • Mechanical Resolution: 0.0254mm
  • Repeat-ability: 0.127mm
  • Interfaces: COM, USB
  • Type of Command: DMPL, HP-GL automatic identification
  • Stand: Iron alloy stand with basket
  • Compatibility: Windows XP, Vista, Windows 7, 8 & 10

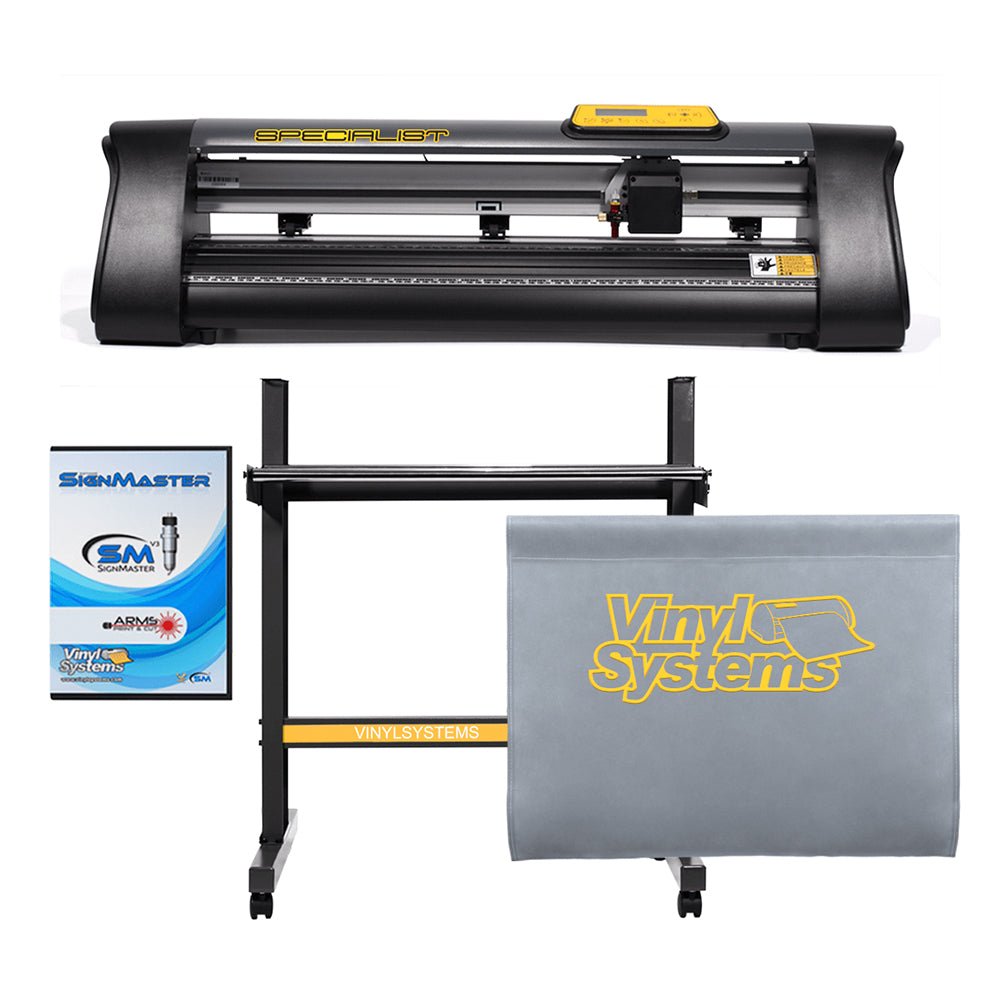

  • Vinyl Cutter / Plotter
  • Cutter Stand
  • Media Catch Basket
  • Sign Master Cut or Sign Master Pro Digital Download (Required Software)
  • Dust Cover
  • USB and Power Cord
  • Documentation
