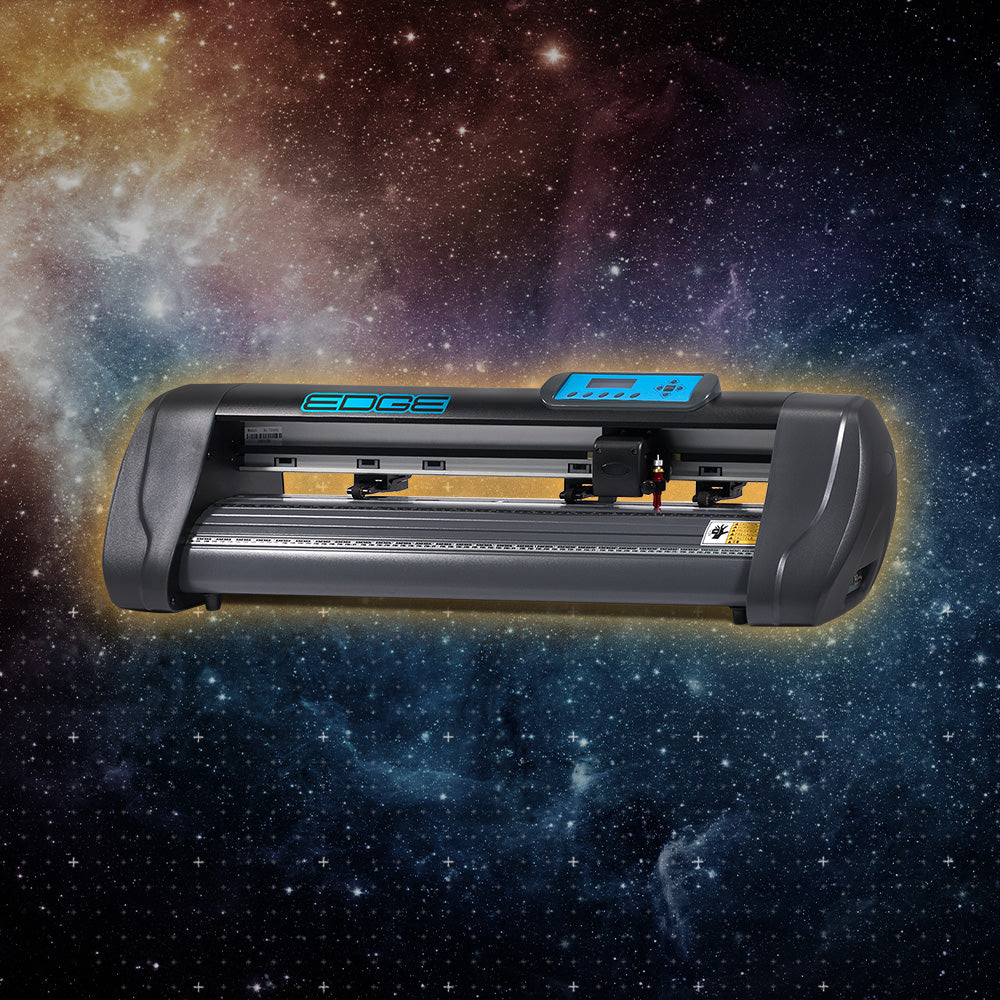

HPN VinylSystems Edge 28" Cutter/Plotter - Contour Cutting Stepper Motor


Sale price$679.95 USD

Found a Lower Price?

Learn More About MyExpert Protection Here

Open Video

Why Choose HeatPressNation?

With over 15 years of experience, HeatPressNation has established itself as the trusted industry leader in heat transfer solutions, earning the confidence of thousands of satisfied customers.


When it comes to reliability and power, the HPN VinylSystems Edge vinyl cutter/plotter is the best on the market. This cutter/plotter will provide an edge in the industry of vector cutting applications. This top of the line vinyl cutting machine features a reliable Stepper Motor with a cutting force of 10-500g. What does this mean for you? Well, in short, it means that you can have all the speed and performance with no compromises. This cutter also includes an iron alloy stand with a catch basket. Whether you're working with heat transfer vinyl or adhesive sign vinyl, the HPN VinylSystems Edge will get the job done.

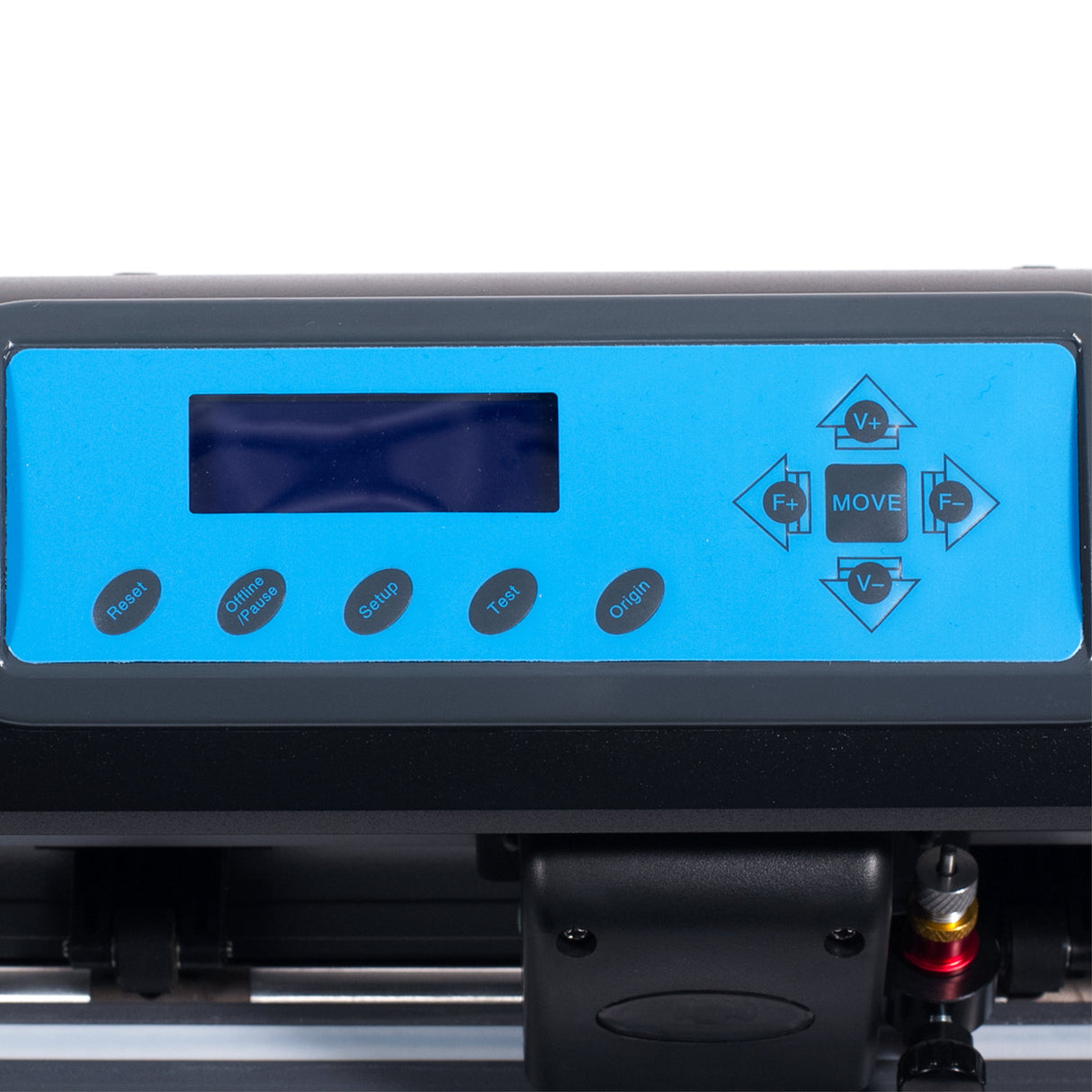

Easy To Use Interface:
The Edge's control panel features a 32-bit CPU with 1MB-4MB High-speed CACHE memory, but most notably, it is very user-friendly and easy to use.

500 Grams of Cutting Force:
Digitally adjustable cutting forces, ranging from 10 to 500g, accommodate a variety of materials, including heat transfer paper, standard and flock heat transfer vinyl, sandblast, card stock, adhesive sign vinyl and more.

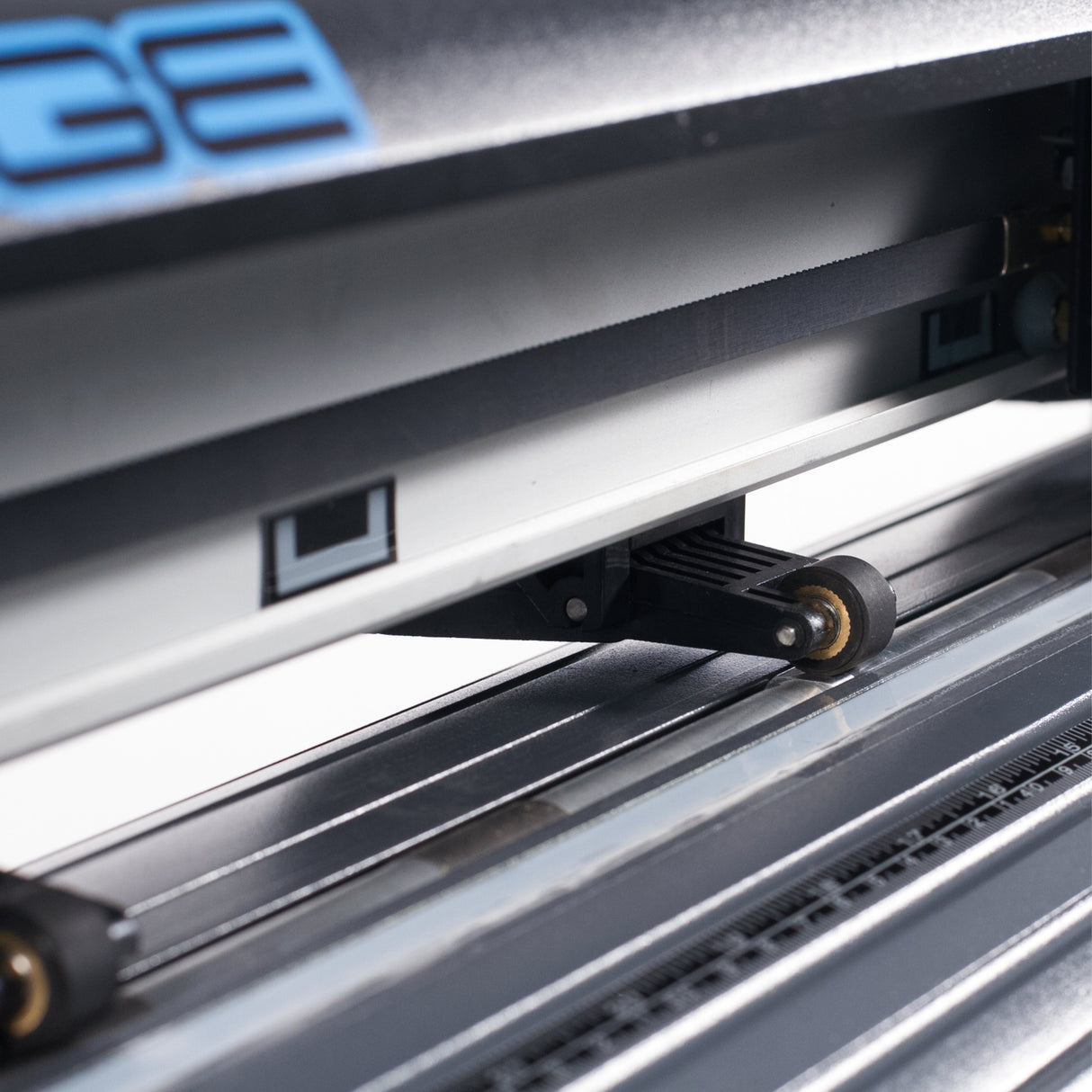

Guaranteed 3-meter tracking:
The Edge is built from the finest parts that come with every HPN VinylSystems cutter. It comes from a stable drum that can guarantee 3-meter tracking to ensure quality outputs and saves you from wasted material and cost.

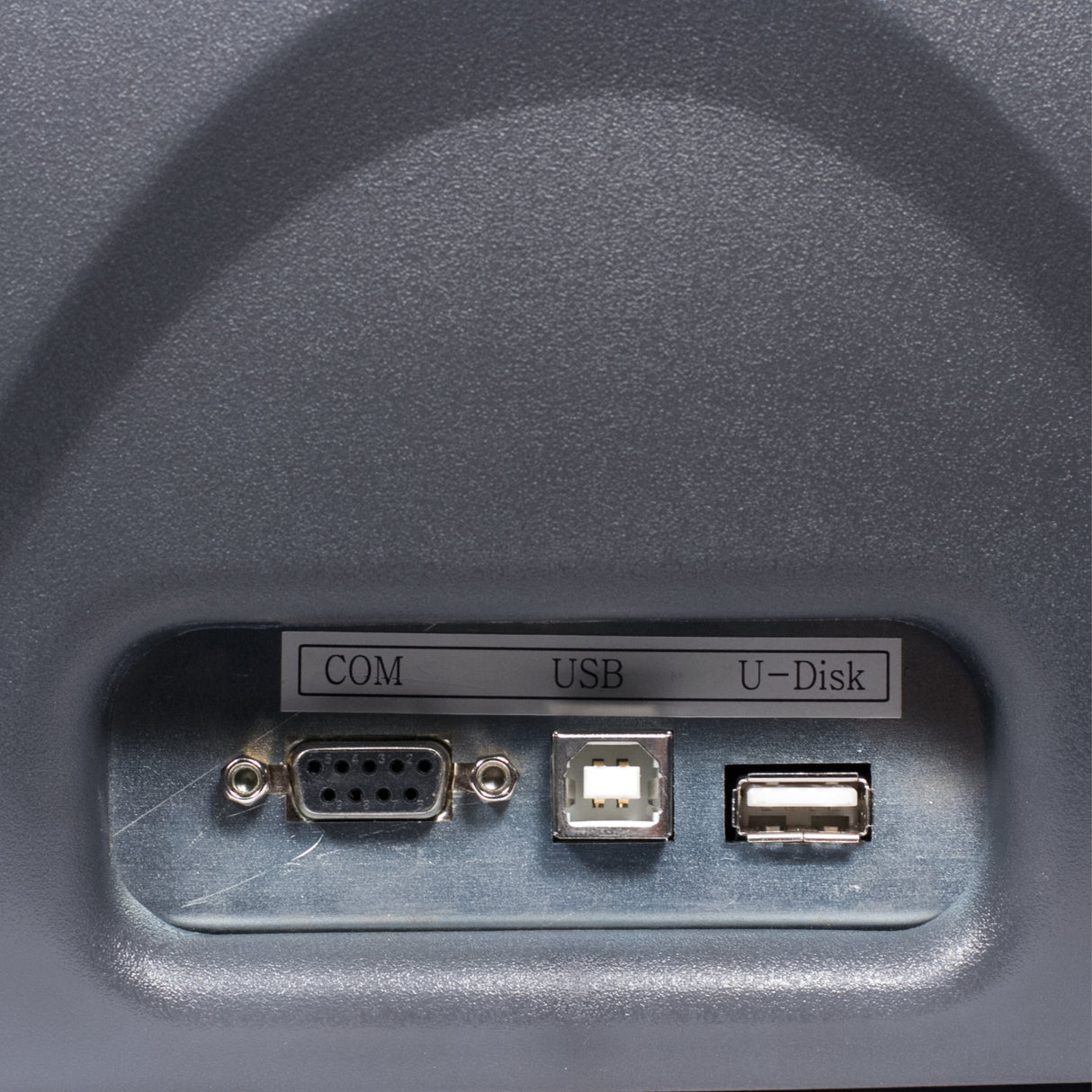

Dual-port Connectivity:
The Edge supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and vinyl cutter. Dual-port connectivity provides sign makers with great flexibility for data transmission.


  • Max. Loading Width: 717.55mm (28.25 in.)
  • Max. Cutting Width: 607.999mm (23.937 in.)
  • Material Thickness: 2 mm
  • Drive: Stepper motor
  • Contour Cutting: Yes
  • Cutting Force: 10-500g
  • Maximum Cutting Speed: 800mm/s (31.5 in./s)
  • Maximum Cutting Length: 65.5 feet
  • Mechanical Resolution: 0.0254mm
  • Repeatability: 0.127mm
  • Interfaces: COM, USB
  • Type of Command: DMPL, HP-GL automatic identification
  • Stand: Iron alloy stand with basket
  • Compatibility: Windows XP, Vista, Windows 7, 8,  10 & 11

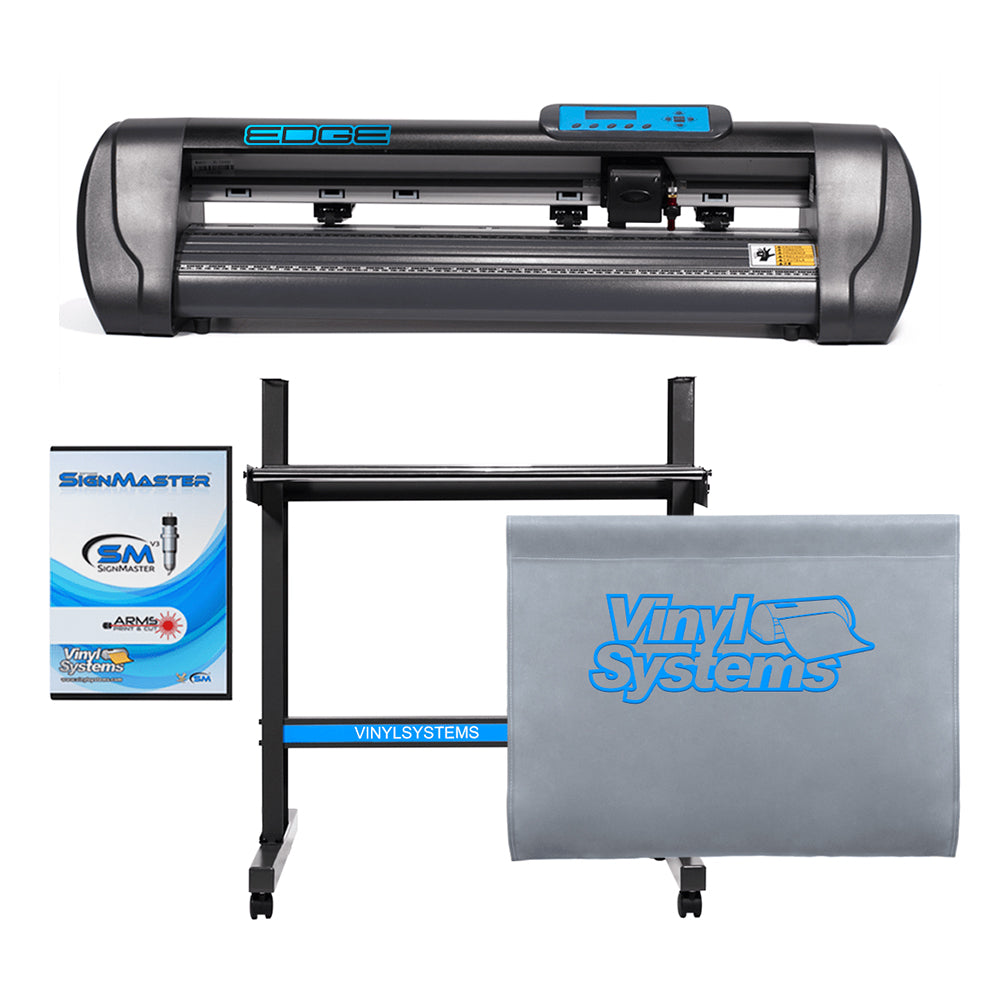

  • Vinyl Cutter / Plotter
  • Cutter Stand
  • Media Catch Basket
  • Digital Download of Sign Master Pro v3.5 (Required Software)
  • Dust Cover
  • USB and Power Cord
  • Documentation

    The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

    Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

    Our MyExpert Support will always be there for you so you can purchase with confidence!

    Extended Warranty

    Protect your investment by extending the manufacturer's parts and service warranty.

    HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.


    • 2 Years Total Coverage - $49.99
    • 3 Years Total Coverage - $79.99
    • 4 Years Total Coverage - $99.99

    Add "MyExpert Protection" when adding your product to the cart

    Customer Reviews

    Based on 40 reviews
    Ernesto Terrazas
    Customer service thumbs up

    Great customer service, I had problem with the plotter not working properly , and they replaced the plotter quick fast and in a hurry!!!!

    Victoria Reynolds

    So glad I didn’t purchase the silhouette, this edge is popping beautifully!

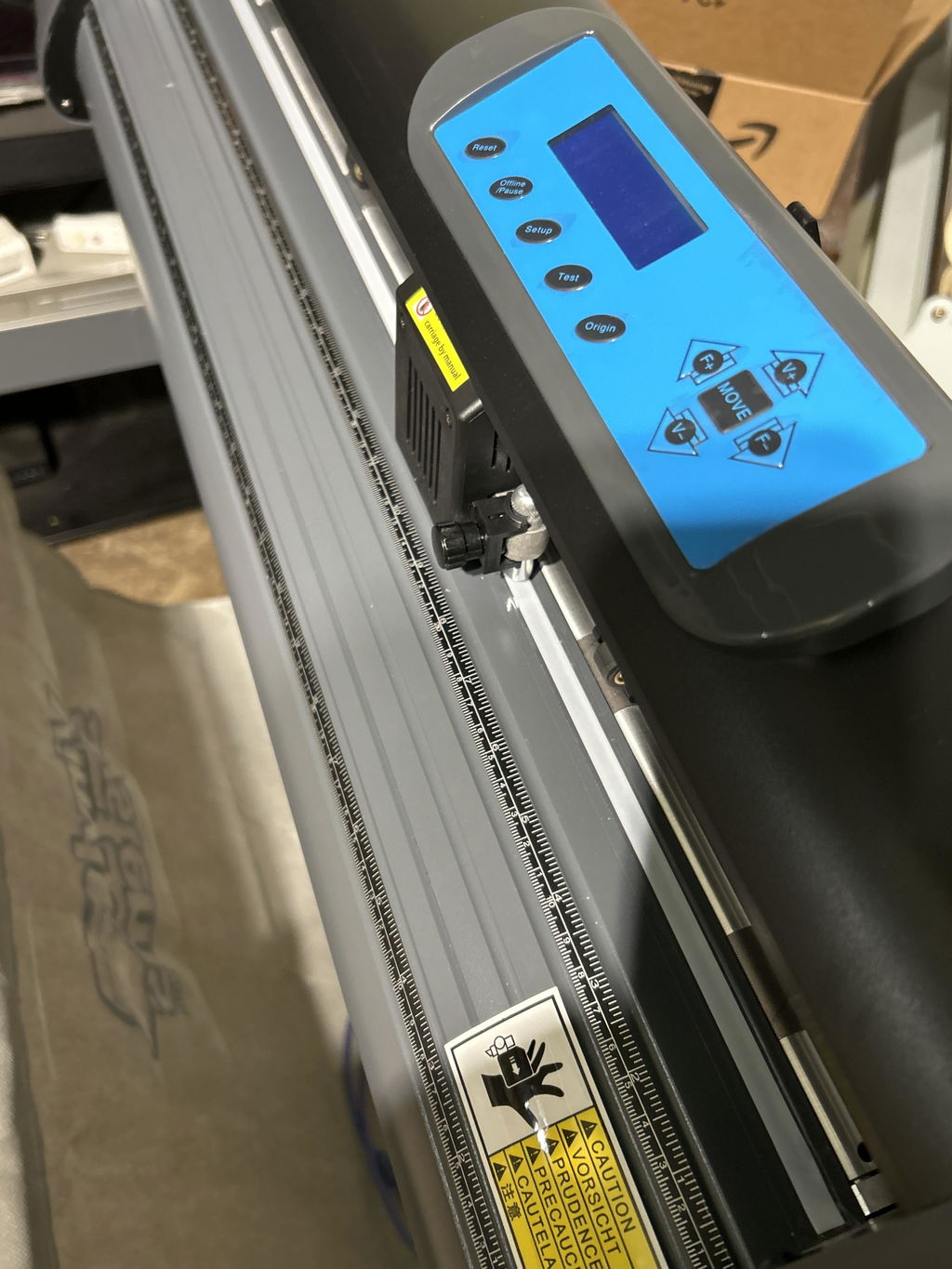

    HPN VinylSystems Edge 28
