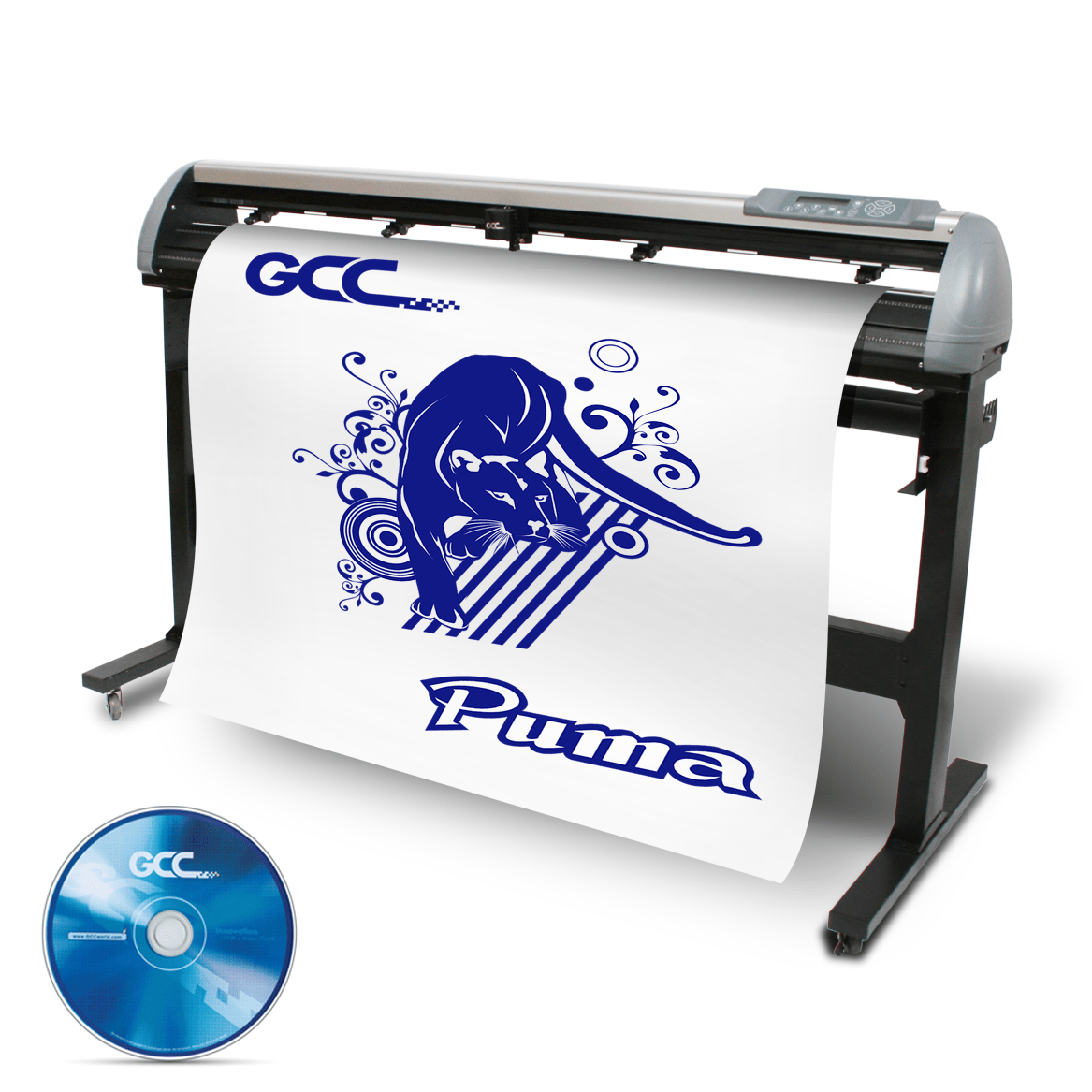

Powered by a digitally controlled servo system, the Puma IV produces eye-catching graphics with up to 23.62 ips (1020mm/sec) cutting speed, 500g of cutting force, and five meters (16.4 feet) of tracking ability.
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894
Features:
Enhanced AAS II Contour Cutting System: The Puma IV series features a standard Automatic-Aligning System(AAS II) to guarantee precise contour cutting by detecting the registration marks on digitally produced images
Handy Grooved Cut-Off Tool:This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material.
Windows Drivers: Puma IV includes a Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Puma IV. It is very simple and easy to make signs with Puma IV.
500 Grams of Cutting Force: Selectable cutting forces, ranging from 0 to 500g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.
Tracking Ability: The exclusive grid drum is precisely engineers to provide superb tracking ability.
Accurate and Smooth Operation: Puma IV incorporates a precision electro-mechanical design, which ensures an extremely accurate cutting capability. The state-of-the-art, closed-loop, high-speed digital servo drive system provides smooth, quiet, and fast operation.
Friendly Operation: The user-friendly control panel comes with a large 20-digit x 2-line LCD and 14 control buttons, providing easy operation and simple navigation. The LCD allows users to monitor all operational settings including offset value, quality mode, cutting speed, and force. Buttons on the Puma IV include frequently used functions such as speed, force, offset, and cut test. Puma IV provides up to 4 jobs of setting storage, including cutting speed, blade offset, force, as well as movement speed during tool-up and cutting.
Tri-Port Connectivity: Puma IV supports tri-port connectivity with USB, serial, and ethernet ports. USB port provides faster data transmission between the computer and Puma IV. Tri-port connectivity provides sign makers with great flexibility for data transmission.
Specifications:
Operational Method: Roller-type
Maximum Cutting Width: 1300 mm (51.18 in.)
Maximum Media Loading Width: 1470 mm (57.87 in.)
Acceptable Material Thickness: 0.8 mm
Number of Pinch Rollers: 4
Drive: DC Servo Control
Cutting Force: 500 g
Maximum Cutting Speed (Diagonal): Up to 600 mm / sec. (24 ips)
Offset: 0-1.0mm (with an increase 0.025mm)
Mechanical Resolution: 0.009mm (0.00035 in.)
Software Resolution: 0.025 mm (0.00098 in.)
Memory Size: 4 MB
Interfaces: USB 2.0 & Ethernet & Serial
Type of Command: HP-GL, HP-GL/2
Configurable Origin: Yes
Curve & Arc Smoothing: Yes
Test Cut Capability: Yes
Repeat Function: Yes
Copy Function: Yes
Tangential Mode: Yes
Overcut Capability: Yes
Pause and Move: Yes
Control Panel: LCM (20 digits x 2 lines), 14 Keys, 1 Power LED
Power Supply: AC 100-240V, 50~60 Hz (auto switching)
Pentium processor-based PC or compatible computer (Windows)
Windows XP SP3/Vista/7/8/10/11 (Windows)
Intel or Apple Silicon based Macintosh (Mac)
Macintosh OSX 10.11 - 12 (Mac)
512 MB of RAM or more
At least 50 MB of available hard disk space
USB Port 1.1 or 2.x
