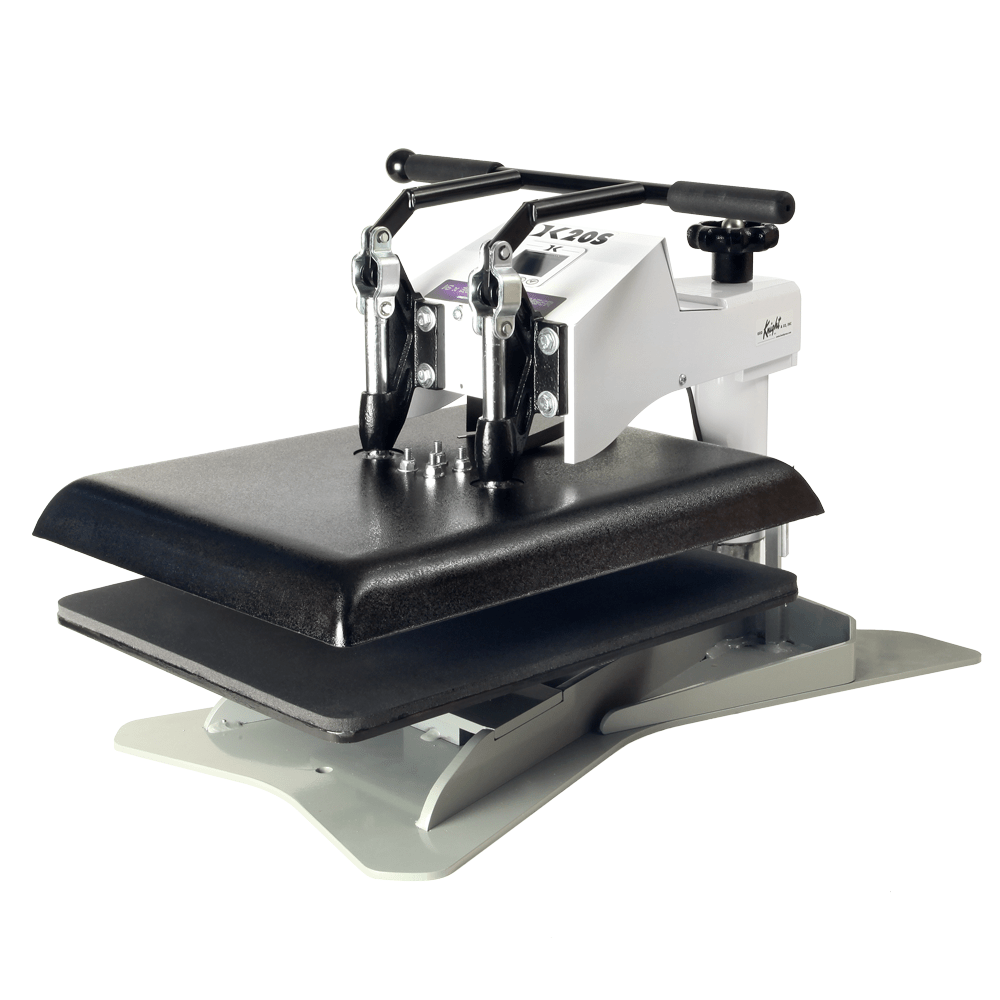

Geo Knight DK20S Digital Knight 16" x 20" Swing Away Heat Press

SKU: DK20S

Please choose: Without Liftgate Service
Price:
Translation missing: en.product.general.price$1,850.00 USD

Found a Lower Price?

Description
Warranty
Instructions

Geo-Knight Logo

This heat press must ship freight.

The DK20S by Geo Knight combines a heavy-duty solid steel industrial grade pressing framework with accurate and easy-to-use electronics to provide the operator with the best possible features and equipment needed for today's various heat transfer applications. This heat press is the most popular 16x20 machine in the industry. It is world-renowned as the top-end, robust workhorse of all swing away heat presses. There is also a Jumbo sized 20x25 heat platen version of this press, the DK25S. An air-operated automatic version of this Geo Knight Heat Press is also available, the DK20SP.

FEATURES

  • Fully digital temperature control (32°-600°F range)
  • Automatic digital timer & dual pre-press timer
  • Digital pressure bar graph
  • 70 Programmable presets
  • Solid steel framework
  • Shirts can dress/load around the table right-side up
  • Interchangeable tables
  • Optional Twin Shuttle Attachment
  • SuperCoil-Microwinding™ heater technology
  • Accommodates up to 2" thick
  • Temperature readout accuracy of ±2°F - Can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Non-stick-coated 3/4" thick heat platen
  • Manufacturer Warranty:
    • Lifetime warranty on heat platen
    • 5-year warranty on frame
    • 3-year warranty on controller
    • 1-year warranty on parts

SPECIFICATIONS

MyExpert Support Logo

The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, Geo Knight, the manufacturer, offers the following warranty on this product:

  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1-year warranty on parts

Customer Reviews

Based on 13 reviews
100%
(13)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Breonna
The best!

We absolutely love our new heat press, which was an upgrade from the HPN 15x15 press that we’ve had for the last 3 years. The Geo Knight is so smooth and sleek and doesn’t require a double press which saves us time. It was worth every penny! We also got the matching stand which is great.

K
K.E.D.
LOVE LOVE LOVE This Heat Press

I was shopping for a heat press and getting ready to pull the trigger on some inferior product, and it was my husband that convinced me to "get the good one." LOL as much as I hate to admit it, he was right!! :) This is the BEST heat press ever. Consistent heat and pressure, Easy to use, easy to read digital programmable display (you can set temp, time, and it shows pressure), and best of all: interchangeable platens!! (You have to buy these separately, but it's worth it.) We have the one heat press - and 5 different platens. All you have to do is pull out the lock pin, and drop on whatever size you need for the job. PLUS you can buy the heat press stand that goes with it. (I recommend that too-bolts on, has swivel, locking wheels) -better than any generic table or stand).

I press HTV, Supacolor transfers, plastisol transfers, sublimation, white toner transfers, DTF... on and on. Get a nice set of mousepad and a set of the foam pillows with the teflon cover. Use your teflon sheet or parchment paper (or butcher paper for sublimation), and you will always have a nice shiny upper platen.

The only one thing that I would advise everyone about is the wire in the back of the press tends to get pinched by the metal alignment tabs. You can easily keep the wire out of the way with a clip, but I didn't notice that was happening until it wore a hole through the heat protective cover.

K
Kenneth Woods
A "Hot" Product!

I am personally new to using a heat press and before I decided on one I read many reviews and saw many people had been lured into buying a cheap one first and then upgraded to this unit and others of this quality. For myself I wanted one that swung away and also had changeable lower tables. I bought this unit with two alternate tables and have ordered yet another one so I will have four different sizes to work on a variety of items. The quality of this unit is amazing! You know you are using an industrial level machine. It IS heavy and wasn't easy getting up the stairs but all well worth it. There looks to be many great units on HeatPressNation but I can say I love working with this one and will for many years to come!

S
Stella Nealy
Awesome machine so easy to work love the swing action!👍

This machine is all I expected and more would recommend others to consider purchasing it!
