This is the first Heatpress I have ever owned. I did my first event on 8/24/2024. This unit performed superb. We did customs printing as they ordered. I am So pleased with this investment. Amazing quality and craftsmanship!
Description
Warranty
Instructions

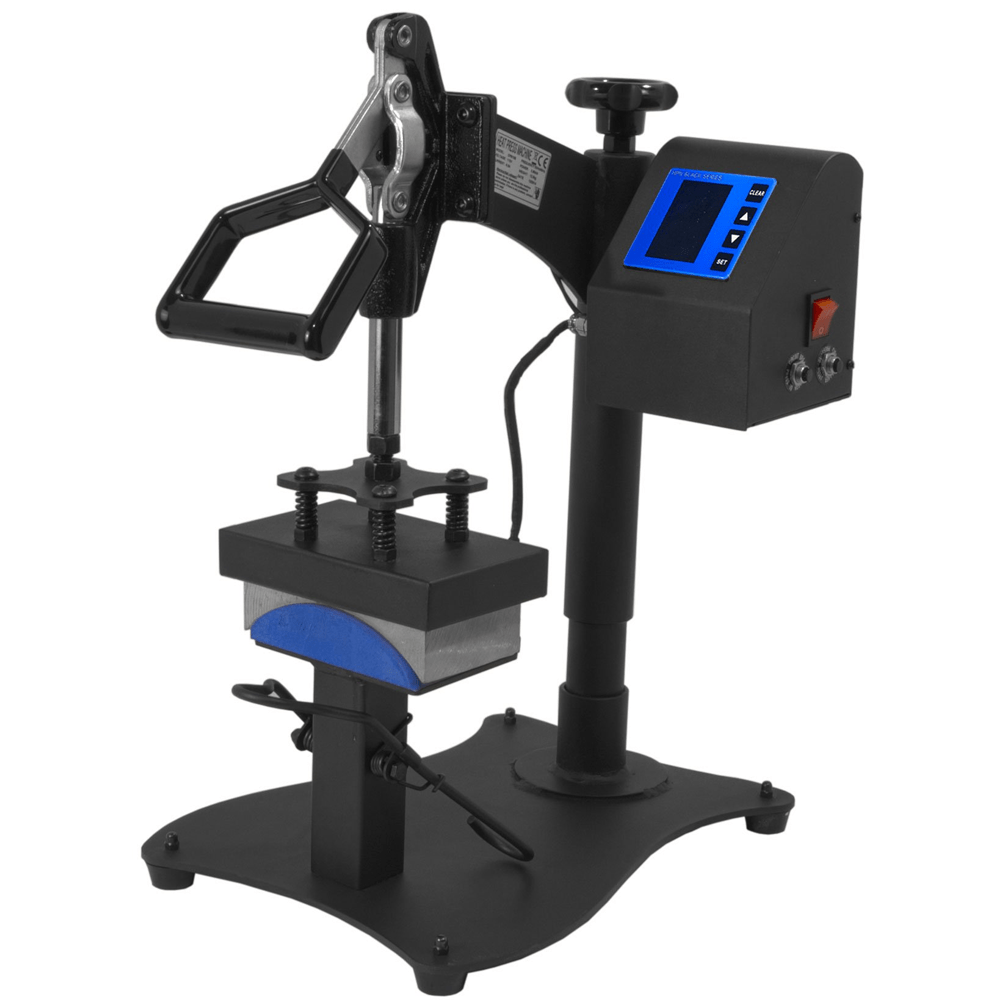

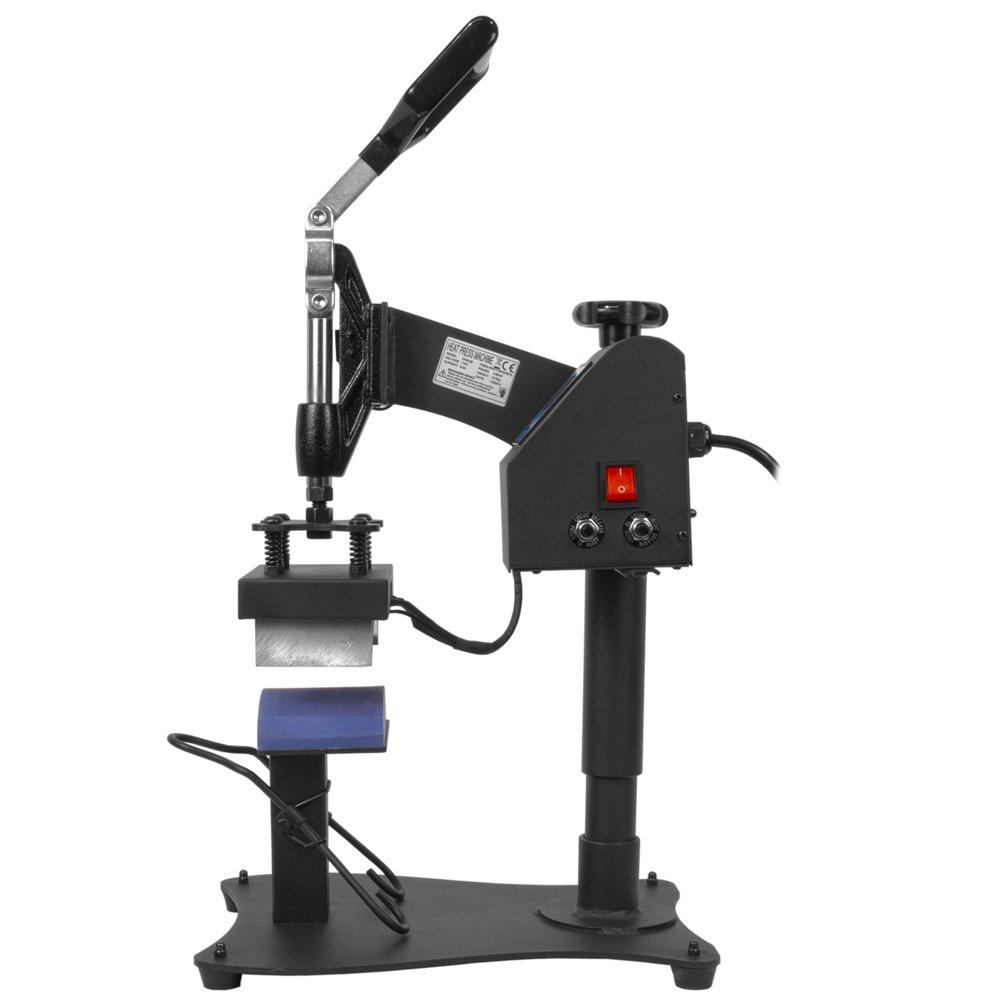

The HPN Cap Hat Heat Press Machine has become the heat press of choice for those in the profitable cap printing market. This cap press was designed around the customers' needs - based on extensive market research and a collection of individual customer's feedback. The heat press features an exclusive cap hold device that keeps your cap in place during application and transfers. You no longer need an extra pair of hands to keep the cap and transfer from misalignment! Our customers love it and so will you!
Excels in all heat press applications including: heat transfer paper, heat transfer vinyl, rhinestones, sublimation, screen printed transfers, Direct to Garment prints and much more.
*Note: The lower platen of this press is no longer painted black as pictured in the product photo. Instead, it features a raw steel finish. This difference is purely cosmetic and does not change the overall functionality of this press.*
FEATURES
|
|
Upgraded Time/Temperature Gauge: Setting the time, temperature and changing temperature scale from C to F is now easier with the HPN Black Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds before it reaches zero to prevent overheating of your material. |
- Full pressure adjustable low to high pressure clamp
- Digital time and temperature gauge
- Temperature gauge readable in both Fahrenheit and Celsius degree measure
- Micro processor precision heat and temperature gauge with large readout
- Silicon wrapped swing away bar for easy "out of the way" application
- Full range heating coils for quick heat up
- Adjustable timer alarm indicates completion of heat press cycle
- Automatic alarm and time starts when heat press is engaged
- Energy efficient electrical system
- Precision heat adjustment of single degree upward or downward movement
- Automatic alarm and time start when heat press is engaged
SPECIFICATIONS
- Heat Press Style: Cap Press
- Heat Press Base Dimensions: 16" x 11" x 27" (D x W x H in open position)
- Heat Element Dimensions: 3.14" x 5.5"
- Heating Element Size: 3.14" X 6"
- Lower Platen Size: 3.5" X 5"
- Voltage: 110 V / 60Hz
- Power Rating: 800W/8 Amps
- Time Range: 0-999s
- Temperature Range: 0-400 °F
- Shipping Weight: 32 lbs
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, all HPN Signature Series heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
EXTENDED WARRANTY
Protect your investment by extending the manufacturer's parts and service warranty.
HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.
PLANS
- 1 Year Total Coverage - Included with purchase
- 2 Years Total Coverage - $49.99
- 3 Years Total Coverage - $79.99
- 4 Years Total Coverage - $99.99
Add "MyExpert Protection" when adding your product to the cart
|
|
