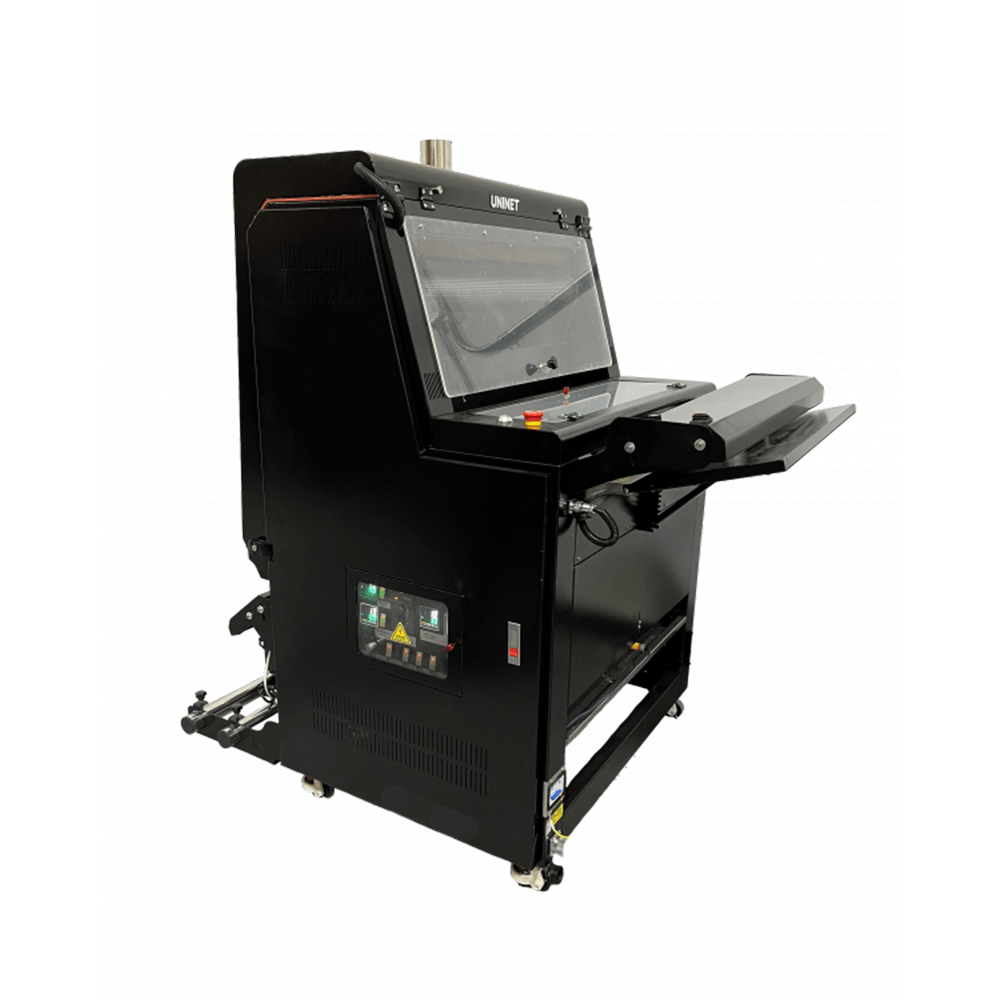

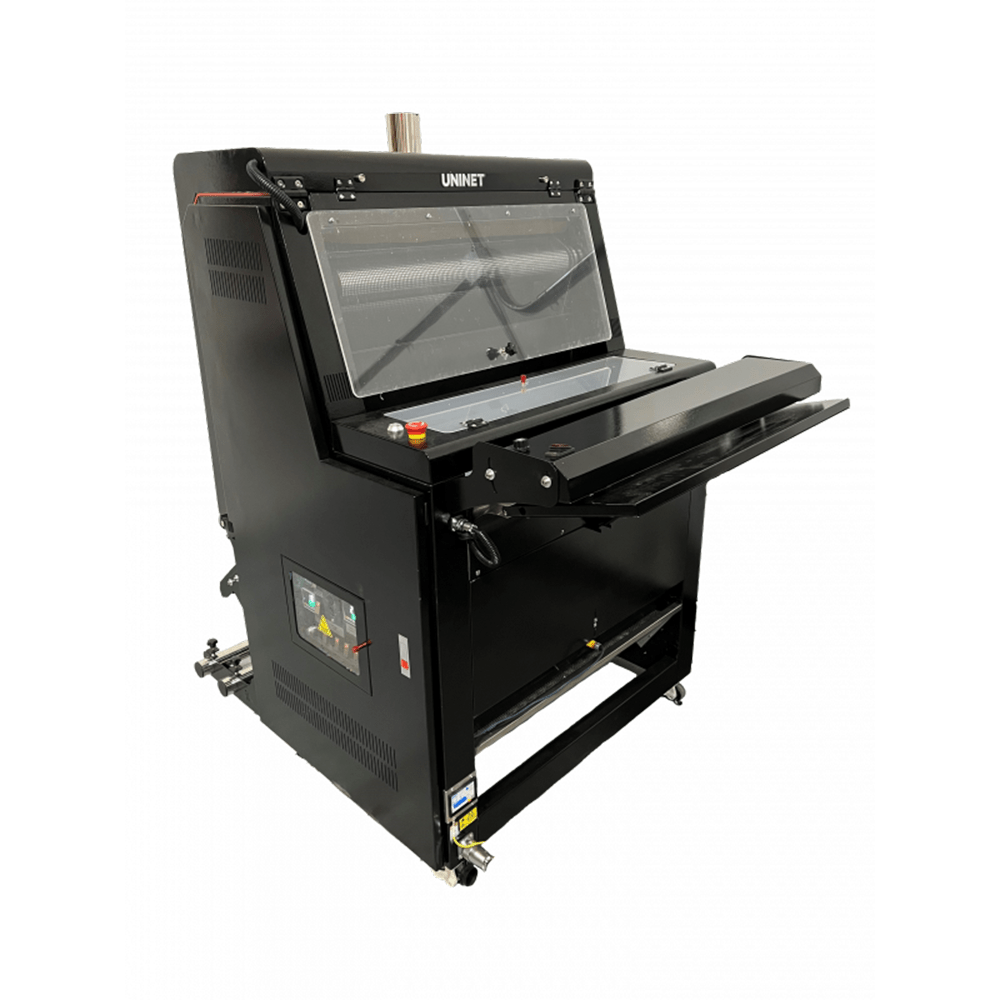

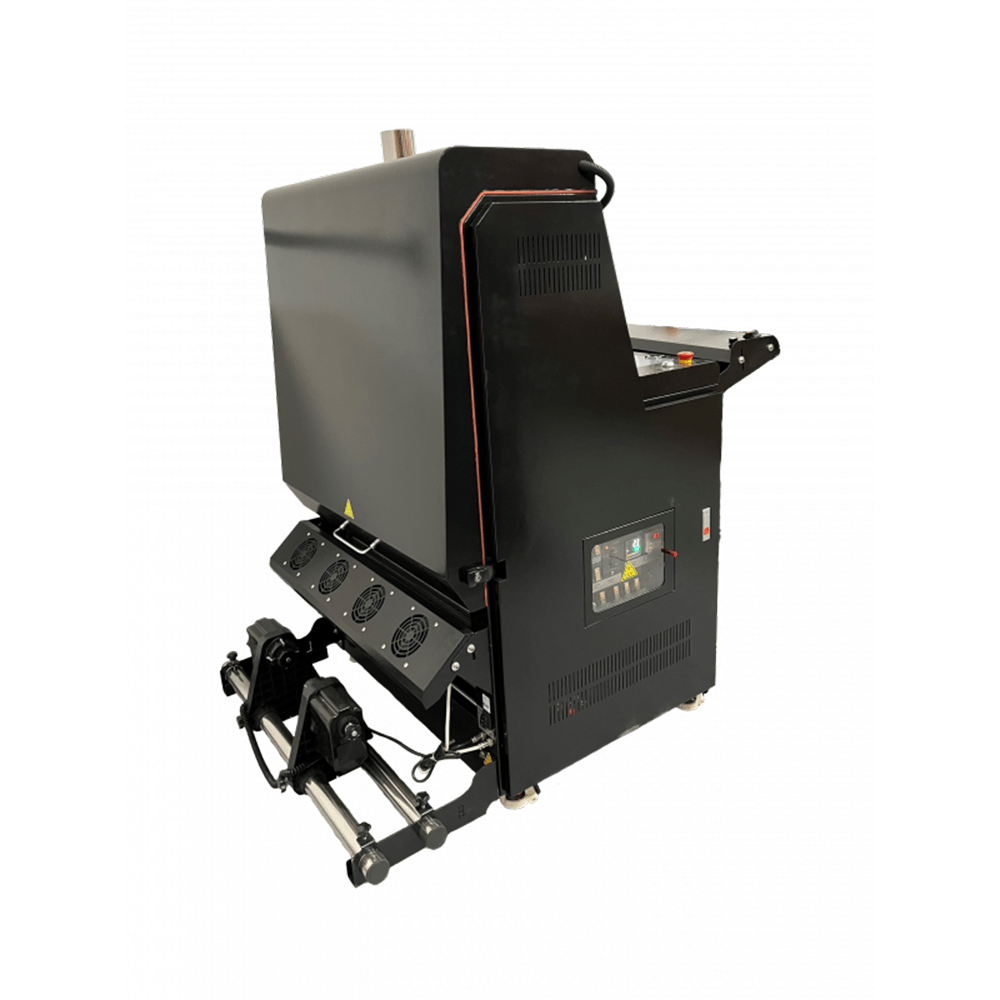

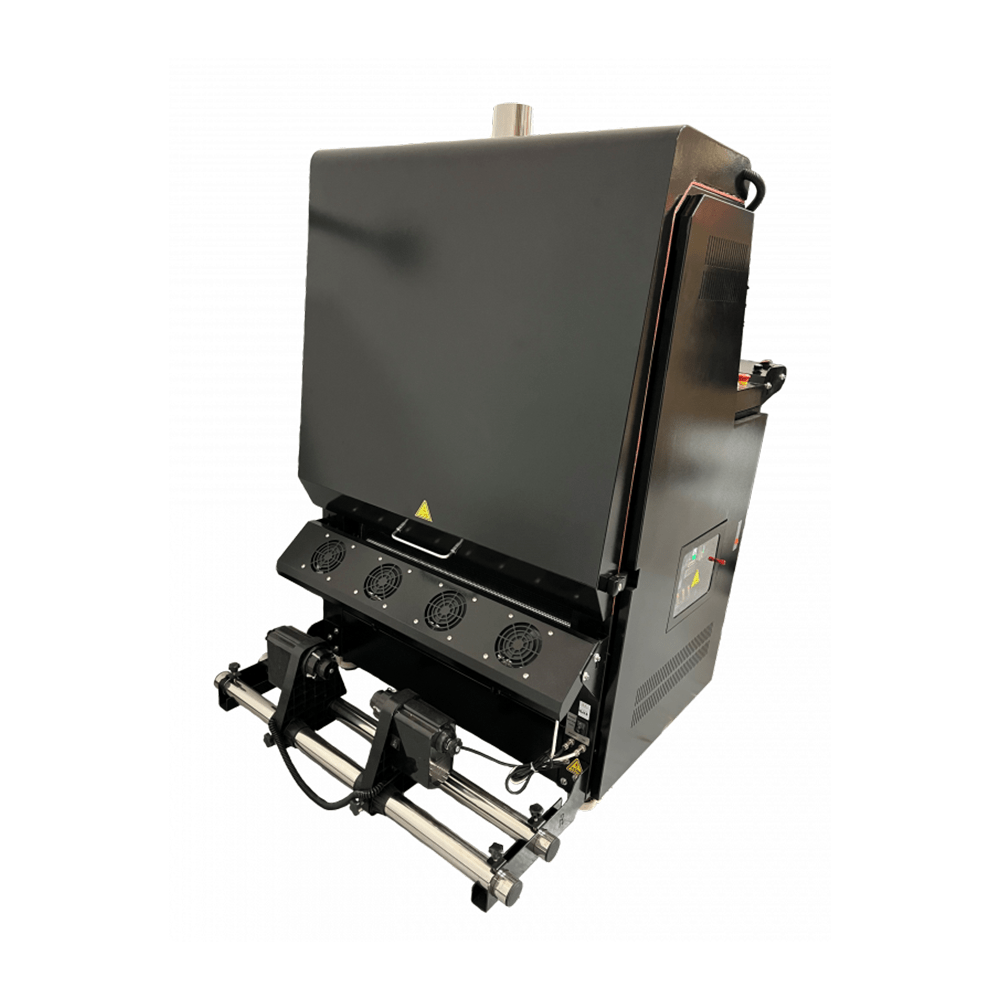

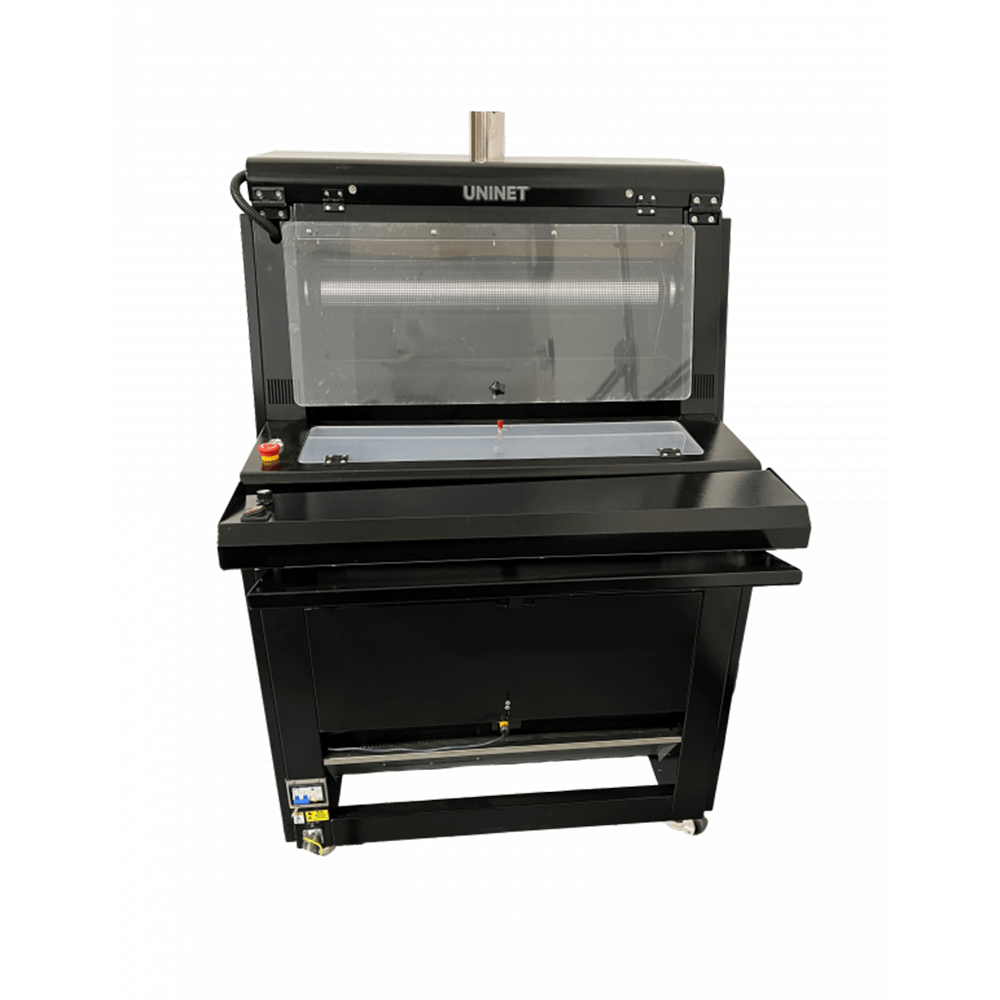

Uninet DTF 17" Slim Shaker

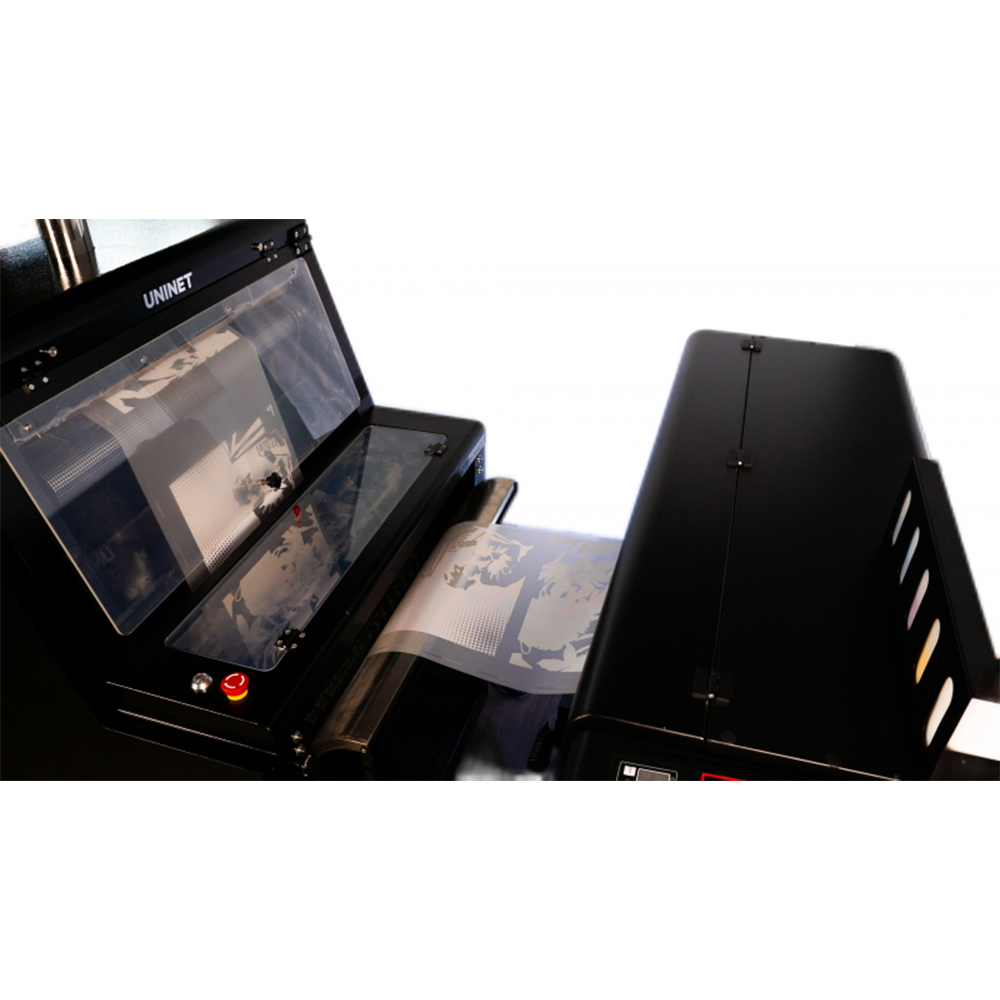

Get ready to experience the Uninet DTF 17" Slim Shaker - the ultimate powder machine with space-saving technology! With a compact 12.7 Sq Ft footprint, this shaker will save you twice the space compared to traditional 24" shakers. Not only that, but it also has the ability to cure your DTF film rolls and be easily integrated with any roll-to-roll Direct to Film printer. Say goodbye to bulky machines and hello to efficient powder application!

*Note: This product requires a roll-fed DTF printer like the Uninet DTF 1000 or DTF Station R2. This item does not print. It cures the adhesive applied to the printed sheet.*

Features:

• Vertical Space Saving Design: offering the lowest footprint of any shaker, and with the same curing area as a long horizontal shaker. Fits through a standard U.S 36" door frame (unassembled)
• Automatic Powder Application: Pour powder into the powdering section, and it will be applied evenly to your prints with variable adjustable speed controls.
• Automatic Powder Removal & Powder Collect/Re-Use: Excess powder will be shaken off the film, and automatically recirculated.

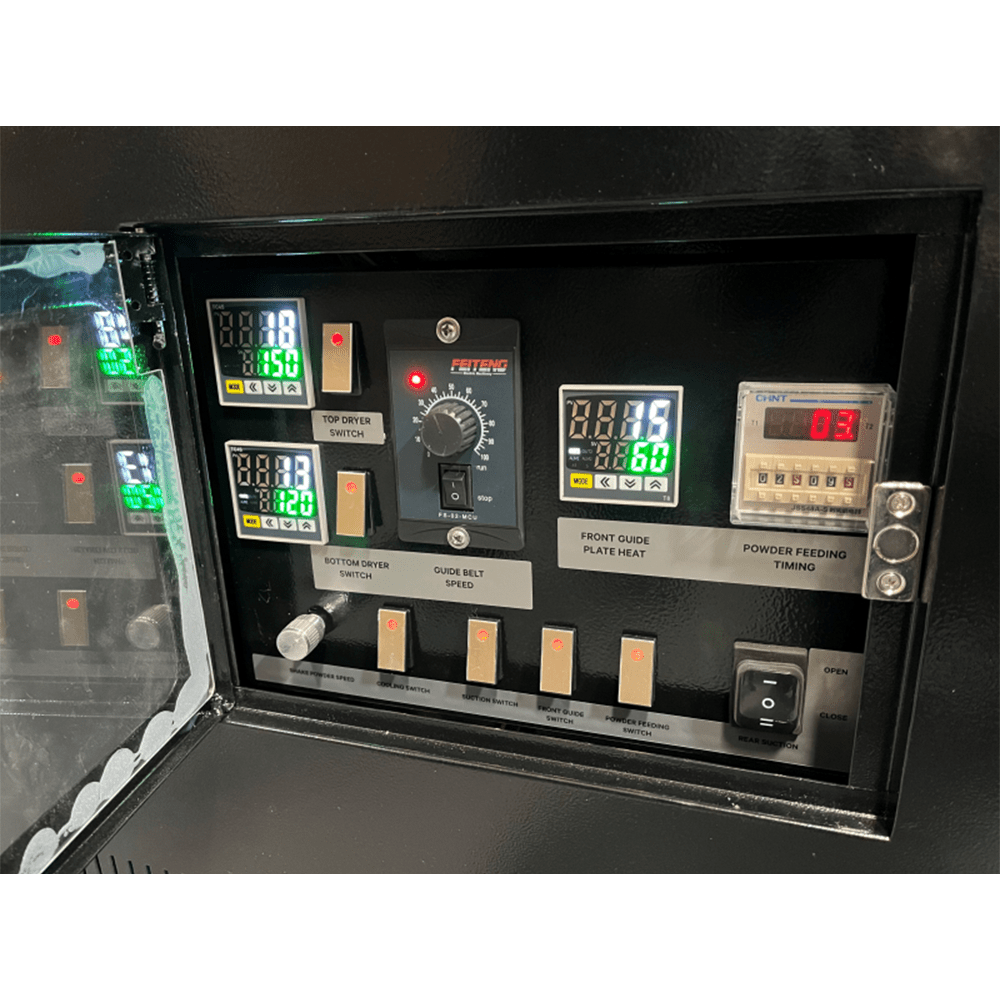

• Dual Heat Zones: offers fine heat control and better temperature regulation than other shakers
• Vacuum Belt Drive: minimizes friction and static build up that are the source of many user encumbrances with other shakers
• Advanced Take-Up System: Additional tension bar to roll up the finished DTF™ films better
• Patented Design: Patent #63440762
• Easy-Attach Fume Exhaust Port: Easily attach any fume extractor to the existing fume-exhaust port (fume extractor not included, sold separately)

Specifications:

• Weight: 485 lbs
• Rated Voltage/Amps: 220V/40A
• Dimensions : 47” x 60” x 39”

Power Requirements:

• 30A - 240V - 2 pole outlet
• 30A 240v 2 pole Circuit breaker x 1
• 9 Gauge Circuit Wiring
• Requires a grounded, three prong plug as a safety feature. This plug only fits into a grounded outlet. If the plug does not fit, the outlet may be an older, non-grounded type. Contact and electrician to have the outlet replaced. Do not use an adapter to defeat the grounding.

This product is FINAL SALE

The 17" Slim Shaker is compatible with roll capable DTF printers, including the UNINET series roll printers, and can also be combined with Oric, Audley, HJD, Titan, Coldesi, All American / DTF Station, Mutoh STS, Mimaki, and Roland DTF printers and other DTF roll printers.

Furthermore, the 17" Slim Shaker is compatible with all DTF PET Film Rolls (up to 17" in width and including popular sizes such as 13") and with Powders and Films from industry-leading manufacturers.

WARNING: WORK IN A WELL VENTILATED AREA and use protective equipment when working with DTF™ products and processes. UNINET™ highly recommends the use of a fume extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF™ equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF™ equipment is intended for use in a commercial environment. UNINET™ does not recommend the use of DTF™ equipment in a residential, or in-home setting. DTF™ inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize risk of ink clogs and film buckling.
