Introducing the HPN VinylSystems Evo: the next evolution of machines in the vinyl cutting industry. When it comes to performance and power, the HPN VinylSystems Evo vinyl cutter/plotter is the best on the market. This second to none vinyl cutting machine features a reliable DC Servo motor with a cutting force of 10-800g. What does this mean for you? Well, in short, it means that you can have all the speed and performance with none of the noise. This cutter also includes an iron alloy stand with a catch basket. Whether you're working with heat transfer vinyl or adhesive sign vinyl, the HPN VinylSystems Evo will get the job done like no other.

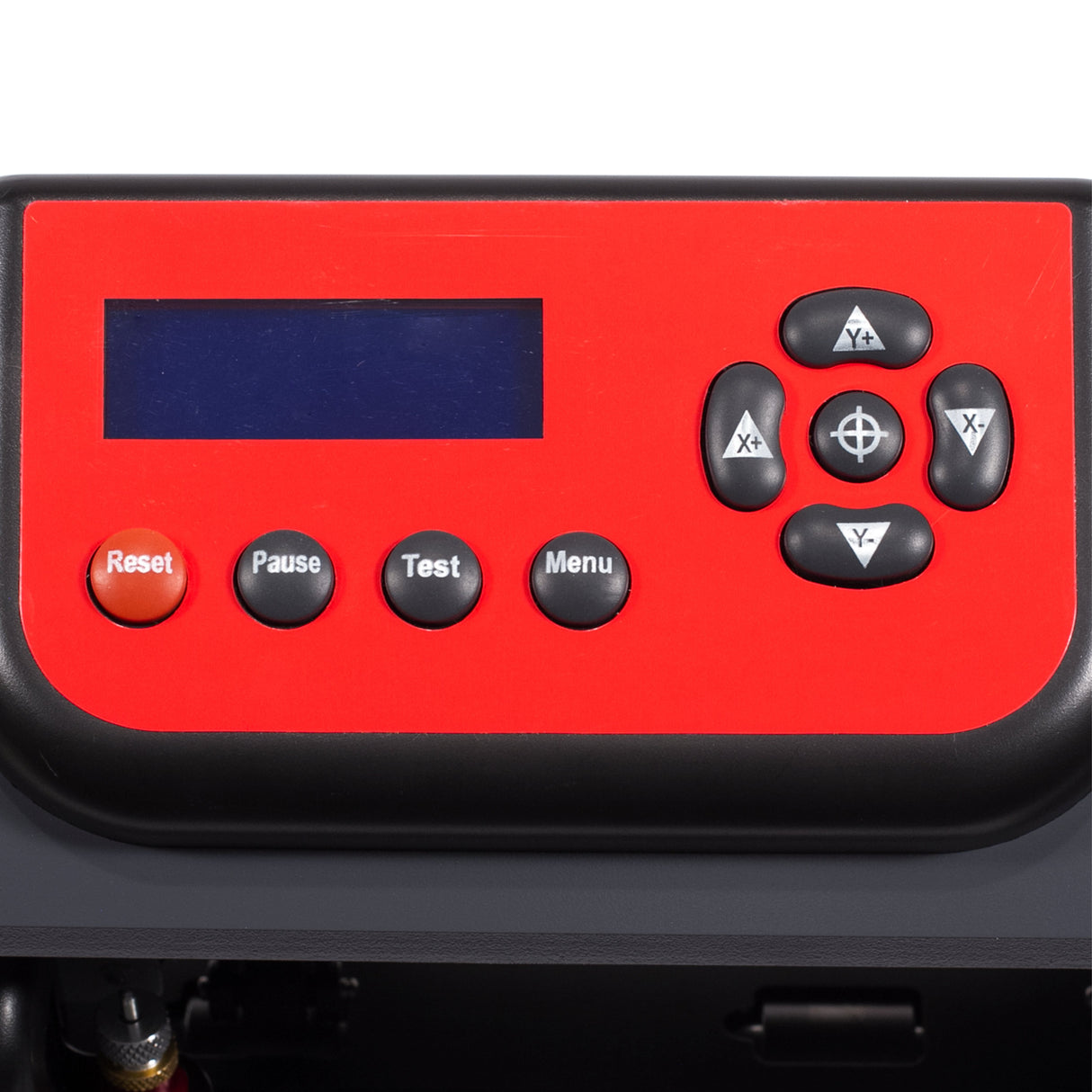

Easy To Use Interface:
800 Grams of Cutting Force:
Guaranteed 3-meter tracking:
- Max. Loading Width: 1350mm (53.1 in.)
- Max. Cutting Width: 1260mm (49.60 in.)
- Material Thickness: 2 mm
- Drive: Servo motor
- Cutting Force: 10-800g
- Maximum Cutting Speed: 800mm/s (31.5/s)
- Maximum Cutting Length: 65.5 feet
- Mechanical Resolution: 0.0254mm
- Repeatability: 0.127mm

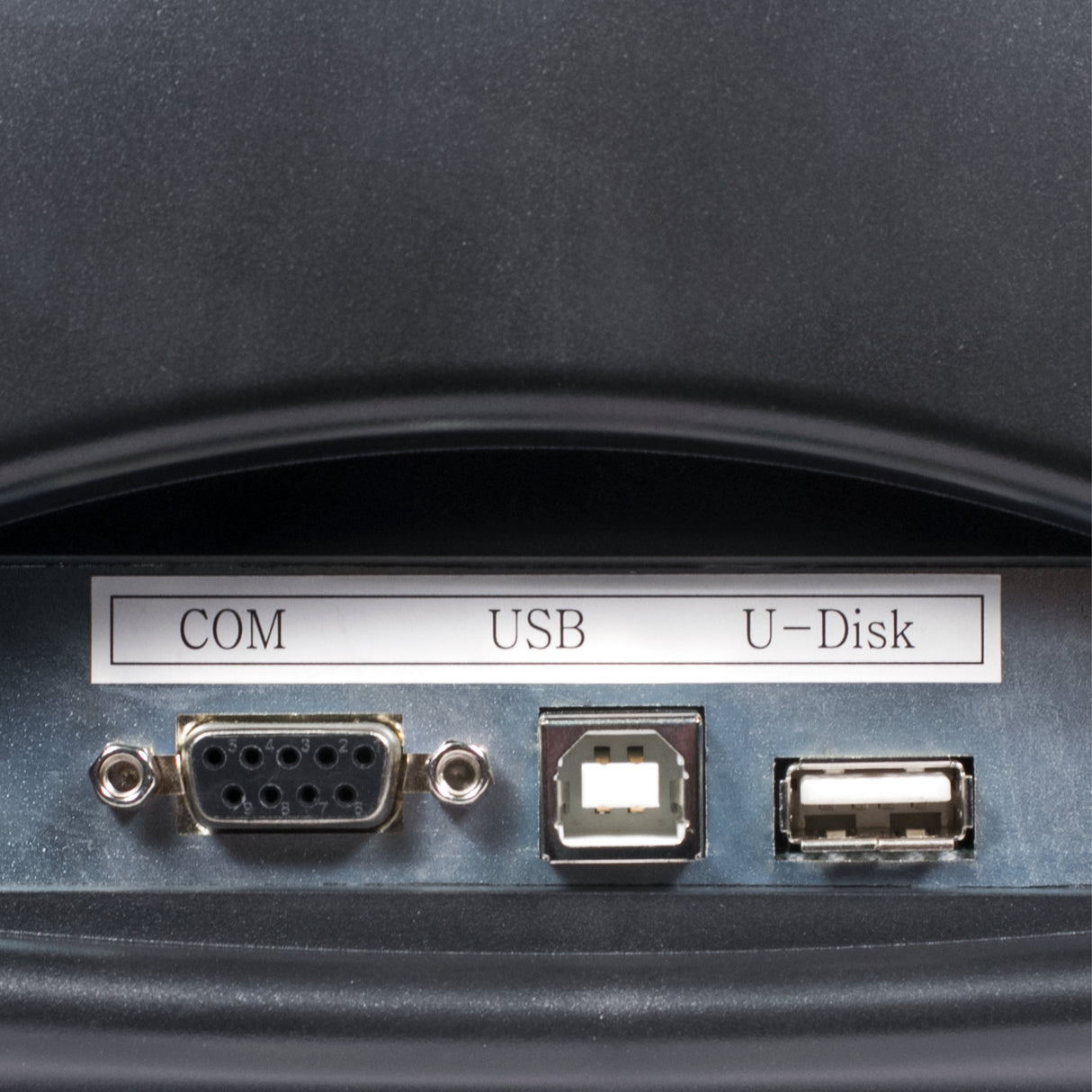

- Interfaces: COM, USB, U disk
- Type of Command: DMPL, HP-GL automatic identification
- Stand: Iron alloy stand with basket
- Compatibility: Windows XP, Vista, Windows 7, 8, 10 & 11

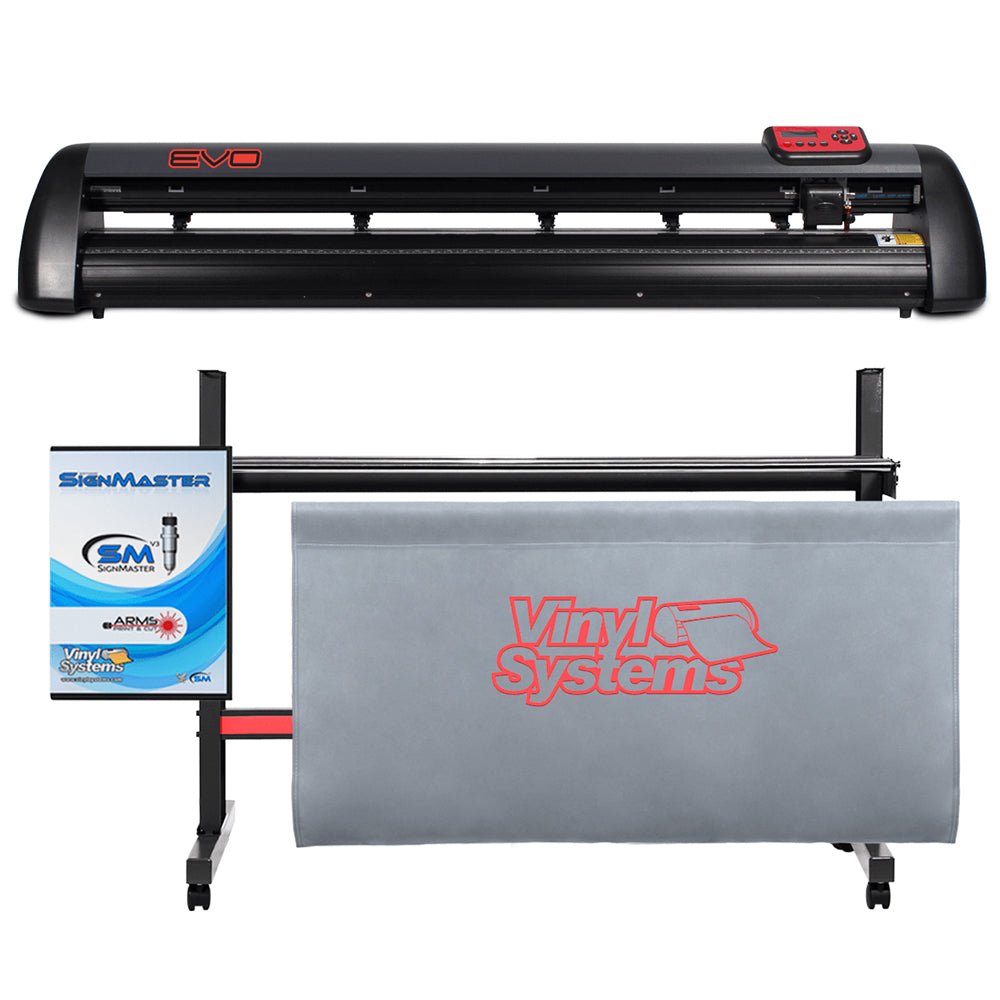

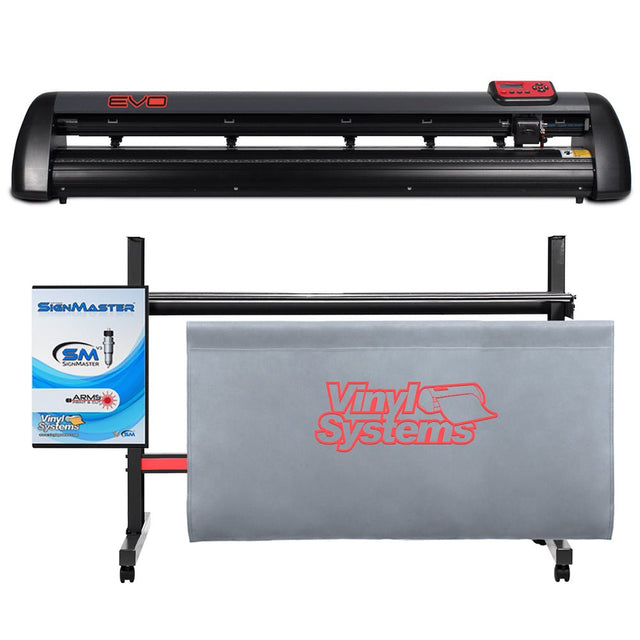

- Vinyl Cutter / Plotter
- Cutter Stand
- Media Catch Basket
- Digital Download of Sign Master Pro (Required Software)
- Dust Cover
- USB and Power Cord
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
Protect your investment by extending the manufacturer's parts and service warranty.
HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.
- 2 Years Total Coverage - $49.99
- 3 Years Total Coverage - $79.99
- 4 Years Total Coverage - $99.99
Add "MyExpert Protection" when adding your product to the cart
It was pretty easy to set up. Although I couldn’t balance it properly HPN was great and sent a different wheel. Cutter works great. Just starting with it but wasn’t difficult to figure out. I am sure I have tweaking to do but nice machine and quiet.
I purchased Evo cutter back in August 2020 and wanted to give it some time to see how it stands up to the bigger name brands. At the price level of this machine it stacks up against machines two to three times more in cost. The motor is very quiet and smooth! I have not had any challenges with this machine since I first purchased it. I have had experience with entry and advanced Roland machines which are step and servo motor driven and the Evo is much quieter than those. It is very easy to set up, comes complete with everything you need! Cutter, metal stand with 4 wheels, two rollers to hold the vinyl, USB cord, cover, extra blades, entry level weeding kit, two blade holders, and detailed instructions. The stand needs to be assembled when you receive it so don't be alarmed, it very easy to put together. The stand doesn't seem sturdy at first but once you have the cutter mounted it becomes one. The one thing I did was peel off and move one of the stick on rulers. They have two stick on rulers, one near the cutting blade and another further down the exit. The vinyl would get caught on the ruler that was near the blade when it gets fed in and out. I peeled it off and move it further down and it resolved that problem. A very minor situation and doesn't compromise the machine quality or durability in any way. I highly recommend this machine! For the price and value you are receiving I am surprised this machine doesn't sell out more often. It's not the cheapest out of the bunch but with a higher price comes much more benefits and higher quality jobs. This machine will pump out high volume jobs in minutes at perfect accuracy. If your on the fence about this machine, do not be! Its worth the price and will provide you with trouble free performance! The only thing you may wish for is it being in a larger size, due to the size of the cutting mechanism, you loose about 3.5" inches of cutting area as you can't go edge to edge. The largest decal you can cut is roughly 24" to 24.5" It is a decent size but something to keep that in mind if your going to be accepting larger sign jobs etc. Other than that it is an awesome machine and you will not regret it!
Heat Press Nation has always done a fantastic job for me. Customer service is very helpful. Thank you for answering my questions and being prompt in delivery of my cutter.
Never used it
