*This printer must ship freight.*

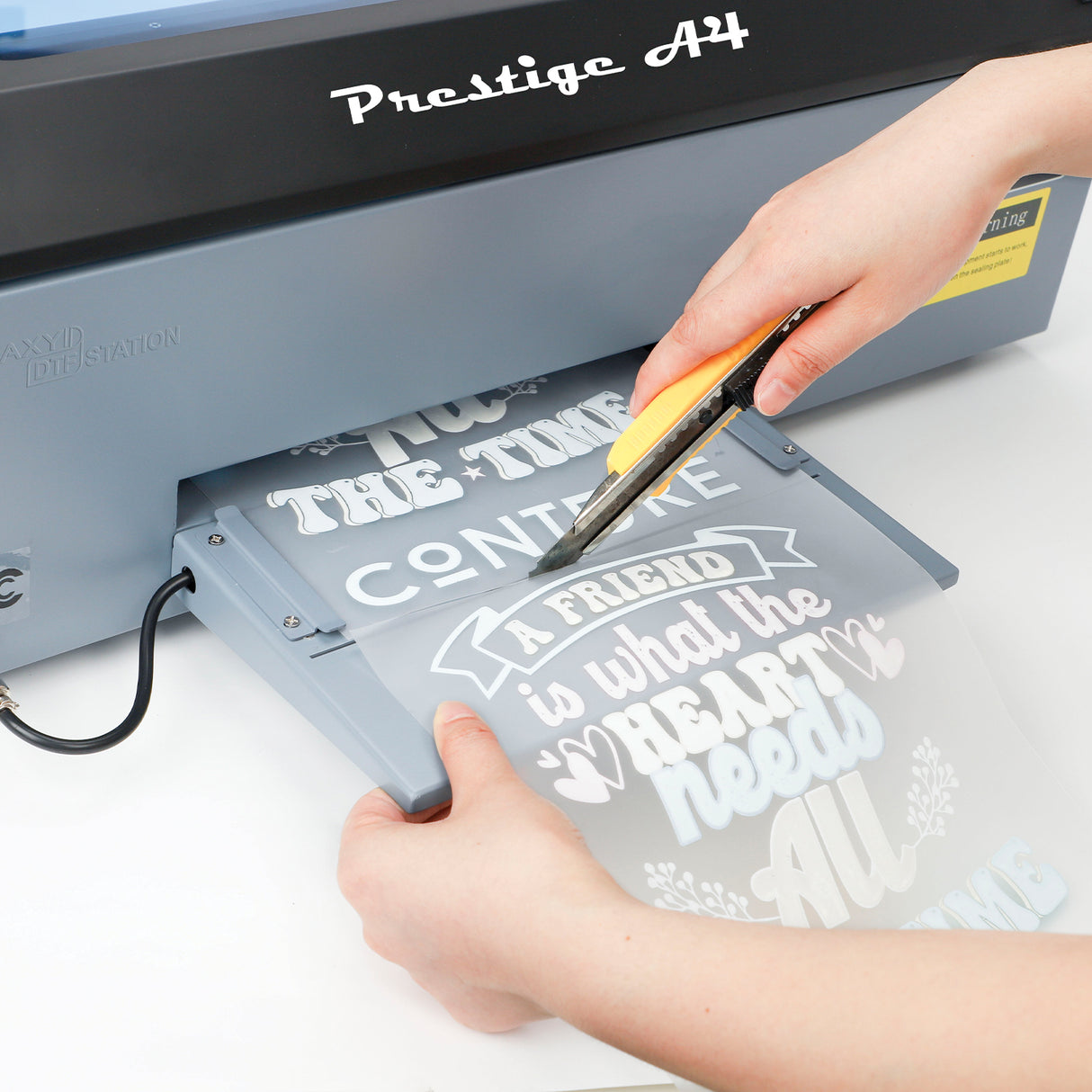

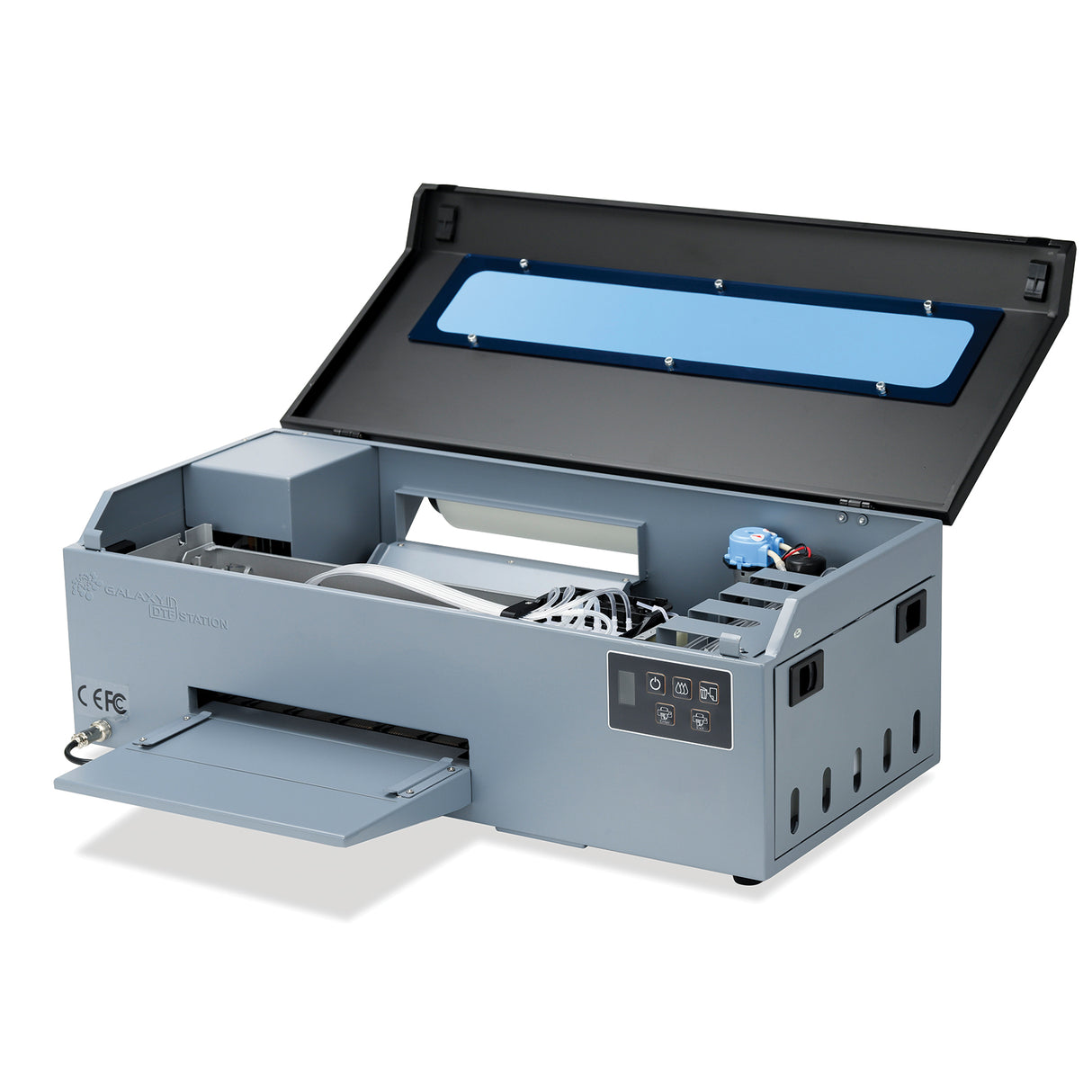

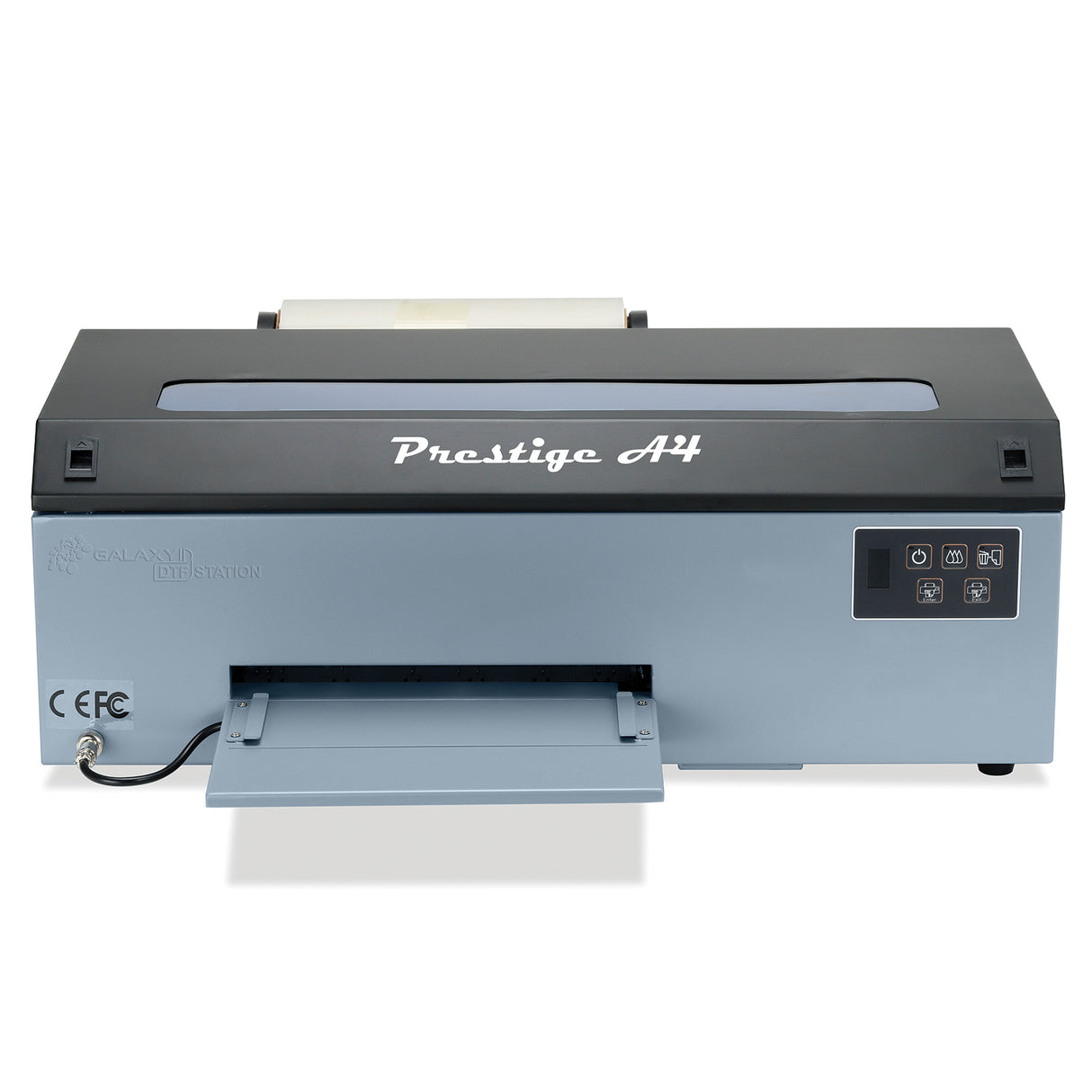

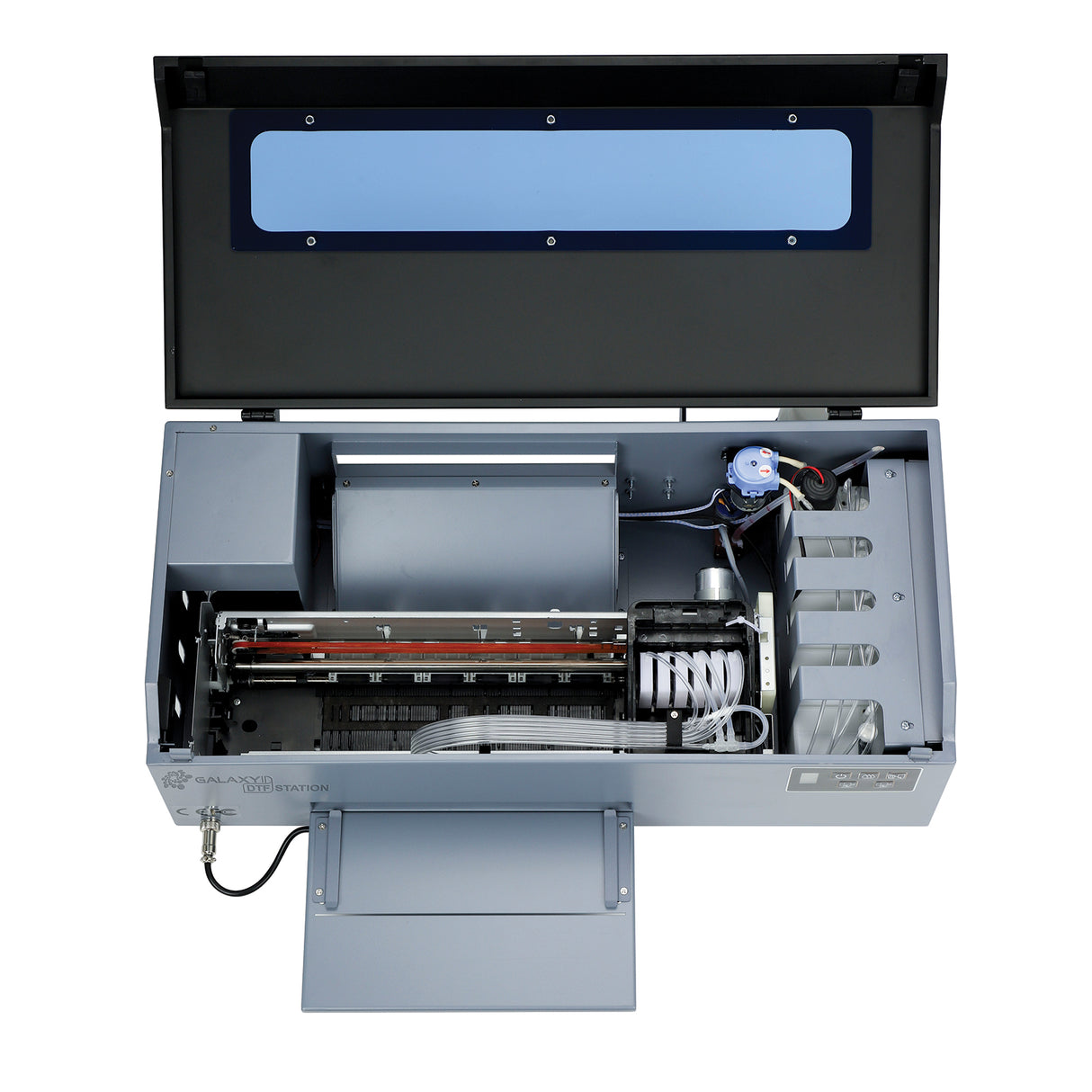

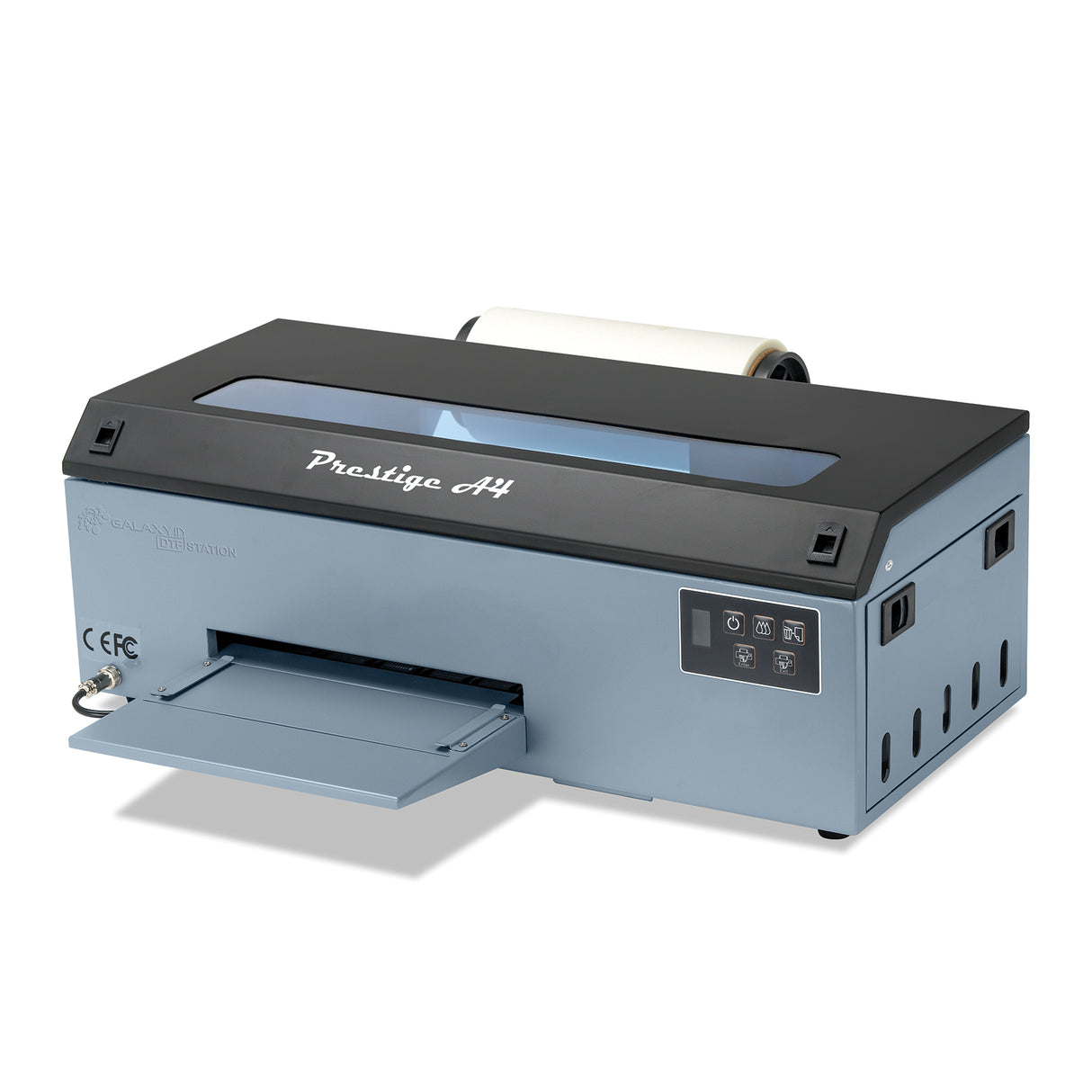

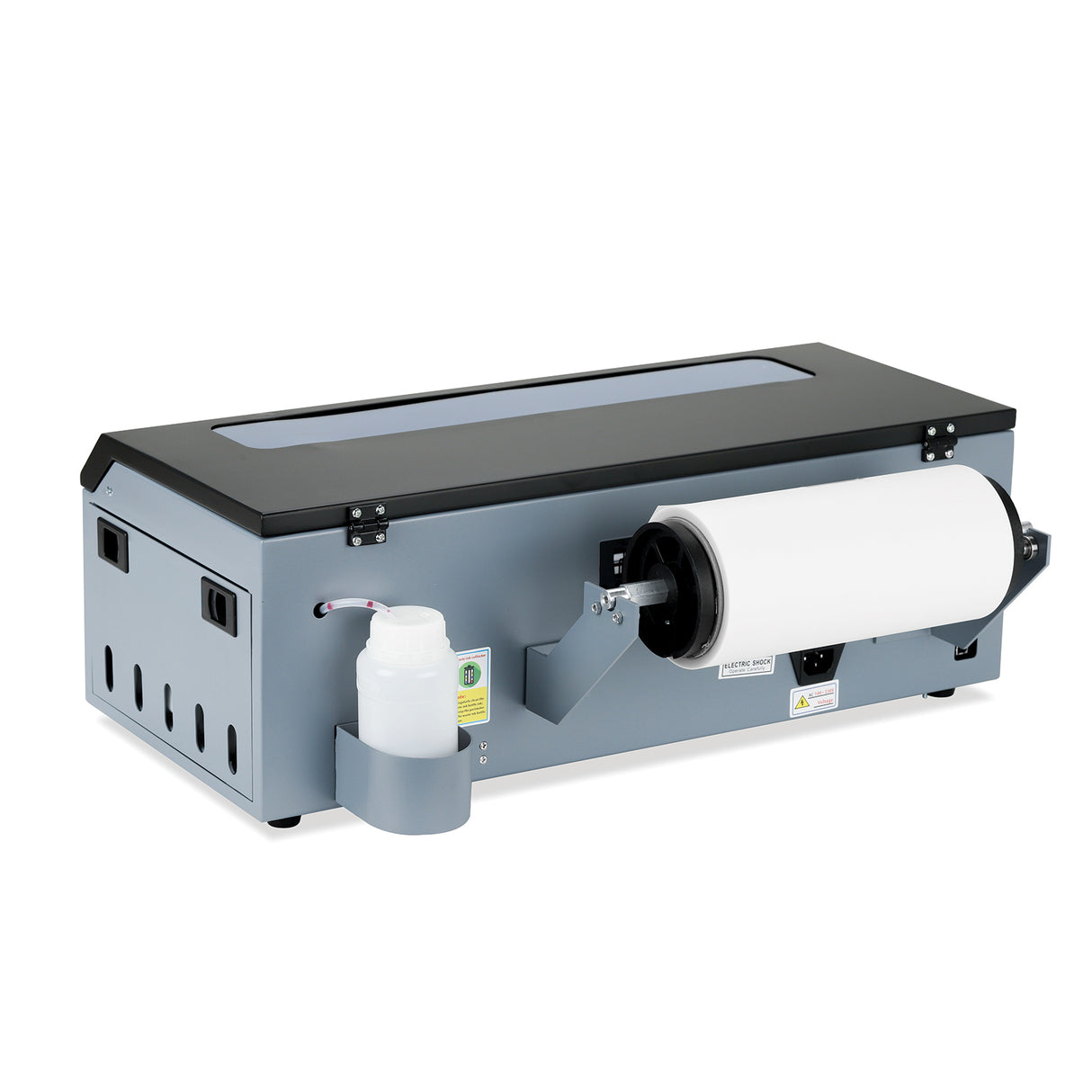

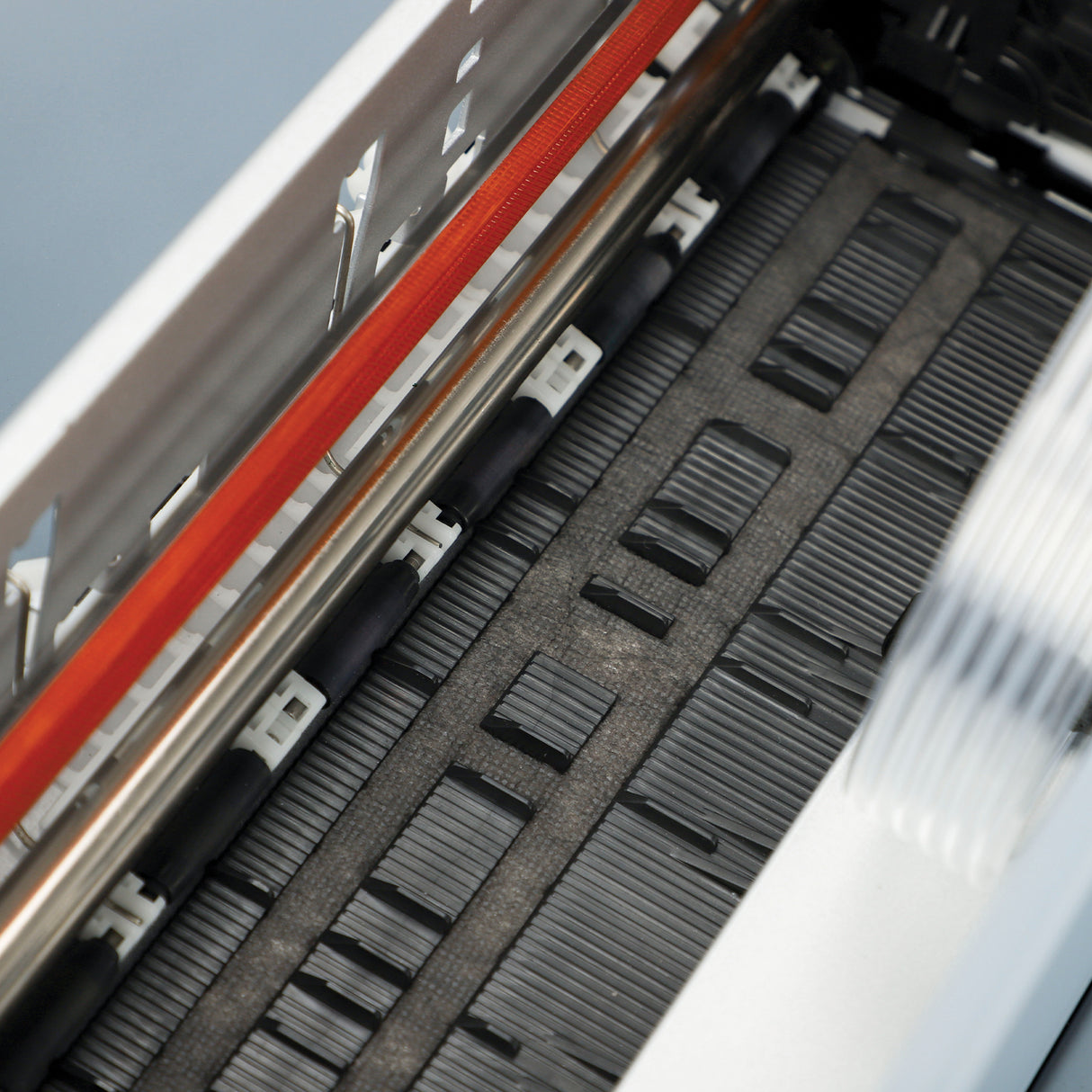

Presenting the Prestige A4 DTF Printer, DTF Station's smallest DTF printer ever! Perfect for garment printing enthusiasts starting with direct to film printing, this desktop printer is available in three color options – classic (black and grey), pink, and mint. It ensures high-quality and reliable results at 9 square feet per hour, and its compact design means you can place this printer just about anywhere.

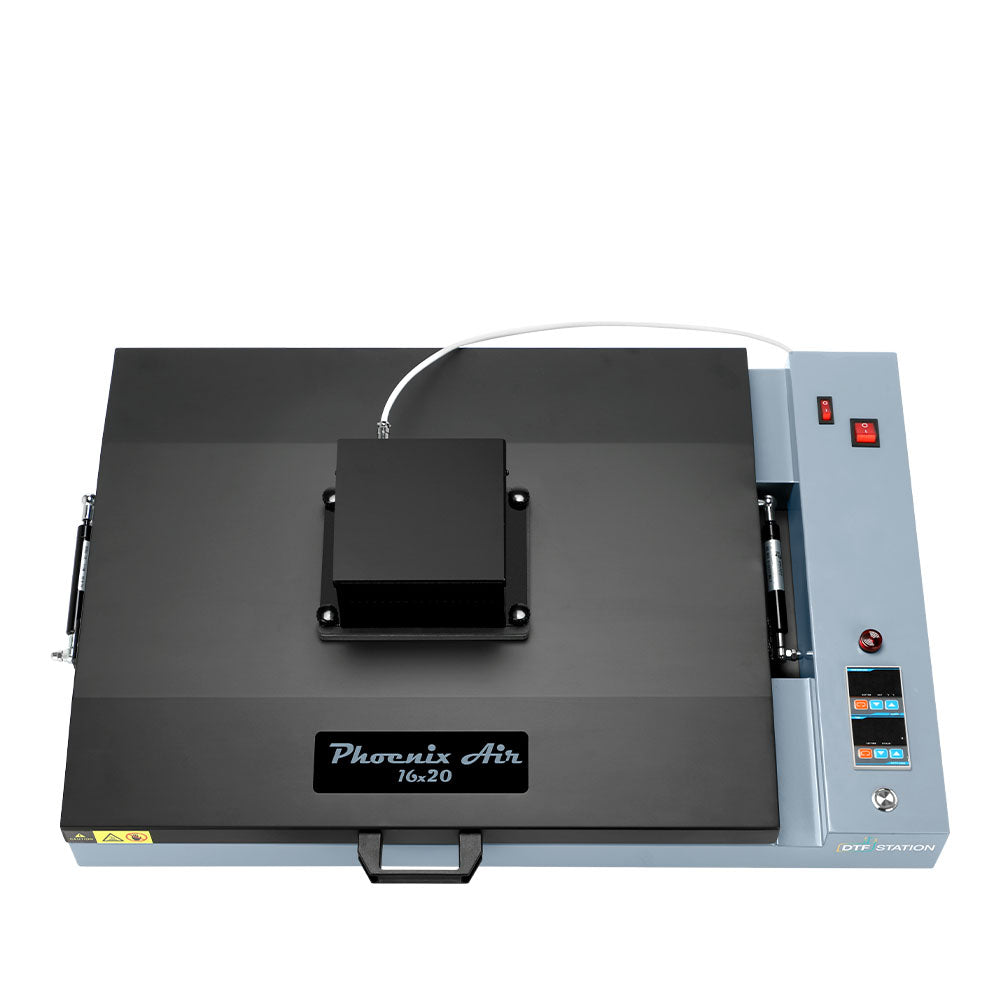

The DTF Station Phoenix Air 16" x 20" Curing Oven is a professional-grade curing oven designed specifically for DTF printing. With its built-in air purifier, it ensures a clean and efficient curing process, resulting in high-quality prints every time.

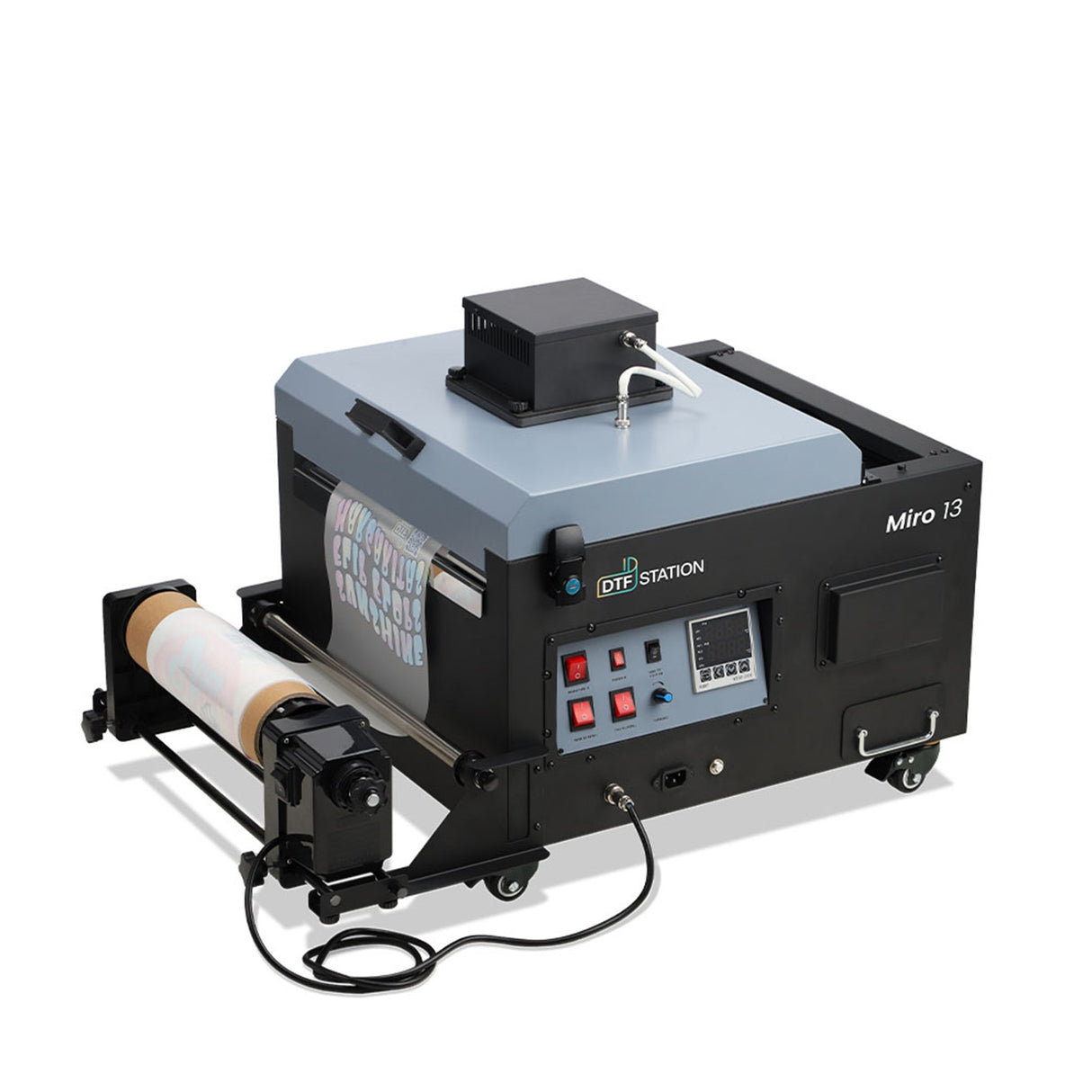

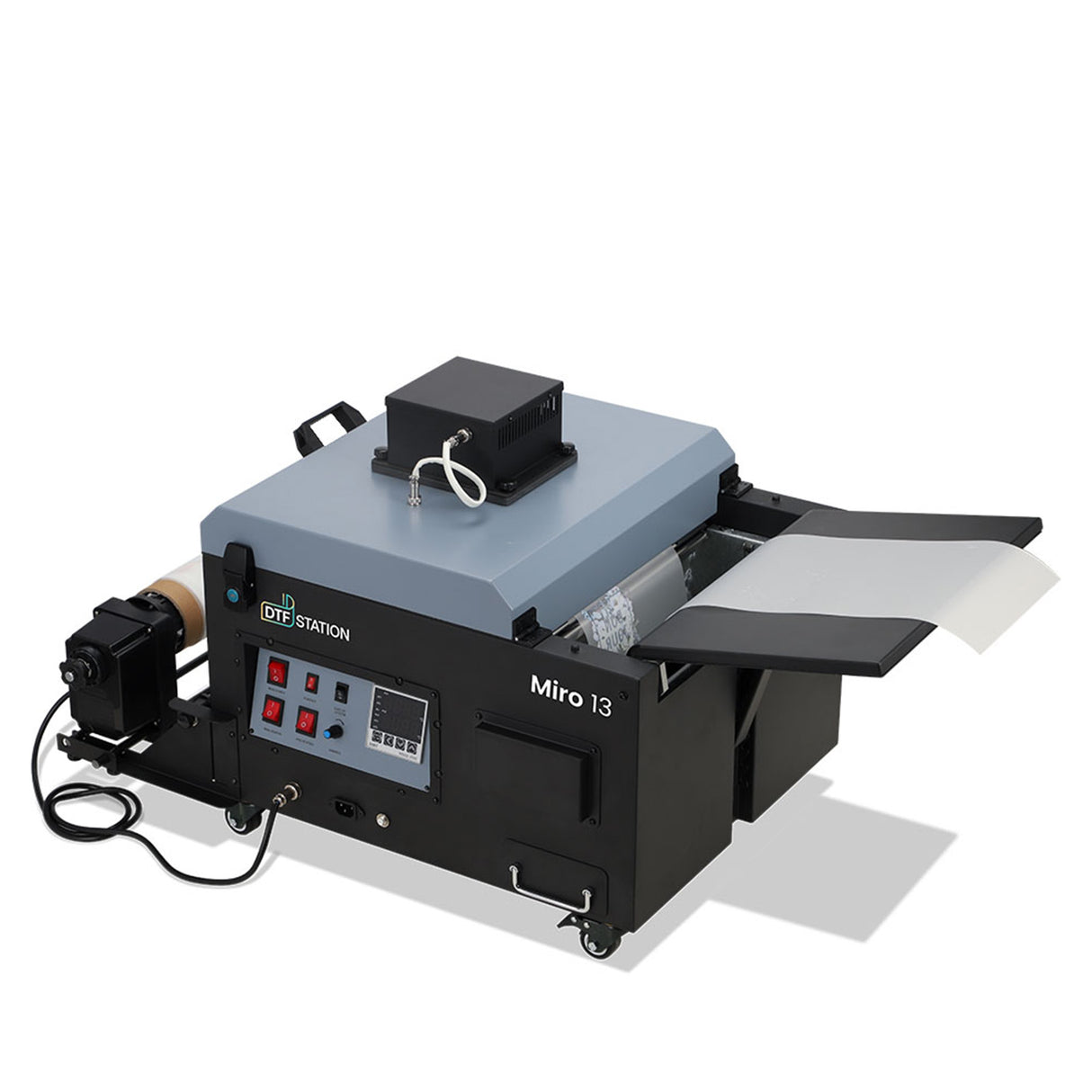

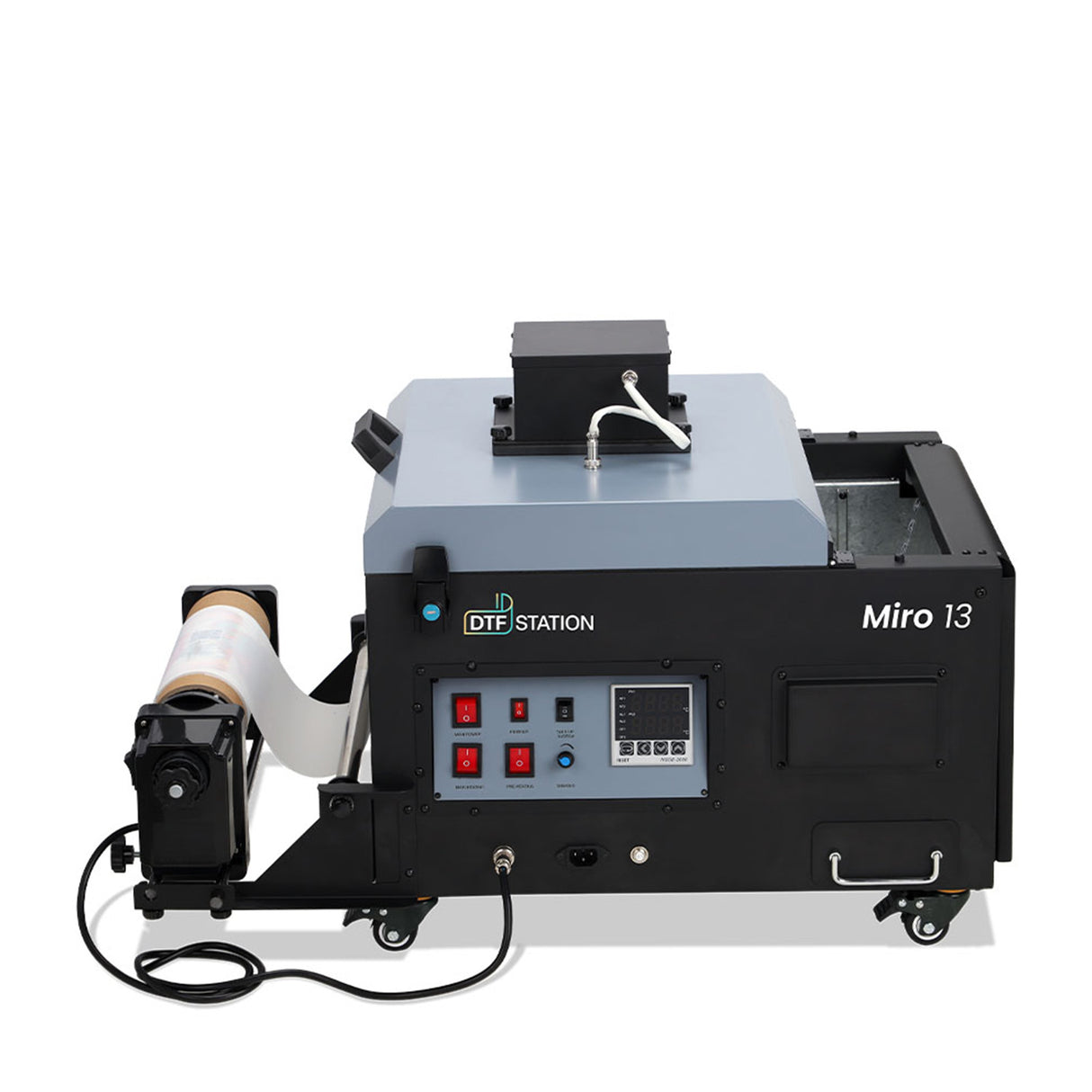

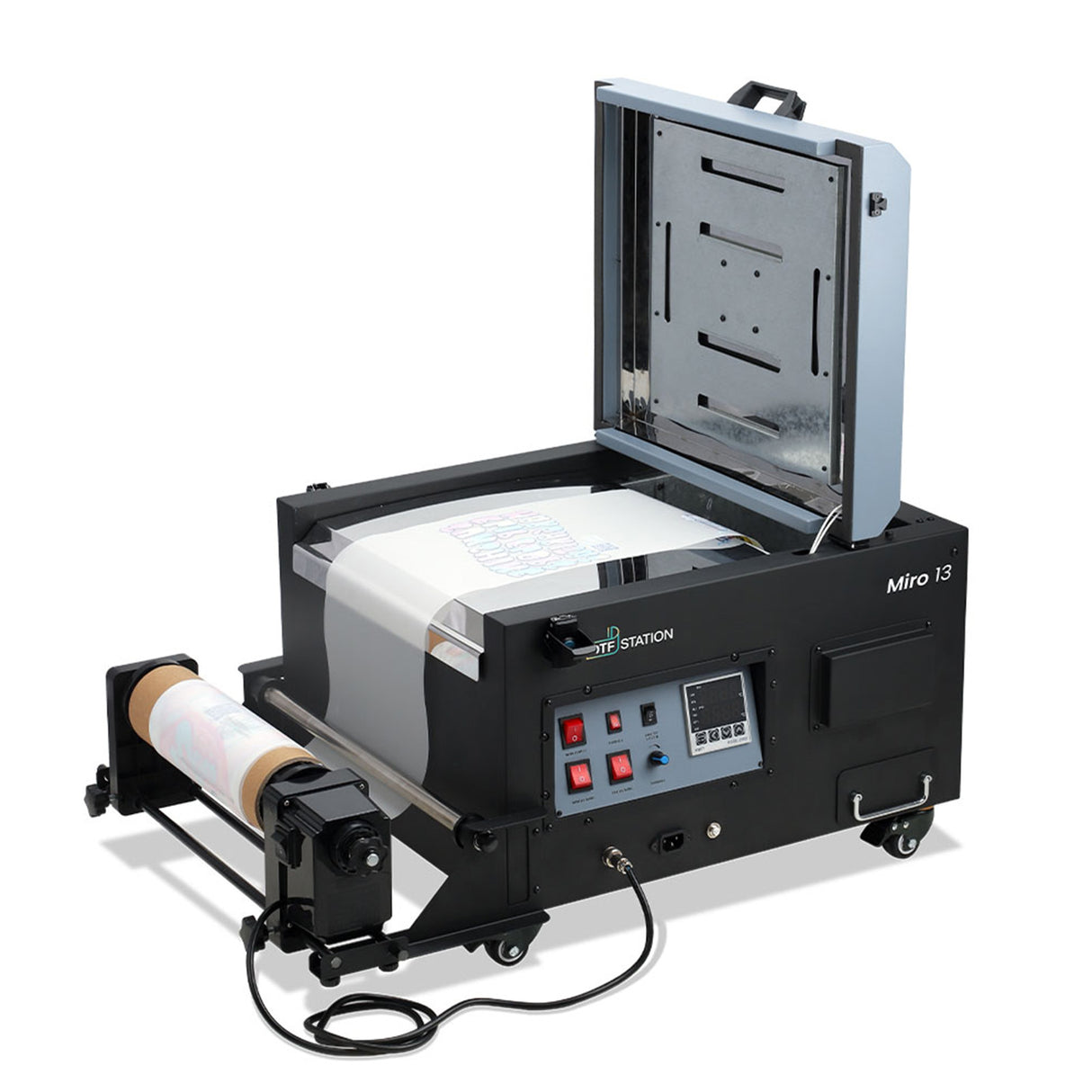

The Miro 13 Max is DTF Station's powdering and drying solution for every A3 and A4 sized DTF workflow.
Due to more optimized and even heating, power consumption has dropped to 1100W, making for a more cost-efficient and accessible powdering solution. Plus, the built-in air purifier on the Miro 13 Max ensures a safer, more eco-friendly working environment that saves space taken by an external air purifier.
*Available for local pickup in California, call for availability*
Features and Benefits:
- 9 sq. feet per hour! Fast speed at a comparably low price
- Includes a Epson L805 Print Head
- Available in Black & Grey (Classic), Pink, and Mint
- Compact yet powerful
- Perfect for entry-level DTF printing
- Intuitive, elegant design for easy setup and use
- Cure Transfers within a minute at 230~248°F
- Bottom Heating Element Rather than Top
- Self Contained Purification system
- Replace Filter 1~3 months depending on usage

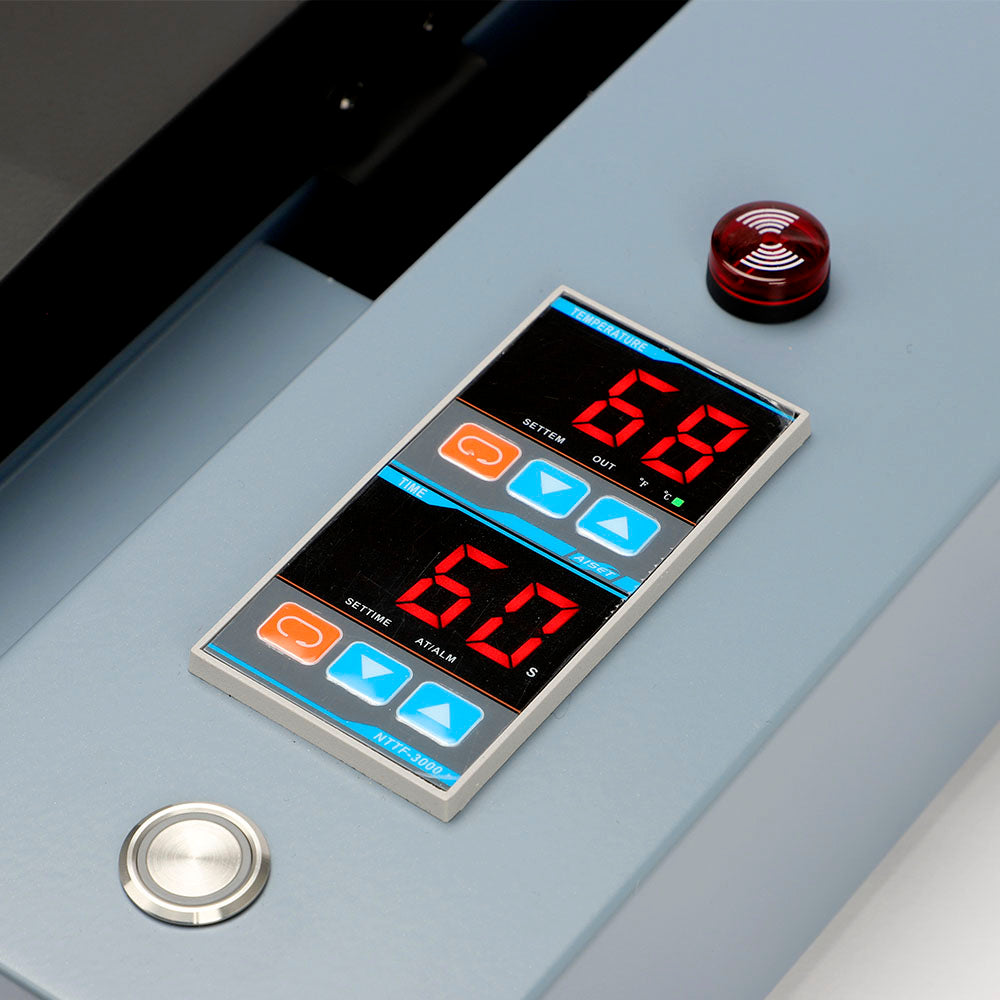

- Digital Control Unit: easy to set & allows precise settings of temperature and time for consistent results

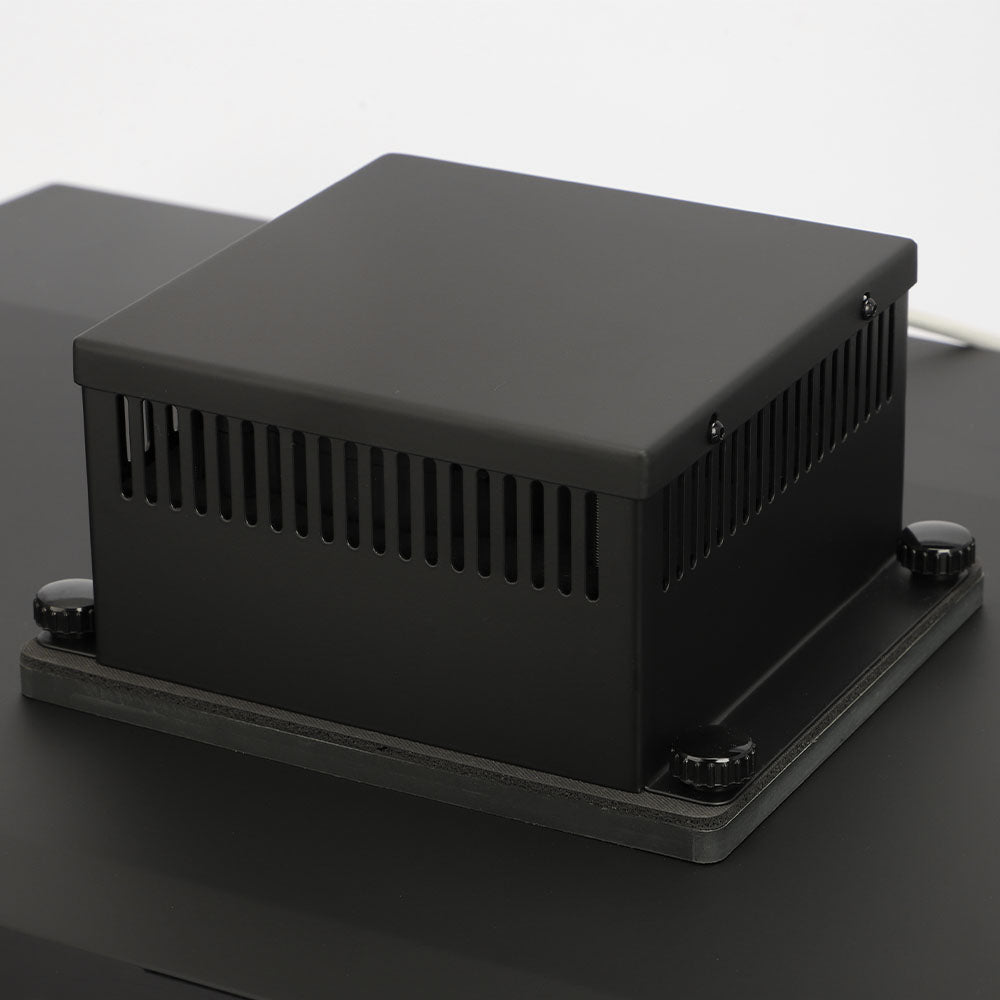

- Built-in air purifier & smoke recycling system: save space and your workspace
- Lower heating system: more even heating and curing
- Easy to operate: powder shaking, curing, and air purifying in one machine
- Low power consumption: 1100W
- Simple setup: turn the power on and start
- Full tech support: tech videos, direct support messaging through Slack, and more!
- Eligible for the DTF Station Trade-In Program for future upgrades.

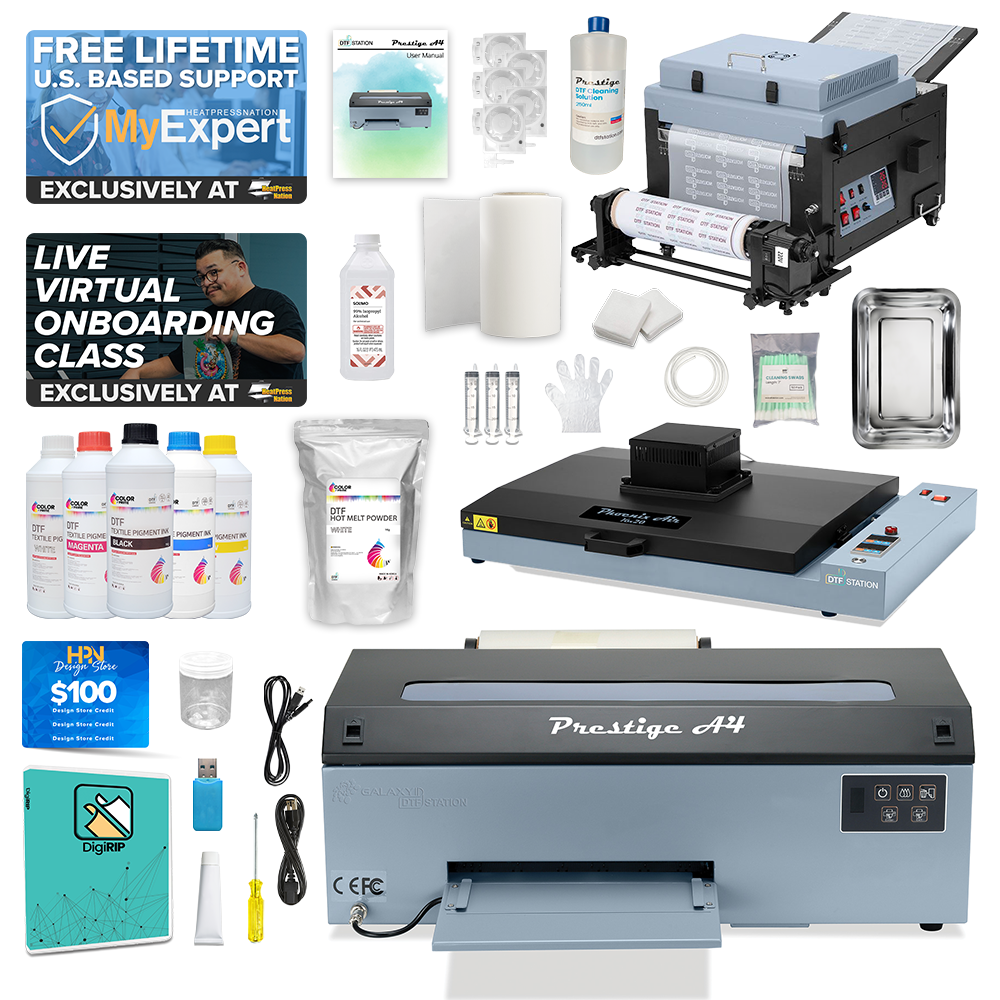

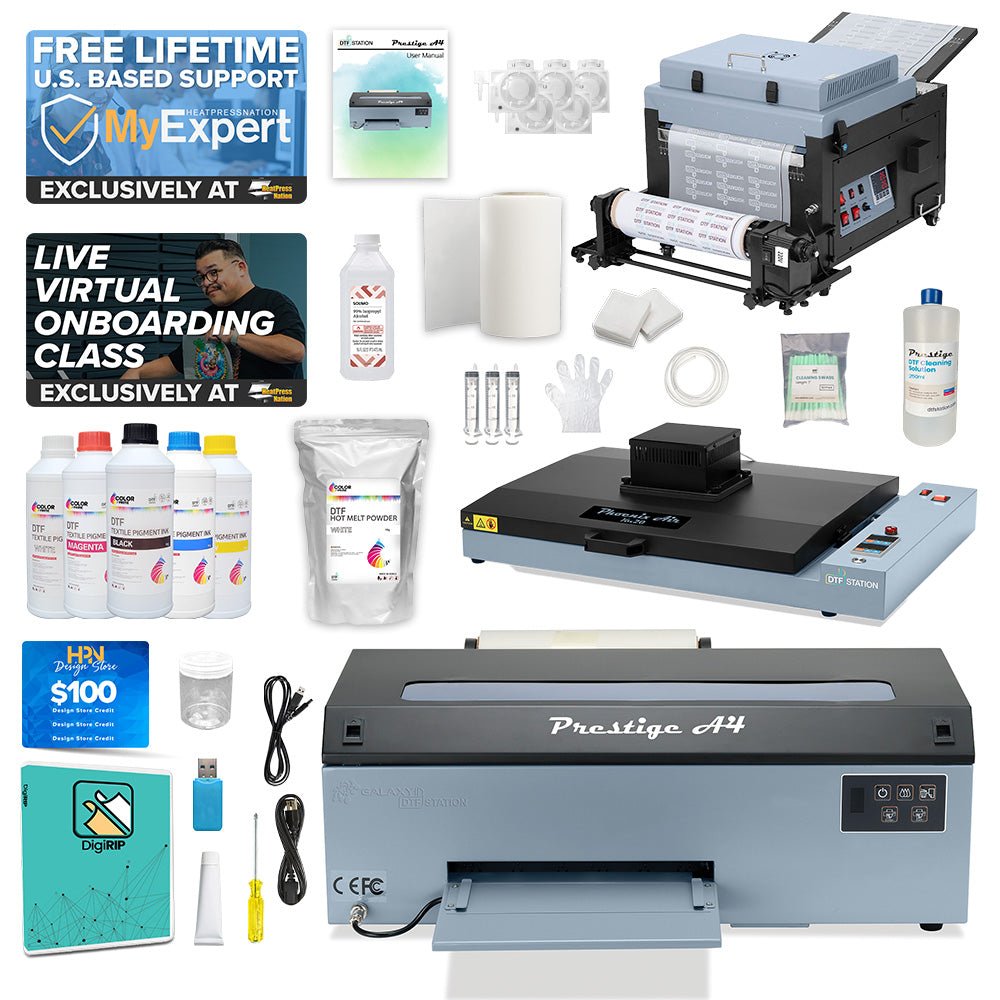

What's Included:
- DTF Station Prestige A4 DTF Printer - Classic Black and Grey
- DTF Station Phoenix Air 16" x 20" Curing Oven with Built-In Air Purifier
- DTF Station Miro 13 Max DTF Powder Shaker and Dryer
- DigiRIP RIP Software

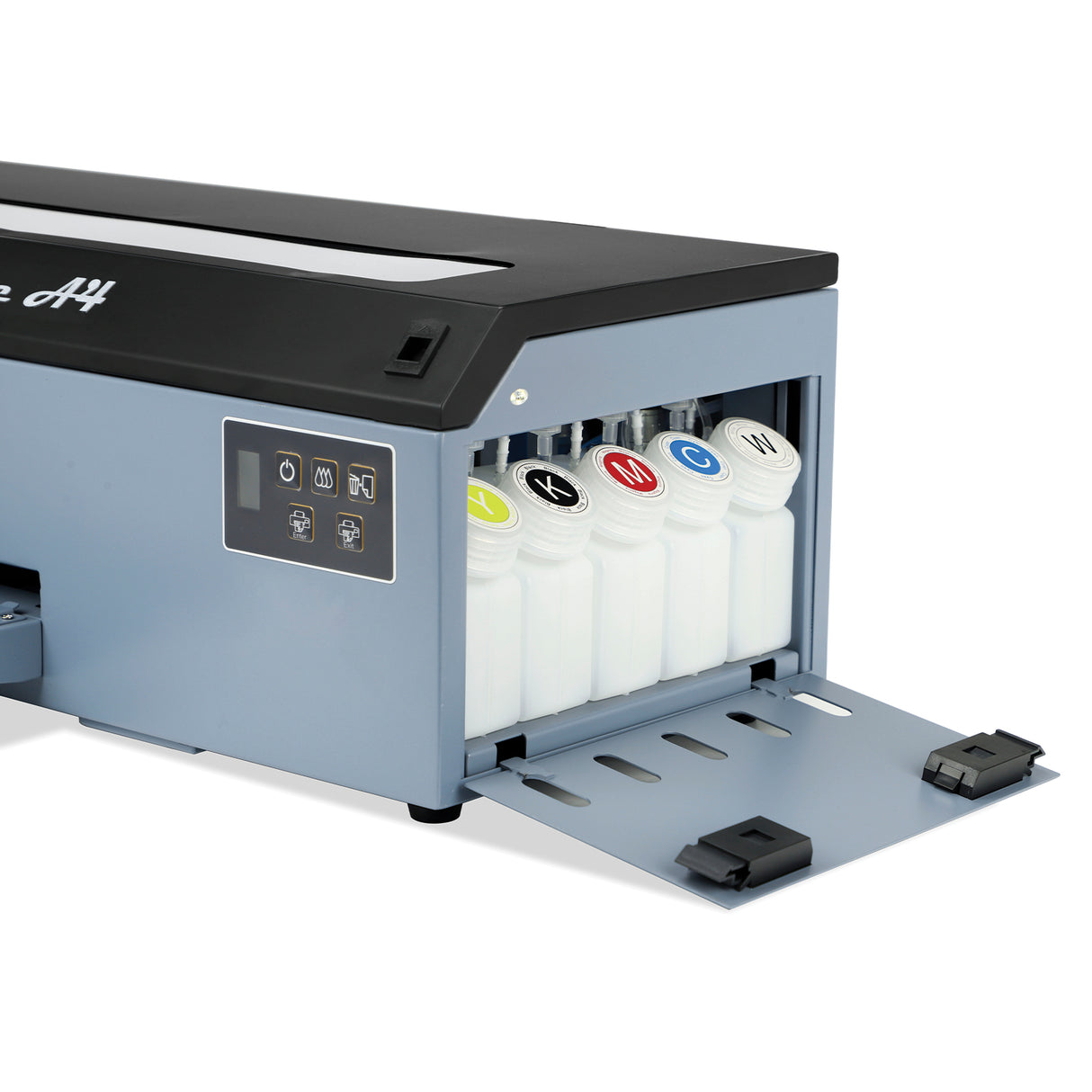

- Color Max DTF Pigment Ink (CMYKW) - 1kg (1 each)
- Color Prime Universal DTF Film Roll - A4 (7.87") x 109 yd
- Color Prime Hot Melt Powder - 1kg
- DTF Station Cleaning Solution - 250 ml
- Free Lifetime US-based MyExpert Technical Support
- Live Virtual On-Boarding Class
- 300 Credits to the HPN Design Store
- Isopropyl Alcohol 16oz
- Lintless Wipe 4 x 4 30 Each
- DTF Station 7" Cleaning Swabs - 50 Each
- 30x Microfiber Cloth
- 1x Ink Tube (1 Meter)
- 5x Ink Damper
- 3x 20ml Syringes
- 1x Splash Tray
- 10x Cotton Swabs
- 1x Screwdriver
- 10x Disposable Plastic Gloves
- 1x USB Cable
- 1x Power Cord
- 1x Lithium Grease
- 1x U-Disc
Not Included, but Also Needed:
-
Heat Press (used to press final print to garment - 16" x 20" recommended)
- Humidifier (to keep the humidity above 50% in the print room)
- Computer with Windows 10 or higher and an available USB port
Benefits of Direct to Film Transfers:
Any Color, Any Material: DTF transfers seamlessly adhere to multiple fabric types, regardless of color. Decorate cotton, nylon, polyester, leather, denim, and more. Unlock a world of vibrant possibilities for your designs! |
|
Easy to Use: Heat and pressure are all you need to transfer your designs. No need for pretreatment spray or tricky adhesive sheets. The transfer process is so simple that you can even sell your transfers for customers to apply themselves. |
|
Durable: Engineered to withstand the test of time, DTF transfers boast unparalleled durability, ensuring that your designs remain vibrant and intact through countless washes and wears. |
|
Soft and Stretchable: DTF transfers offer a silky-smooth touch and unparalleled stretchability, ensuring maximum comfort and freedom of movement with every wear. |
|
Long Shelf Life: With proper storage, DTF transfers can last for 1 year or longer. Print your more popular designs ahead of time, and press them on your schedule. |
Printer Specifications:
- Printhead: Epson L805
- Mainboard: Epson Original (Converted)
- Interface: USB
- Software: DigiRIP RIP Software - Compatible with Windows only
- Full Version included with printer
- To try the software, a 15 day trial can be downloaded HERE
-
Max Print Width: 7.87"
- Print Speed: 9 sq ft/hour (1440x720 DPI)
- Power Ratings: 100 Watts / 110 Volts / 0.9 Amps
- Machine Weight: 22.71 lbs
- Machine Dimensions: 23" W x 10" L x 8.3" H
- Shipping Weight: 34.17 lbs
- Machine Dimensions: 32.3" W x 14.25" L x 12.2" H
- Daily Output: 70 pcs (Based on design size as 7.87" x 11.81", 8 hrs per day)
Curing Oven Specifications:
- Voltage: 110V
- Power: 0.88KW
- Temperature Range: 0-150°C / 300°F
- Machine Size: 29"W x 21"D x 7.75"H
- Packaging Size: 31"W x 25"D x 10.75"H
- Product Weight: 30 lbs
- Packaging Weight: 35 lbs
- Warranty Policy
- Phoenix Air 16x20 Operation Manual
System Requirements
- Operating System: Windows
- Minimum RAM: 8GB
- Minimum CPU: Intel i5 2.6GHz
- Minimum Free Storage: 5GB
Note: It is recommended to turn on the air purifier ONLY while the oven timer is running. Leaving the air purifier on for prolonged periods may increase the overall temperature of the oven beyond recommended curing temperature.

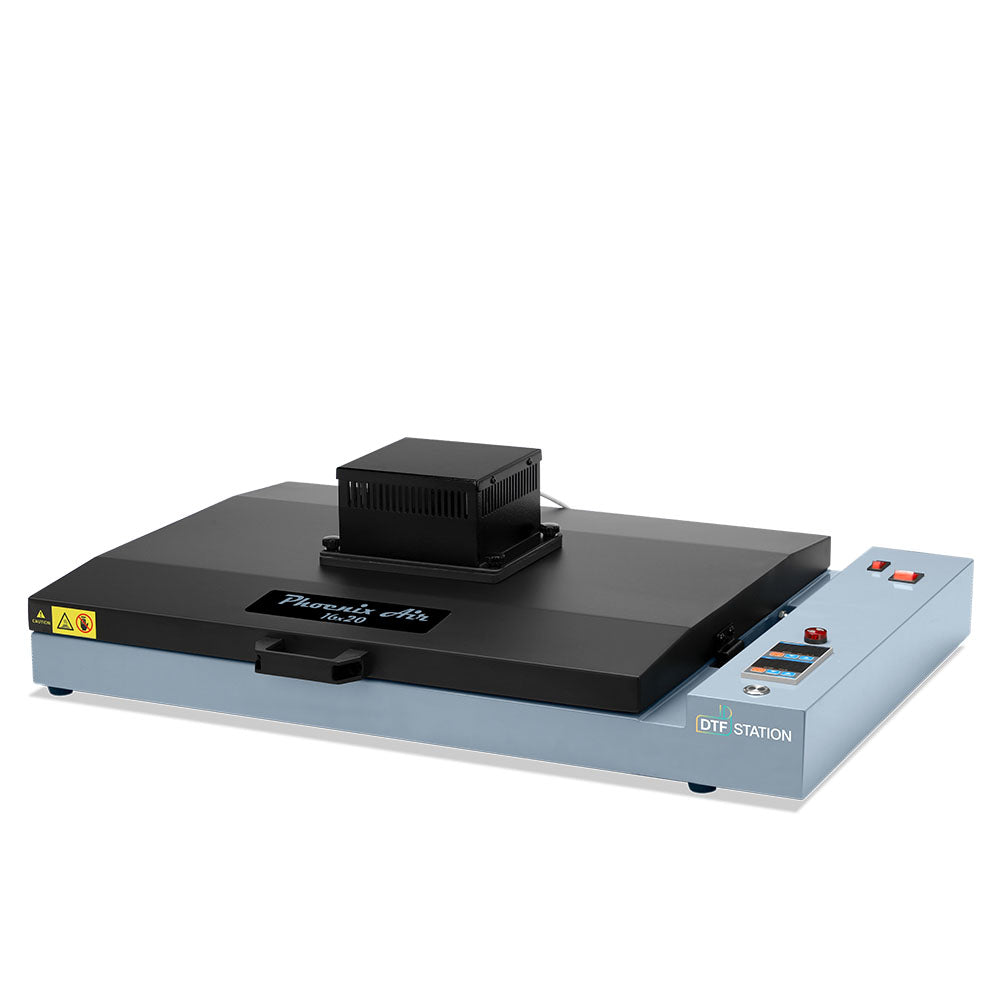

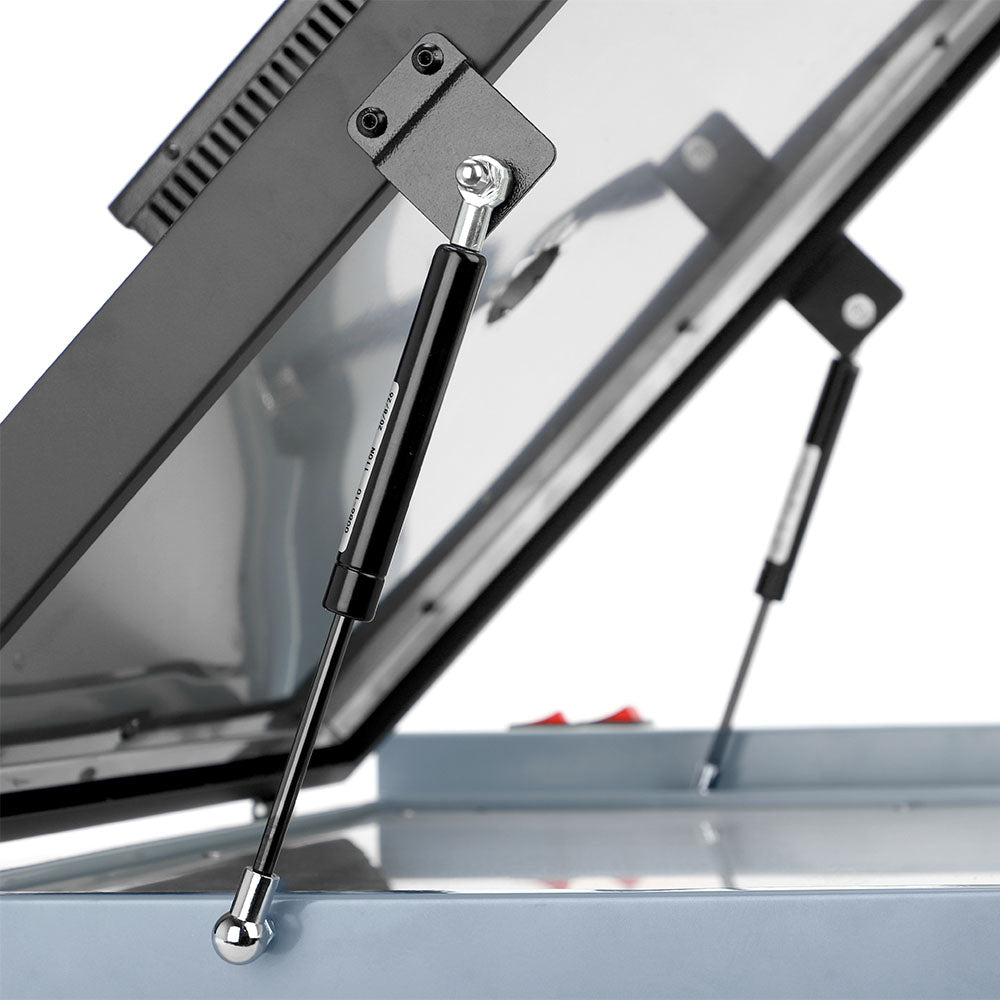

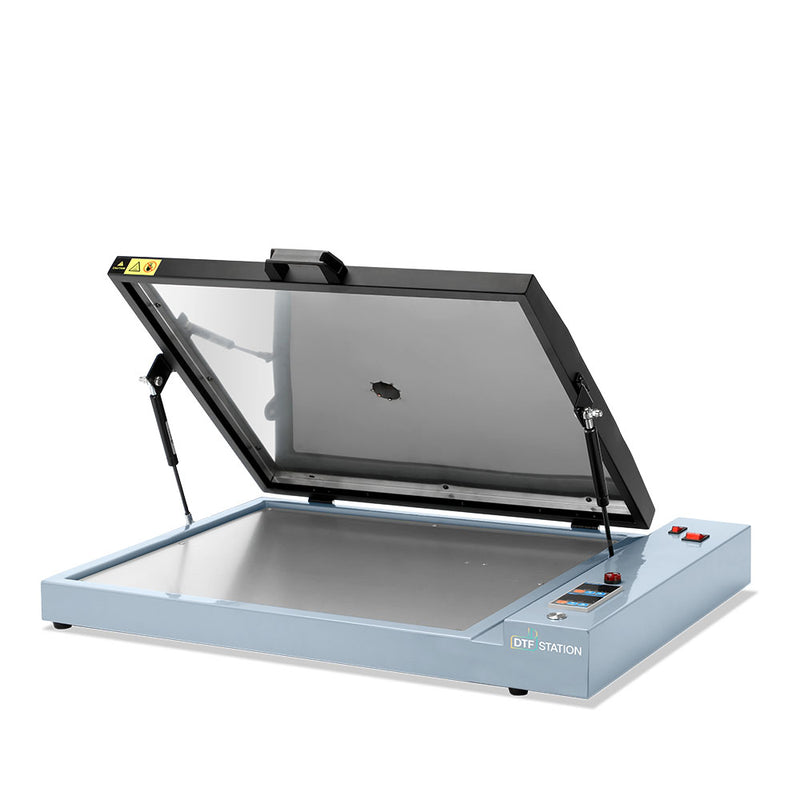

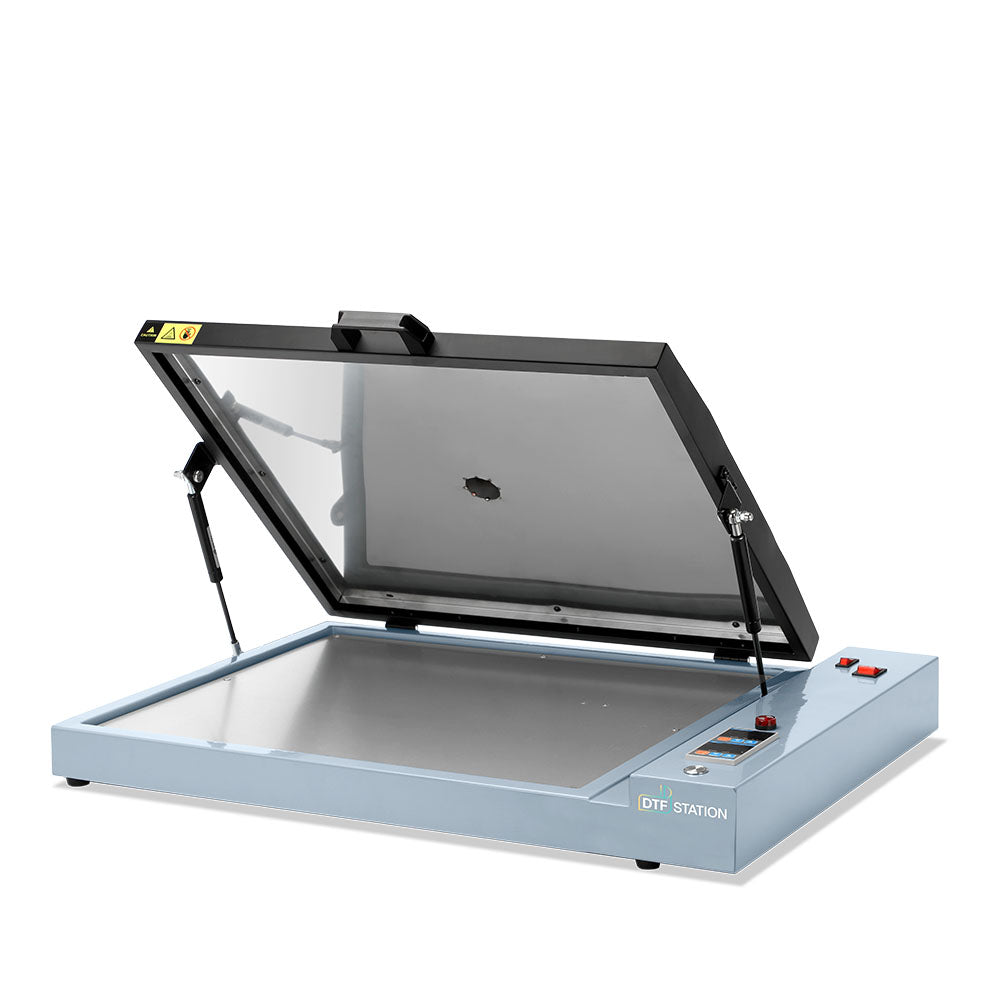

The DTF Station Phoenix Air 16" x 20" Curing Oven is perfect for curing large film sizes, such as 13" x 19", 14" x 16", 16" x 20", and more! This oven has a built-in purifier unit to ensure your production space's safety. Additionally, the new lower heating system and gas spring lifting mechanism help ensure your prints cure with less power consumption and even heating.

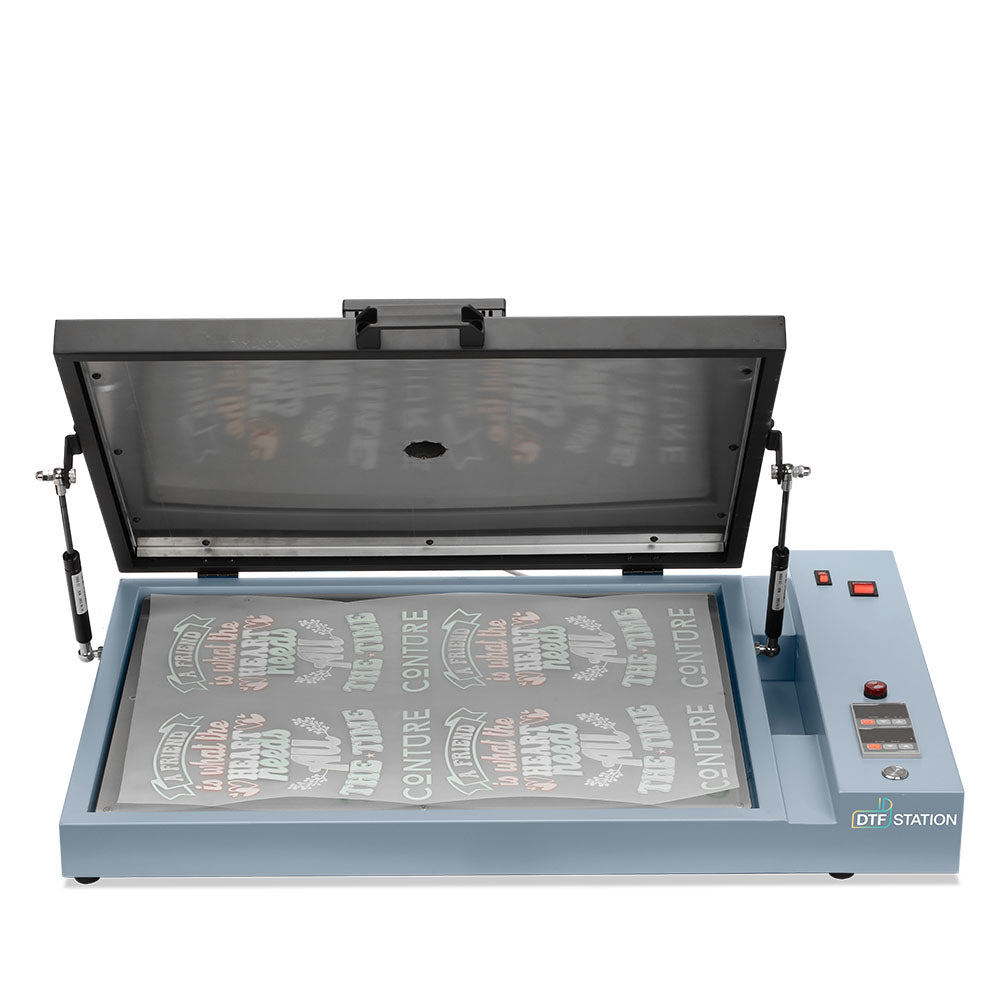

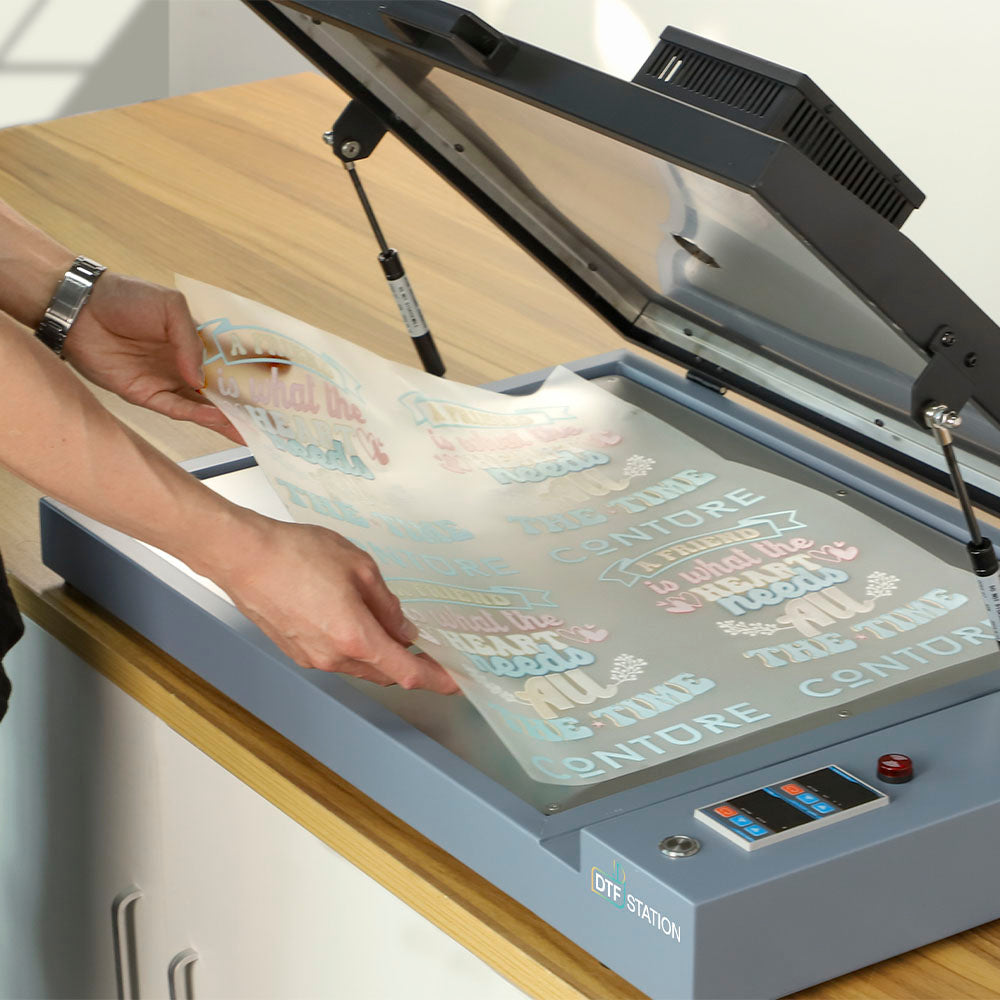

Note: Unlike the previous DTF Station Phoenix 16" x 20" Curing Oven, the DTF Station Phoenix Air 16" x 20" oven uses an open-top/platform, rather than a tray, to cure films. See the DTF Station Phoenix A2 Curing Oven for similar heating methods.
Powder Shaker and Dryer Specifications:
-
Max Film Width: 13" (33cm)
- Control Panel: Switch on/off
- Power Consumption: 1.17KW, 10.6A(110V)
- Voltage: 110VAC(10%) 50/60HZ
- Product Weight: 77.16 lbs. / 35kg
- Packaging Weight: 110.23 lbs. / 50kg
- Product Dimensions: 40.03" D x 22.44" W x 19.92" H / 1017*570*506 mm
- Packaging Dimensions: 28.34" D x 24.40" W x 19.29" H / 720*620*490 mm
- Warranty Policy
WARNING: Work in a WELL VENTILATED AREA and use protective equipment when working with DTF products and processes. It is highly recommended the use of a Fume Extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. It is not recommended to use DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize the risk of ink clogs and film buckling. Add a Fume Extractor to this package for sufficient fume extraction.
DTF printers require daily use/maintenance! You must perform a head cleaning, nozzle check and a test print every day to ensure the printer is running smoothly and to prevent printhead and capping station clogs. Printheads and capping stations are considered consumables and are not covered under warranty if they clog. Clogs can occur even after one print, so maintenance must start the moment you install ink.
The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support. No matter where you are in your product's life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, DTF Station, the manufacturer, offers a limited 1-Year warranty on non-consumable parts and a limited 6-Month warranty on up to 1 printhead. Full printhead warranty policy. For warranty claims, we may need to involve the official DTF Station team depending on the reported issue. Be aware that the use of non-DTF Station ink, film, or other supplies will void the warranty.
