With the possession of a posh style, AR-24 performs perfectly in cutting with its optimized cutting speed and force and lead to a stunning cutting quality, yet it is priced at a startup level and is worthy of return on investment. Note: products in bundle photo are subject to availability.
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894!
Superior Functionality: GCC AR-24 is built to achieve the optimized cutting abilities with the maximum of 15.7ips (400 mm/sec) cutting speed and 250 grams cutting force; moreover, the cutting width of up to 23.6" support a wide range of applications.
Windows Drivers: GCC AR-24 includes a “one click” Windows driver that allows sign makers to edit signs from CorelDraw and output directly to AR-24. It is very simple and easy to make signs with AR-24.
Guaranteed 1 Meter Tracking: GCC AR-24 is equipped with a stable drum that can guarantee 1 meter tracking to ensure quality outputs and saves you from wasted material and cost.
User-Friendly Interface: In addition to an ease of use control panel, AR-24 offers the special VLCD software, which provides a simple and intuitive workflow for users of all levels.
Dual-Port Connectivity: GCC AR-24 supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and GCC AR-24. Dual-port connectivity provides sign makers with great flexibility for data transmission.
- Maximum Cutting Width: 600mm (23.6")
- Maximum Media Loading Width: 71.9cm (28.3")
- Material Thickness: 0.8 mm
- Drive: Stepping Motor
- Cutting Force: 5~250 g
- Maximum Cutting Speed (Diagonal): 552 mm /sec (21.7 ips) (at 45° direction)
- Software Resolution: 0.025 mm
- Repeatability: +/- 0.1 mm
- Tracking: 1 M
- Memory / Buffer: 1 MB
- Interfaces: USB & RS-232
- Type of Command: HP-GL, HP-GL/2
- Configurable Origin: Yes
- Control Panel: 10 Control keys and 2 LED
- Software: GCC GreatCut-S
- Has Contour Cutting: No
- Pentium processor-based PC or compatible computer (Windows)
- Windows XP SP3/Vista/7/8/10/11 (Windows)
- Intel or Apple Silicon based Macintosh (Mac)
- Macintosh OSX 10.11 - 12 (Mac)
- 512 MB of RAM or more
- At least 50 MB of available hard disk space
- USB Port 1.1 or 2.x

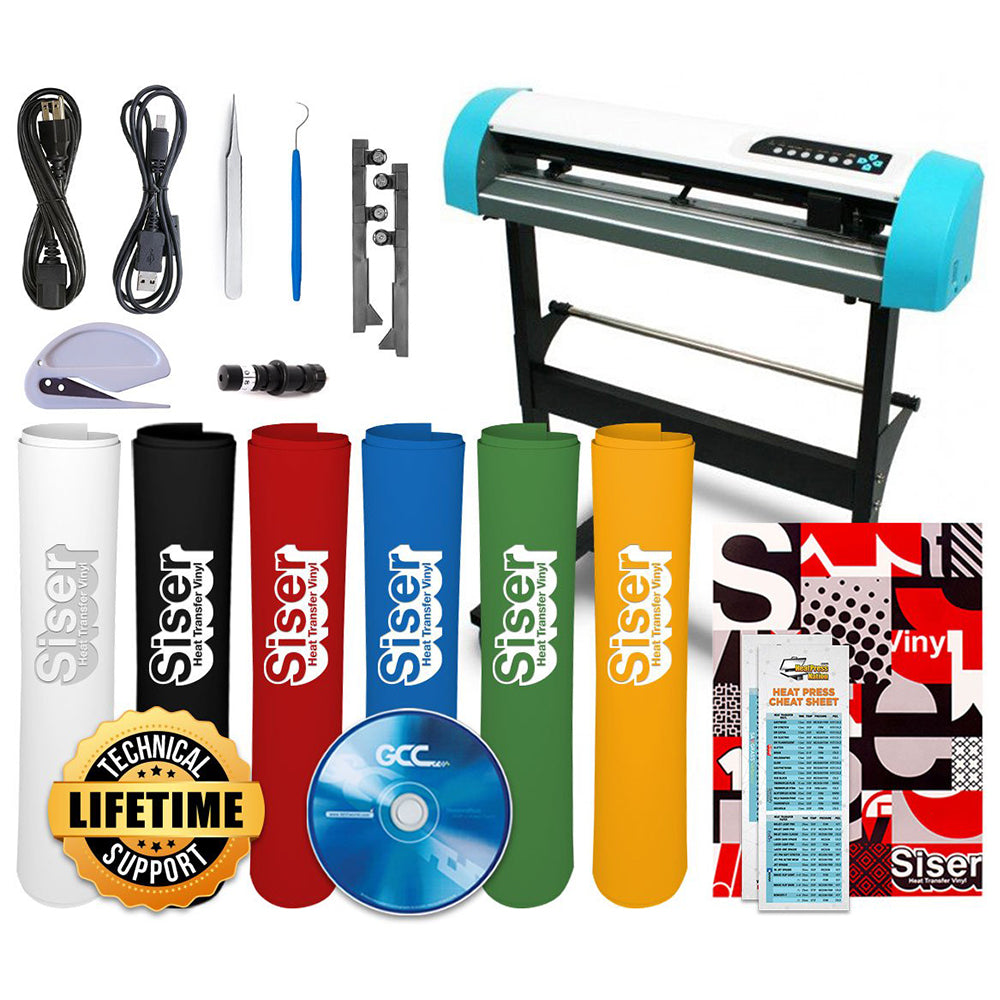

- AR-24 Vinyl Cutter Plotter
- Stand for AR-24
- GreatCut-S Software
- Educational Guided Videos
- 6 Siser Easyweed 12" x 15" Sheets (White, Black, Red, Royal Blue, Green, and Sun Yellow)
- Instructional Manual
- Siser Color Guide
- Weeding Hook Tool Lite
- 45 Degree Blade for Standard Vinyl Cutting
- Table Top Roll Feeder
- Safe Media Cutter
- USB Cable
- Power Cord
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
