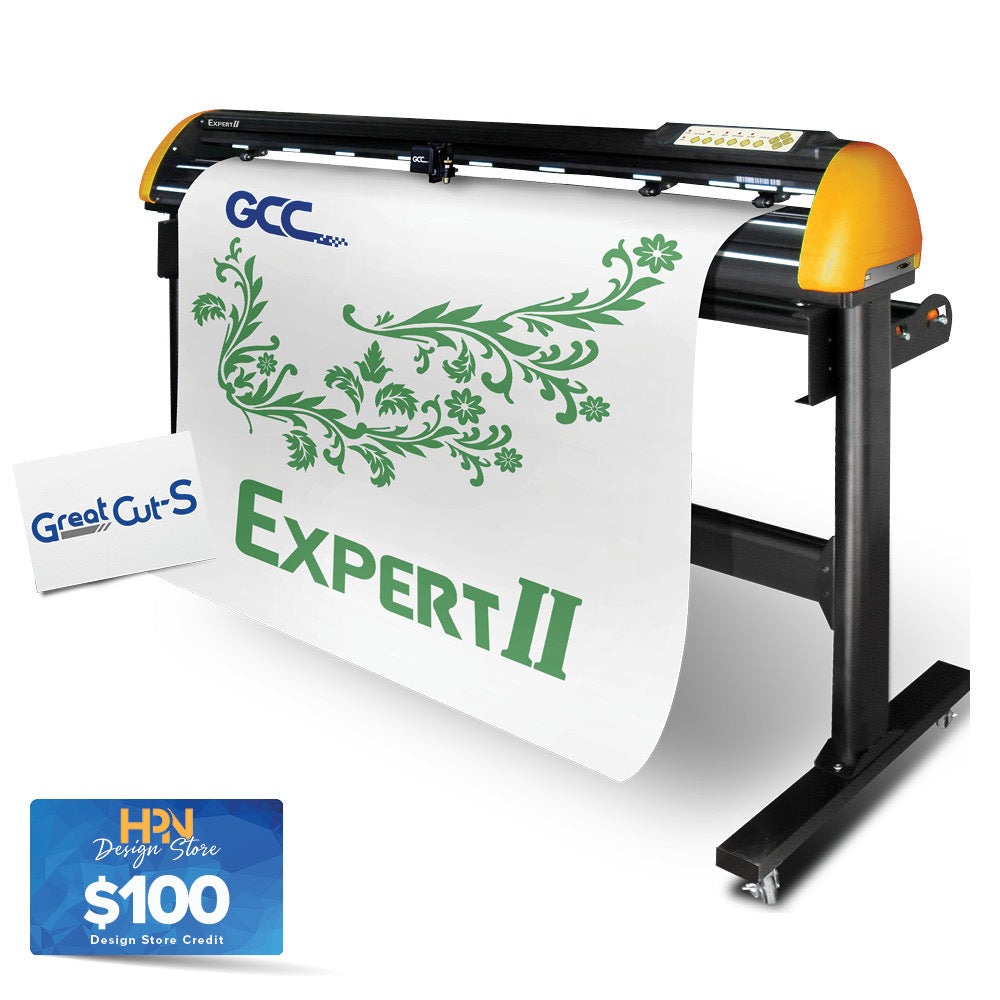

GCC Expert II 52 Vinyl Cutter Plotter

SKU: 112700080G

Price:
Translation missing: en.product.general.price$1,550.00 USD

Found a Lower Price?

Description
Warranty
Instructions

Expert 52 is the best choice for beginners and provides sign makers with optimum speed, superior quality, solid reliability and unmatched value. Expert 52 produces eye-catching graphics with up to 15.7 ips (400mm/sec) cutting speed, 250g of cutting force and three meters (9.84 feet) of tracking ability. The versatile Expert 52 sets a new benchmark for value, offering high accuracy and reliability at an unbelievably affordable price.

Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894

Features:

Wrench Icon

Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material.

Windows Icon

Windows Drivers: Expert II includes a "one click" Windows driver that allows sign makers to edit signs from CorelDraw and Adobe Illustrator output directly Expert II.

Rhinestone Icon

Rhinestone Application: Expert II handles rhinestone stencil cutting with ease. You will be amazed at its versatility

Check

Guaranteed 3 Meter Tracking: Expert II comes with a stable drum that can guarantee 3 meter tracking to ensure quality outputs and saves you from wasted material and cost.

Motor Icon

VCM (Voice Coil Motor): VCM ensures cutting quality. As a result, Expert II can provide sophisticated cutting quality steadily and consistently.

Friendly Icon

User-Friendly Interface: Expert II comes with a the special VLCD software, providing a simple and intuitive workflow for users of all levels.

Dual Port Icon

Dual-Port Connectivity: GCC Expert II supports dual-port connectivity with USB and serial ports.


Includes GreatCut Software:

  • Professional cut plug-in for Corel DRAW, Illustrator, Freehand, and AutoCAD
  • Cutting by color
  • Register marks with "Print & Cut" Support
  • Multiskin
  • Plot Manager

Specifications:

  • Maximum Cutting Width: 1320mm (51.96in)
  • Maximum Media Loading Width: 1470mm (57.87in)
  • Material Thickness: 0.8 mm
  • Drive: Stepping Motor
  • Cutting Force: 250 g
  • Maximum Cutting Speed (Diagonal): 400 mm / sec. (15.7 in.)
  • Mechanical Resolution: 0.012 mm
  • Software Resolution: 0.025 mm
  • Repeatability: +/- 0.1 mm
  • Tracking: 3 M
  • Memory / Buffer: 2 MB / 512 K
  • Interfaces: USB & RS-232
  • Type of Command: HP-GL, HP-GL/2
  • Configurable Origin: Yes
  • Control Panel: 6 LEDs / 10 Keys
  • Stand: Included
  • Software: GCC GreatCut-S
  • Bonus: $100 HPN Design Store Credit Voucher
  • Has Contour Cutting: No



SYSTEM REQUIREMENTS

  • Pentium processor-based PC or compatible computer (Windows)
  • Windows XP SP3/Vista/7/8/10/11 (Windows)
  • Intel or Apple Silicon based Macintosh (Mac)
  • Macintosh OSX 10.11 - 12 (Mac)
  • 512 MB of RAM or more
  • At least 50 MB of available hard disk space
  • USB Port 1.1 or 2.x

    MyExpert Support Logo

    The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

    Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

    Our MyExpert Support will always be there for you so you can purchase with confidence!

    In addition, this GCC vinyl cutter comes with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.




    The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

    Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

    Our MyExpert Support will always be there for you so you can purchase with confidence!
