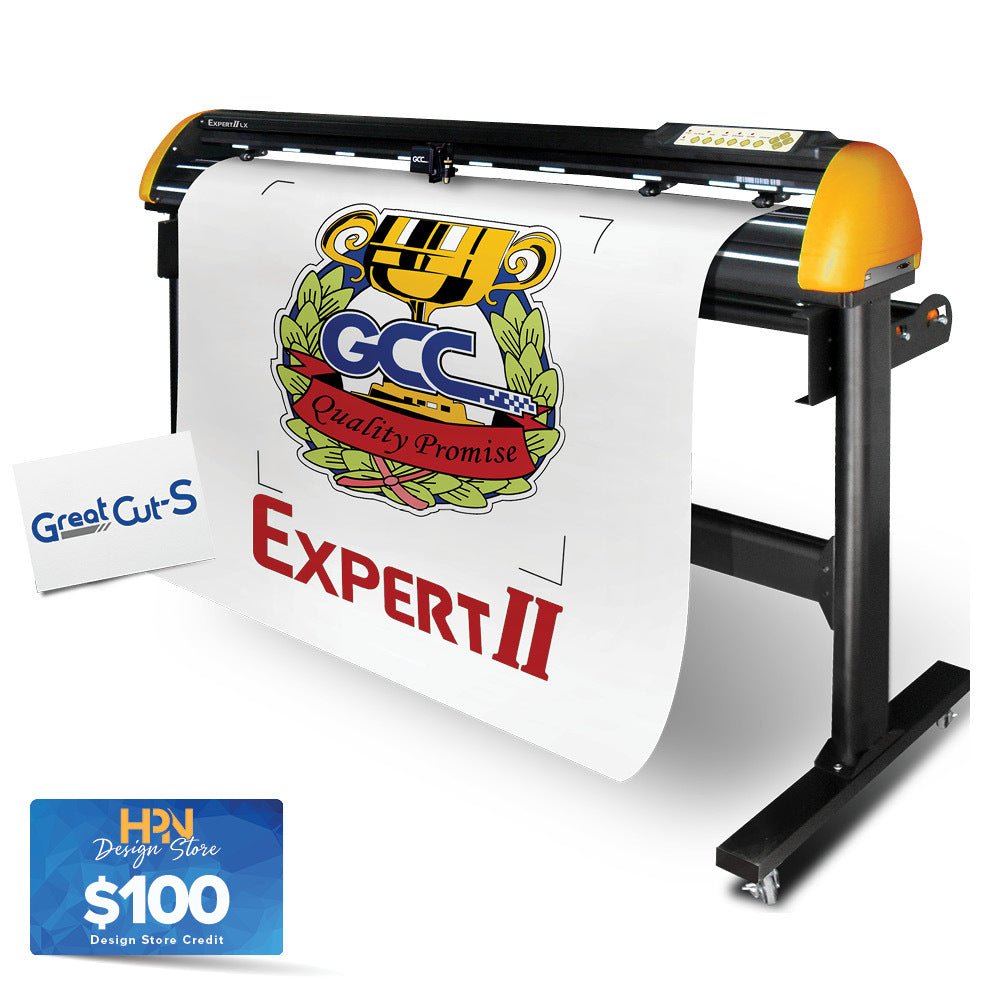

With the superior tracking capability plus an advanced AAS function for auto contour cutting to meet the demands of the craft market, the all-new Expert II 52 LX features a cutting force of 250 grams and speed up to 15.7 IPS, offering precise cutting quality. As the best choice for beginners, Expert II 52 LX provides sign makers with optimum speed, superior quality, solid reliability, and unmatched value. Maximize your creativity now with an Expert II 52 LX cutting plotter!
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894
Advanced AAS II Contour Cutting System: Advanced Automatic-Aligning System (AAS II) guarantees precise contour cutting by detecting the registration marks on digitally produced images.
Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material.
Windows Drivers: Expert II includes a "one-click" Windows driver that allows sign makers to edit signs from CorelDraw and Adobe Illustrator output directly Expert II.
Rhinestone Application: Expert II handles rhinestone stencil cutting with ease. You will be amazed at its versatility
Guaranteed 3 Meter Tracking: Expert II comes with a stable drum that can guarantee 3-meter tracking to ensure quality outputs and saves you from wasted material and cost.
VCM (Voice Coil Motor): VCM ensures cutting quality. As a result, Expert II can provide sophisticated cutting quality steadily and consistently.
User-Friendly Interface: Expert II comes with a special VLCD software, providing a simple and intuitive workflow for users of all levels.
Dual-Port Connectivity: GCC Expert II supports dual-port connectivity with USB and serial ports.
Includes GreatCut Software:
- Professional cut plug-in for Corel DRAW, Illustrator, Freehand, and AutoCAD
- Cutting by color
- Register marks with "Print & Cut" Support
- Plot Manager
- Maximum Cutting Width: 1320mm (51.96in)
- Maximum Media Loading Width: 1470mm (57.87in)
- Material Thickness: 0.8 mm
- Drive: Stepping Motor
- Cutting Force: 250 g
- Maximum Cutting Speed (Diagonal): 400 mm / sec. (15.7 in.)
- Mechanical Resolution: 0.012 mm
- Software Resolution: 0.025 mm
- Repeatability: +/- 0.1 mm
- Tracking: 3 M
- Memory / Buffer: 2 MB / 512 K
- Interfaces: USB & RS-232
- Type of Command: HP-GL, HP-GL/2
- Configurable Origin: Yes
- Control Panel: 6 LEDs / 10 Keys
- Stand: Included
- Included Software Compatibility: Windows 7, 8, 10 (32 or 64 Bit) (Not macOS compatible)
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
