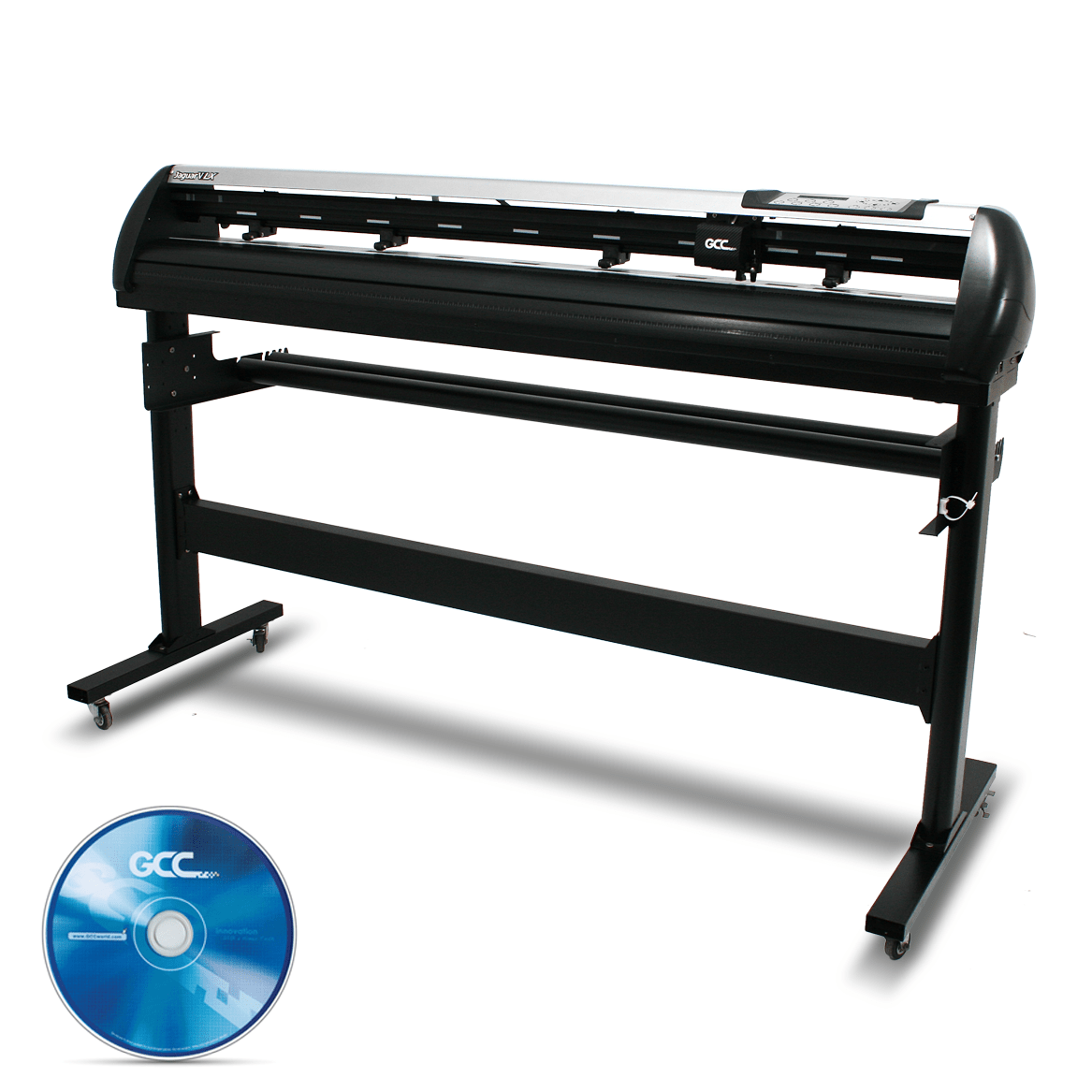

GCC Jaguar V LX Vinyl Cutter Plotter 52"

SKU: 112800060G

Please choose: without Liftgate Service
Price:
Sale price$4,250.00

Found a Lower Price?

Stock:
Description
Warranty

With the accurate Enhanced AAS II, reliable tracking capability, and intuitive features to meet the demands of today's professionals, the Jaguar V LX series represents the apex of vinyl cutting plotter technology.

Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894

Features:

Contour Cutting Icon

Enhanced AAS II Contour Cutting System: Jaguar V LX series features an enhanced Automatic- Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.

Wrench Icon

Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material.

Windows Icon

Windows Drivers: Jaguar includes a Windows driver that allows sign makers to edit signs from CorelDRAW and output directly to the Jaguar system. Easy-to-understand drivers make sign cutting with Jaguar simple.

Rhinestone Icon

800 Grams of Cutting Force: Selectable cutting forces, ranging from 0 to 600g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.

Check

Selective Pinch Roller Positioning: Each pinch roller can be positioned and operated individually, widening the Jaguar cutting plotter's range of applications.

Motor Icon

Media Handling System: The media handling system is fully adjustable. It handles media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

Friendly Icon

User-Friendly Interface: The easy-to-use and multi-language control panel can remarkably simplify complex tasks. Available in 9 languages, including English, French, Italian, Spanish, Portuguese, Dutch, Japanese, Polish, and Turkish, it provides functional settings to meet users' needs.

Dual Port Icon

Tri-Port Connectivity: Jaguar supports tri-port connectivity with USB, serial and parallel ports. USB port provides faster and convenient data transmission between computer and Jaguar. Tri-port connectivity provides sign makers great flexibility for data transmission


Specifications:

  • Operational Method: Roller-Type
  • Max. Cutting Width: 1320 mm (52 in.)
  • Max. Cutting Length: 50 m (164 ft)
  • Max. Media Loading Width: 1594mm (62.7 in.)
  • Min. Media Loading Width: 50 mm (1.97 in.)
  • Maximum Media Thickness: 0.8 mm (0.03 in.)
  • Number of Pinch Rollers: 4
  • Acceptable Material Thickness: 0.8 mm (0.03 in.)
  • Motor Drive: DC Servo Control
  • Max. Cutting Speed: 1530 mm/sec (60 ips) (at 45° direction)
  • Acceleration: 4.2 G
  • Offset: 0 ~ 1.0 mm (with an increase of 0.025 mm)
  • Memory Buffer: 32MB
  • Interfaces: USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
  • Type of Command: HP-GL, HP-GL/2
  • Mechanical Resolution: 0.006 mm
  • Software Resolution: 0.025 mm
  • Repeatability: ±0.1 mm
  • Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
  • Automatic-Aligning System (AAS II): Yes
  • Curve & Arc Smoothing: Yes
  • Configurable Origin : Yes
  • Tangential- emulation: Yes
  • Repeat: Yes
  • Copy: Yes
  • Pouncing: Optional
  • Control Panel: LCD (20 digits x 2 lines), 14 Keys, 1 Power LED
  • Diameter of Blade: 2.5 mm
  • Power Supply: AC 100-240V, 50~60 Hz (auto switching)
  • Stand: Included
  • Media Basket: Optional
  • Software: GCC GreatCut-S
  • Has Contour Cutting: Yes

 The official GCC Jaguar V manual can be found: here



SYSTEM REQUIREMENTS

  • Pentium processor-based PC or compatible computer (Windows)
  • Windows XP SP3/Vista/7/8/10/11 (Windows)
  • Intel or Apple Silicon based Macintosh (Mac)
  • Macintosh OSX 10.11 - 12 (Mac)
  • 512 MB of RAM or more
  • At least 50 MB of available hard disk space
  • USB Port 1.1 or 2.x

    MyExpert Support Logo

    The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

    Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

    Our MyExpert Support will always be there for you so you can purchase with confidence!

    In addition, this GCC vinyl cutter comes with a 2 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.

    The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

    Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

    Our MyExpert Support will always be there for you so you can purchase with confidence!
