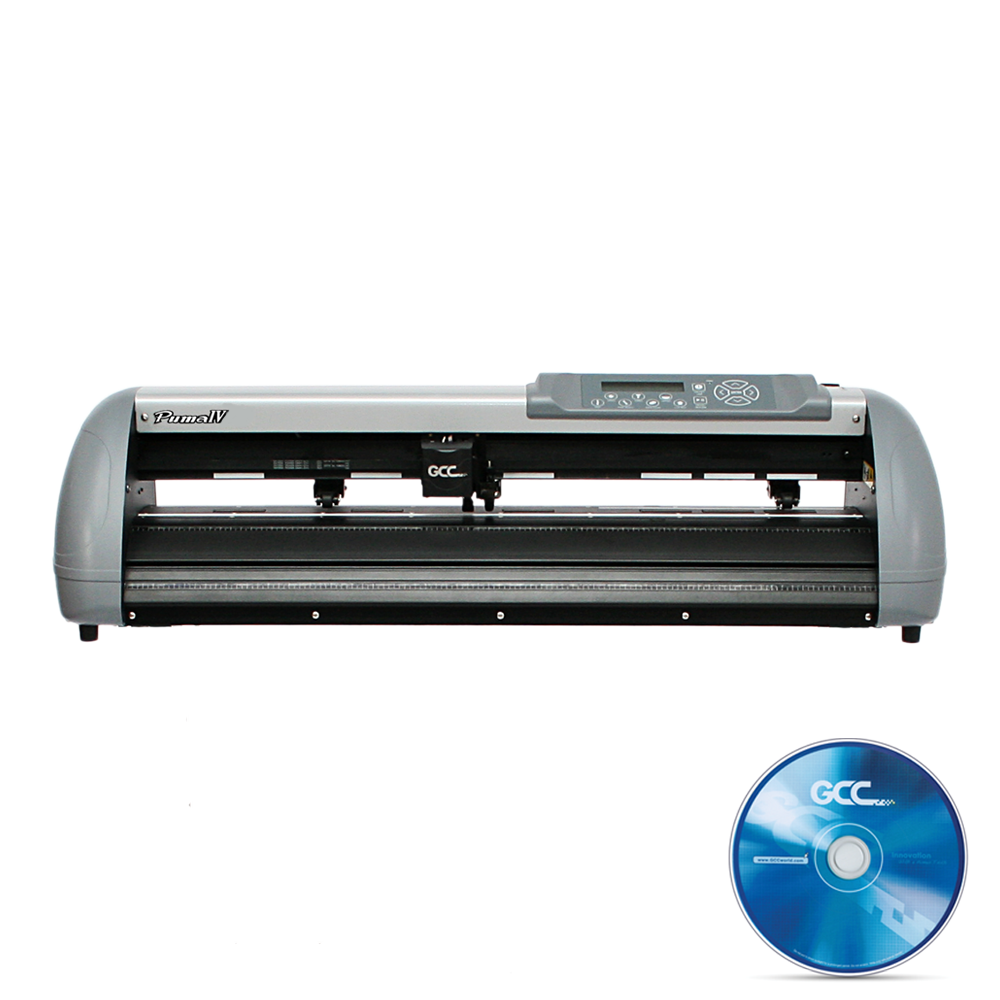

Powered by a digitally controlled servo system, the Puma IV produces eye-catching graphics with up to 23.62 ips (1020mm/sec) cutting speed, 500g of cutting force, and five meters (16.4 feet) of tracking ability.
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894
Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material.
Windows Drivers: Puma IV includes a Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Puma IV. It is very simple and easy to make signs with Puma IV.
500 Grams of Cutting Force: Selectable cutting forces, ranging from 0 to 500g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.
Tracking Ability: The exclusive grid drum is precisely engineers to provide superb tracking ability.
Accurate and Smooth Operation: Puma IV incorporates a precision electro-mechanical design, which ensures an extremely accurate cutting capability. The state-of-the-art, closed-loop, high-speed digital servo drive system provides smooth, quiet, and fast operation.
Friendly Operation: The user-friendly control panel comes with a large 20-digit x 2-line LCD and 14 control buttons, providing easy operation and simple navigation. The LCD allows users to monitor all operational settings including offset value, quality mode, cutting speed, and force. Buttons on the Puma IV include frequently used functions such as speed, force, offset, and cut test. Puma IV provides up to 4 jobs of setting storage, including cutting speed, blade offset, force, as well as movement speed during tool-up and cutting.
Tri-Port Connectivity: Puma IV supports tri-port connectivity with USB, serial, and ethernet ports. USB port provides faster data transmission between the computer and Puma IV. Tri-port connectivity provides sign makers with great flexibility for data transmission.
Includes GreatCut Software:
- Professional cut plug-in for Corel DRAW, Illustrator, Freehand, and AutoCAD
- Cutting by color
- Register marks with "Print & Cut" Support
- Plot Manager
- Operational Method: Roller-type
- Maximum Cutting Width: 590mm (23.23 in.)
- Maximum Media Loading Width: 719 mm (28.3 in.)
- Acceptable Material Thickness: 0.8 mm
- Number of Pinch Rollers: 2
- Drive: DC Servo Control
- Cutting Force: 500 g
- Maximum Cutting Speed (Diagonal): Up to 600 mm / sec. (24 ips)
- Offset: 0-1.0mm (with an increase 0.025mm)
- Mechanical Resolution: 0.009mm (0.00035 in.)
- Software Resolution: 0.025 mm (0.00098 in.)
- Memory Size: 4 MB
- Interfaces: USB 2.0 & Ethernet & Serial
- Type of Command: HP-GL, HP-GL/2
- Configurable Origin: Yes
- Curve & Arc Smoothing: Yes
- Test Cut Capability: Yes
- Repeat Function: Yes
- Copy Function: Yes
- Tangential Mode: Yes
- Overcut Capability: Yes
- Pause and Move: Yes
- Control Panel: LCM (20 digits x 2 lines), 14 Keys, 1 Power LED
- Power Supply: AC 100-240V, 50~60 Hz (auto switching)
- Operation Environment: 15°-30°C (60°-86°F), 25%-75% humidity
- Stand: Optional
- Included Software Compatibility: Windows 7, 8, 10 (32 or 64 Bit) (Not compatible with macOS)
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
I have been using a 24" Puma II for the past 8 years with pleasing results. I recently decided to enter into the printed graphics market with a primary focus on the ability to print and cut decals up to 50", so I focused my research on the contour cutting abilities of the various cutters. After careful consideration, price being of major concern, I chose the Puma III because of its AAS contour cutting system. I have now been using this cutter for a couple of months and am VERY PLEASED with it! It communicates well with my FlexiSign Pro 8.6 software and I recommend this cutter to all with similar needs. HeatPress Nation and the Tech support at GCC have been great in helping me with puchasing, installation and set-up
I have had this machine for a year now and it works great and support helped me set it up. I had one problem during the year whereas it would not cut, so the support person walked me through it. They are very patient. She made sure I was completely going forward again without glitches and then we parted. I feel confident that if I need to call again, I will be helped.
Excellent cutter for the price. I used it to cut applique fabric specifically felt. It cut with ease!!!! Love this cutter.
Good cutter. This is good for my professional shot. The motor is fast and powerful and gets through everything I put in it.
