*Requires a manufacturing lead time of 8-10 weeks.*

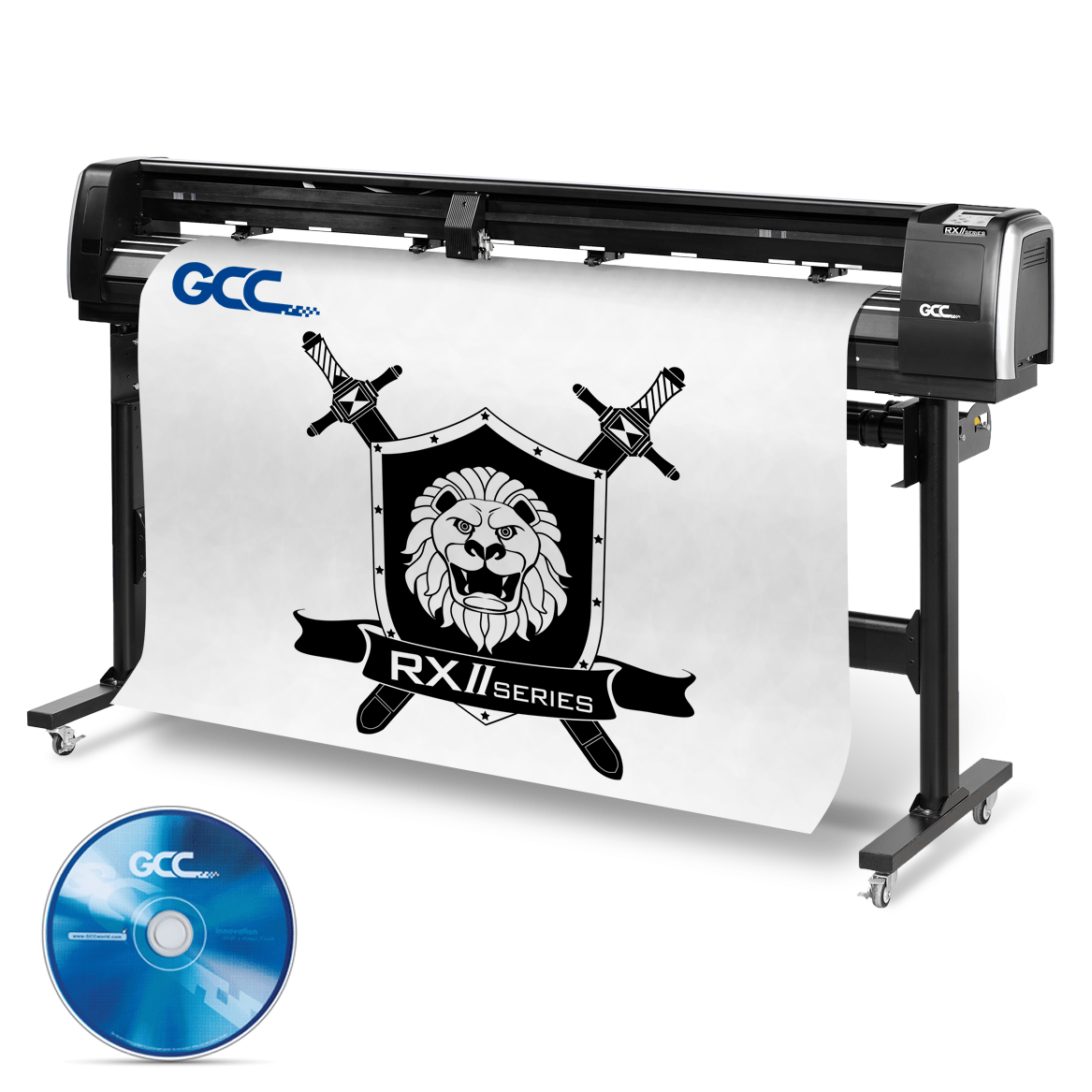

The brand new RX series of cutting plotters is available in four sizes, 24", 40", 52", and 72". Designed with a stylish appearance and new functional features, the RX series is the top notch cutter in the market for professional sign makers.
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894
Features:
Enhanced AAS II Contour Cutting System: The RX series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images. |
|
Multiple Pressure Pinch Rollers for Different Media: The Multi-Pressure Pinch Rollers give users three pressure settings to better cater to the different types of media that they are working with. The following shows suitable settings for some materials. |
|
Windows Drivers: RX II includes a Windows driver that allows sign makers to edit signs from CorelDraw and output directly to RX II It is very simple and easy to make signs with RX II. |
|
600 Grams of Cutting Force: Selectable cutting forces, ranging from 5 to 600g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films. |
|
Auto Cut Off: This feature allows users to set the cutter to cut off the media after the completion of each job, making it easy to set up an unattended workflow for mass production. Or the user can simply push the “Cut off” button after the completion of a job to have the media cut off automatically. |
|
Segmental Positioning: RX II series features a Segmental Positioning function which can correct the crooked print. The printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift. |
|
Friendly Operation: The brand new touch key panel is easy to use and durable. The intuitive design allows new users to operate the machine easily. The easy-to-use and multi-language touch key panel can remarkably simplify complex tasks. Backlight LCM makes users can recognize the text on the panel more easily. |
|
Tri-Port Connectivity: RX II series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and RX II. Ethernet connection enables multiple RX II to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers great flexibility for data transmission. |
- Material Thickness: 0.8 mm
- Drive: DC Servo
- Cutting Force: 5 ~ 600 g
- Maximum Cutting Speed: 1530 mm/sec (60ips / Diagonal)
- Software Resolution: 0.025 mm
- Repeatability: +/- 0.1 mm
- Tracking: 10 M
- Memory: 16 MB
- Interfaces: USB & RS-232
- Type of Command: HP-GL, HP-GL/2
- Configurable Origin: Yes
- Control Panel: LCD (20 digits x 2 lines), 15 Keys, 1 Power LED, 1 Green LED
- Stand: Included
-
Software: GCC GreatCut-S
- Has Contour Cutting: Yes
SYSTEM REQUIREMENTS
- Pentium processor-based PC or compatible computer (Windows)
- Windows XP SP3/Vista/7/8/10/11 (Windows)
- Intel or Apple Silicon based Macintosh (Mac)
- Macintosh OSX 10.11 - 12 (Mac)
- 512 MB of RAM or more
- At least 50 MB of available hard disk space
- USB Port 1.1 or 2.x
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, this GCC vinyl cutter comes with a 2 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
