*Cutter is on backorder until February.*

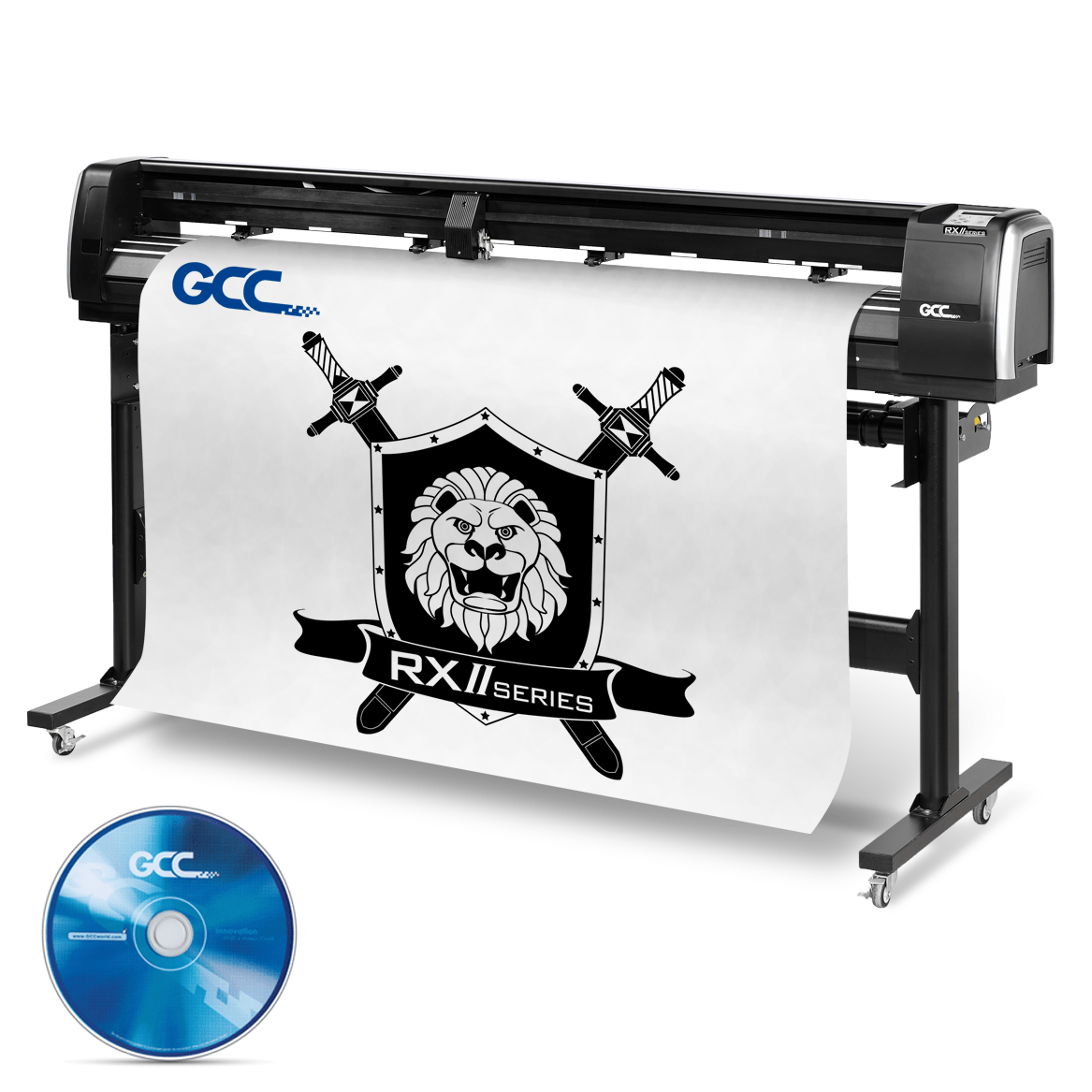

The brand new RX series of cutting plotters is available in four sizes, 24", 40", 52", and 72". Designed With a stylish appearance and new functional features, the RX series is the top notch cutter in the market for professional sign makers.
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894
Enhanced AAS II Contour Cutting System: The RX series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.
Multiple Pressure Pinch Rollers for Different Media: The Multi-Pressure Pinch Rollers give users three pressure settings to better cater to the different types of media that they are working with. The following shows suitable settings for some materials.
Windows Drivers: RX II includes a Windows driver that allows sign makers to edit signs from CorelDraw and output directly to RX II It is very simple and easy to make signs with RX II.
600 Grams of Cutting Force: Selectable cutting forces, ranging from 5 to 600g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.
Auto Cut Off: This feature allows users to set the cutter to cut off the media after the completion of each job, making it easy to set up an unattended workflow for mass production. Or the user can simply push the “Cut off” button after the completion of a job to have the media cut off automatically.
Segmental Positioning: RX II series features a Segmental Positioning function which can correct the crooked print. The printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.
Friendly Operation: The brand new touch key panel is easy to use and durable. The intuitive design allows new users to operate the machine easily. The easy-to-use and multi-language touch key panel can remarkably simplify complex tasks. Backlight LCM makes users can recognize the text on the panel more easily.
Tri-Port Connectivity: RX II series supports triple port connectivity with USB, serial and Ethernet ports. The USB port provides faster and convenient data transmission between the computer and RX II. Ethernet connection enables multiple RX II to be operated by one PC and multiple PCs to share a single unit. Triple port connectivity provides sign makers great flexibility for data transmission.
Includes GreatCut Software:
- Professional cut plug-in for Corel DRAW, Illustrator, Freehand, and AutoCAD
- Cutting by color
- Register marks with "Print & Cut" Support
- Plot Manager
- Material Thickness: 0.8 mm
- Drive: DC Servo
- Cutting Force: 5 ~ 600 g
- Maximum Cutting Speed: 1530 mm/sec (60ips / Diagonal)
- Software Resolution: 0.025 mm
- Repeatability: +/- 0.1 mm
- Tracking: 10 M
- Memory: 16 MB
- Interfaces: USB & RS-232
- Type of Command: HP-GL, HP-GL/2
- Configurable Origin: Yes
- Control Panel: LCD (20 digits x 2 lines), 15 Keys, 1 Power LED, 1 Green LED
- Stand: Included
- Compatibility: Windows 7, 8, 10 (32 or 64 Bit) (Not compatible with macOS)
