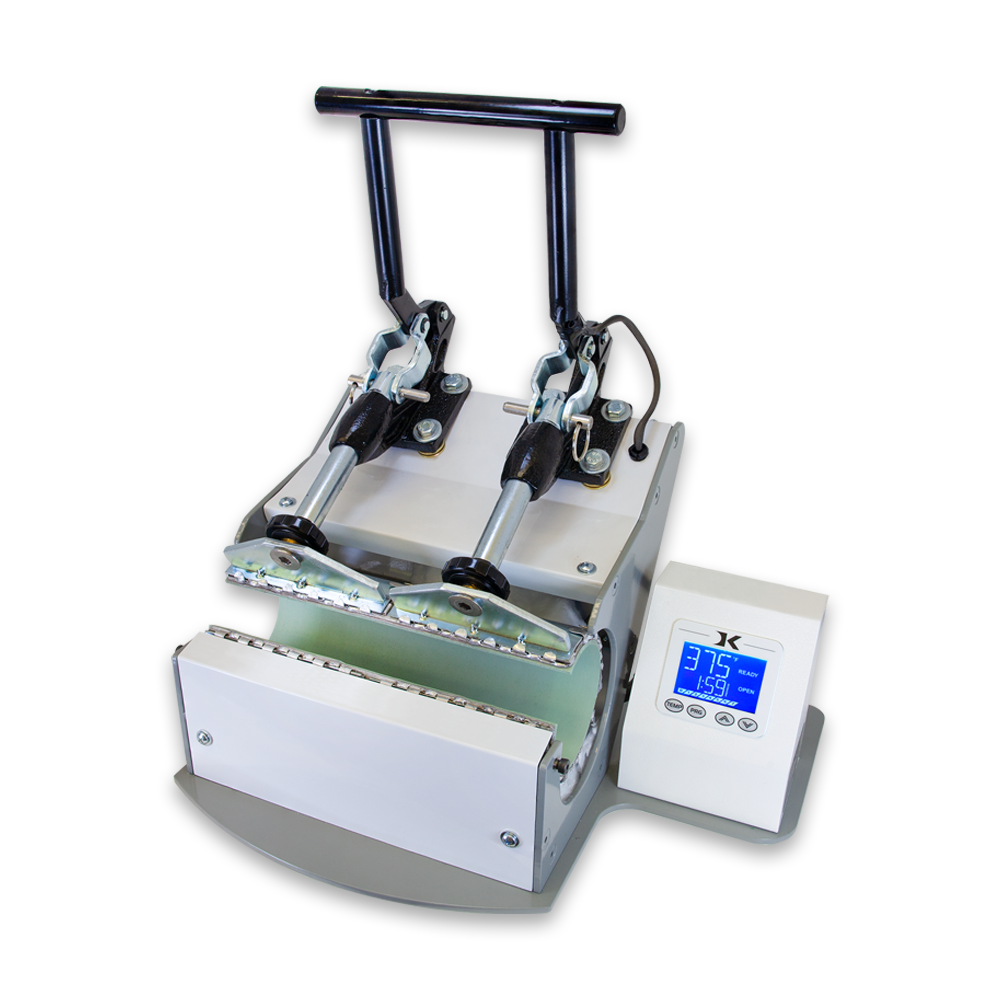

Geo Knight DK3D Double Wide Sublimation Mug Press


Sale price$1,350.00

Found a Lower Price?


Geo-Knight Logo

*Requires manufacturer lead time of 3-5 business days.*

The DK3D Digital Double-Wide Mug Press has all the same features as the DK3, but with a 10" long heater.

This press is a full wrap-around, handle-to-handle, top-to-bottom printing mug press. It can press images up to 10" high, and as close as 1/2" from the handle, depending on the mug size. The DK3 can also print 2 normal-sized matching mugs simultaneously!

The DK3D is fully adjustable, accommodating all cylindrical mugs available on the market. This includes standard 11 oz, 15 oz, 16 oz mugs, steins, and stainless steel travel mugs. (...but not tapered latte mugs...) PLUS, EXTRA TALL water bottles, thermoses, travel mugs, and much more!

The ability of the press to open extra wide allows for easy and fast loading and unloading of mugs from the press. The thick solid steel framework and die-cast clamp assembly provide a heavy-duty framework for non-stop use. The clamp assembly can be adjusted for very heavy pressure, allowing for full bleed transfers on even the most demanding mugs. Finally - a mug press that compensates for less than perfectly straight mugs!

As with all Digital Knight presses, the DK3D utilizes a state-of-the-art digital control system with an unprecedented 3-year warranty on heat-control electronics. With digital temperature, time and programmable presets, cycle counter, and many other features, the consistency, and productivity of mug printing are maximized.

At the heart of the DK3D is the SuperCoil-Microwinding™ heater technology, a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heating, fast recovery & fast heat-up times. The DK3D will start up in only a few minutes, and unlike other presses runs constantly at the set temperature, instead of a much lower idle temperature. Unlike other mug presses that use silicone blankets with short lifespans and even shorter warranties, the DK3D boasts an amazing 3-Year / 3,000 mug warranty. The patented stainless steel mug band heater technology Geo Knight is famous for has proven to be far more reliable in the field than traditional methods.

For the absolute best, at an amazing price, there is no better solution for pressing mugs than the DK3D Digital Knight Double-Wide Mug Press.

This mug press is compatible with sublimation inks.


  • Fully digital temperature control.
  • Automatic digital timer.
  • Programmable presets.
  • Solid steel welded framework.
  • SuperCoil-Microwinding™ heater technology.
  • Soft heater liner for accommodating inconsistent mugs.
  • Temperature readout accuracy +-2°F.
  • User selectable end-of-cycle alarms.
  • Records number of pressing cycles done.


  • Weight: 40 lbs
  • Electrical: 900W / 8A / 120V
  • Dimensions: 20"W x 13"H x 15"L

MyExpert Support Logo

The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, Geo Knight, the manufacturer, offers the following warranty on this product:

  • 3-year/3,000 mug warranty on heat platen.
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts
