HPN Black Series 16" x 20" Portrait Swing Away High Pressure Heat Press

SKU: HPN-BLK-1620-S

Price:
Sale price$729.95 USD

Found a Lower Price?

Learn More About MyExpert Protection Here

Open Video

Why Choose HeatPressNation?

With over 15 years of experience, HeatPressNation has established itself as the trusted industry leader in heat transfer solutions, earning the confidence of thousands of satisfied customers.

Description
Warranty
Instructions

Black Series Logo

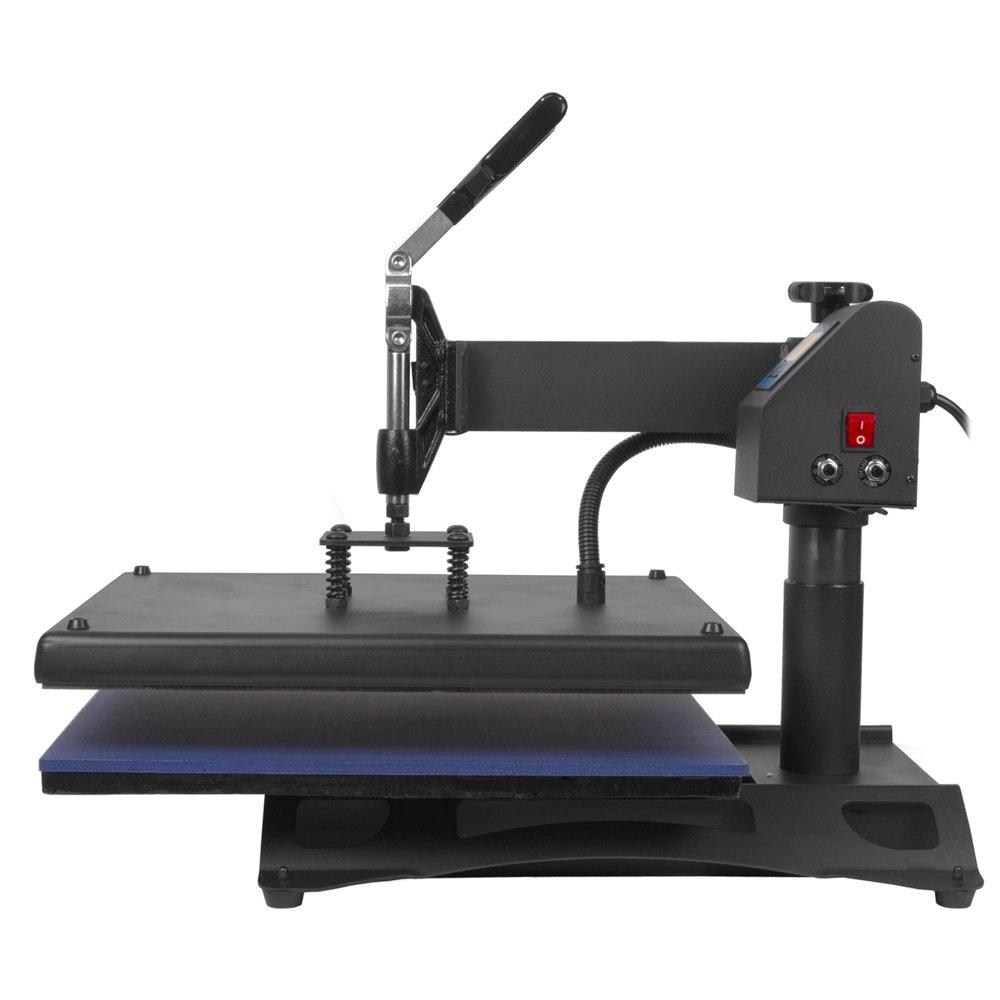

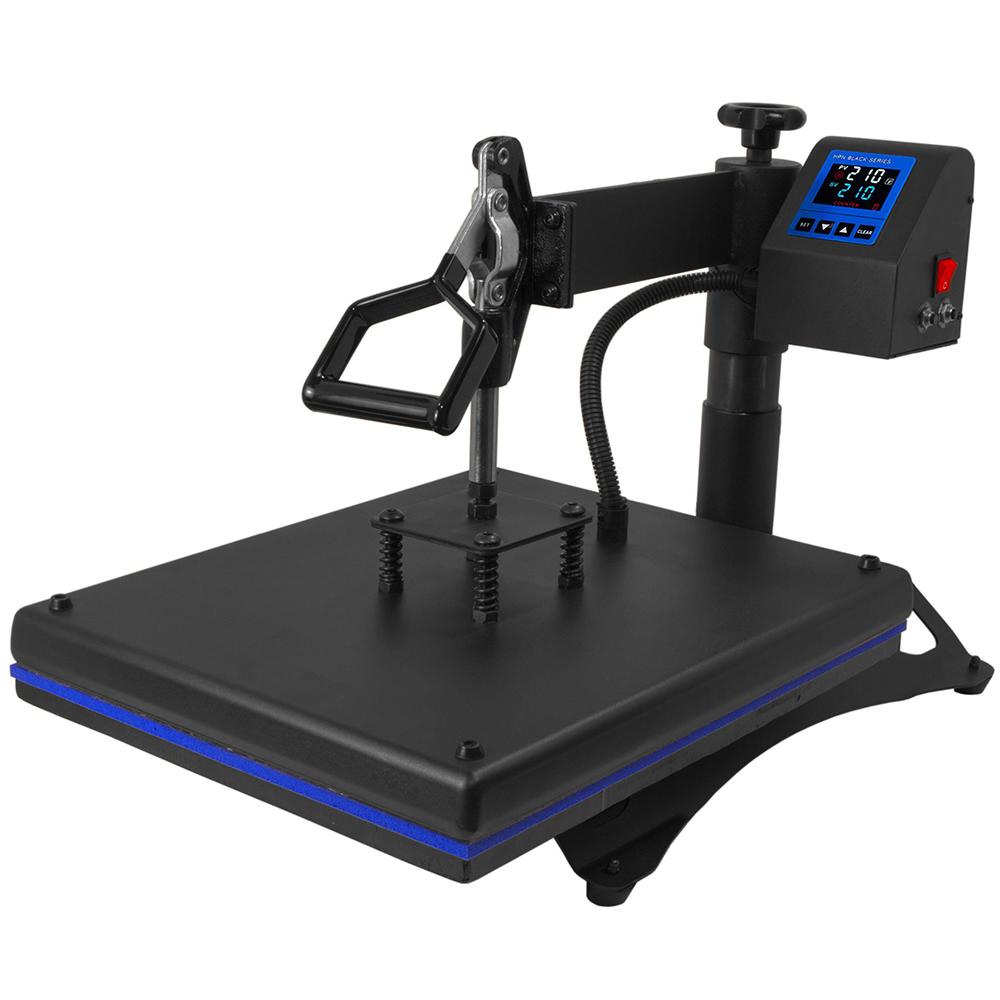

The HPN 16" x 20" Swing Away High Pressure Heat Press Machine is unmatched in quality and craftsmanship in its size class. A complete commercial quality, business grade heat press at an unbeatable price.

Every mechanical and technical detail has been developed with precision. The powerful clamp mechanism ensures increased leverage and torque with minimal effort. Provides complete end-to-end even pressure and heating. Top of its class digital temperature and timer gauge provides accurate readings in both Fahrenheit and Celsius degree measure. The HPN Black Series excels in all heat press applications including: heat transfer paper, heat transfer vinyl, rhinestones, sublimation, screen printed transfers, Direct to Garment prints and much more.

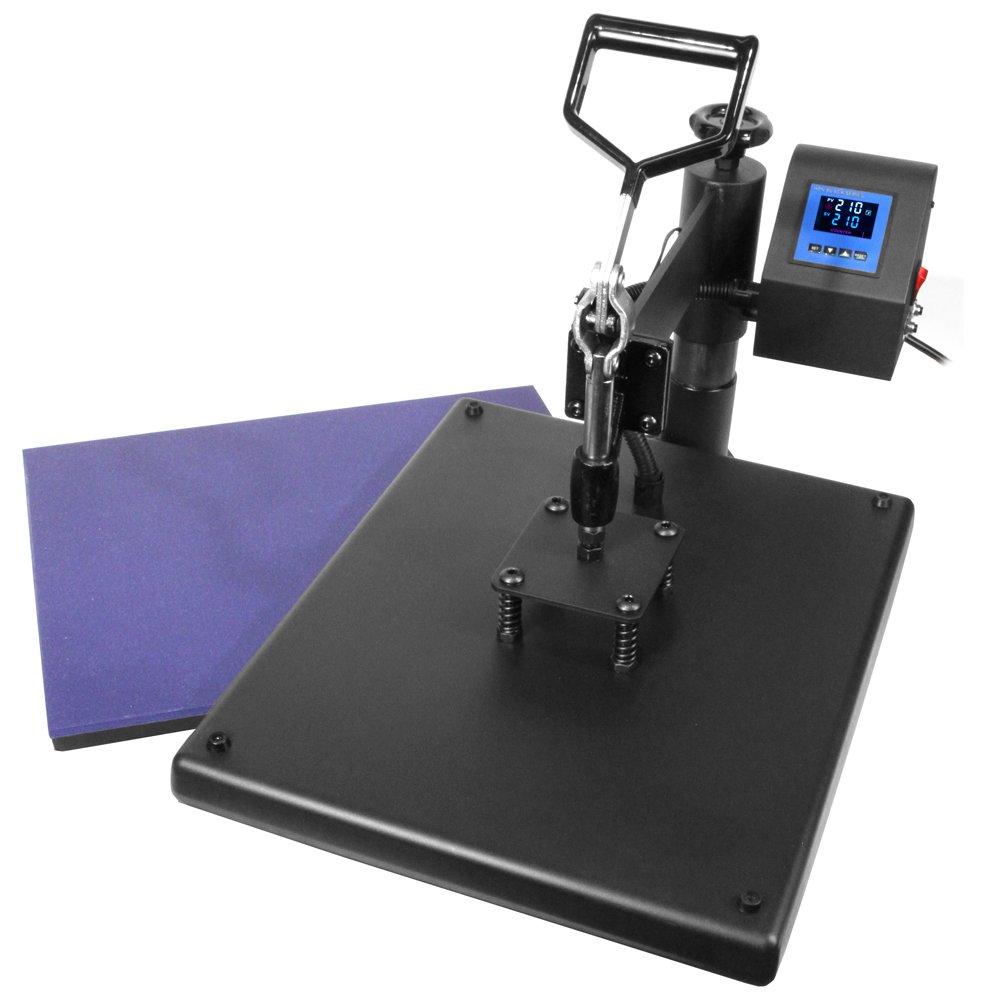

The simple fact that the heat press is of swing away design, means that it is capable of floating directly above your t-shirt! This is perfect for not only regular heat transfers, but also screen print and direct to garment (DTG) curing. The adjustable pressure knob lets you adjust the distance of the upper platen so you can pick how far away the heat press hovers. Just one of the many benefits of a swing away heat press!

*Note: The lower platen of this press is no longer painted black as pictured in the product photo. Instead, it features a raw steel finish. This difference is purely cosmetic and does not change the overall functionality of this press.*

UL Certified Parts

FEATURES

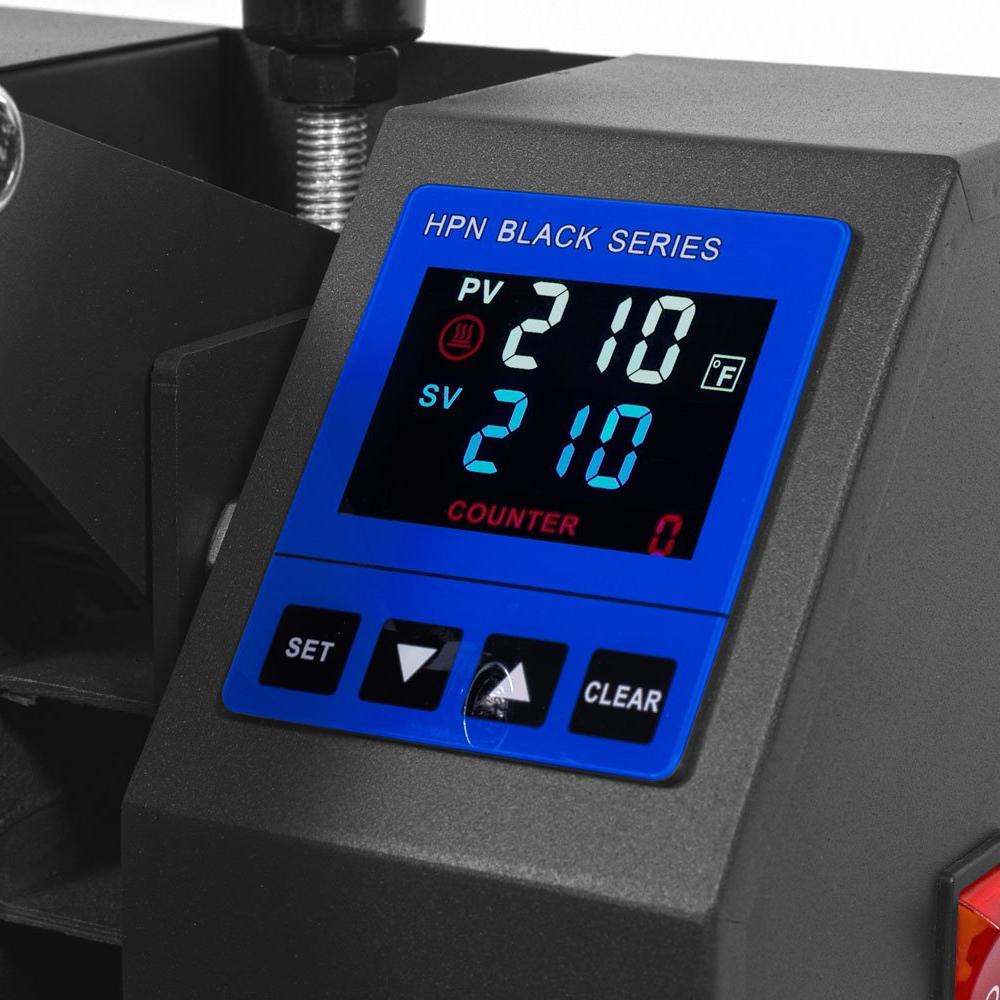

Digital Computer Gauge

Upgraded Time/Temperature Gauge: Setting the time, temperature and changing temperature scale from C to F is now easier with the HPN Black Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds before it reaches zero to prevent overheating of your material.

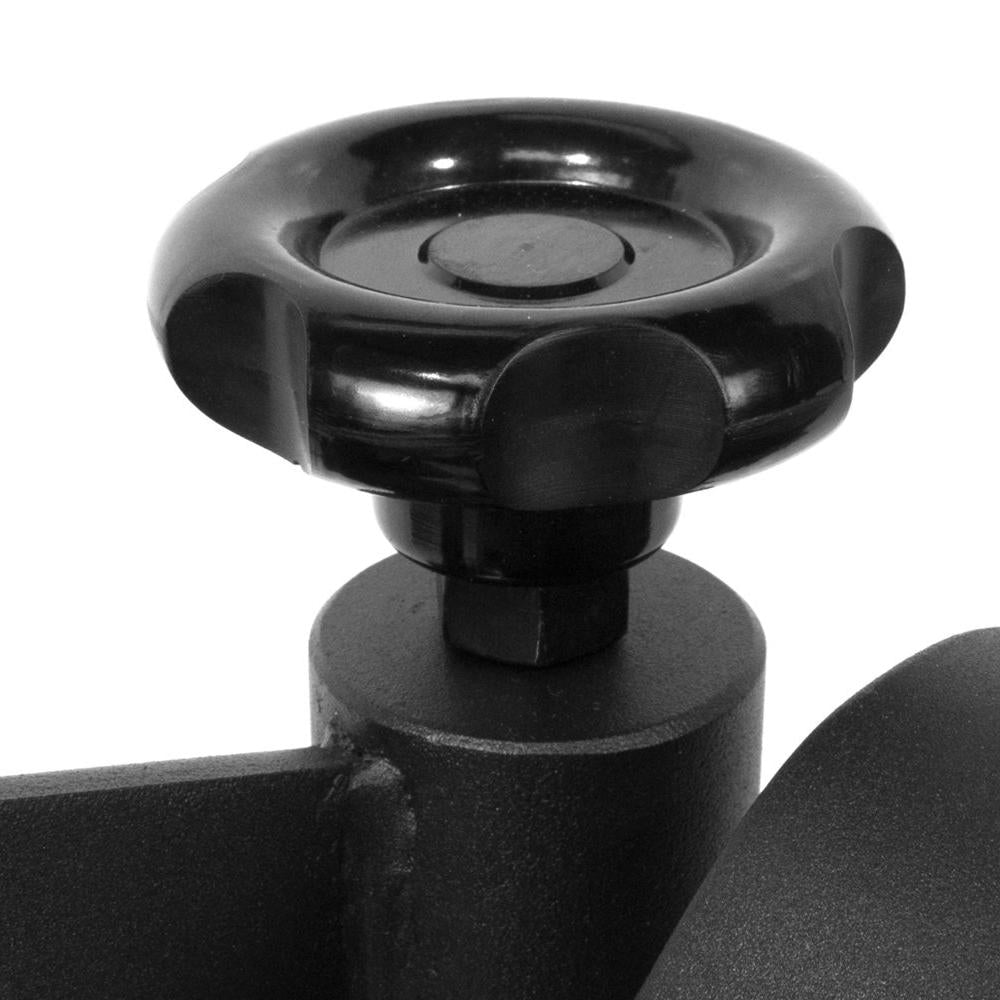

Adjustable Pressure Knob

Improved Pressure Adjustment: The pressure adjustment knob on the HPN Black Series has been improved for smoother action. It is now easier than ever to adjust the upper heating platen to accommodate thick items.

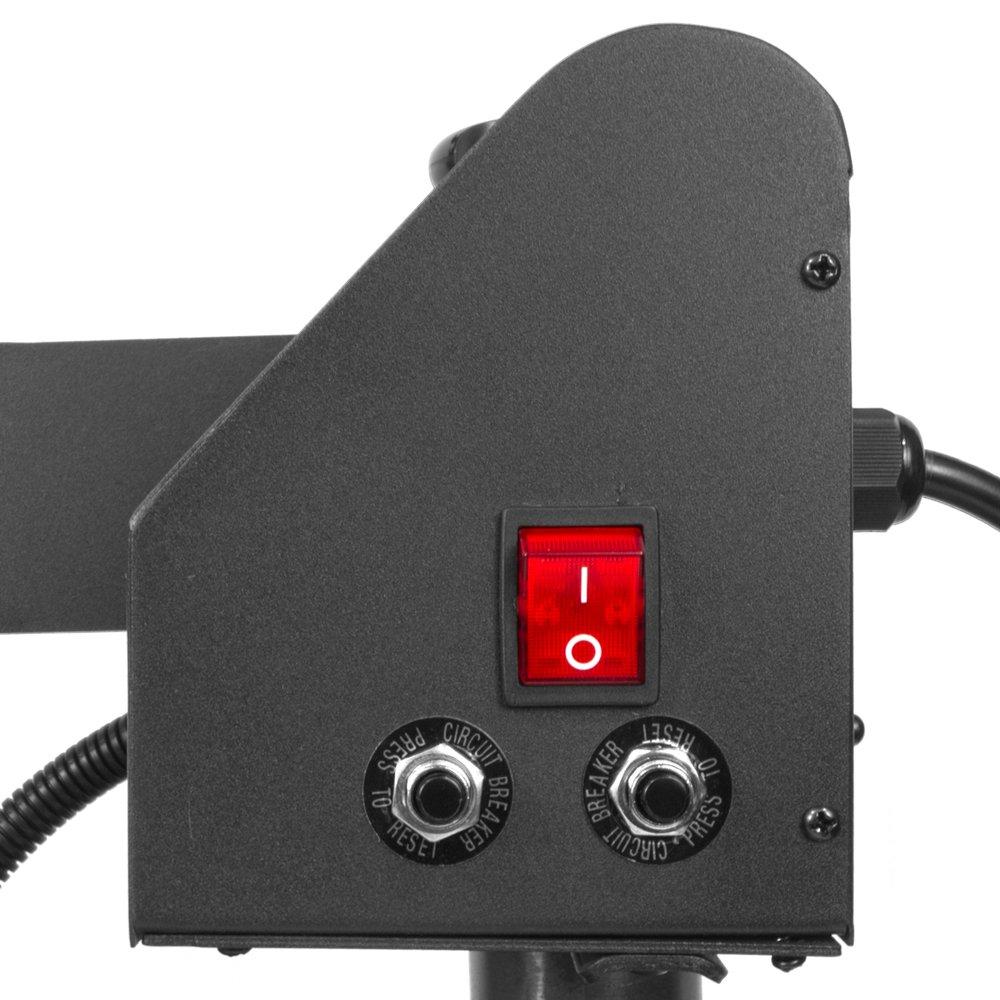

Dual Fuse Design

Dual Fuse Design: The HPN Black Series heat press features a dual fuse design for added protection of your home electrical system. If one fuse goes out, the next one is ready to go in seconds. This is all part of the thought process we had when designing the HPN Black Series, to make a reliable machine without any downtime.

  • Improved heating element for quicker heat up
  • Reinforced structure to ensure high pressure
  • Scratch resistant baked-on paint
  • Solid steel welded framework
  • Complete commercial business grade
  • 16" x 20" Baked on, Non-Stick Coated Heat Platen
  • Digital Temperature Control
  • Digital Automatic Timer

SPECIFICATIONS

  • Heat Press Style: Swing-Away
  • Heat Press Base Dimensions: 27" x 16" x 19" (D x W x H in open position)
  • Heating Element Size:15.75" x 19.68"
  • Gauge Reading: Fahrenheit or Celsius degree measure
  • Voltage: 110V-120V
  • Power Rating: 1700W/14 Amps
  • Maximum Temperature: 400º F
  • Time Range: 0-999 Seconds
  • Shipping Weight: 85 lbs

MyExpert Support Logo

The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, all HPN Black Series heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.

MyExpert Protection Logo

EXTENDED WARRANTY

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

PLANS

  • 1 Year Total Coverage - Included with purchase
  • 2 Years Total Coverage - $49.99
  • 3 Years Total Coverage - $79.99
  • 4 Years Total Coverage - $99.99

Add "MyExpert Protection" when adding your product to the cart

Extended Warranty

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

Plans

  • 2 Years Total Coverage - $49.99
  • 3 Years Total Coverage - $79.99
  • 4 Years Total Coverage - $99.99

Add "MyExpert Protection" when adding your product to the cart
