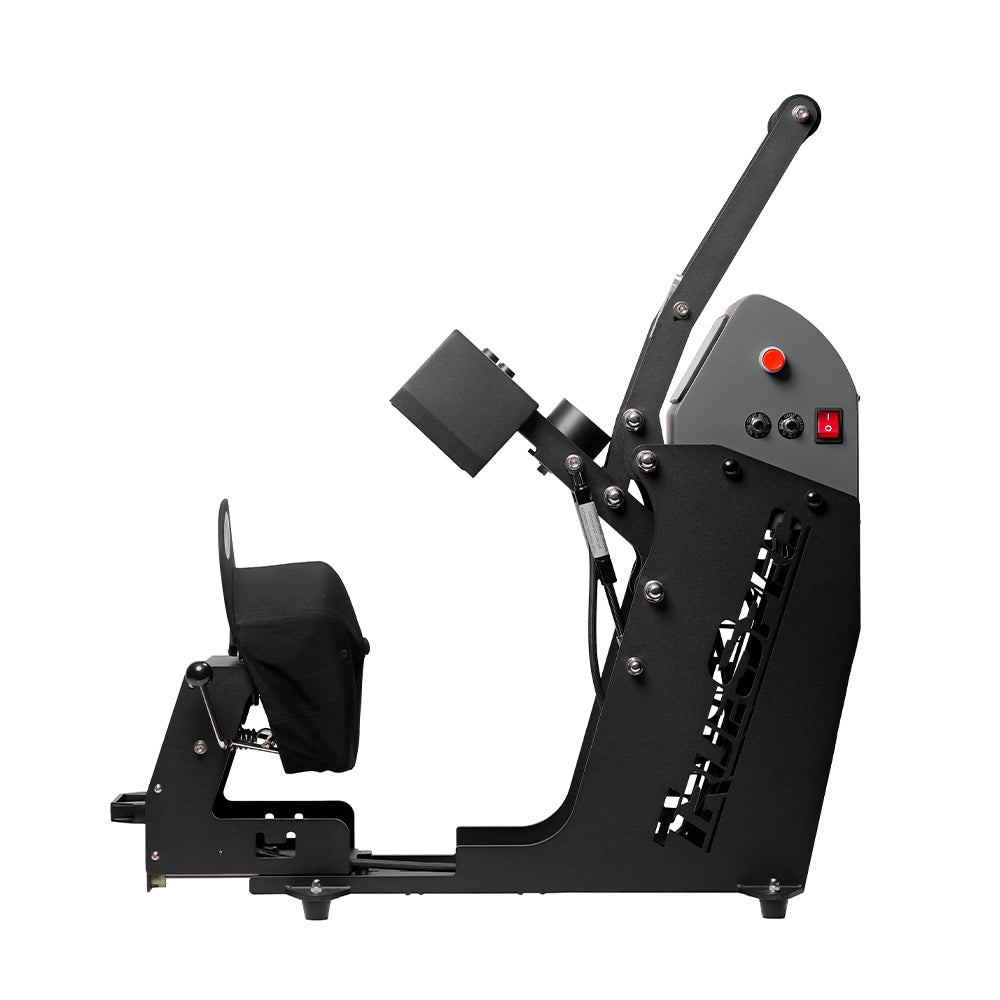

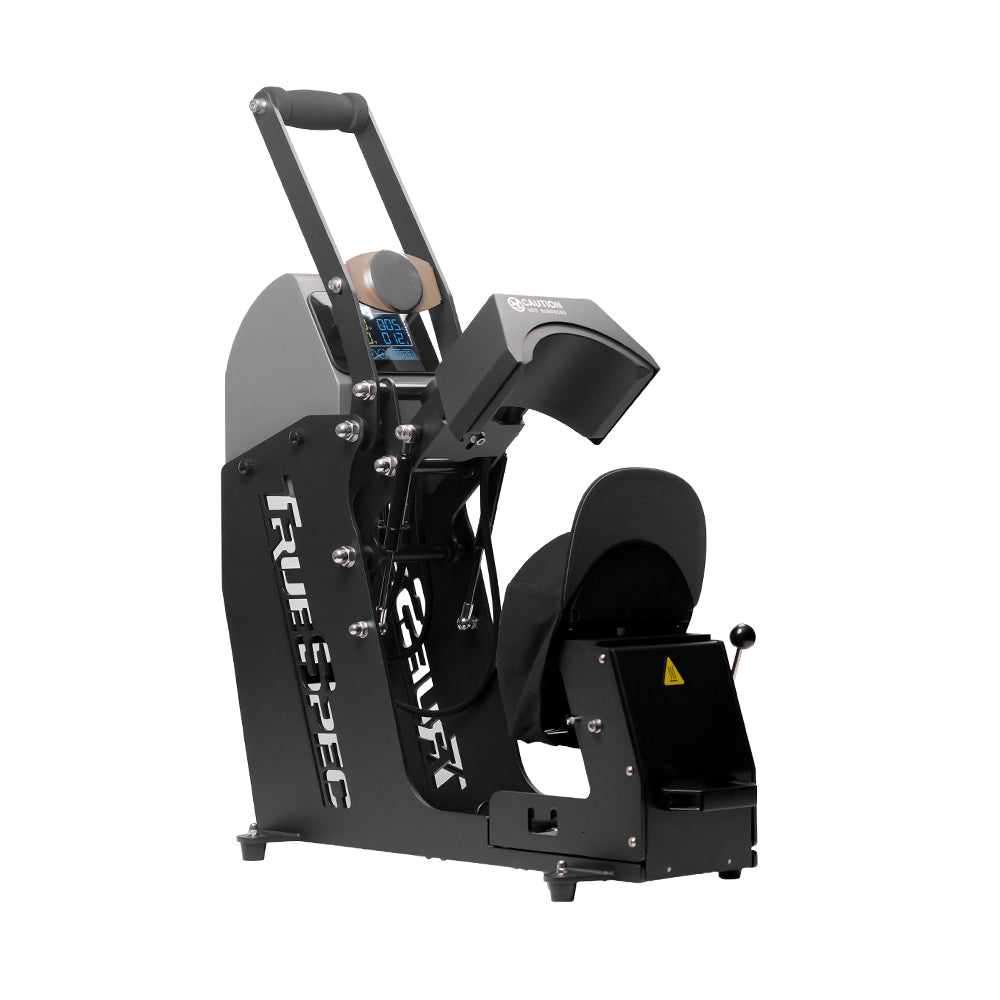

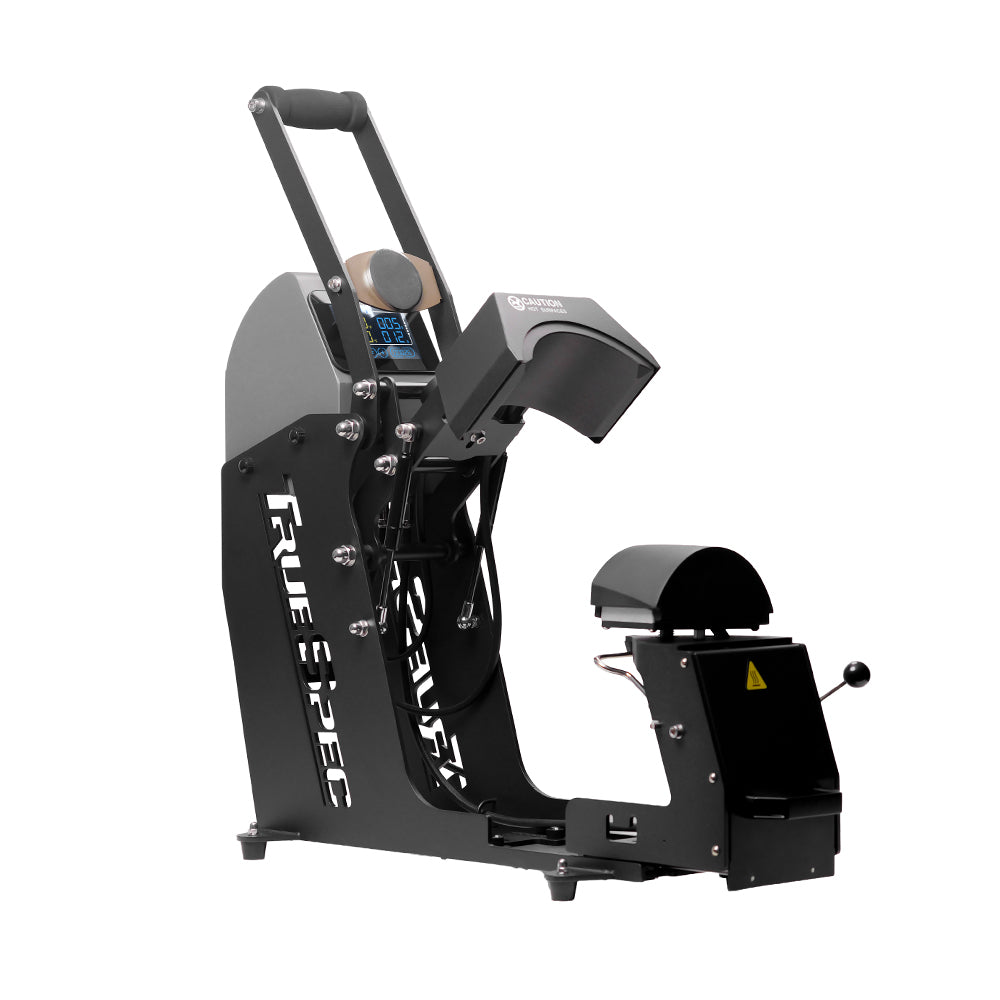

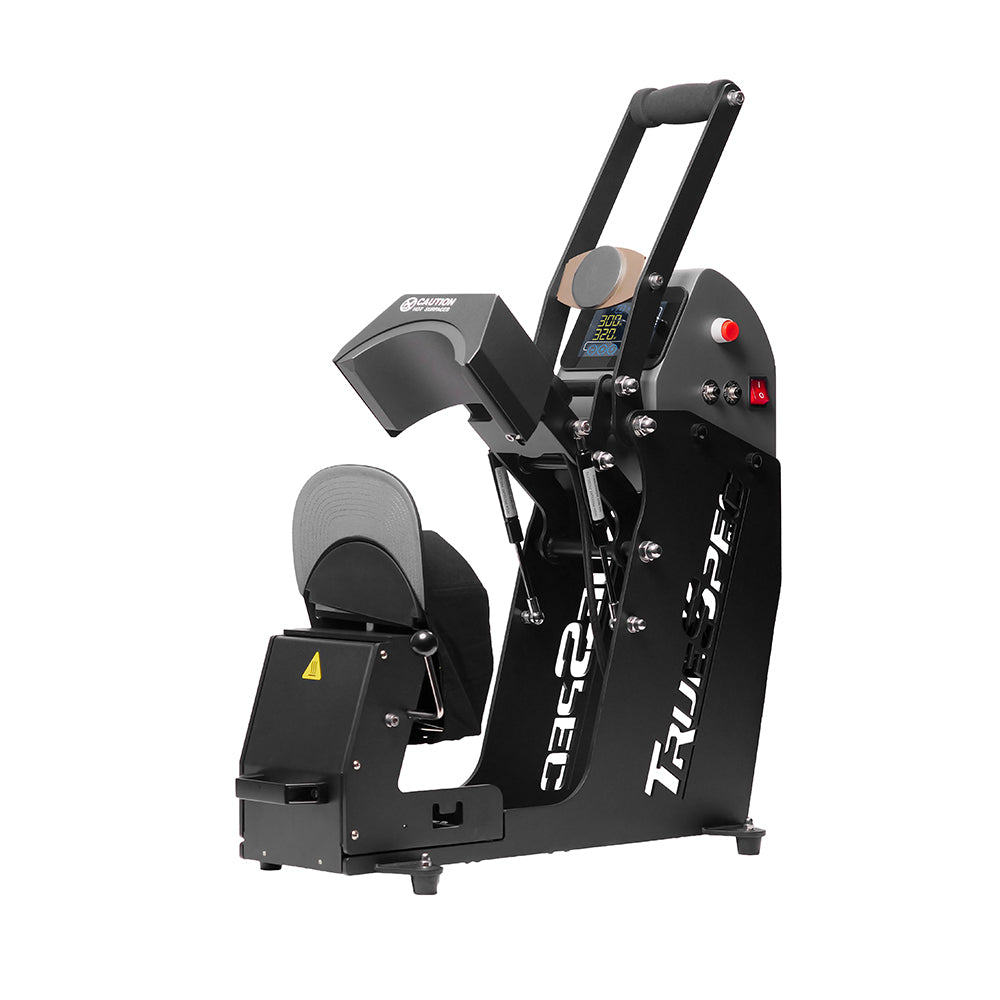

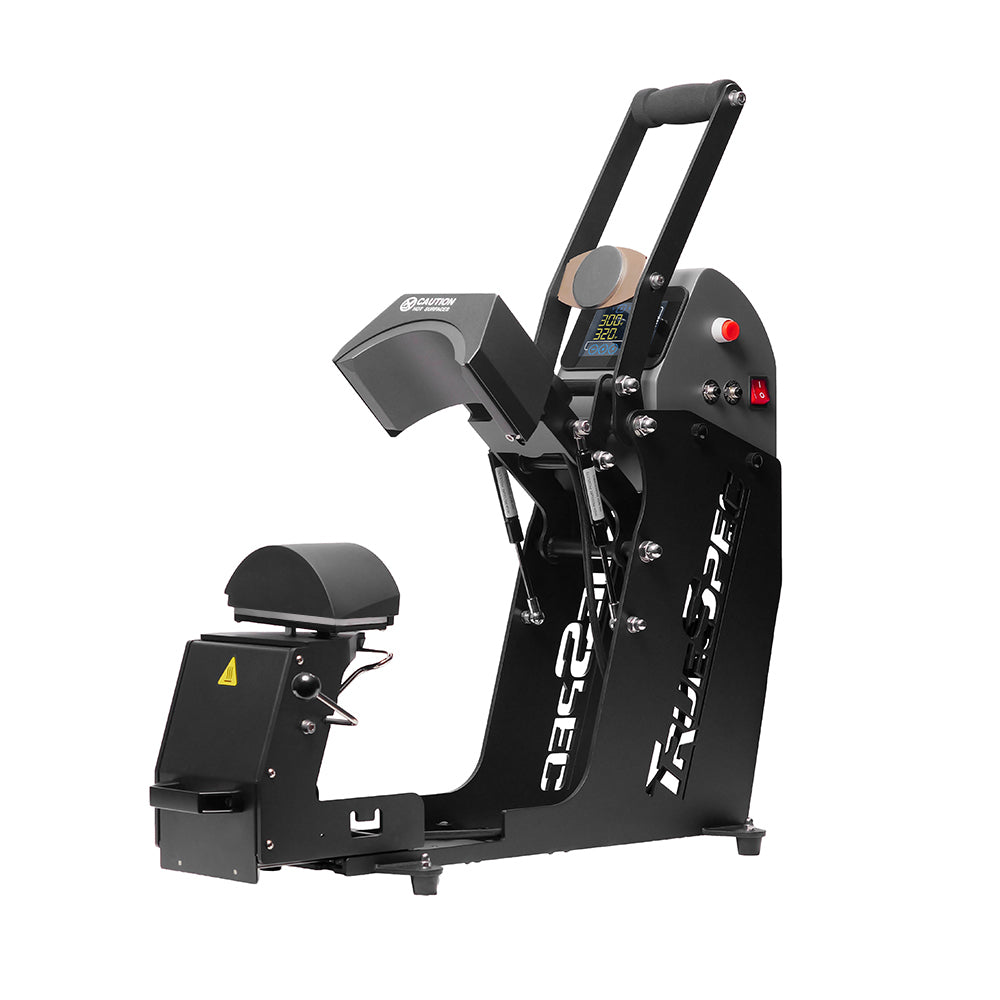

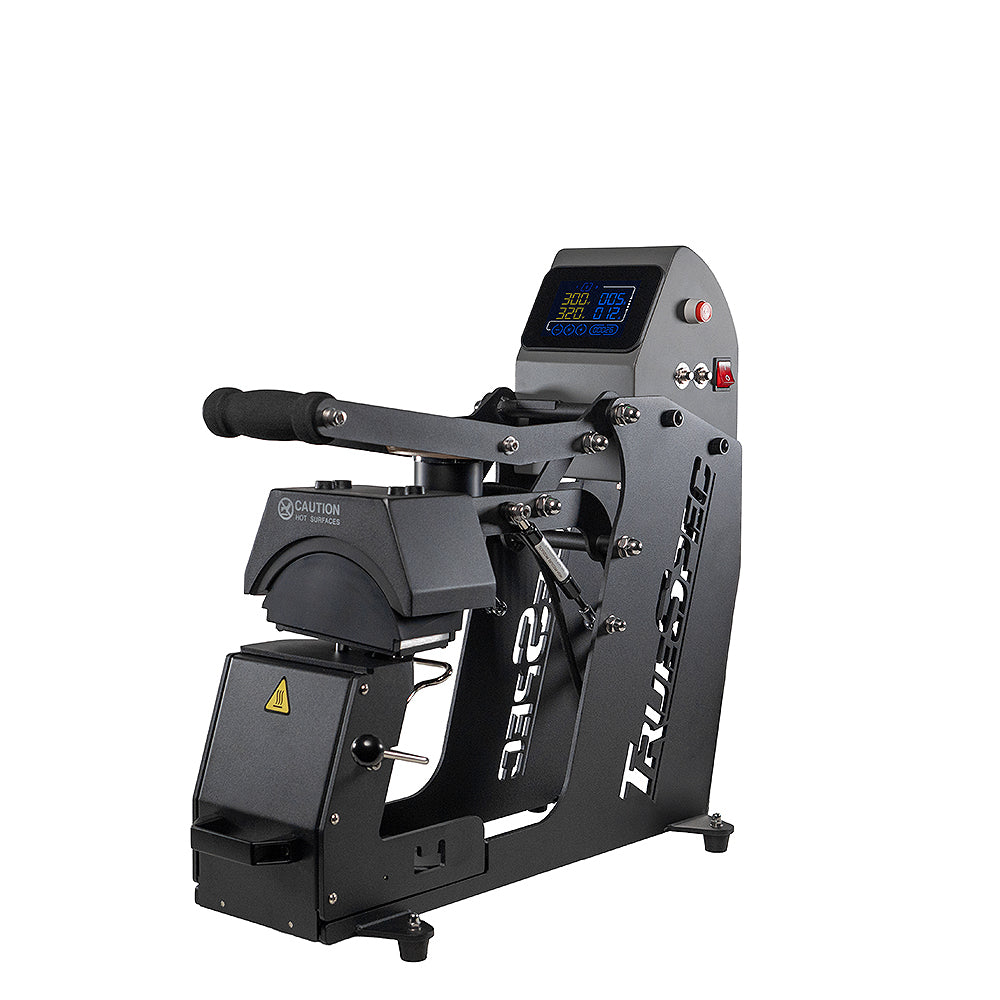

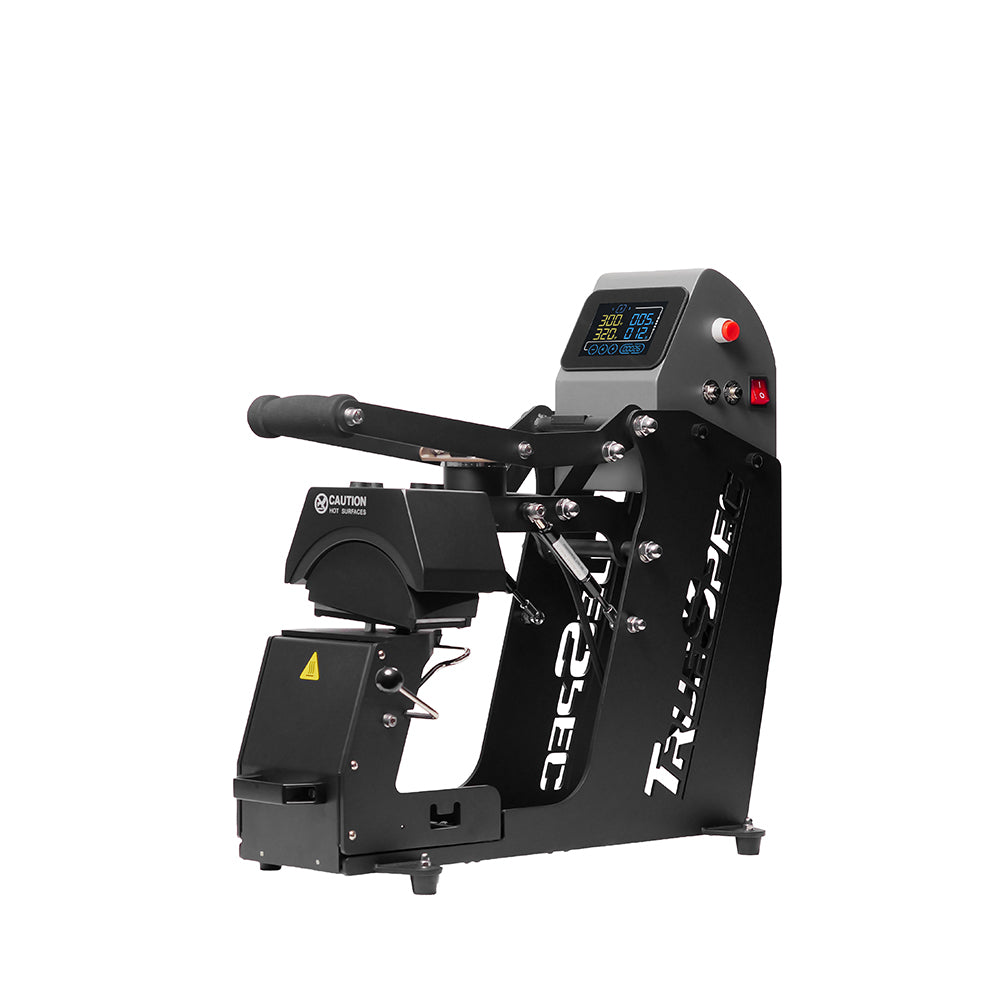

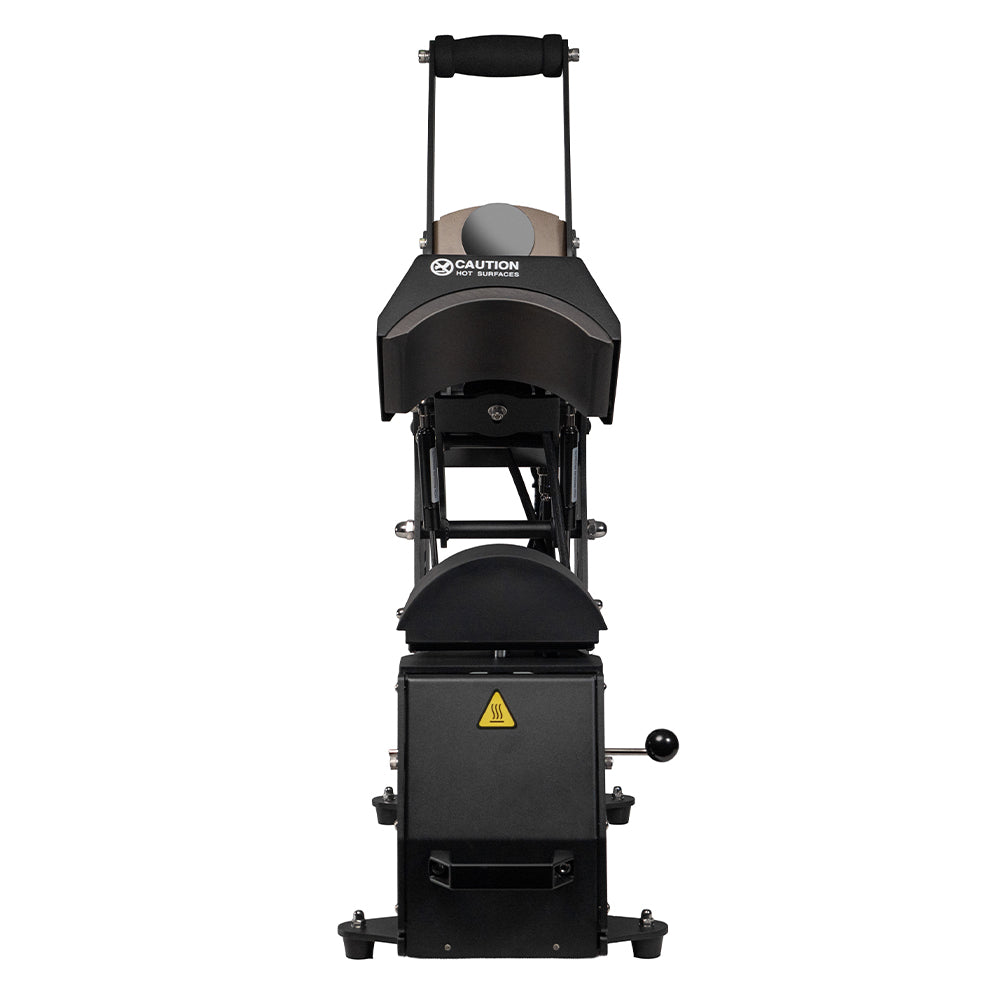

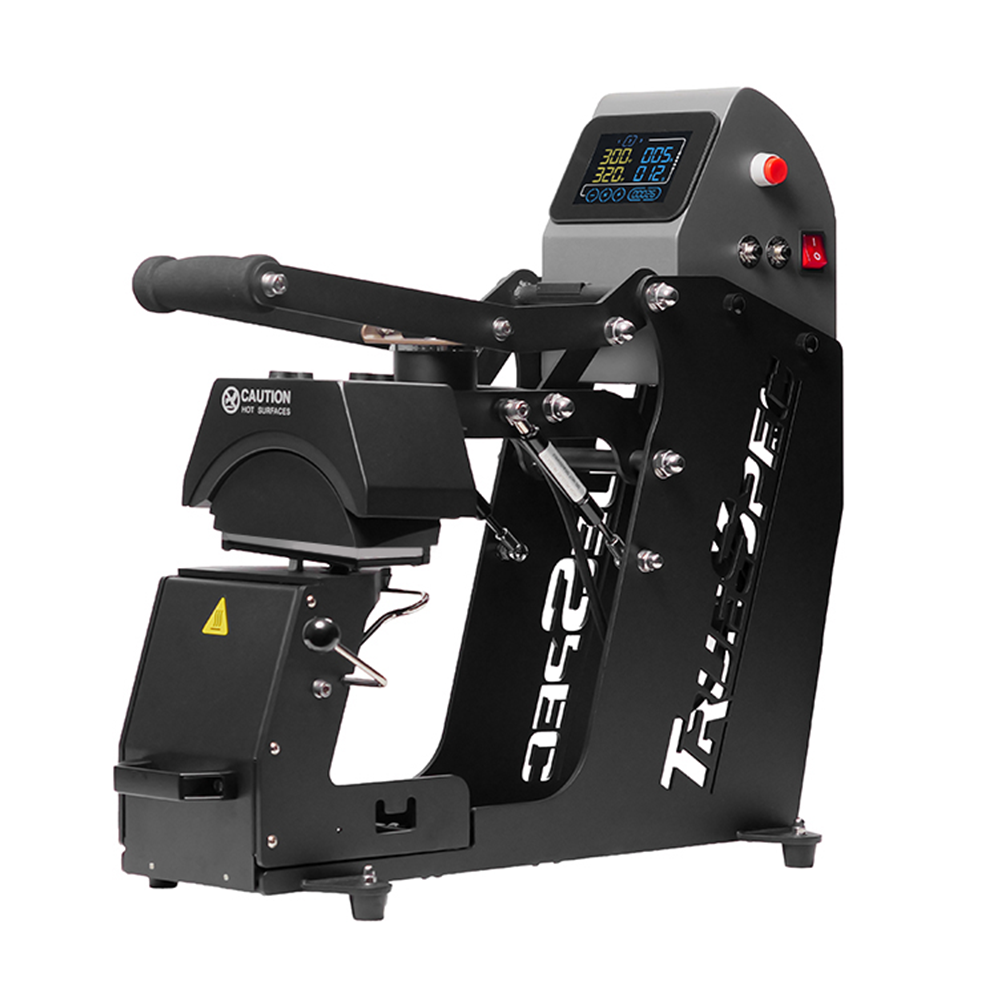

HPN TrueSpec Dual Heat Slide-Out Cap Press

Built for top quality cap decoration, the TrueSpec Cap Heat Press delivers precision control, improved heat consistency, and operator-focused safety features. Engineered from the ground up for modern hat styles, it’s designed to produce reliable, repeatable results in high-volume environments.

Reinventing cap pressing starts with understanding its biggest frustrations. From structured Richardson 112 caps and thick specialty patches to sensitive performance materials, modern headwear demands more than traditional cap presses were designed to deliver. The TrueSpec Cap Heat Press was developed to eliminate common issues such as scorching, heat tape marks, alignment errors, accidental injuries, and unintended bill contact by creating a safer, and more versatile platform for today’s decorators.

Features

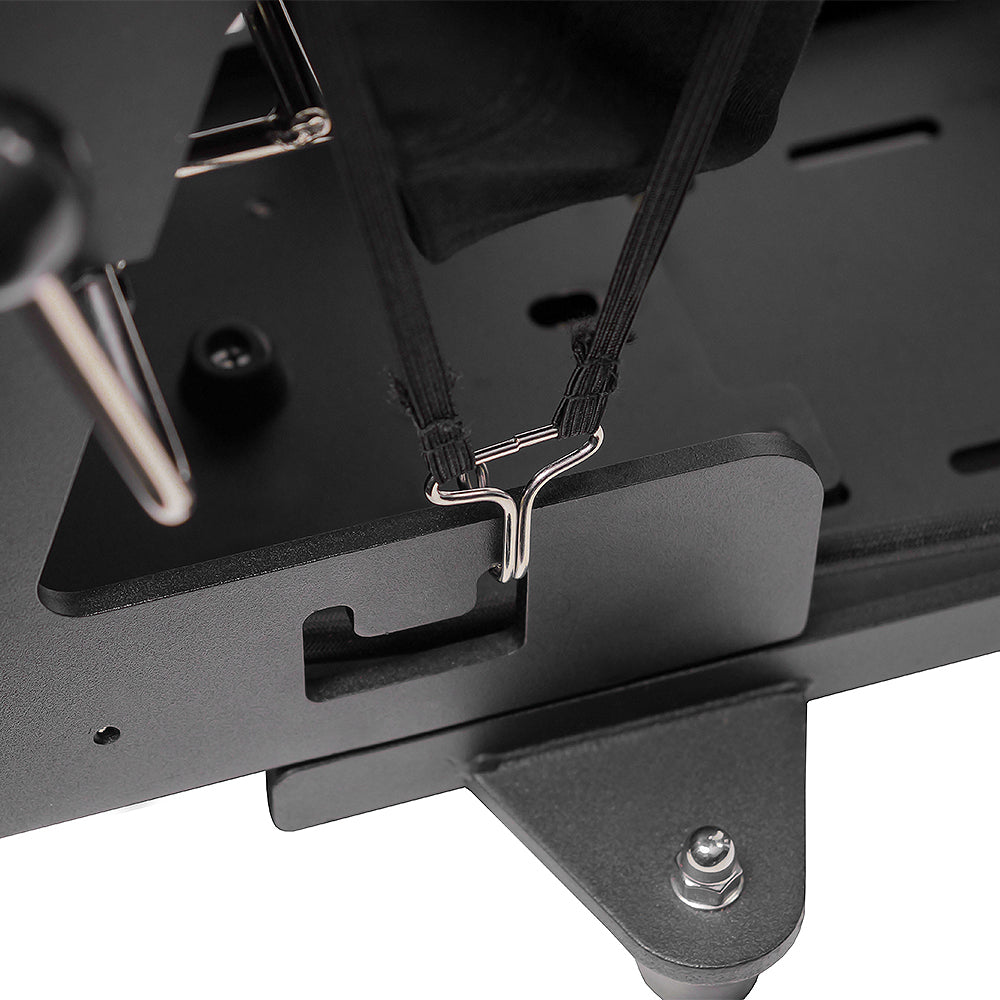

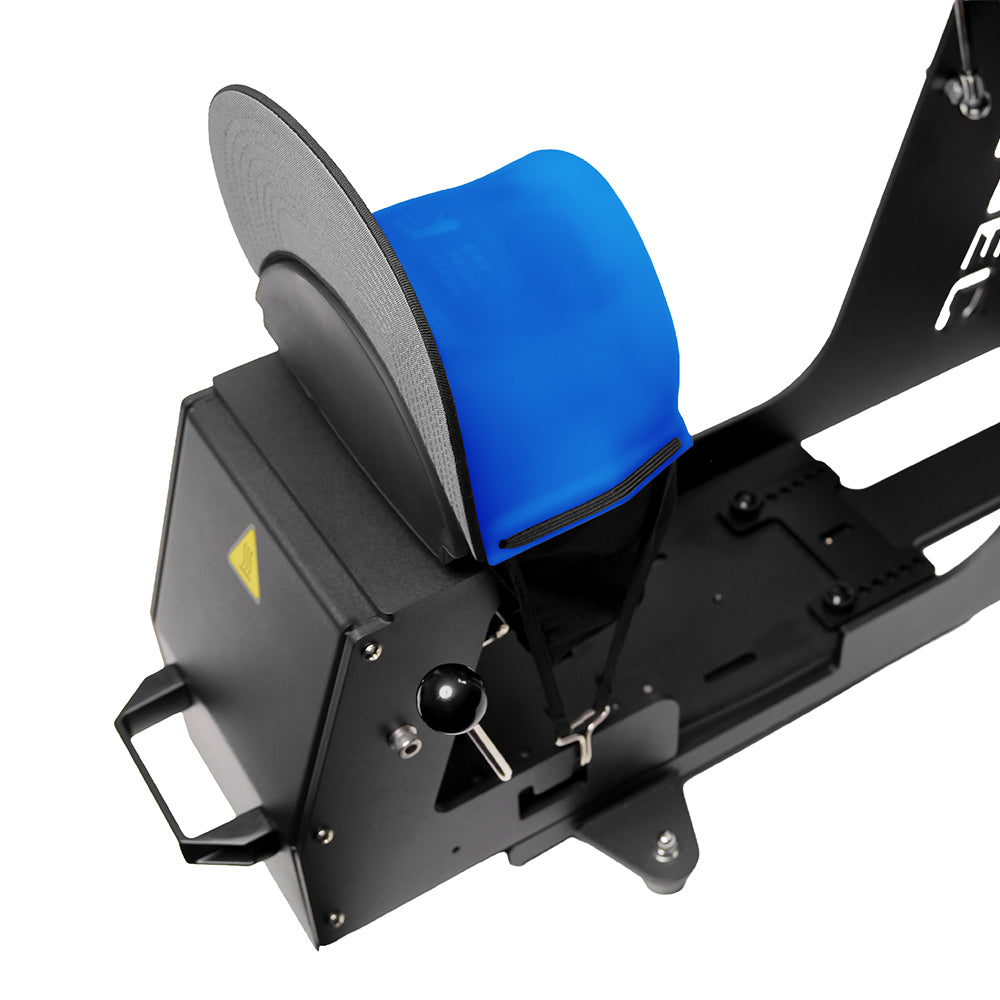

• TrueSpec TransferGuard (Patent Pending) - A semi-transparent, heat-conductive overlay that secures transfers in place using tension hooks, eliminating the need for heat tape. Its ultra-thin design allows even heat transfer while protecting caps and sensitive patches from being scorched during pressing.

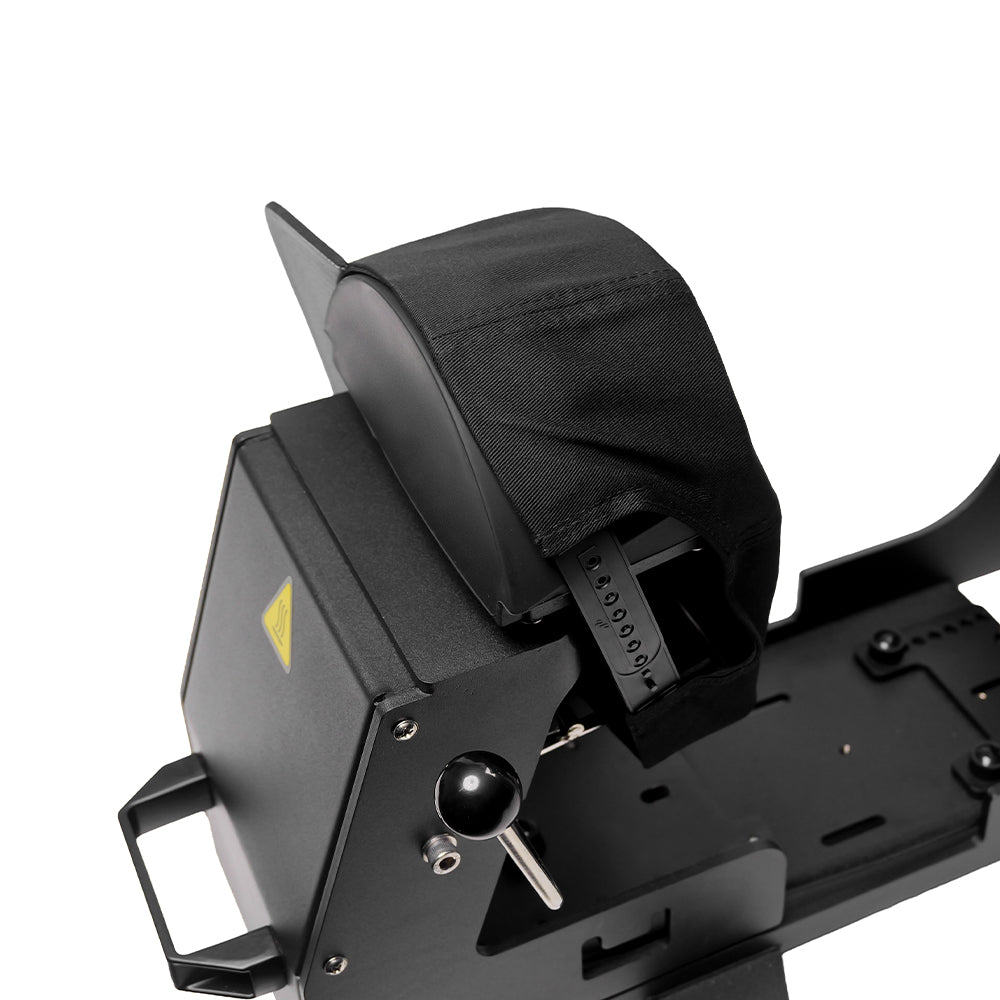

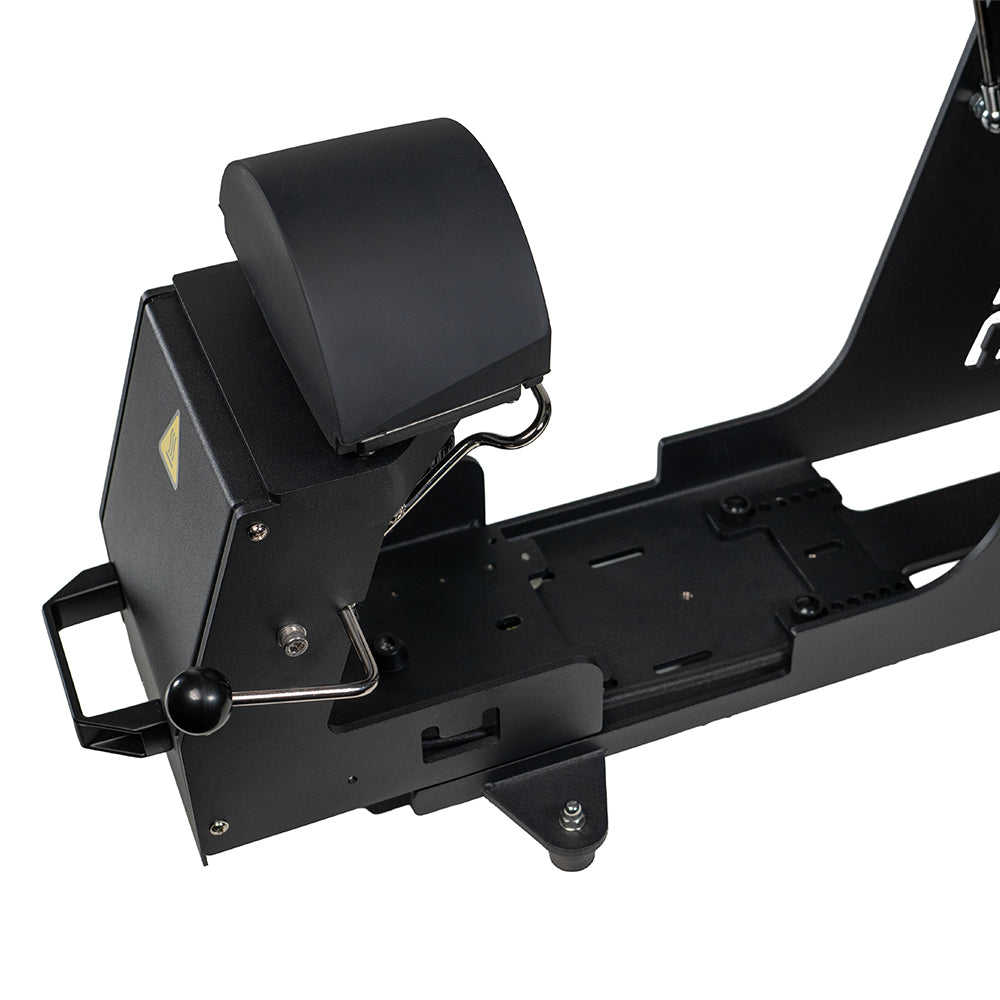

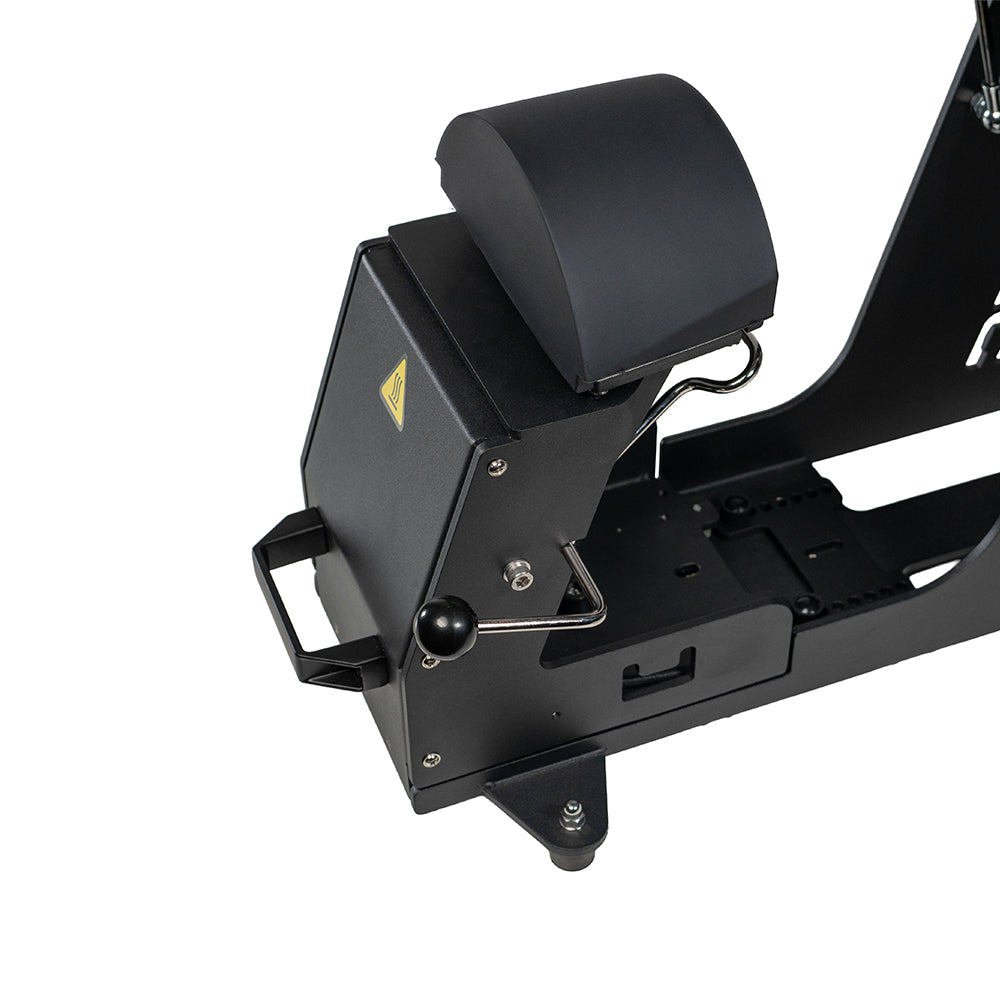

• Slide-Out Drawer (Patent Pending) - The slide-out drawer provides a safer, more efficient workflow by allowing caps and transfers to be loaded away from the upper heat before sliding back in to press.

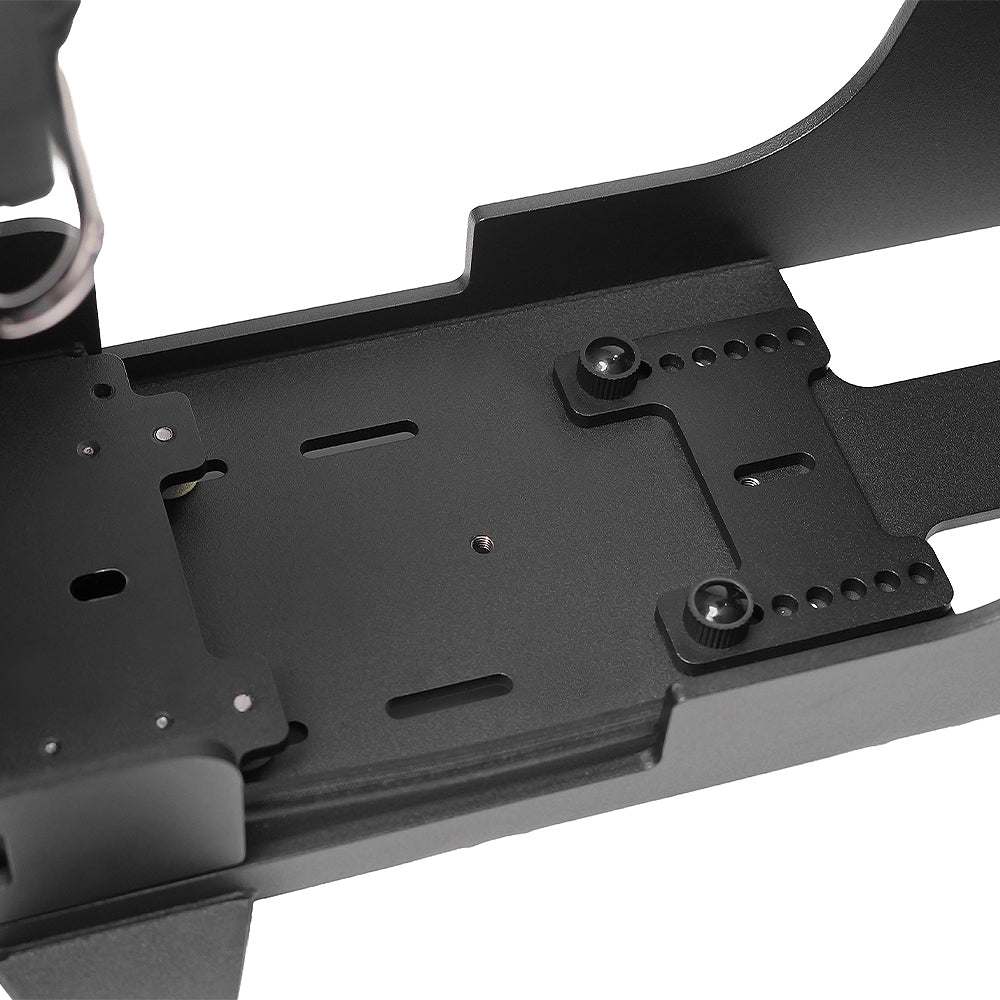

• Limit Plate Adjustment (Patent Pending) - The adjustable limit plate prevents the upper heating element from contacting the bill by stopping the slide-out drawer precisely over the crown. Multiple mounting positions allow the stop point to be fine-tuned for different hat sizes and profiles.

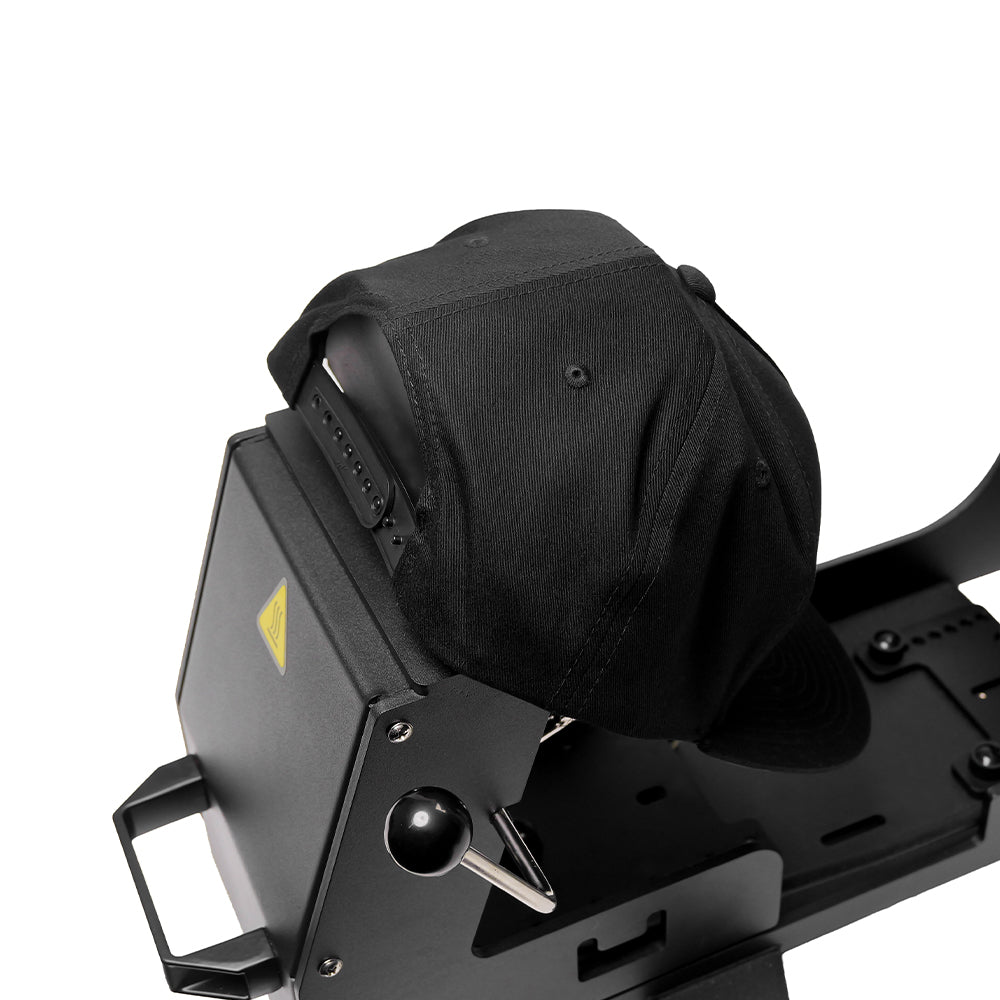

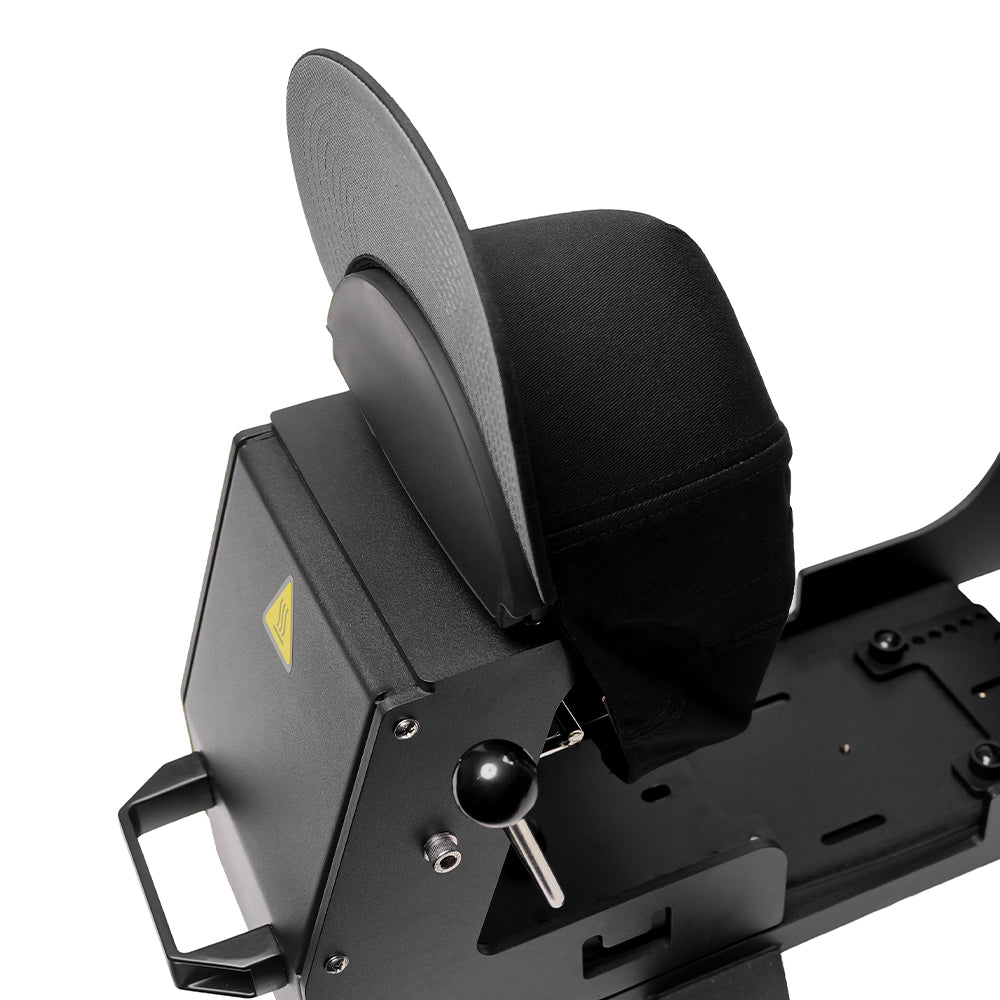

• All-Around Pressing - Increased depth of the frame allows pressing on any side of the hat.

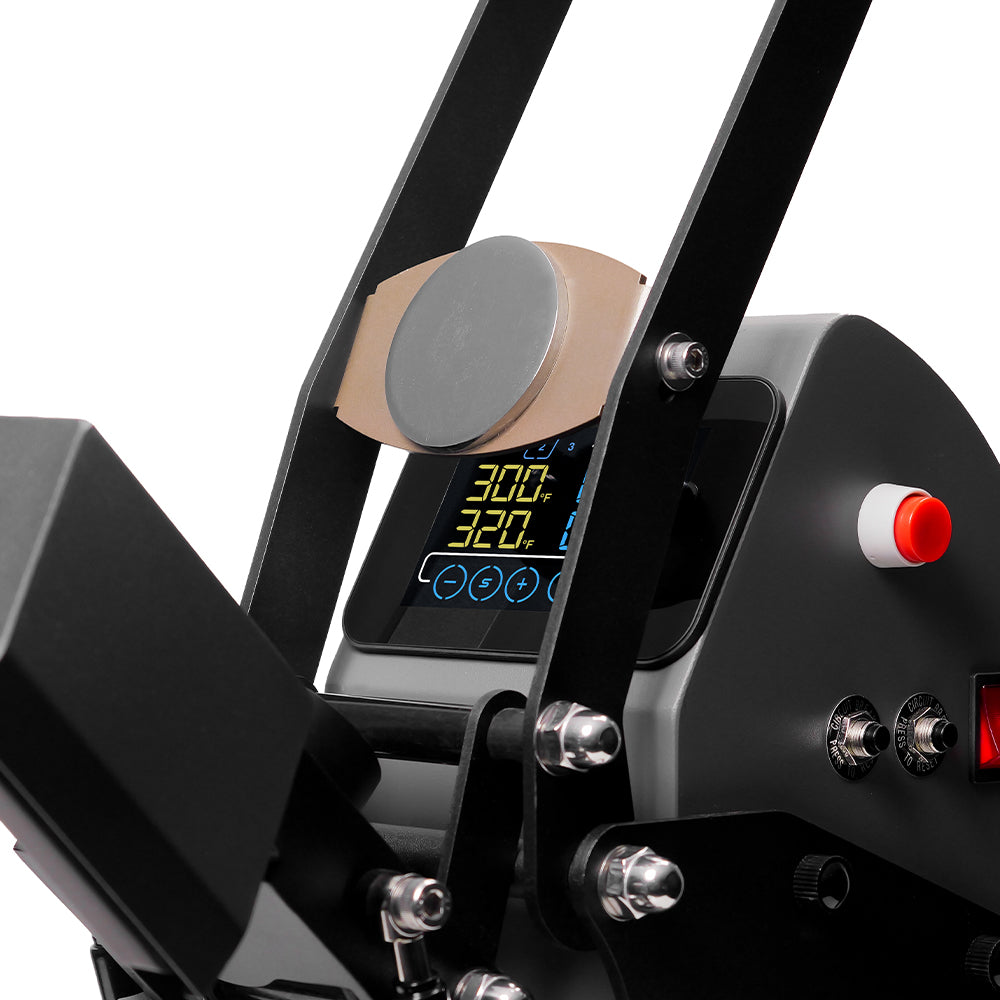

• Dual temperature Control - Allows the upper and lower heating elements to operate together, delivering even heat from both sides for consistent results on demanding applications such as patches.

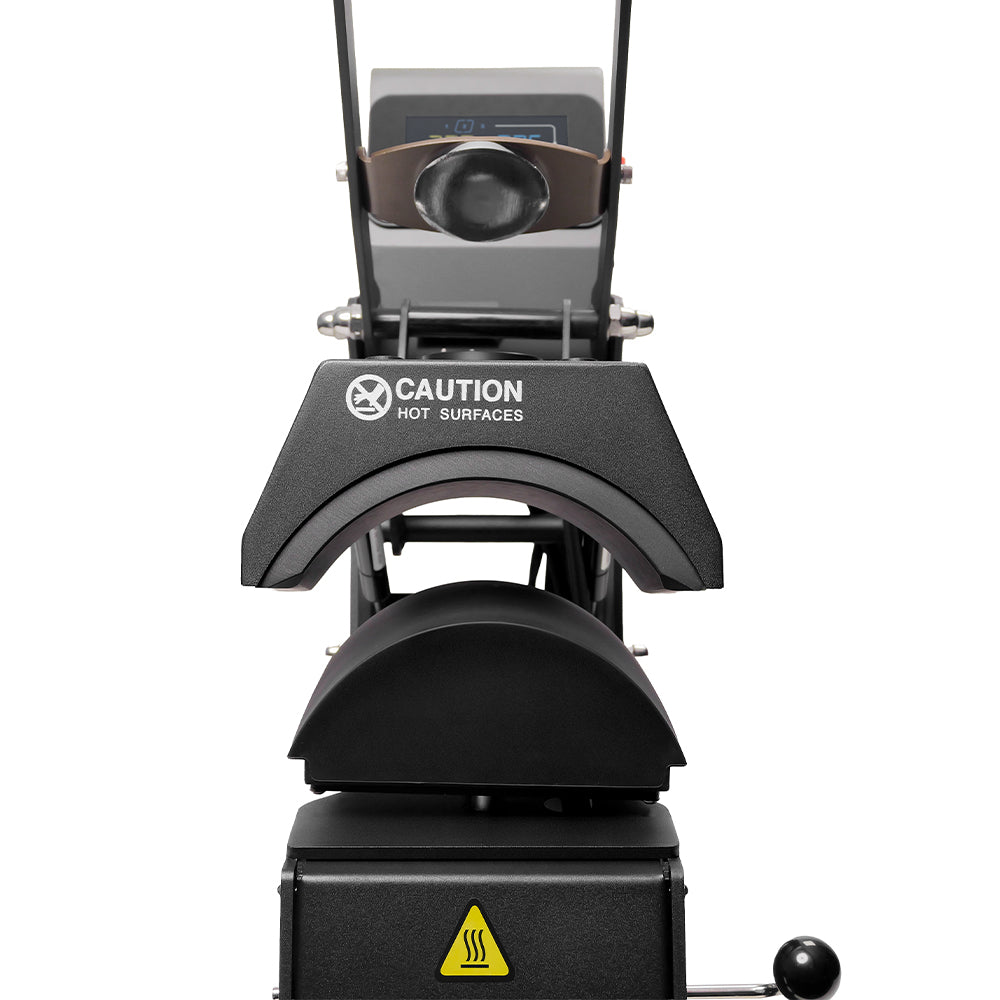

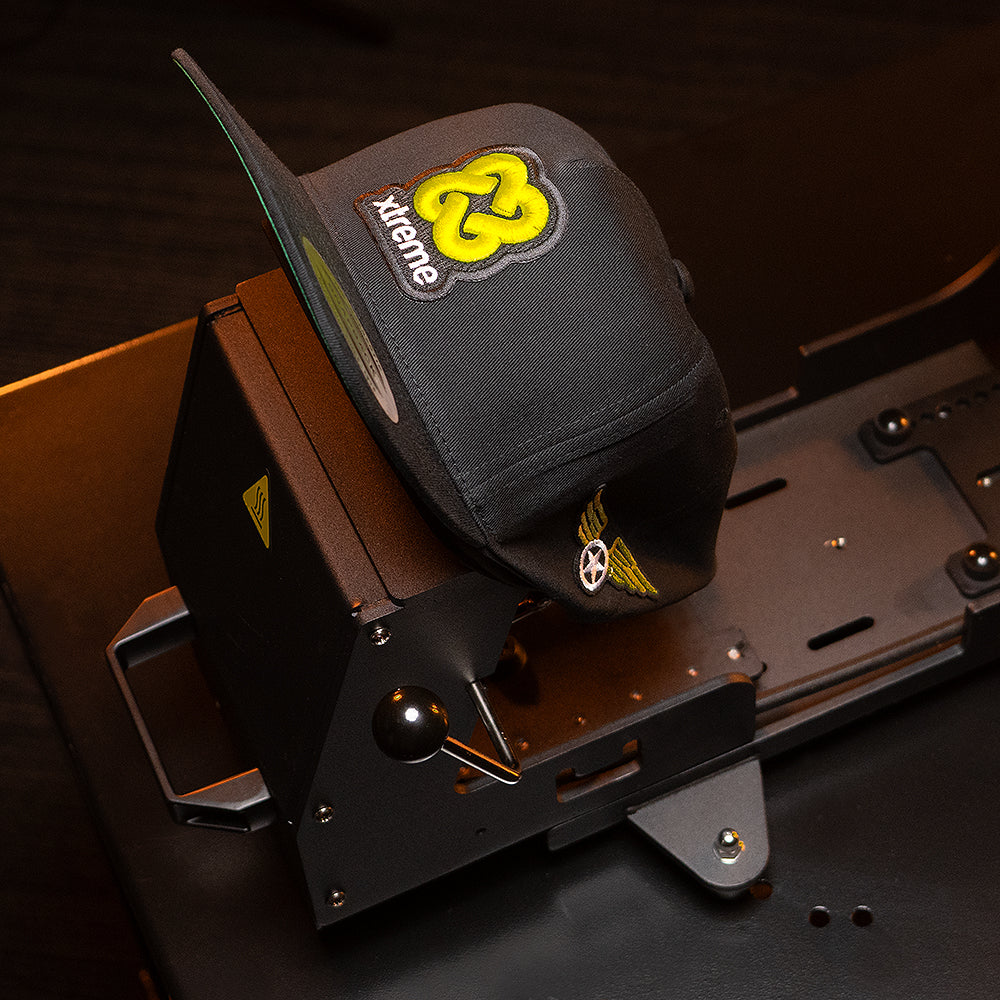

• Updated Platen Curvature - The newly designed platen curvature conforms more closely to modern caps, using smooth edges to reduce pressure lines, creasing, and scorching.

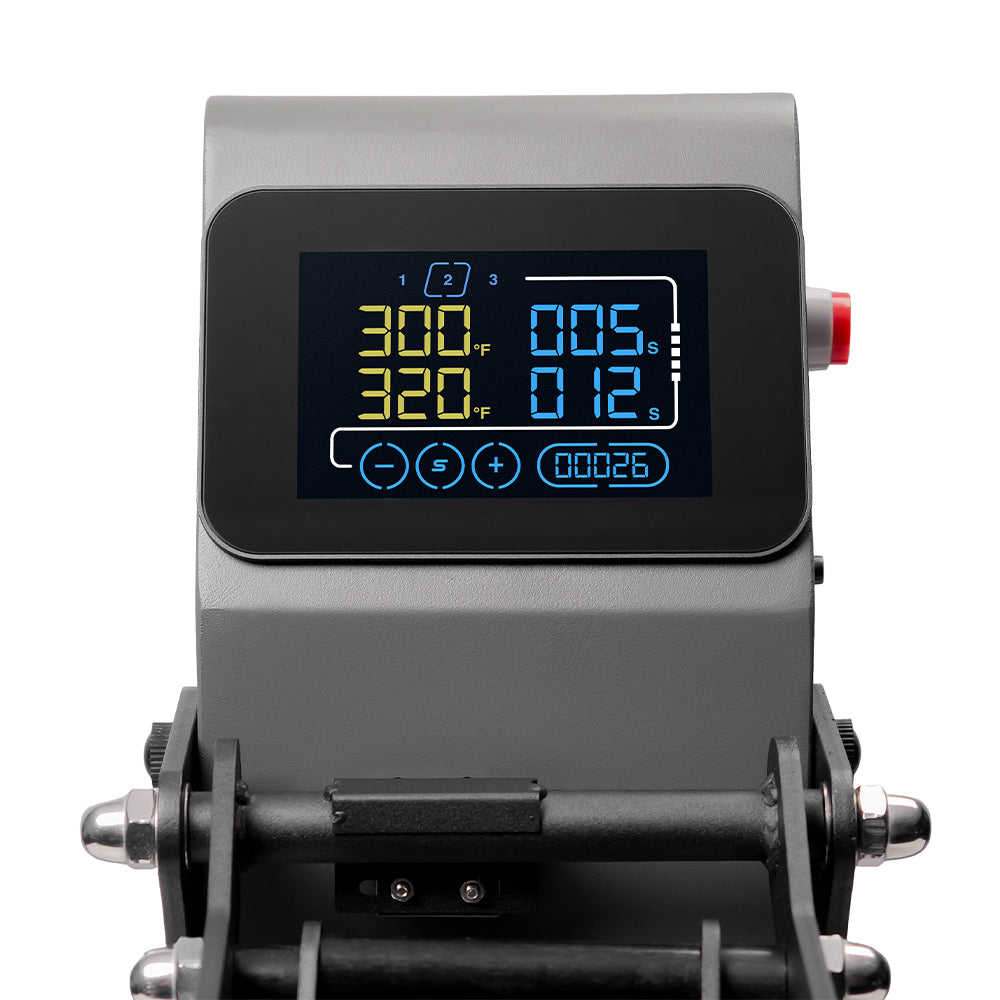

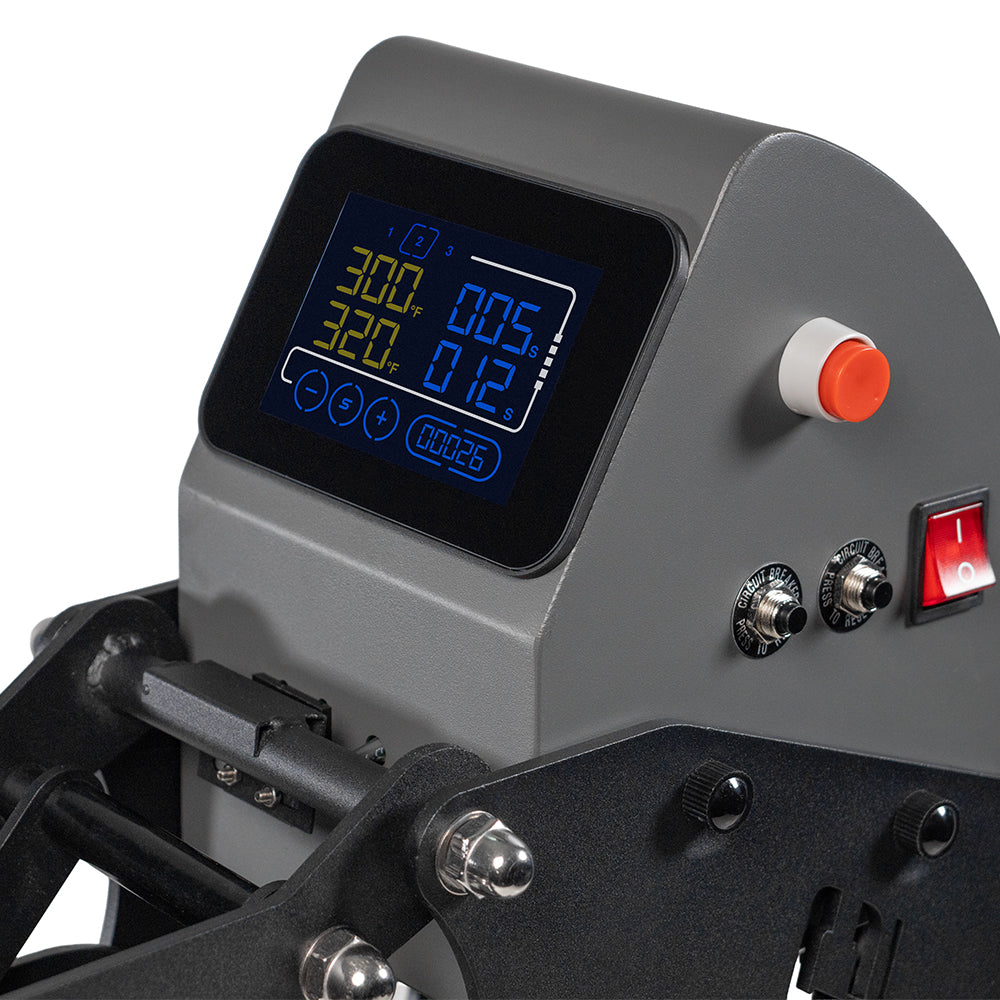

• Dual Timers - Allows a pre-press and press timer, giving you greater control and consistency throughout the application process. Single timer can be used if desired.
• Three Programmable Presets - Save your most used temperature, time, and pressure settings for quick setup and use.

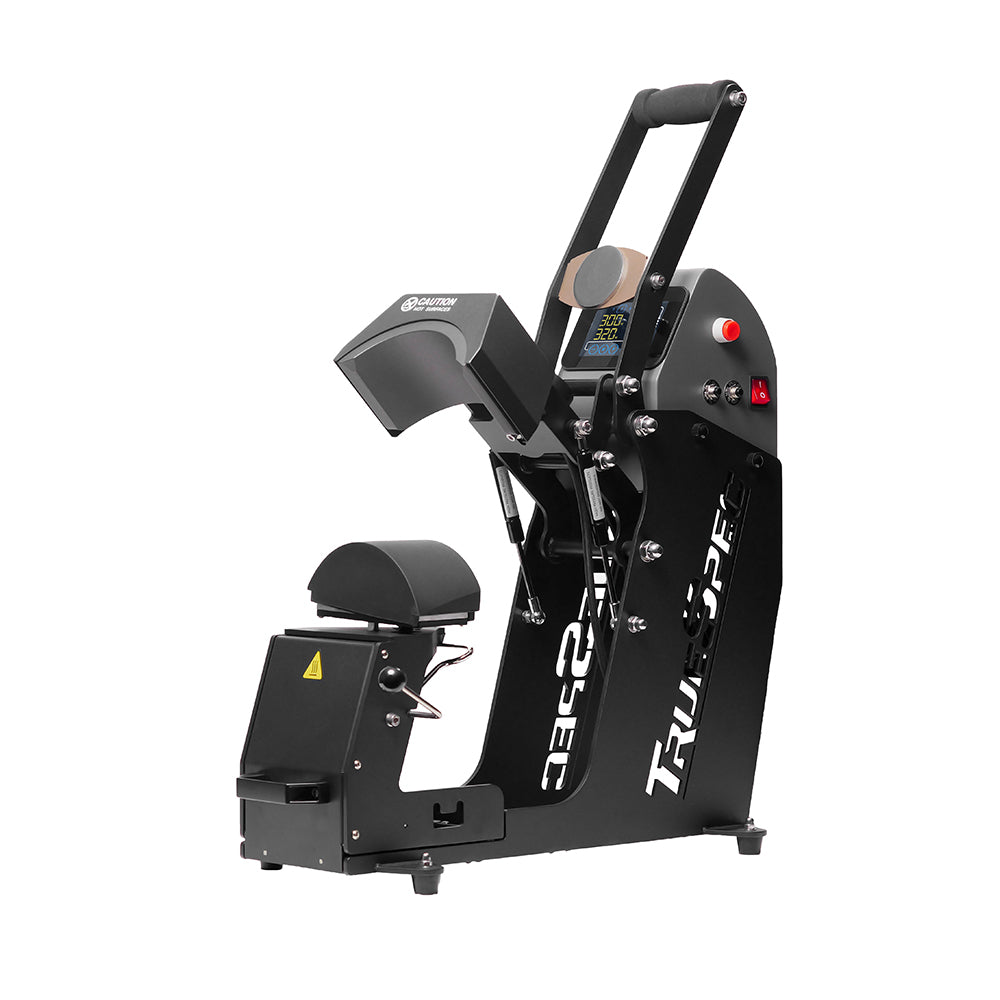

• Auto-Open - The auto-open mechanism uses a gas shock to control and assist the opening motion, delivering smooth, automatic release at the end of the press cycle.

FEATURES

	TrueSpec TransferGuard (Patent Pending) - A semi-transparent, heat-conductive overlay that secures transfers in place using tension hooks, eliminating the need for heat tape. Its ultra-thin design allows even heat transfer while protecting caps and sensitive patches from being scorched during pressing.
	Slide-Out Drawer (Patent Pending) - The slide-out drawer provides a safer, more efficient workflow by allowing caps and transfers to be loaded away from the upper heat before sliding back in to press.
	Limit Plate Adjustment (Patent Pending) - The adjustable limit plate prevents the upper heating element from contacting the bill by stopping the slide-out drawer precisely over the crown. Multiple mounting positions allow the stop point to be fine-tuned for different hat sizes and profiles.
	All-Around Pressing - Increased depth of the frame allows pressing on any side of the hat.
	Updated Platen Curvature - The newly designed platen curvature conforms more closely to modern caps, using smooth edges to reduce pressure lines, creasing, and scorching.
	Dual temperature and Dual Time - Allows the upper and lower heating elements to operate together, delivering even heat from both sides for consistent results on demanding applications such as patches. 3 Programmable Presets - Save your most used temperature, time, and pressure settings for quick setup and use.
	Auto-Open - The auto-open mechanism uses a gas shock to control and assist the opening motion, delivering smooth, automatic release at the end of the press cycle.

Specifications

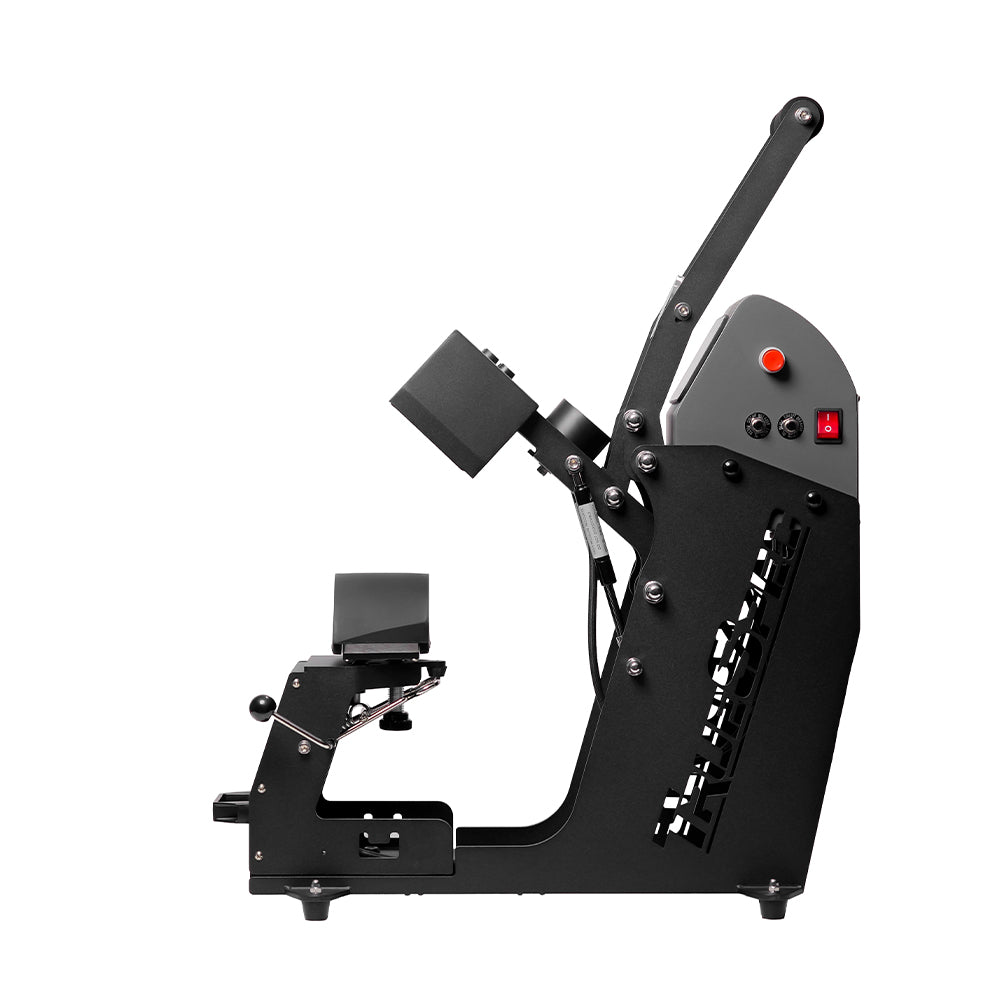

• Heat Press Style: Dual Heat Slide-Out Cap Press
• Heat Press Dimensions: 23" x 10" x 30" (D x W x H in open position)
• Heat Press Dimensions: 27" x 10" x 30" (D x W x H with slide-out drawer extended)
• Heat Press Base Dimensions: 18.5" x 9.5"
• Upper Heating Element Size: 3.65" x 7"
• Lower Heating Element Size: 3.35" x 6"
• Heat Press Weight: 48 lbs
• Gauge Reading: Fahrenheit or Celsius
• Voltage: 120V
• Power Rating: 1200W / 10 Amps
• Maximum Upper Temperature: 400º F
• Maximum Lower Temperature: 320º F (280º F surface for patches)
• Time Range: 0–999 seconds
• Shipping Weight: 67 lbs
• Shipping Dimensions: 27" x 16" x 28"
