HPN Signature Series 16" x 20" Swing Away Heat Press

Save 15%
SKU: HPN-SIG-1620-S

Price:
Sale price$747.95 USD Regular price$879.95 USD

Found a Lower Price?

Learn More About MyExpert Protection Here

Open Video

Why Choose HeatPressNation?

With over 15 years of experience, HeatPressNation has established itself as the trusted industry leader in heat transfer solutions, earning the confidence of thousands of satisfied customers.

Description
Warranty
Instructions

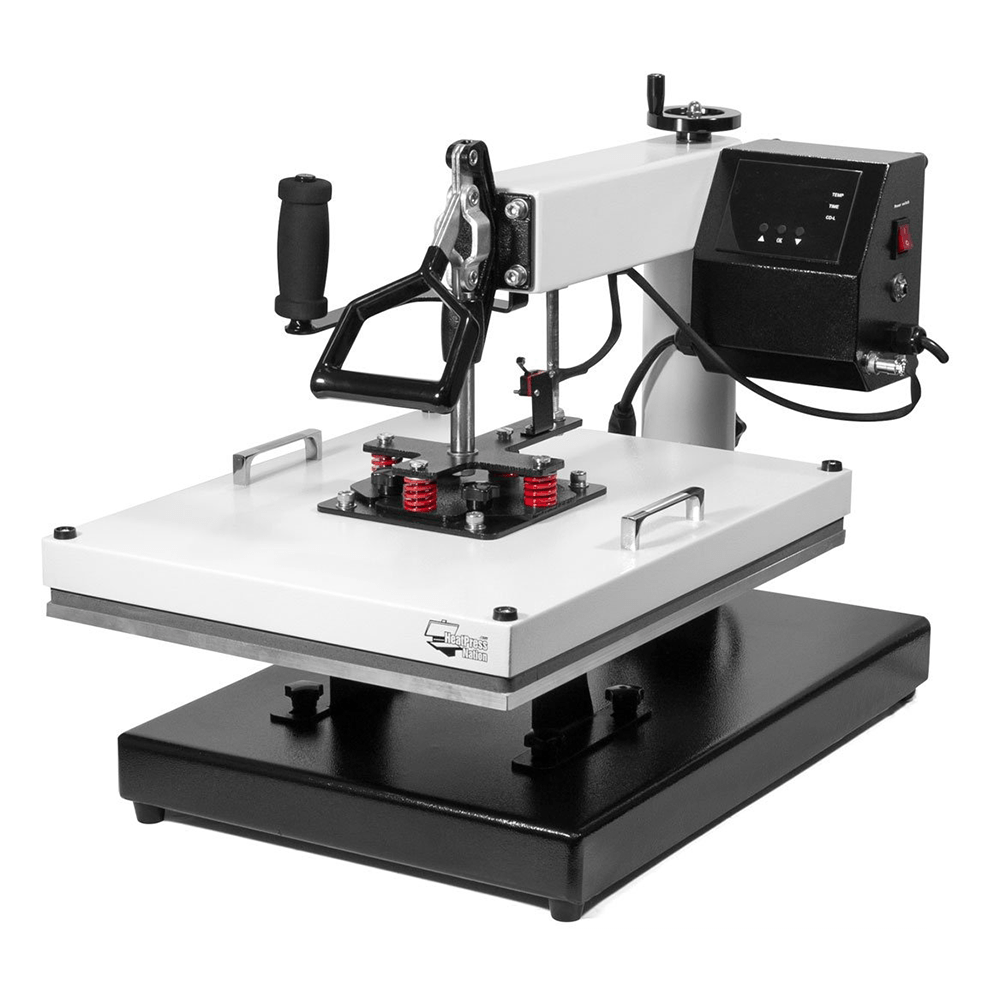

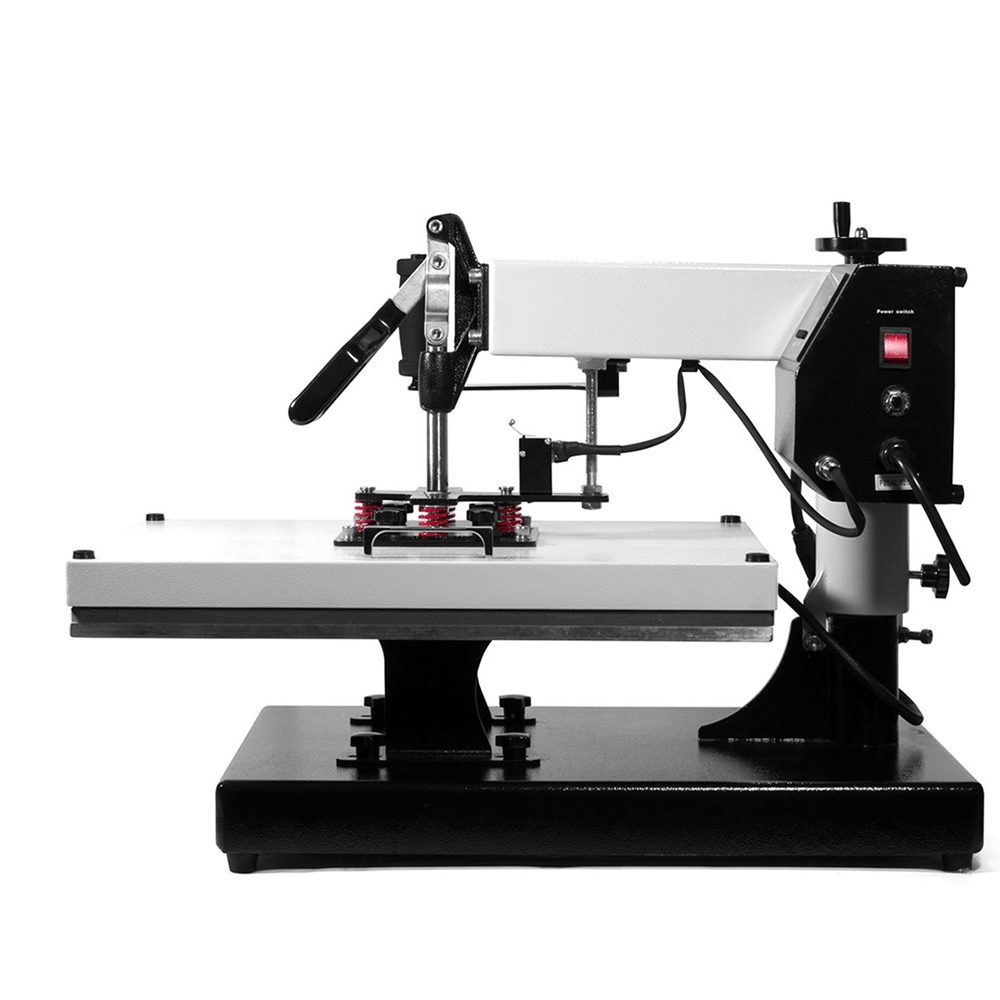

The HPN Signature Series line of heat presses are packed with a surplus of features that make them stand head and shoulders above all other machines in their class. Designed to be user-friendly, quality built, and competitively priced, the HPN Signature Series line of heat press machines have quickly become a favorite of business owners, crafters, and heat transfer enthusiasts everywhere.

The simple fact that the heat press is of swing-away design, means that it is capable of floating directly above your t-shirt! This is perfect for not only regular heat transfers, but also screen print and direct to garment (DTG) curing. The adjustable pressure knob lets you adjust the distance of the upper platen so you can pick how far away the heat press hovers. Just one of the many benefits of a swing-away heat press!

The HPN Signature Series Swing Away Heat Press features an exclusive secondary leverage handle, which greatly increases the safety and ease when swinging away from the upper platen. The vertical pressure application paired with a 4-point, spring-mounted heating element allows for consistent, even pressure application on thick, rigid items. This makes it a preferred heat press for sublimating on hard, flat substrates like ornaments, awards plaques, name tags, license plates, and more!

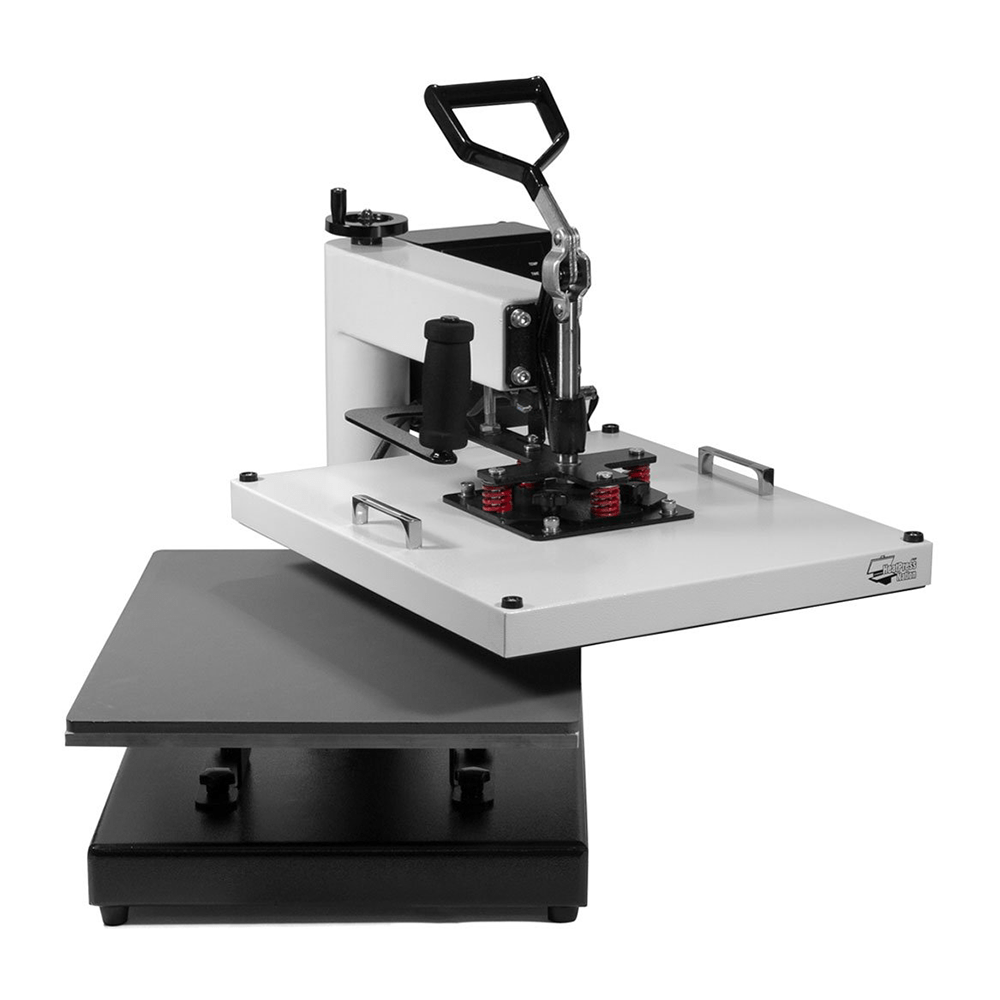

*Heating element swings to the right up to 90°*

UL Certified Parts

FEATURES

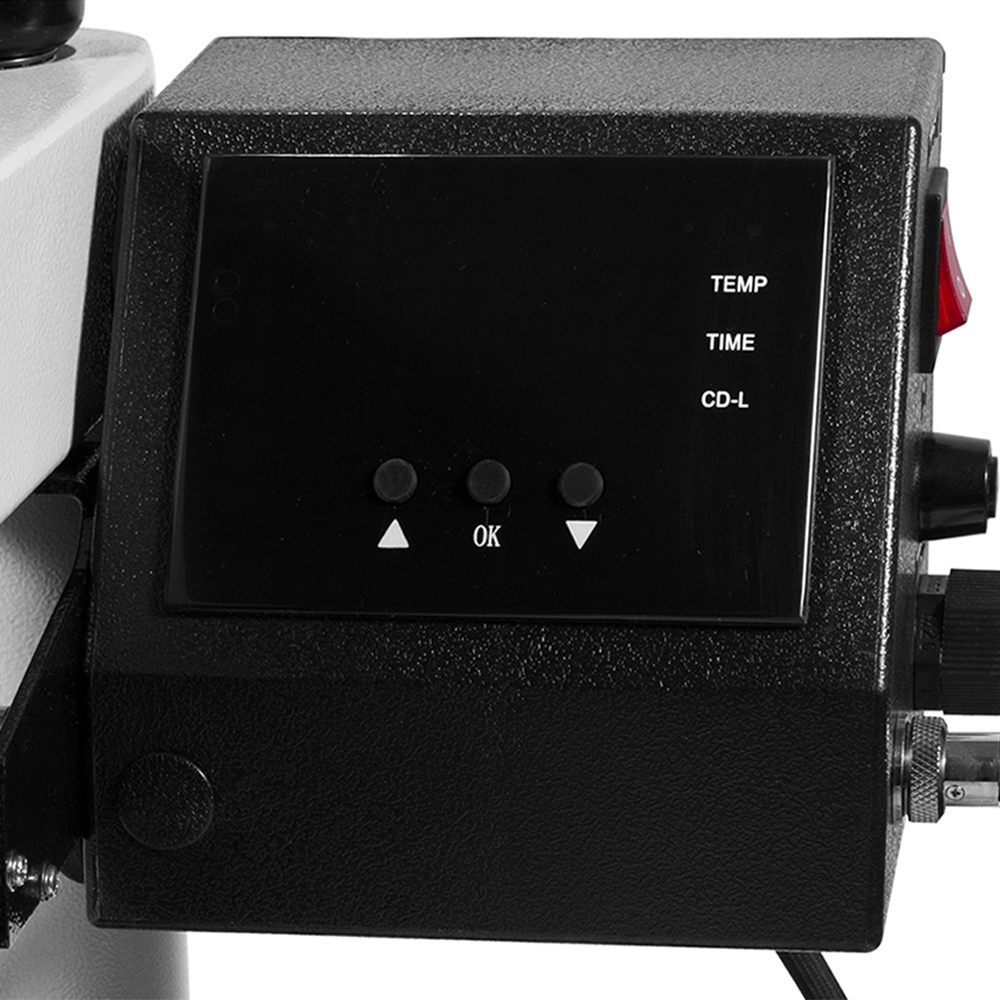

Digital Computer Gauge

Upgraded Time/Temp Gauge: Setting the time, temperature and changing temperature scale from ºC to ºF is now easier with the HPN Signature Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds for it reaches zero to prevent overheating of your material.

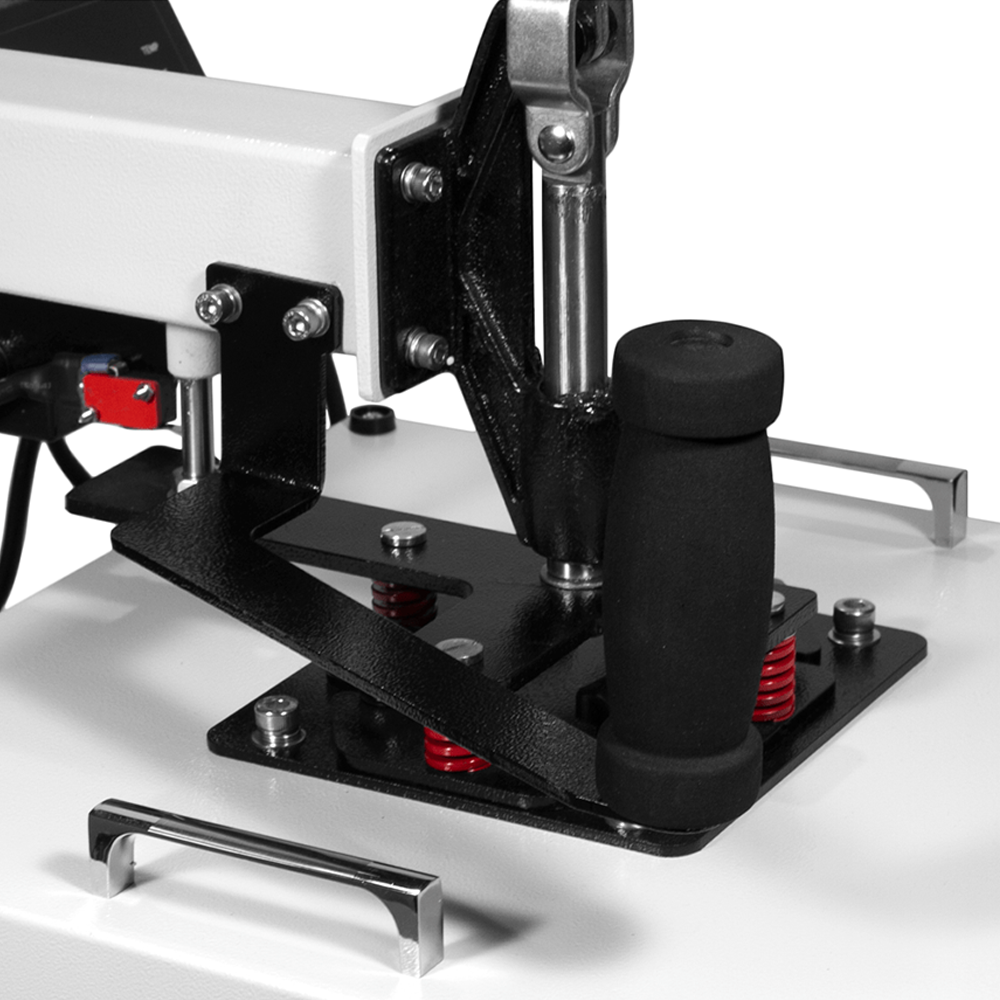

Secondary Swing Away Handle

Secondary Handle: The HPN Signature Series is the only heat press on the market to feature an optional secondary handle for additional leverage when high pressure is being applied. Placing your hand directly on top of the heat platen to apply leverage is no longer necessary.

Swing Away Pressure Adjustment Knob

Improved Pressure Adjustment: The pressure adjustment knob on the HPN Signature Series has been improved for smoother action. It is now easier than ever to adjust the upper heating platen to accommodate thick items.


  • Improved heating element for quicker heat up
  • Opens approximately 50 degrees
  • Thick items capable (up to 1 inch thick)
  • Full pressure range knob
  • Reinforced structure to ensure high pressure
  • Adjustable low to high-pressure clamp
  • Solid steel welded framework
  • Complete commercial business grade
  • Dual Fuse Protection
  • 16" x 20" Baked on, Non-Stick Coated Heat Platen
  • Digital Automatic Timer

SPECIFICATIONS

  • Heat Press Style: Swing Away
  • Heat Press Base Dimensions: 28" x 16" x 27" (D x W x H in open position)
  • Heating Element Dimensions: 15.77" x 19.72"
  • Gauge Temperature Reading: ºF or ºC
  • Voltage: 120V
  • Power Rating: 1600W/14 Amps
  • Maximum Temperature: 400º F
  • Time Range: 0-999 Seconds
  • Product Weight: 115.7
  • Shipping Weight: 135.6 lbs
  • Shipping Dimensions: 31.5" x 21.3" x 24.4"

MyExpert Support Logo

The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, all HPN Signature Series heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.

MyExpert Protection Logo

EXTENDED WARRANTY

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

PLANS

  • 1 Year Total Coverage - Included with purchase
  • 2 Years Total Coverage - $49.99
  • 3 Years Total Coverage - $79.99
  • 4 Years Total Coverage - $99.99

Add "MyExpert Protection" when adding your product to the cart

Extended Warranty

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

Plans

  • 2 Years Total Coverage - $49.99
  • 3 Years Total Coverage - $79.99
  • 4 Years Total Coverage - $99.99

Add "MyExpert Protection" when adding your product to the cart
