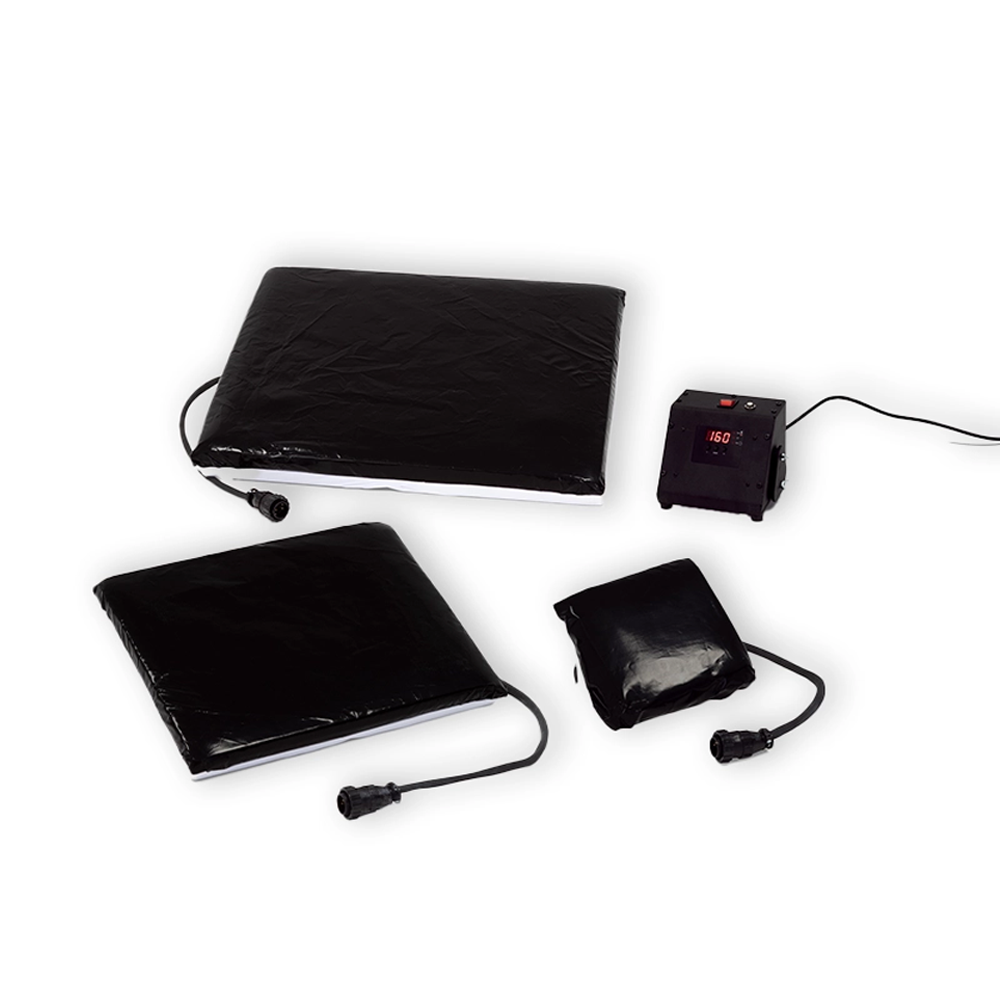

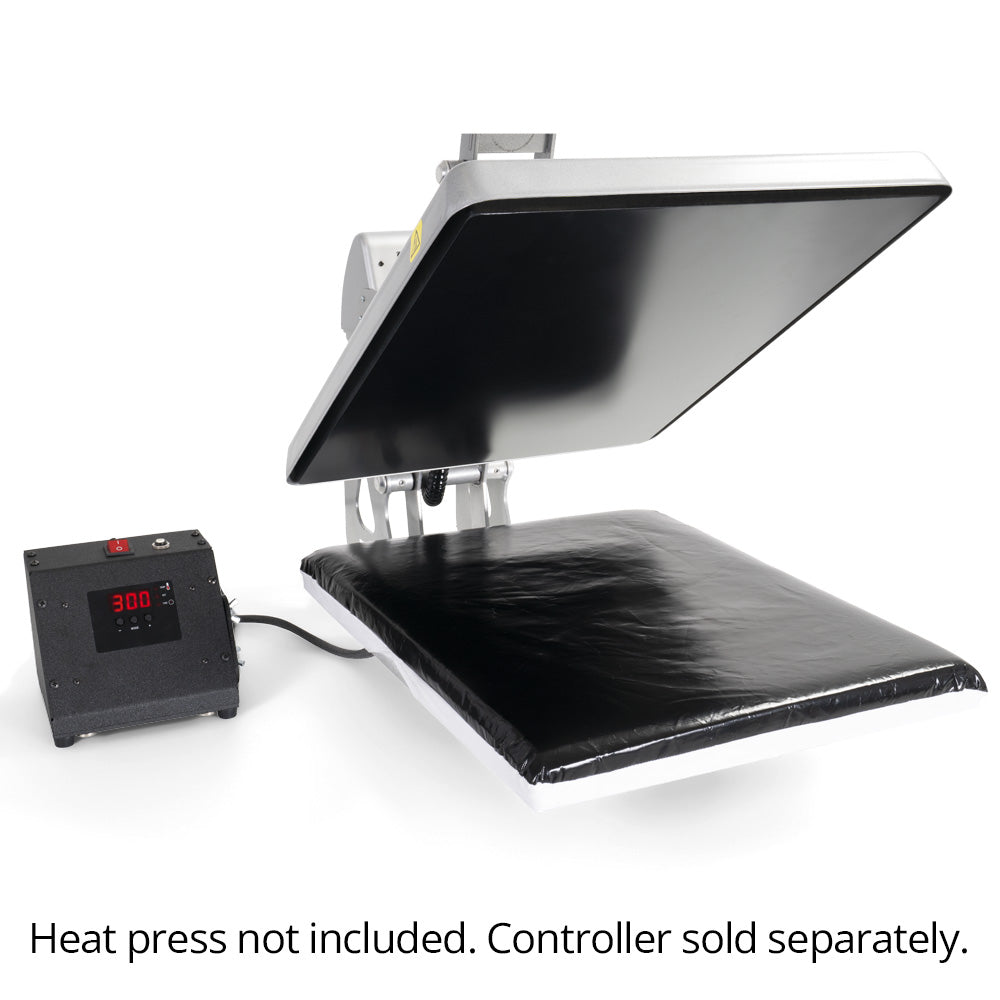

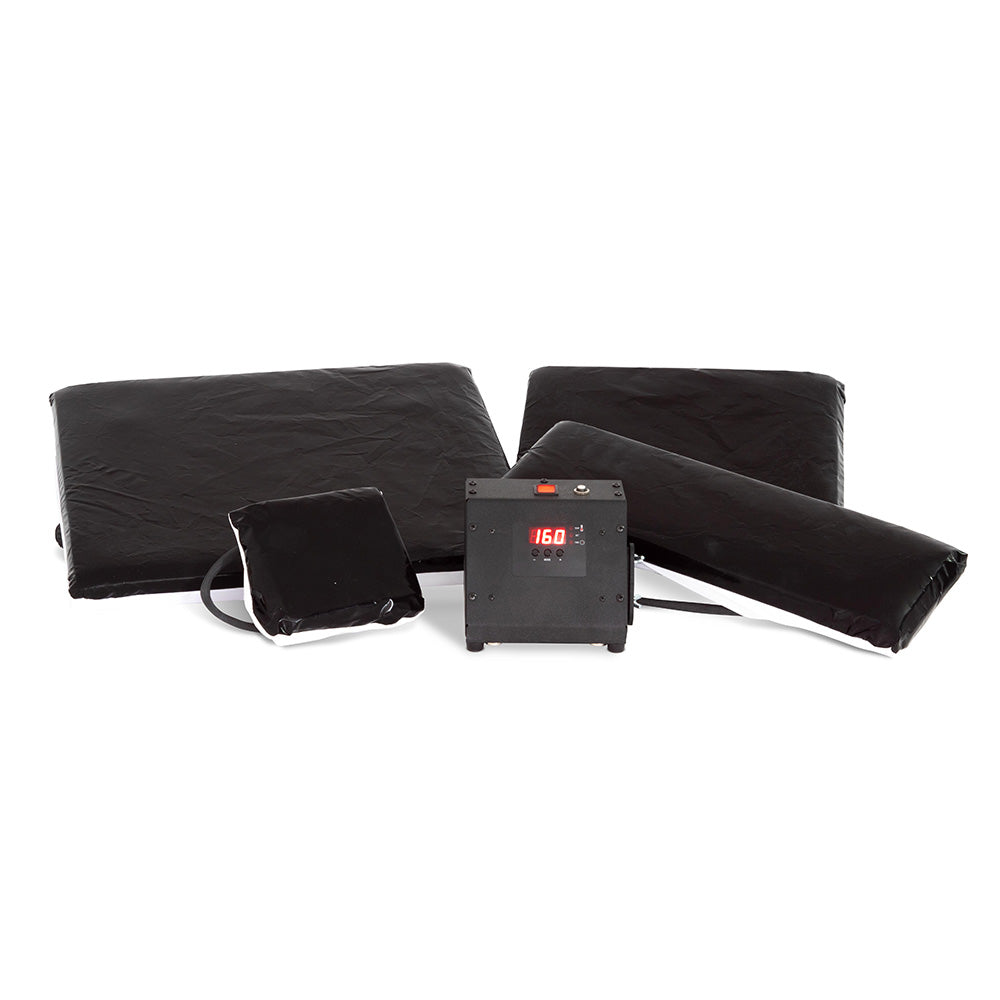

Designed to reduce the risk of scorch marks on heat-sensitive polyester or synthetic fabrics, this heated lower platen has a built-in heat printing pillow. Available in 3 sizes, each controlled by one interchangeable digital controller (sold separately).
Application instructions are for polyester or synthetic fabrics only. Make sure to increase the time if you are using a thicker garment. Do not pre-heat polyester or synthetic garments.
Features:
- Built-in pillow conforms to any substrate

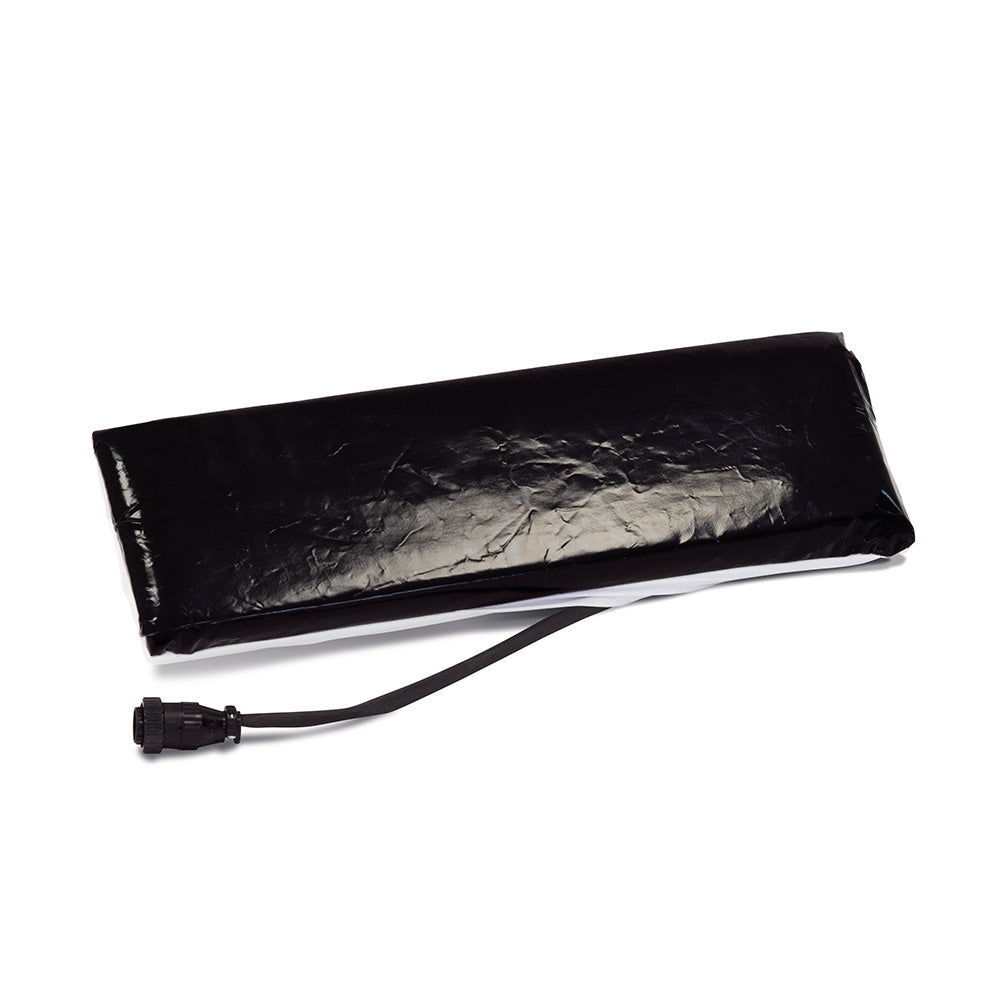

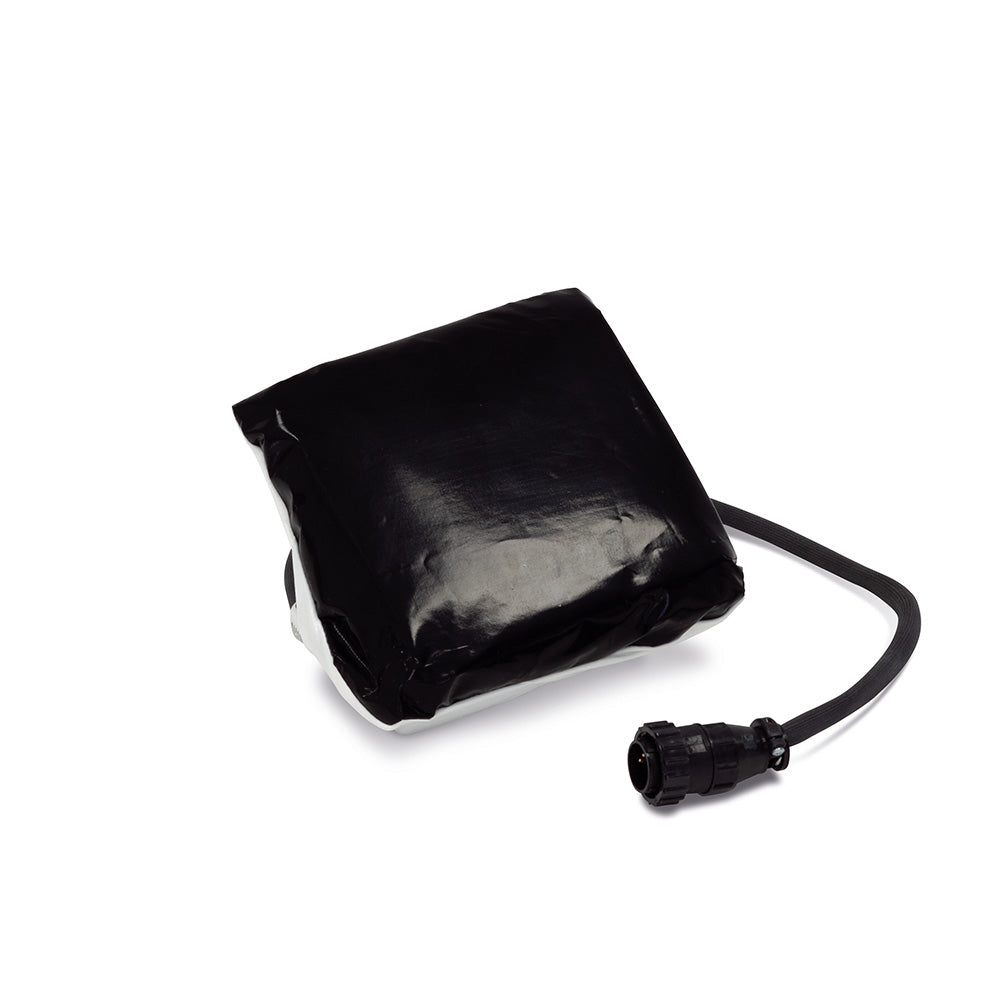

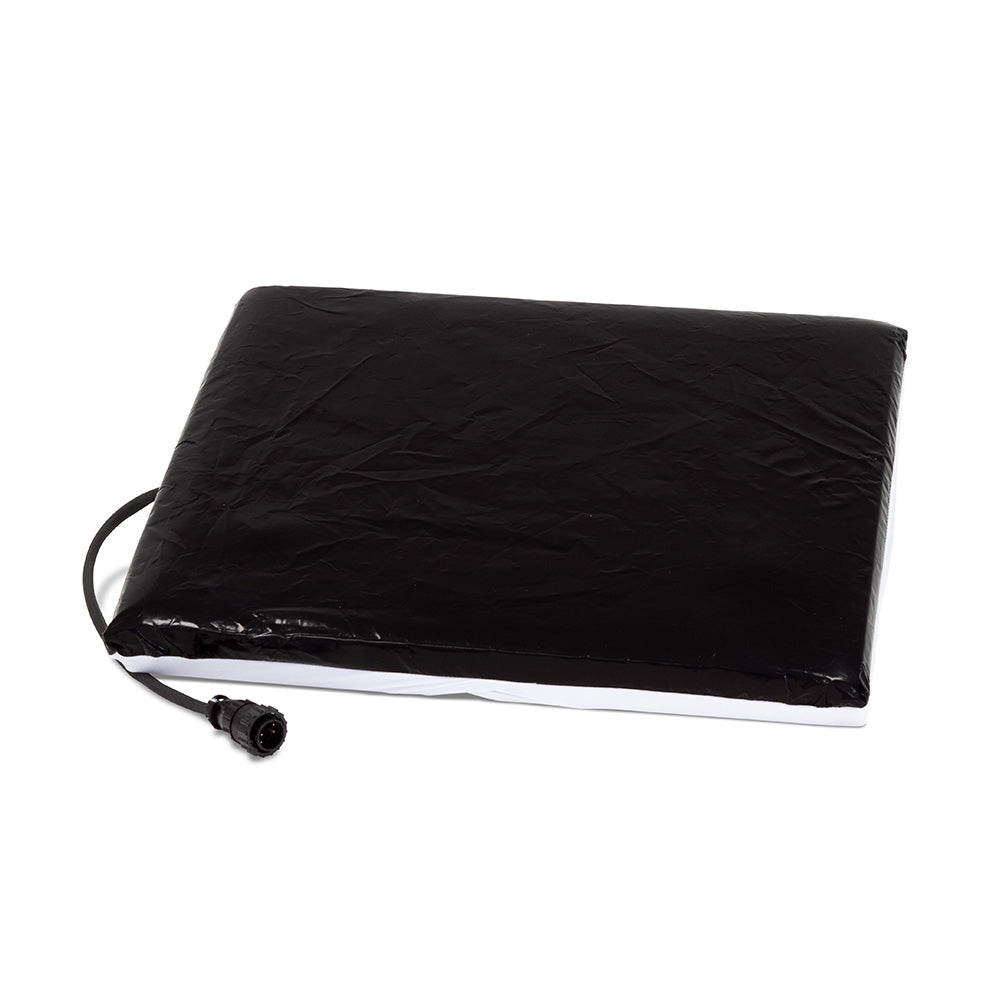

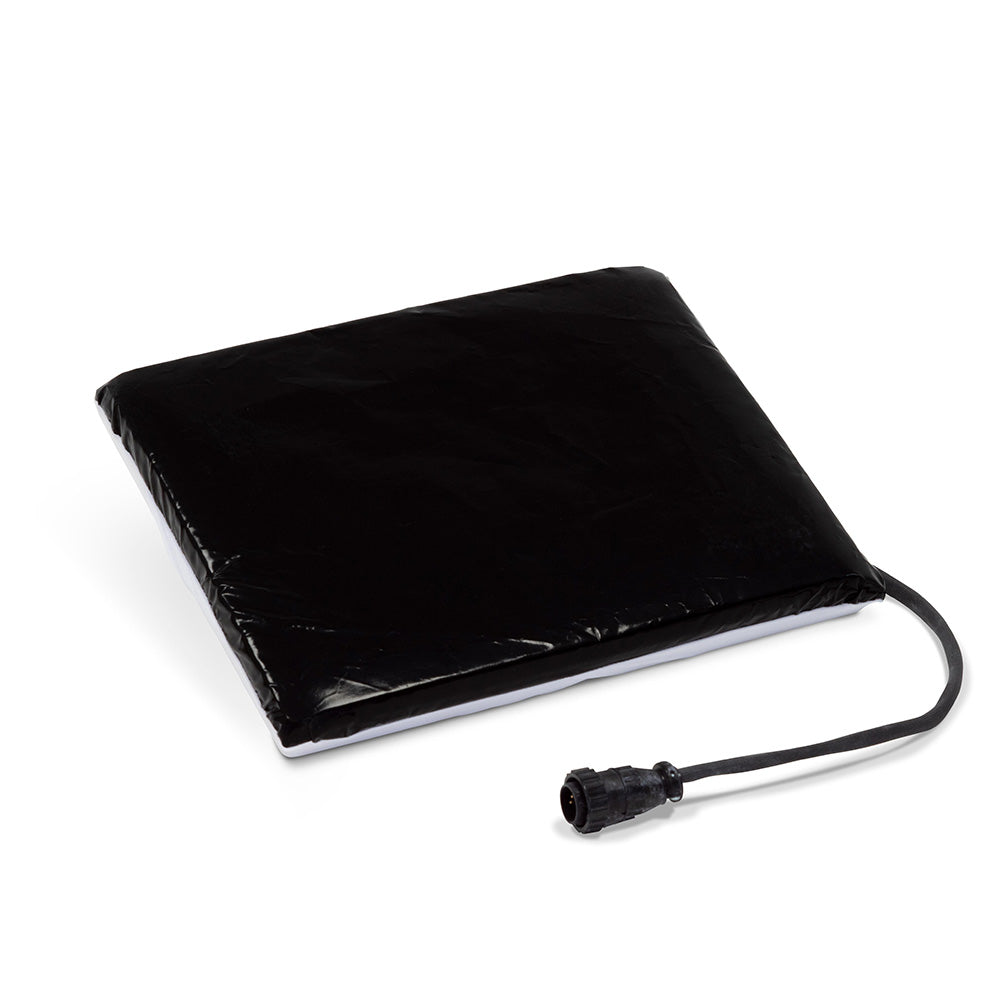

- 3 sizes - 6" x 6", 11" x 15", 16" x 20" - to handle anything from full size garments to kid size, sleeves, and more

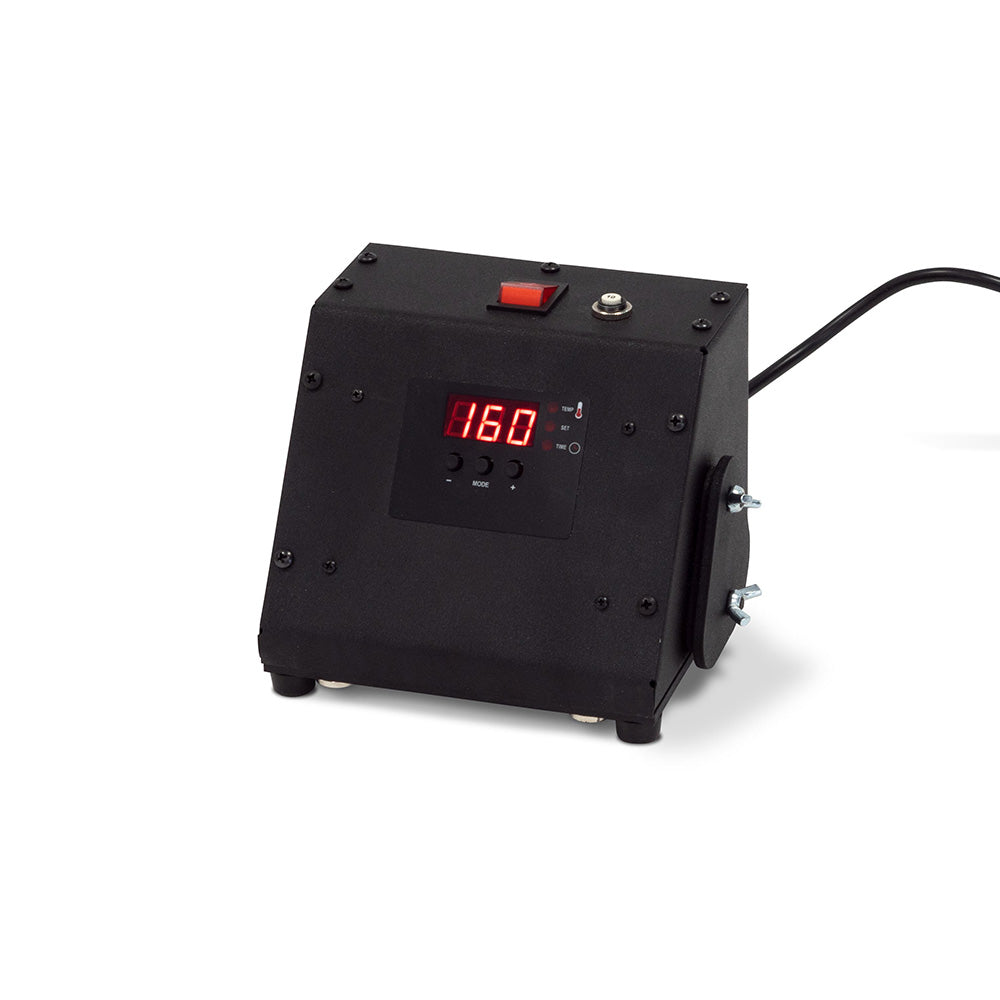

- Controller includes digital temperature display for accurate application
- Quick disconnect design allows you use one controller (sold separately) with different platen sizes
- UL, ULc, CE approved
- Two-year warranty
- Must have a designated circuit breaker
Benefits:
- Applies heat from below, reducing the heat needed from the upper platen, eliminating scorching on heat-sensitive fabrics
- Insulating properties keep bottom of platen cool-to-the-touch when changing
- Fully Threadable when used with a Heat Press Caddie
- Eliminates the need to pre-heat garments and promotes a quicker bond between adhesive and fabric, reducing production time
- Reduced upper platen temperature protects delicate embroidery and appliqué from overheating, helping them retain their full dimension.
- Reduces the risk of dye migration on polyester substrates
Compatibility:
- Stahls' Hotronix Air Fusion IQ
- Stahls' Hotronix 16" x 20" Auto Open Clam
- Stahls' Hotronix 16" x 20" MAXX Clam
- Not compatible with Hotronix Fusion
|
|
Recommended Application InstructionsApplication on 100% Polyester:
Application on 95% Polyester / 5% Spandex / Triblends:
Note: These instructions are meant to be a starting point. Please test before starting production Note: Power Platen not recommended for use on 100% cotton fabrics. For blends with high cotton content proceed with caution. Test application using upper heat only, if it scorches test using lower heat. *Decrease pressure for smaller Power Platen sizes: |
