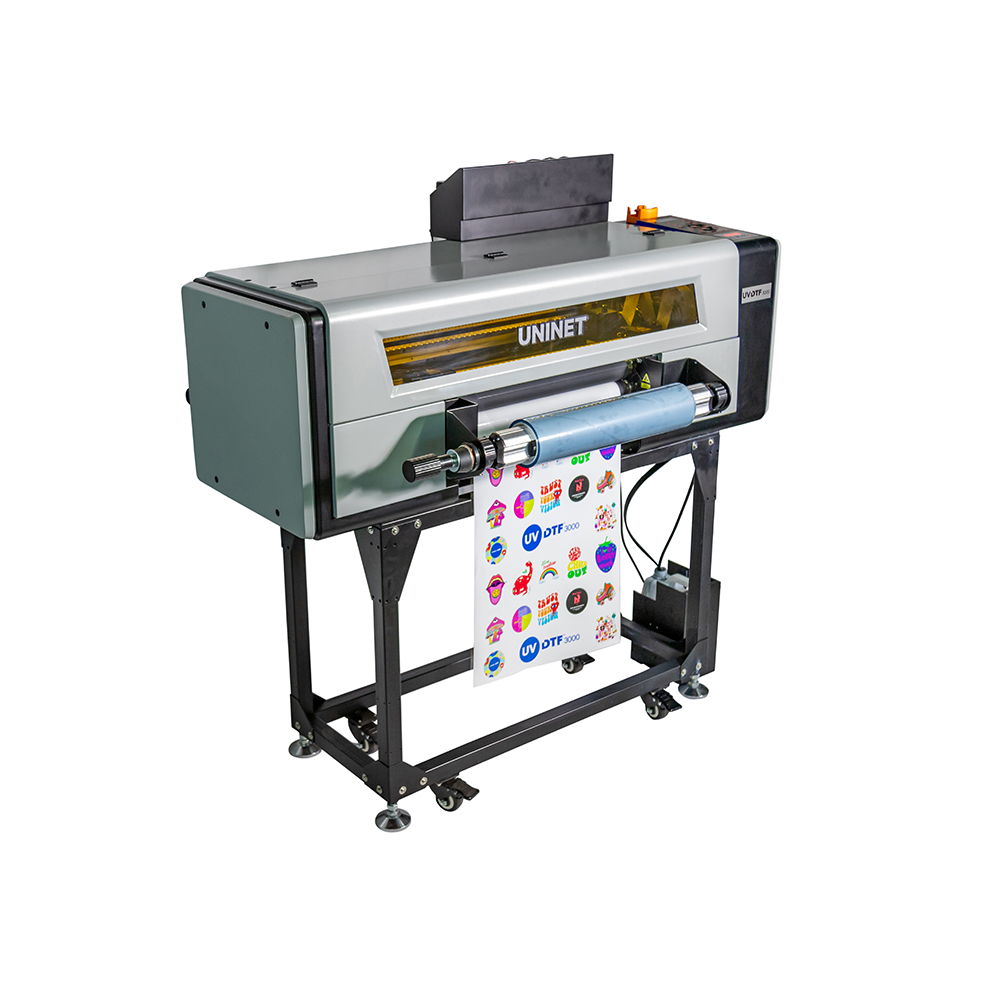

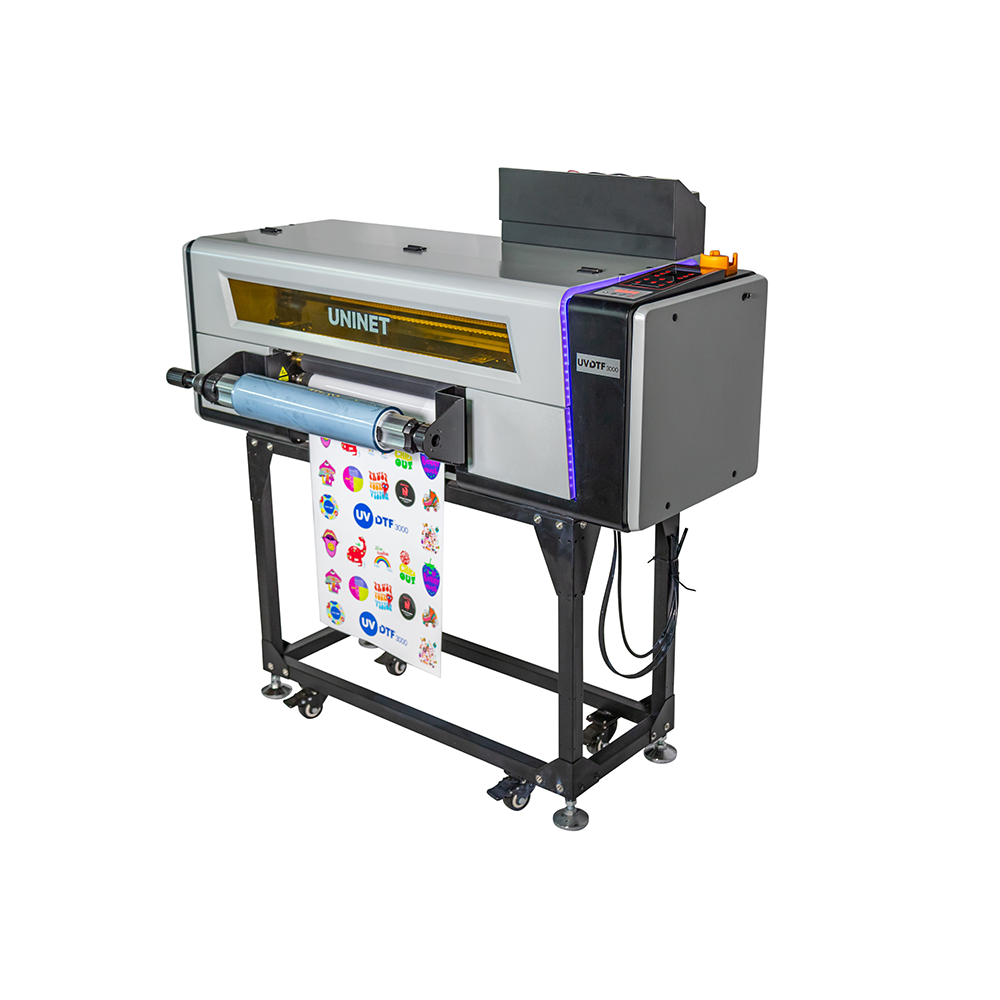

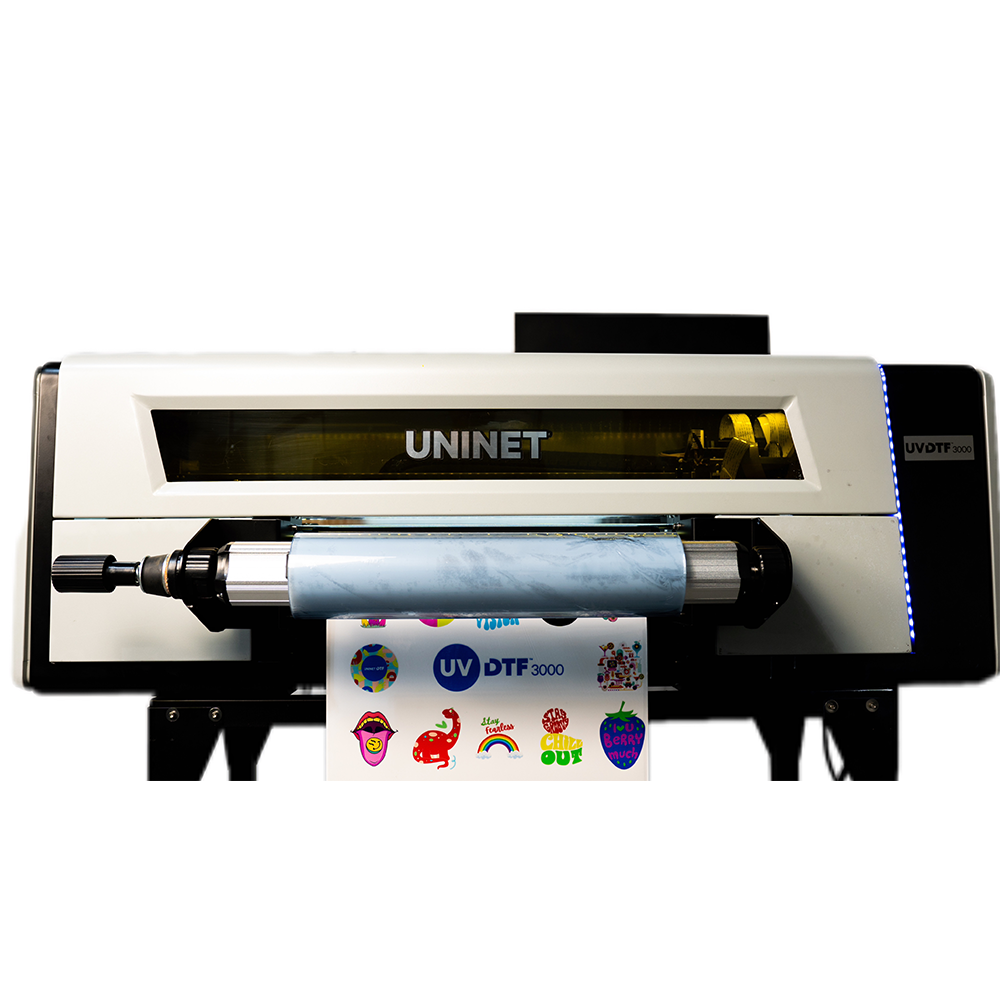

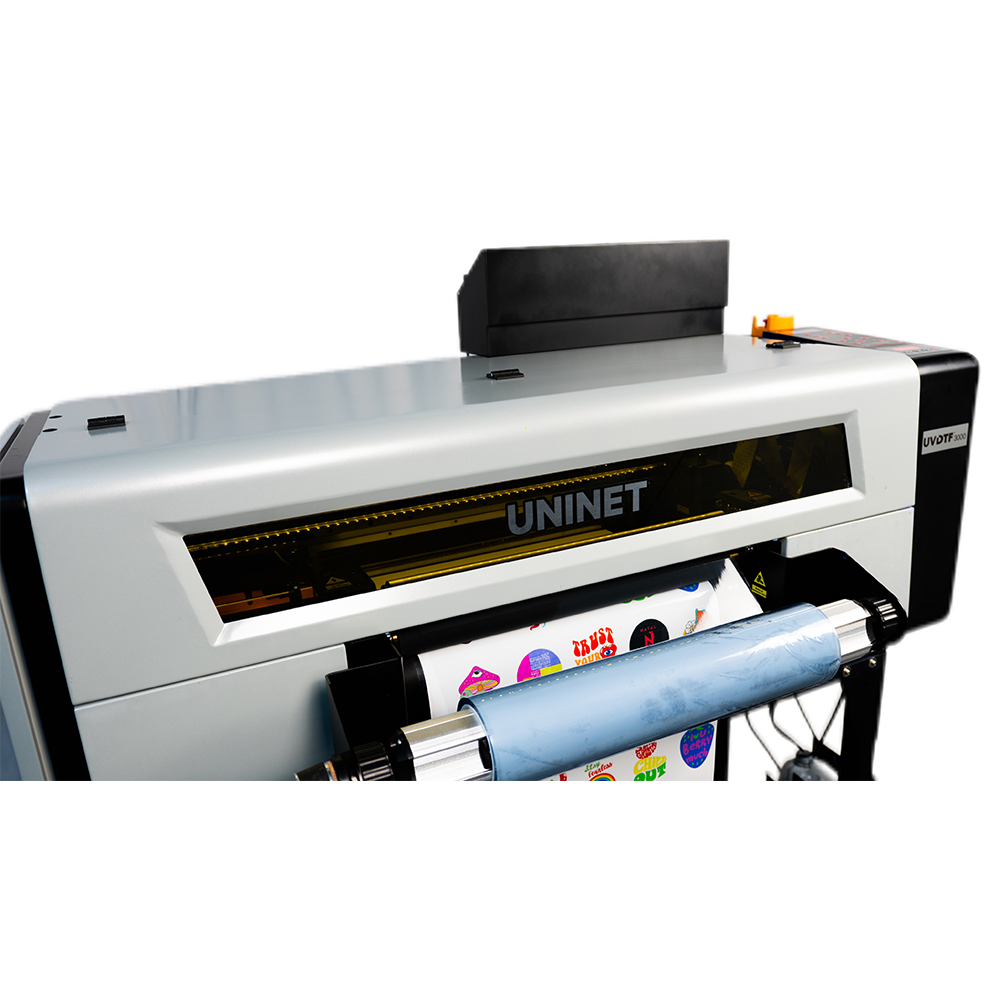

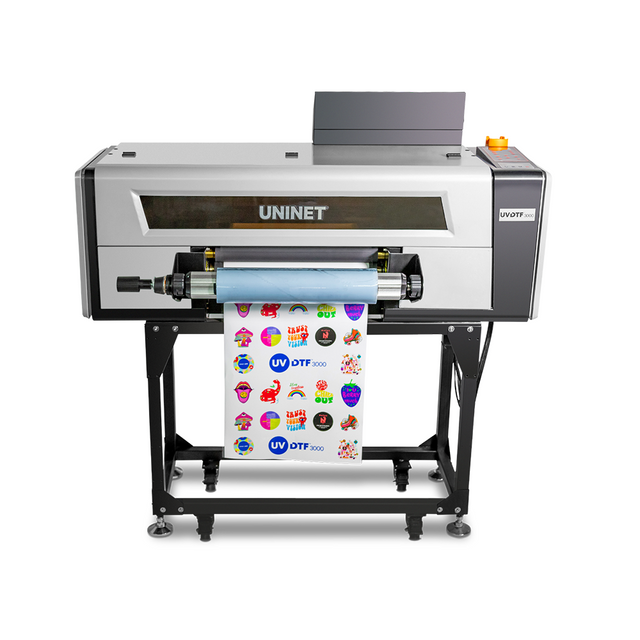

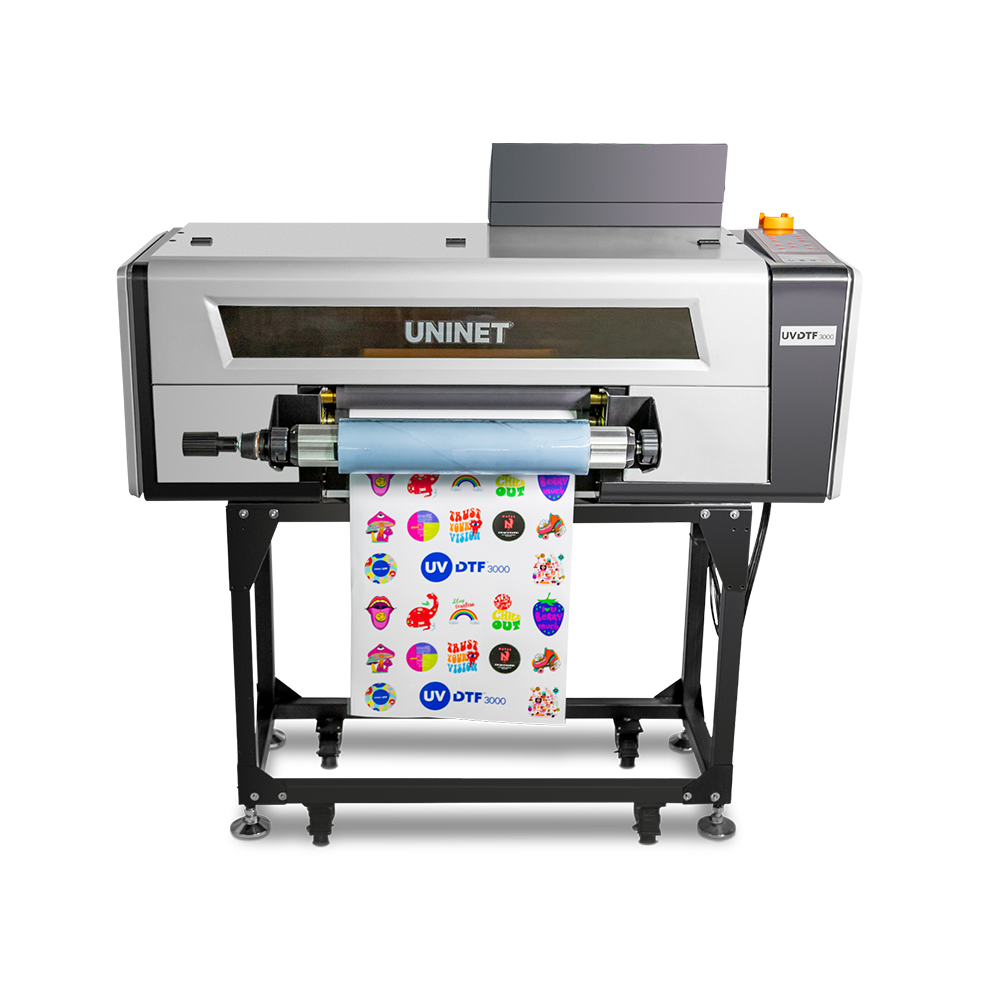

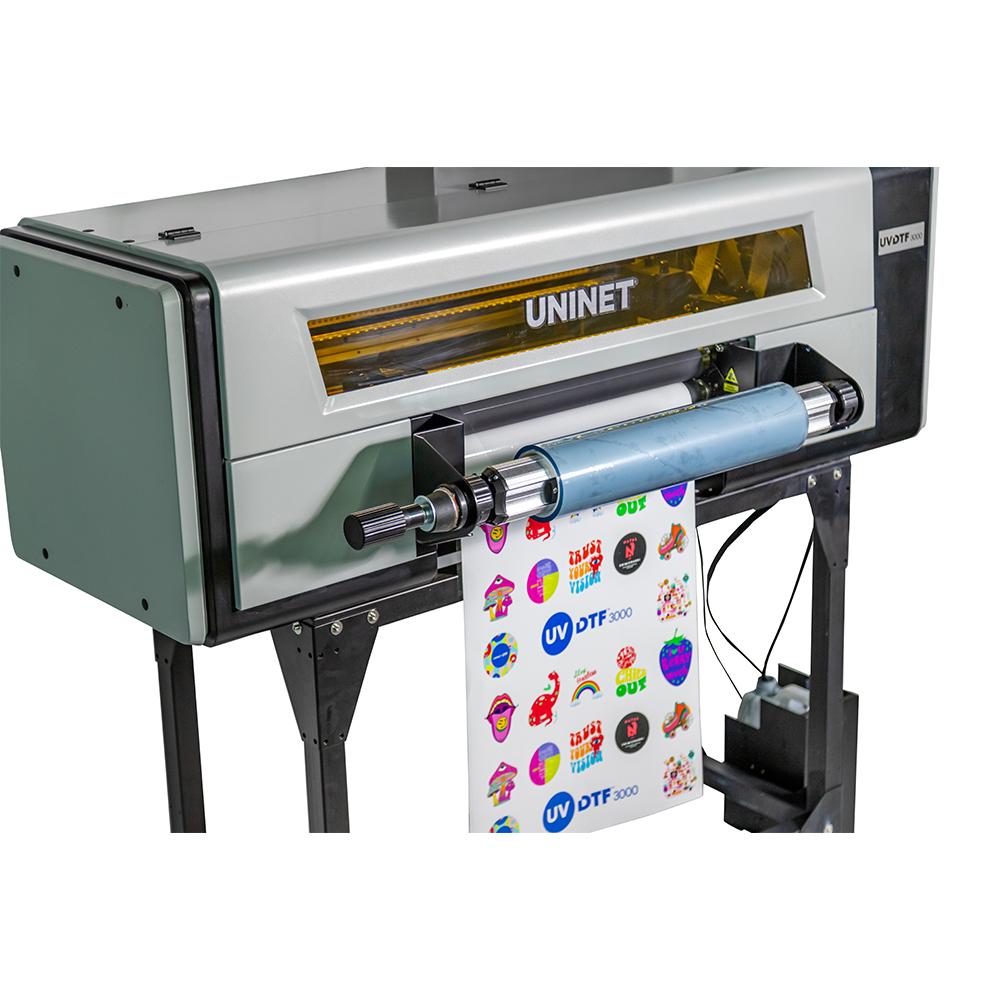

Uninet 3000 17" UV DTF Printer

The UNINET™ UVDTF 3000 features a 17” print width with a roll fed design, able to produce durable and intense color UV prints. Built utilizing robust and reliable professional printheads (THREE PRINTHEAD SYSTEM) and professionally enhanced, built from the ground up as a UV DTF printing solution. The finished product (UV decals or UV stickers) applies to a variety of hard substrates, including metal, wood (including skateboards), plastic (including plastic packaging, helmets and other plastic goods), paper products (including paper based packaging, gift boxes or other paper goods), glass products (including glassware, kitchen ware and other glass goods), ceramic products and more! The UVDTF 3000 comes with RIP Software, Supplies, Training and Onboarding.

What is UVDTF Printing?

UVDTF prints directly to UVDTF sheets, instead of printing directly to hard objects, as seen with traditional UV printing, which can be limited to 1 object at a time, or limited to materials that are not irregularly shaped. With UV DTF, gain the advantage by printing multiple images at a time (gang sheet printing).  Then simply peel and transfer your UV ‘stickers’ to your hard objects. Great for irregular materials, curved materials, and ultra-tall or very large materials, that otherwise may not be possible to print onto directly.

NOTE: While the UVDTF produced stickers are water-resistant and wear-resistant, they are not as resistant to the elements as direct to substrate UV printing.

This UNINET™ UVDTF 3000 is a turnkey, ALL-IN-ONE print and laminate UV printing solution! The printing and laminating are done automatically by the UVDTF 3000, and result in PEEL AND APPLY READY UVDTF DECALS!

 The UNINET™ UVDTF 3000 system features:

• WIMS (white ink management) - professional white ink circulation system
• 3 Printhead System which includes 3 Industrial, high definition printheads: 1 printhead for CMYK, LC, LM UVDTF inks, 1 printhead for WHITE UVDTF inks, 1 printhead for UVDTF Varnish)
• 18 Channels (CMYKLCLM + WWWWWW + VVVVVV), where V = varnish, W = White, LC = Light Cyan, LM = Light Magenta
• Printing Speed up to 50 sq feet (5 sq meters) per hour (8 pass / 1440 DPI)
• Max Printing Size 420mm x 200 meters (16.5 inches wide x 656 feet)
• Large 350ml ink tanks per color and varnish
• Includes RIP / software
• Prints are water resistant, heat resistant, wear and scratch resistant
• Ultra-wide gamut color system - 6 color system + white, as compared to other systems that are only 4 color systems. They UVDTF 3000 offers a wider color gamut.
• Printer Dimensions:
  • Uncrated - 53" x 35" x 53 / 135cm x 90cm x 135cm - 353lbs / 160kg
  • Crated – 67” x 32” x 23” / 170cm x 81cm x 84cm - 445lbs / 202kg

Benefits of Direct to Film Transfers:

	Any Color, Any Material: DTF transfers seamlessly adhere to multiple fabric types, regardless of color. Decorate cotton, nylon, polyester, leather, denim, and more. Unlock a world of vibrant possibilities for your designs!
	Easy to Use: Heat and pressure are all you need to transfer your designs. No need for pretreatment spray or tricky adhesive sheets. The transfer process is so simple that you can even sell your transfers for customers to apply themselves.
	Durable: Engineered to withstand the test of time, DTF transfers boast unparalleled durability, ensuring that your designs remain vibrant and intact through countless washes and wears.
	Soft and Stretchable: DTF transfers offer a silky-smooth touch and unparalleled stretchability, ensuring maximum comfort and freedom of movement with every wear.
	Long Shelf Life: With proper storage, DTF transfers can last for 1 year or longer. Print your more popular designs ahead of time, and press them on your schedule.

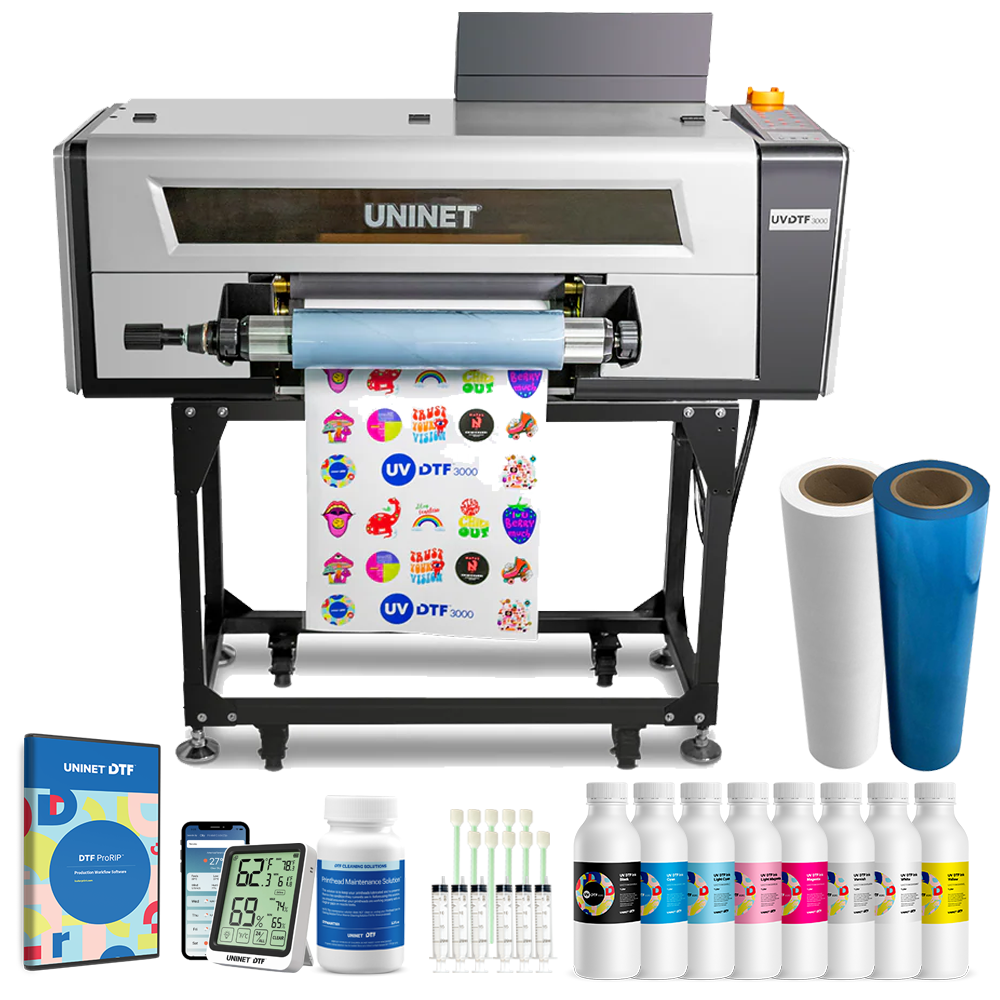

What's Included:

• 1 x Built-in Laminator (for in-line print and lamination automation)
• 1 x Rolling Stand
• 3 x Printheads (1 for color UVDTF inks; 1 for white UVDTF inks; 1 for VARNISH)
• 1 x RIP Software
• 2 hour onboarding training and support
• World Class Service and Support direct from UNINET™
• 8 Liters of UVDTF inks and varnish (1 L each C, M, Y, K, LC, LM,W & V)
• 2 x 328 Feet Rolls (1 each A and B rolls)
• DTF Starter Bundle (Hygrometer, Maintenance Solutions and Accessories)


Not Included, but Also Needed:

Windows 10 or higher PC with an available network port. If a network port is not available, a separate USB gigabit ethernet adapter will need to be purchased

5 small funnels (for ink filling)

Humidifier (to keep the humidity above 50% in the print room)

For best results, UVDTF application technique may require temperature, pressure adjustments for optimal application results. Some substrates may require adhesion promoter chemical to clean the surface and ensure good adhesion.

Specifications:

• Print Speed: Up to 40 sq ft
• Print Resolution: 1080DPI / 1440DPI
• Ink Type: UV Ink / UVDTF™ Ink
• Ink Colors: Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, White, Varnish
• Ink Capacity: 0.5 liter each tank
• Max Media Width: 17 inches
• Printer Voltage: 110v - 10Amps
• Printer Dimensions: 53.5” L x 20” W x 23” H (without stand)
• Weight: 313 lbs.


*This product is FINAL SALE*

WARNING: Work in a WELL VENTILATED AREA and use protective equipment when working with DTF products and processes. It is highly recommended the use of a Fume Extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. It is not recommended to use DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize the risk of ink clogs and film buckling. Add a Fume Extractor to this package for sufficient fume extraction.

DTF printers require daily use/maintenance! You must perform a head cleaning, nozzle check and a test print every day to ensure the printer is running smoothly and to prevent printhead and capping station clogs. Printheads and capping stations are considered consumables and are not covered under warranty if they clog. Clogs can occur even after one print, so maintenance must start the moment you install ink.

Explanation of Uninet Maintenence Solutions

The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support. No matter where you are in your product's life cycle, we will be here to provide support to your product and make sure you are fully covered.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, Uninet, the manufacturer, offers a 1-Year (parts and labor) warranty on this product. For warranty claims, we may need to involve the official Uninet team depending on the reported issue.
