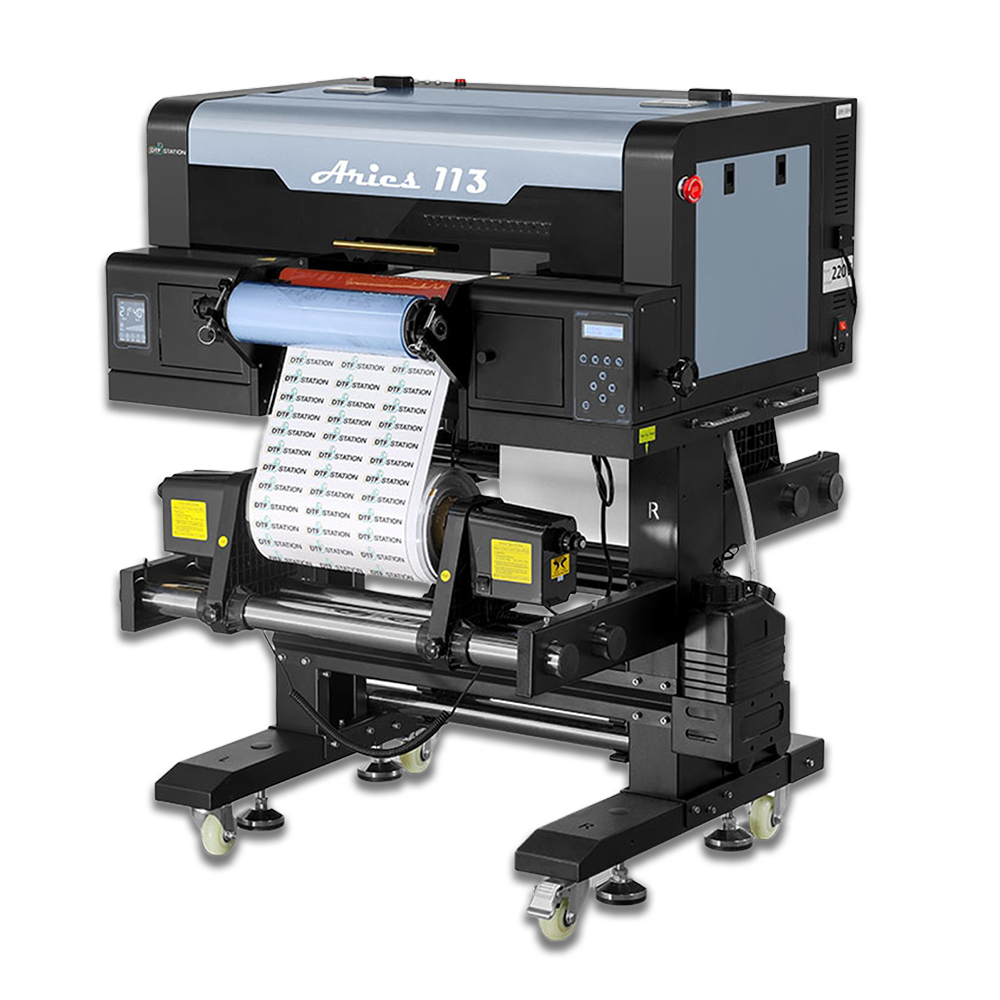

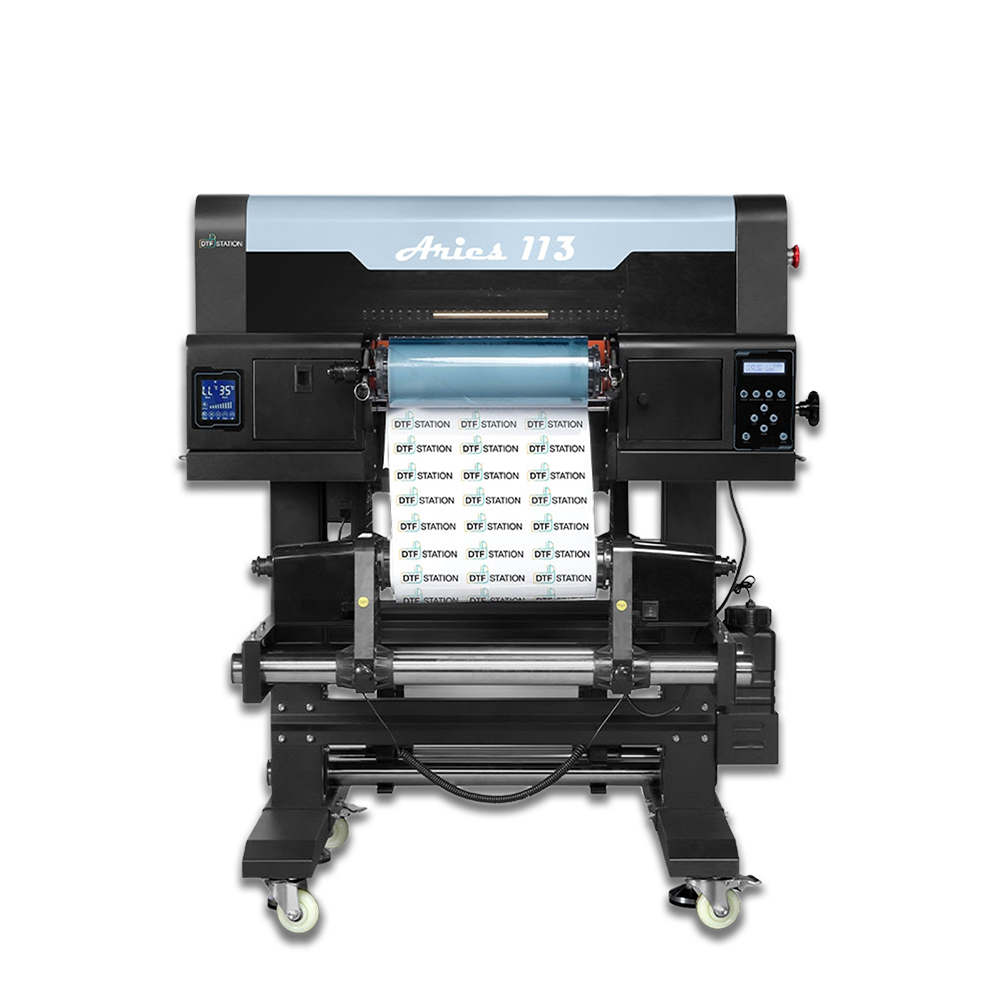

DTF Station Aries 113 UV 12" DTF Printer Bundle


Why Choose HeatPressNation?
With over 15 years of experience, HeatPressNation has established itself as the trusted industry leader in heat transfer solutions, earning the confidence of thousands of satisfied customers.
Flexible Financing Available
Flexible Financing Available
From Buy Now, Pay Later to our Monthly Payment Plans, we have a range of personal financing or business credit options available at checkout.
Thank you for your submission!
We will get back to you soon.
Unleash Revolutionary UV Printing Excellence: The Aries 113 is more than just a UV printer—it's an all-in-one solution with a built-in laminator; a game-changer in the realm of direct-to-film printing. This technological marvel redefines the benchmarks for performance and reliability. Set your print job in the morning, and by the evening, your finished film awaits, with minimal need for operator involvement.
Built for UV direct-to-film printing, the DTF Station's Aries 113 UV is equipped with dual XP600 printheads, and guided by cutting-edge Hosonsoft technology. This innovation enables you to transfer top-tier prints even onto irregular, non-flat surfaces without breaking the bank. The self-cleaning system minimizes downtime, while its White Ink Management System and assortment of sensors help ensure you can worry less and print more.
Requires On-Site Training (Included):
- One Time Driving Distance within 2 hours (of Buena Park, CA, 90621) OR
- One Time Accommodations such as hotel, rental car, flight ticket
- 4~8 Training Hours Onsite
- Lifetime Virtual Training
Features:
- Speed:
- 6 pass: 2.5-3.53 m²/hr
- 8 pass: 1.5-2.0 m²/hr
- White Ink Management System (WIMS): timed white ink stirring system to circulate and maintain white ink inside the printer

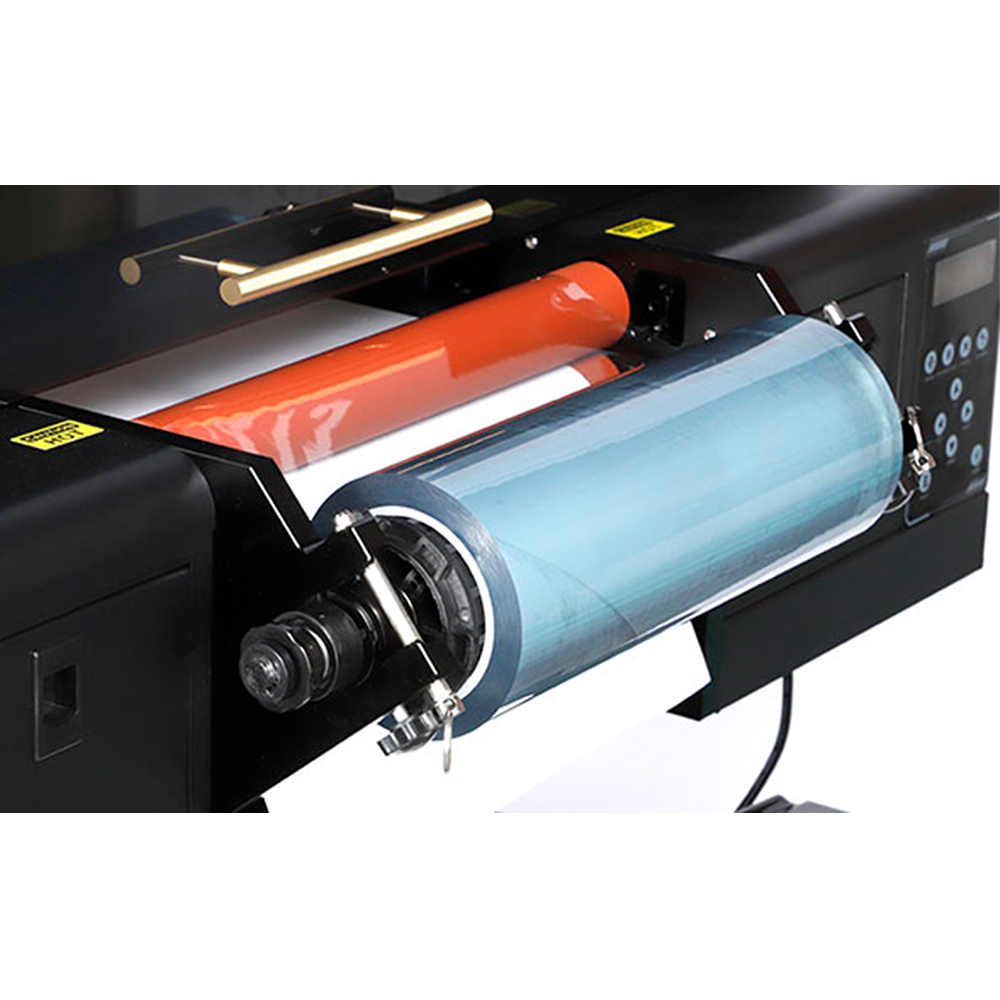

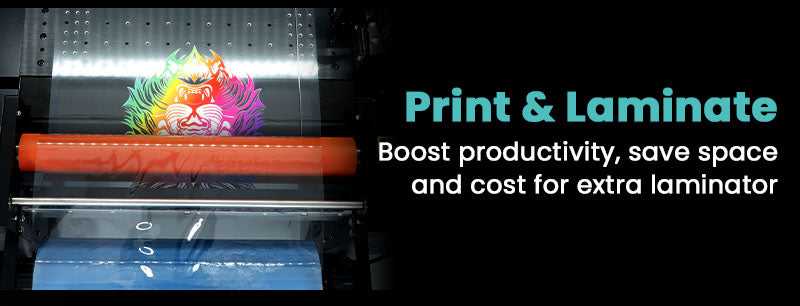

- Semi-Auto Laminator Pressure Control: Even pressure for bonding A and B films with a single lever
- Passive Auto-Cleaning: when the printer is left on, it will automatically maintain and clean the printhead every 4 hours
- Active Auto-Cleaning: during set intervals (even during printing), the printer can stop to clean the printhead

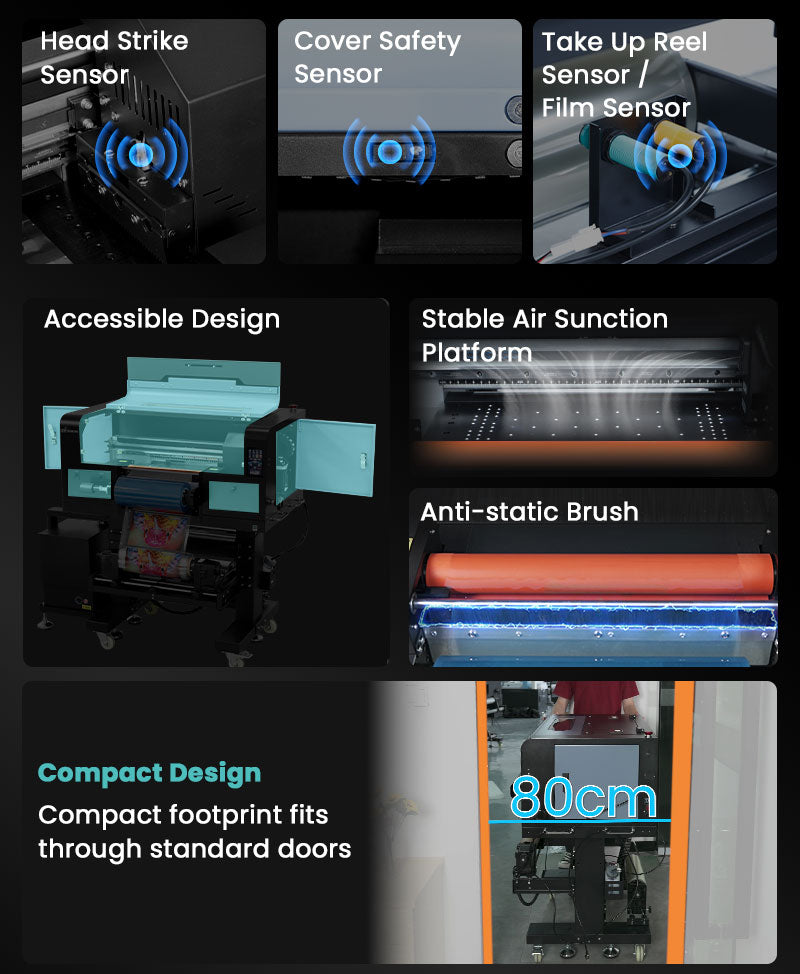

- Head Strike Sensor: helps prevent damage to the printhead
- Auto Ink Alert System: informs the user when ink is running low
- Media Take-Up System: Automatically winds all the prints in a roll
Benefits:
- Compact and Cost-Effective Workhorse Printer
- Hands-Free Operation: Set your print job in the morning, and by day's end, your completed film is ready, requiring minimal operator involvement.
- Automated Head Maintenance and Care
-
Streamlined and Space-Efficient Design: Compact, all-in-one printer with a built-in laminator effortlessly blends style and functionality, ensuring it harmonizes with any workspace
- Seamless Media Management: Eliminate the hassle of manual laminator pressure adjustments with our automated system

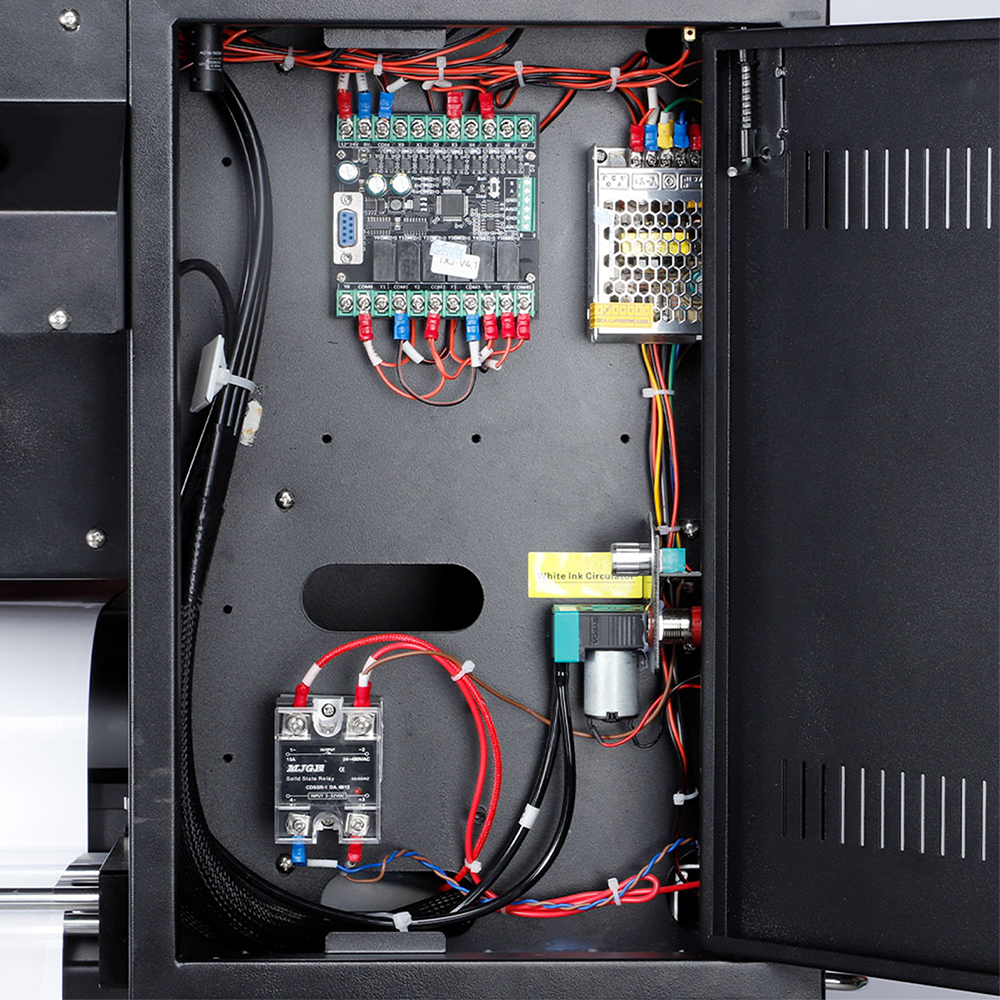

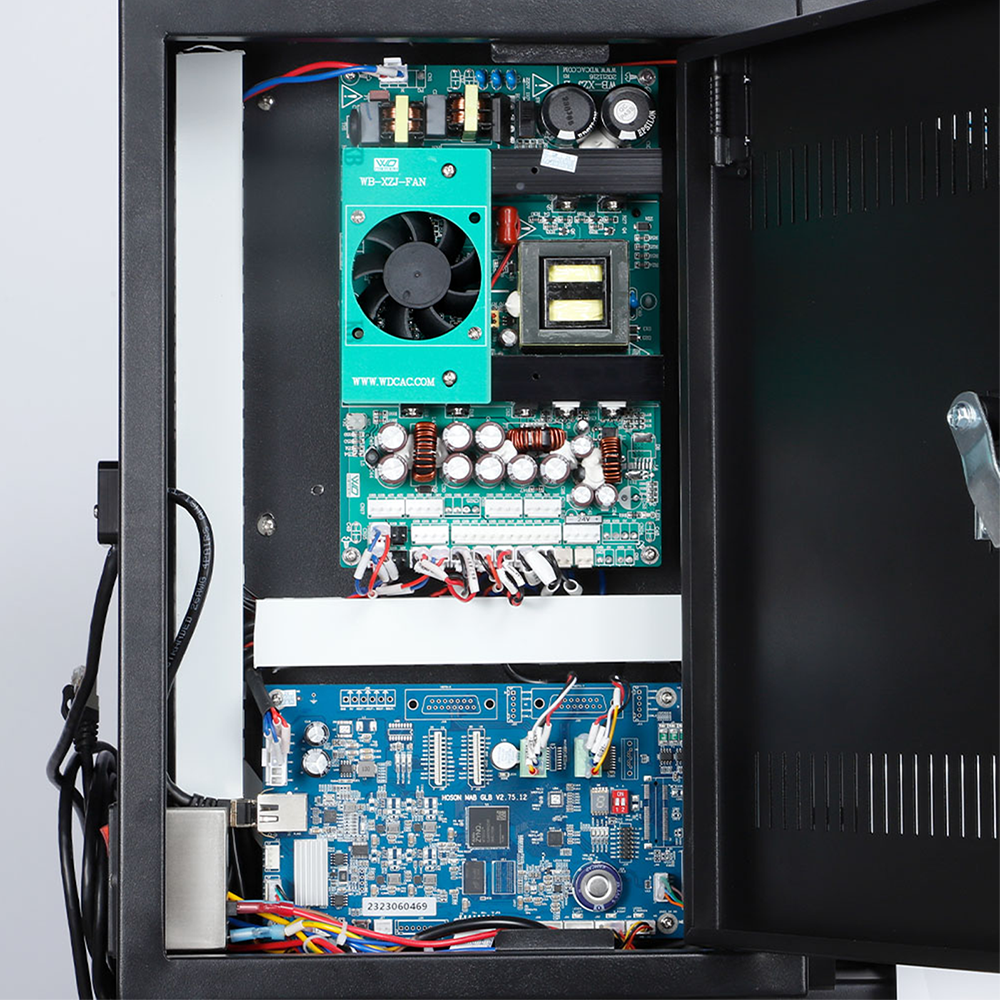

- Accessible Design: intuitive, labeled board design and connections for easy access and repair
Specifications:
- Print Head: Dual Epson XP600 (2)
- Software: neoStampa RIP Software
- Max Film Width: 12.60"
- Max Print Width: 11.8"
- Printing Speed:
- 6 pass: 2.5-3.53 m²/hr
- 8 pass: 1.5-2.0 m²/hr
- Daily Output: 500 pcs (4"x4" design size)
- Weight (lb):
- Product: 88.18 lb
- Packaging: 132.27 lb
- Dimensions (WxDxH):
- Product: 31.29" x 12.99" x 17.40"
- Packaging: 33.46" x 19.29" x 25.55"
- Power Requirements: 500W / 110V / 4.54A

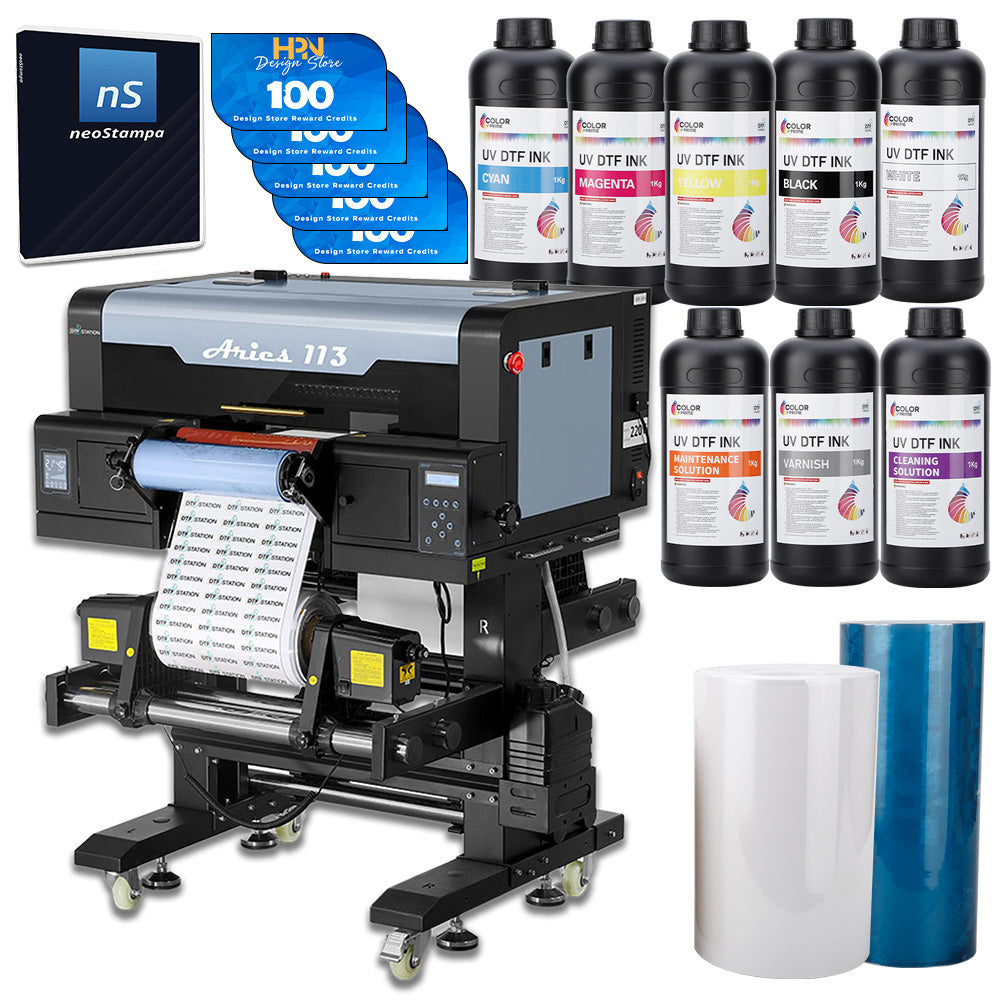

What's Included
- Aries 113 UV DTF Printer
- On-Site Training
- Color Prime UV DTF A Film (11.81" x 109yd) (x1)
- Color Prime UV DTF B Film (11.81" x 109yd) (x1)

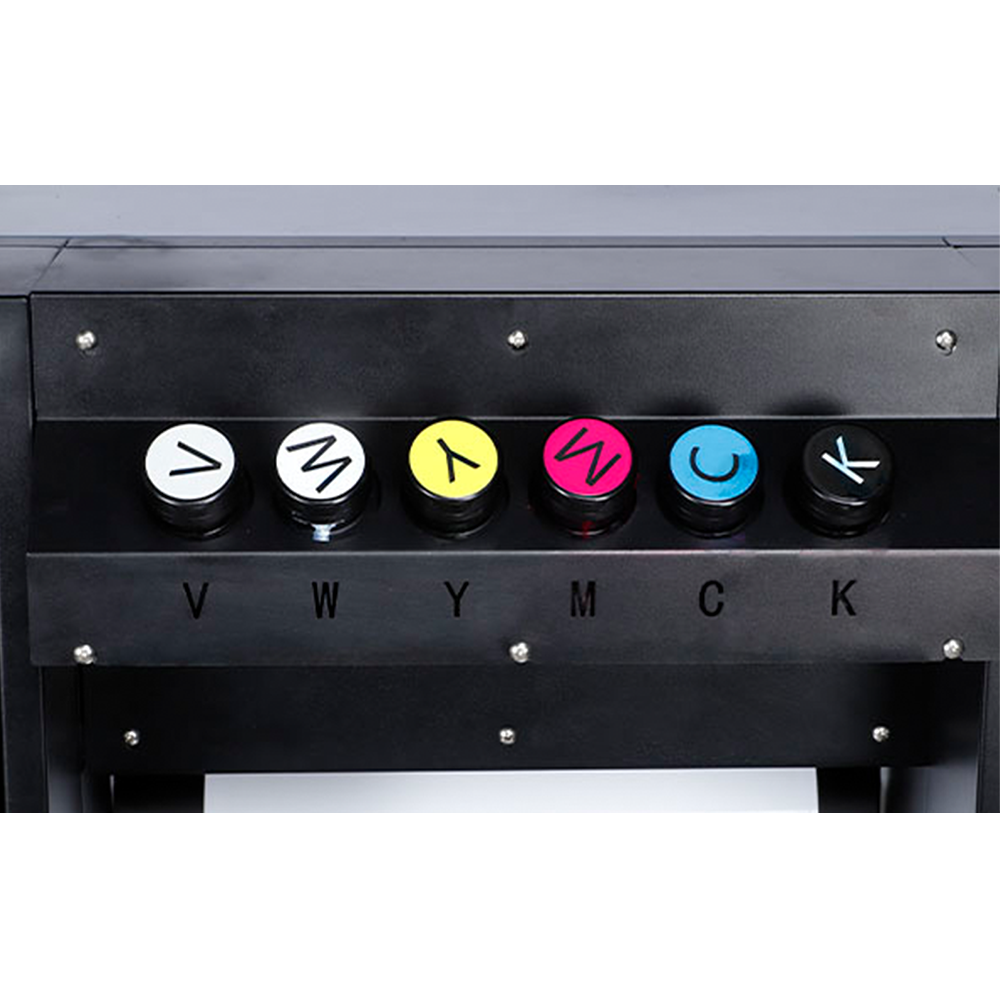

- Color Prime UV DTF Ink 1kg - CMYKW & Varnish (x1 each)
- Color Prime UV DTF Cleaning Solution 1kg
- Color Prime UV DTF Maintenance Solution 1kg
- 500 Credits to the HPN Design Store
- 1 year Limited Warranty on Non-Consumable Parts + 6 Month Warranty on up to 2 printheads*
- *Must complete Onsite Training
- *Use of non-DTF Station ink, film, powder, or other supplies will void warranty coverage. Details depend on training option selected. Terms & Conditions apply. Visit link for full details.
- neoStampa RIP Software
- AC Power Cable
- Ethernet Cable
- USB Flash Drive (Installation & Informational Materials)
- Paper Core (Cylindrical tubes) x 2
- Metal Clips x2
- Plastic Squeegee
-
Spare Parts/Consumables
- Dampers x8
- Syringes x6
- Print head cable x2
- 1 Meter Ink tube x1
- Ink tube connectors x10
- Disposable vinyl glove x3
- Extra Screws of different sizes
- Ink Tube Splitter x2
- Informational Materials
- Quick Start Guide
- Maintenance Chart
- User Manual
- Initial Parameter Settings
Applications:
- Signage and Banners: Various sign materials, such as PVC, acrylic, foam board, and corrugated plastic (suitable for short-term outdoor and indoor signage)
- Promotional Items: personalize and brand promotional products like pens, keychains, USB drives, and phone cases.
- Packaging: materials like cartons, boxes, and labels, offering customization and branding options for businesses.
- Labels and Stickers: durable labels and stickers for product labeling, barcoding, or branding purposes
- Glass and Ceramics: decorative glassware, drinkware, ceramic tiles, and more.
- Wood and Plywood: wooden surfaces, creating custom furniture, signage, and art on wood.
- Metal: aluminum, brass, and stainless steel, and personalized metal products.
- Leather and Leather Products: customized leather goods, including wallets, bags, and footwear.
- 3D Objects: prototypes and custom packaging for unique-shaped items.
- Flooring and Tiles: custom designs tiles and other flooring materials.
Compatible With:
- Color Prime UV DTF Ink/Varnish, Film, and Supplies
WARNING: Work in a WELL VENTILATED AREA and use protective equipment when working with DTF products and processes. It is highly recommended the use of a Fume Extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. It is not recommended to use DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize the risk of ink clogs and film buckling. Add a Fume Extractor to this package for sufficient fume extraction.
DTF printers require daily use/maintenance! You must perform a head cleaning, nozzle check and a test print every day to ensure the printer is running smoothly and to prevent printhead and capping station clogs. Printheads and capping stations are considered consumables and are not covered under warranty if they clog. Clogs can occur even after one print, so maintenance must start the moment you install ink.
