Description
Warranty
*Out of stock*

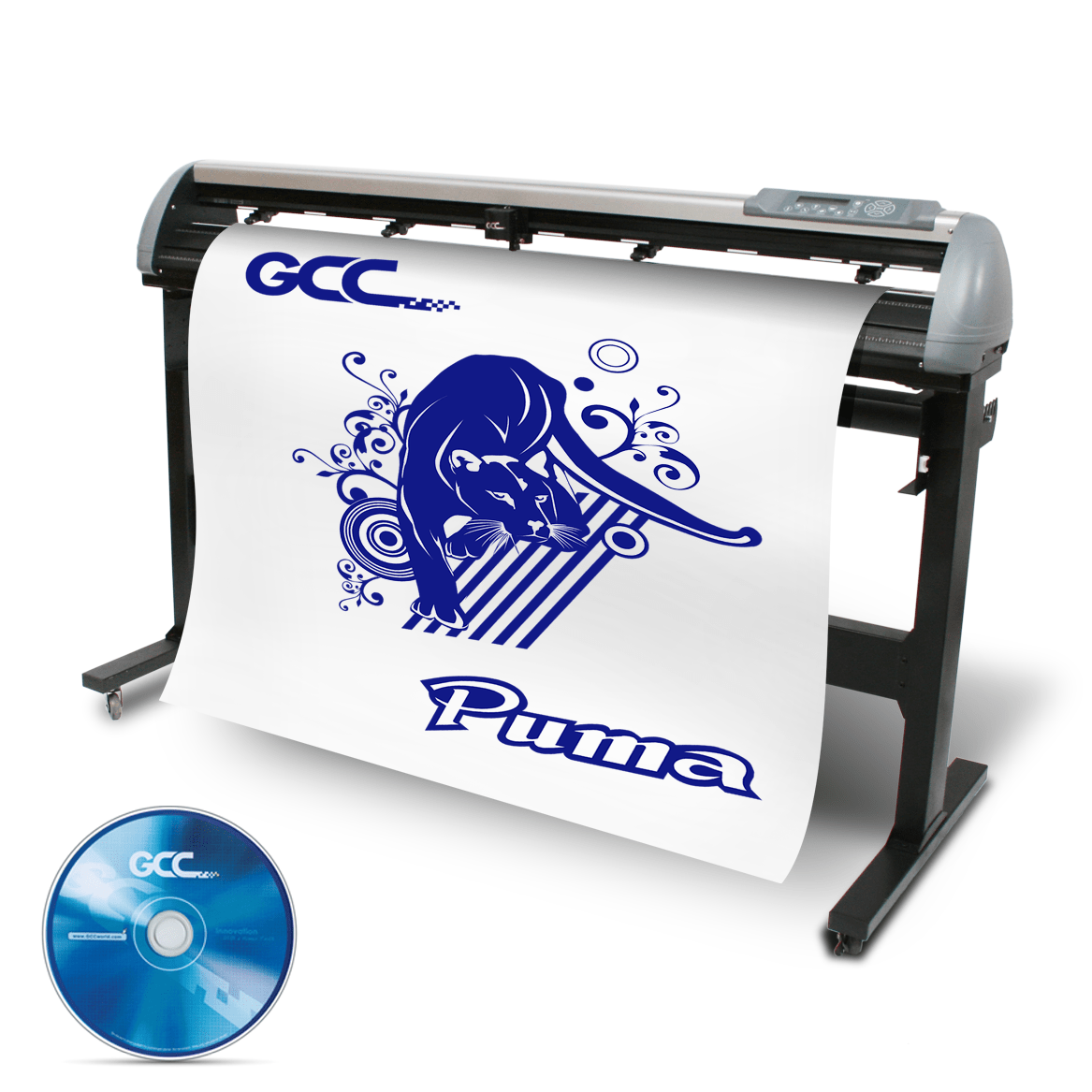

Powered by a digitally controlled servo system, the Puma IV produces eye-catching graphics with up to 23.62 ips (1020mm/sec) cutting speed, 500g of cutting force, and five meters (16.4 feet) of tracking ability.
Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894
Features:
 |
Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material. |
|
|
Windows Drivers: Puma IV includes a Windows driver that allows sign makers to edit signs from CorelDraw and output directly to Puma IV. It is very simple and easy to make signs with Puma IV. |
 |
500 Grams of Cutting Force: Selectable cutting forces, ranging from 0 to 500g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films. |
 |
Tracking Ability: The exclusive grid drum is precisely engineers to provide superb tracking ability. |
 |
Accurate and Smooth Operation: Puma IV incorporates a precision electro-mechanical design, which ensures an extremely accurate cutting capability. The state-of-the-art, closed-loop, high-speed digital servo drive system provides smooth, quiet, and fast operation. |
 |
Friendly Operation: The user-friendly control panel comes with a large 20-digit x 2-line LCD and 14 control buttons, providing easy operation and simple navigation. The LCD allows users to monitor all operational settings including offset value, quality mode, cutting speed, and force. Buttons on the Puma IV include frequently used functions such as speed, force, offset, and cut test. Puma IV provides up to 4 jobs of setting storage, including cutting speed, blade offset, force, as well as movement speed during tool-up and cutting. |
 |
Tri-Port Connectivity: Puma IV supports tri-port connectivity with USB, serial, and ethernet ports. USB port provides faster data transmission between the computer and Puma IV. Tri-port connectivity provides sign makers with great flexibility for data transmission. |
Specifications:
- Operational Method: Roller-type
- Maximum Cutting Width: 1300 mm (51.18 in.)
- Maximum Media Loading Width: 1470 mm (57.87 in.)
- Acceptable Material Thickness: 0.8 mm
- Number of Pinch Rollers: 4
- Drive: DC Servo Control
- Cutting Force: 500 g
- Maximum Cutting Speed (Diagonal): Up to 600 mm / sec. (24 ips)
- Offset: 0-1.0mm (with an increase 0.025mm)
- Mechanical Resolution: 0.009mm (0.00035 in.)
- Software Resolution: 0.025 mm (0.00098 in.)
- Memory Size: 4 MB
- Interfaces: USB 2.0 & Ethernet & Serial
- Type of Command: HP-GL, HP-GL/2
- Configurable Origin: Yes
- Curve & Arc Smoothing: Yes
- Test Cut Capability: Yes
- Repeat Function: Yes
- Copy Function: Yes
- Tangential Mode: Yes
- Overcut Capability: Yes
- Pause and Move: Yes
- Control Panel: LCM (20 digits x 2 lines), 14 Keys, 1 Power LED
- Dimensions: 41.93" x 64.25" x 24.41"
- Net Weight: 116 lb
- Power Supply: AC 100-240V, 50~60 Hz (auto switching)
- Operation Environment: 15°-30°C (60°-86°F), 25%-75% humidity
- Stand: Included
- Software: GCC GreatCut-S
- Has Contour Cutting: No
SYSTEM REQUIREMENTS
- Pentium processor-based PC or compatible computer (Windows)
- Windows XP SP3/Vista/7/8/10/11 (Windows)
- Intel or Apple Silicon based Macintosh (Mac)
- Macintosh OSX 10.11 - 12 (Mac)
- 512 MB of RAM or more
- At least 50 MB of available hard disk space
- USB Port 1.1 or 2.x
The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, this GCC vinyl cutter comes with a 2 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
