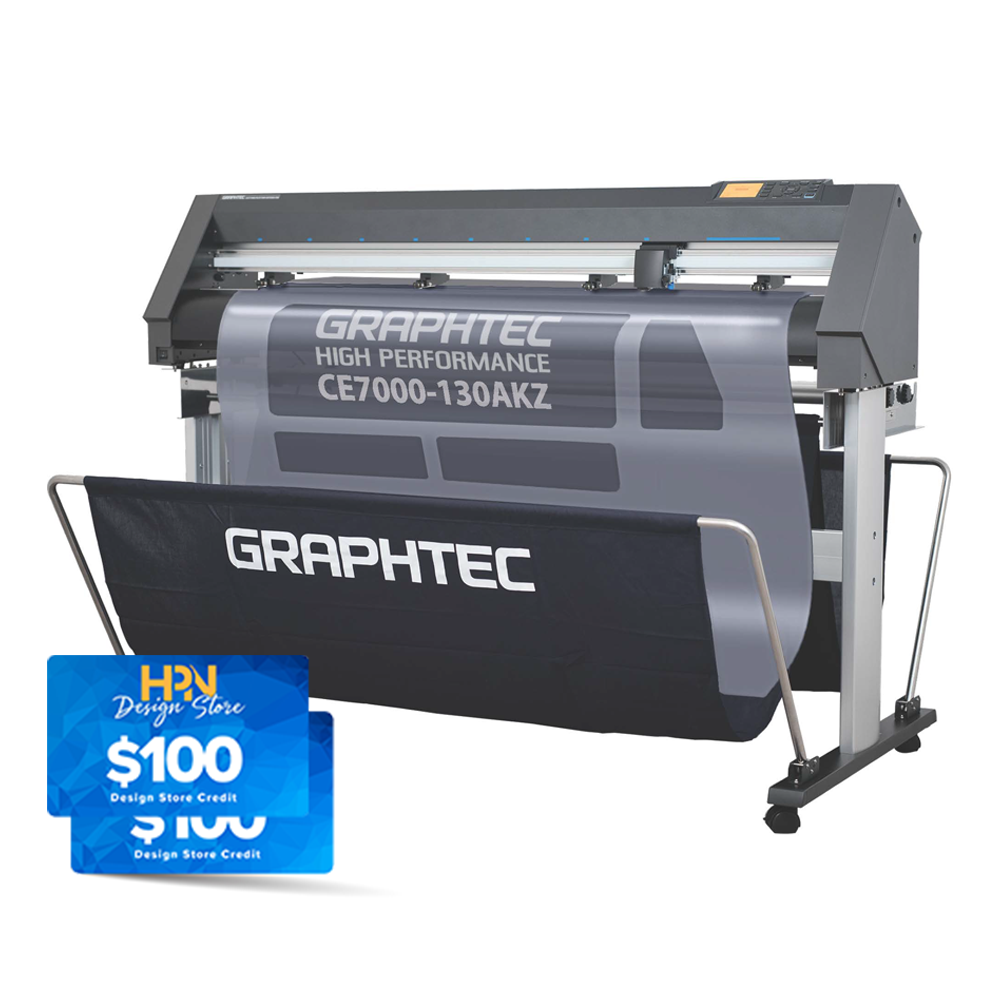

Graphtec CE7000-130 AKZ 50" Desktop Vinyl Cutter and Plotter for Automotive Specialties

SKU: CE7000-130AKZ

Please choose: Without Liftgate Service
Price:
Translation missing: en.product.general.price$5,295.00 USD

Found a Lower Price?

Sold out
Description
Warranty

Graphtec Logo

The Graphtec CE7000-130AKZ cutter has been specifically designed for the aftermarket automotive industry. Modified for the streamlined cutting of Window Tint Film, Paint Protection Film, Paint Masking, Pinstriping Graphics and similar applications, this versatile cutter will boost your productivity to the next level. A heavy duty precision servo motor delivers accurate cutting speeds of up to 39 inches per second with an unsurpassed 15 feet of tracking.

      Features:

      • Impressive 450 Grams of Downforce!
      • Blazing Fast 39 Inches-per-second Cutting Speed

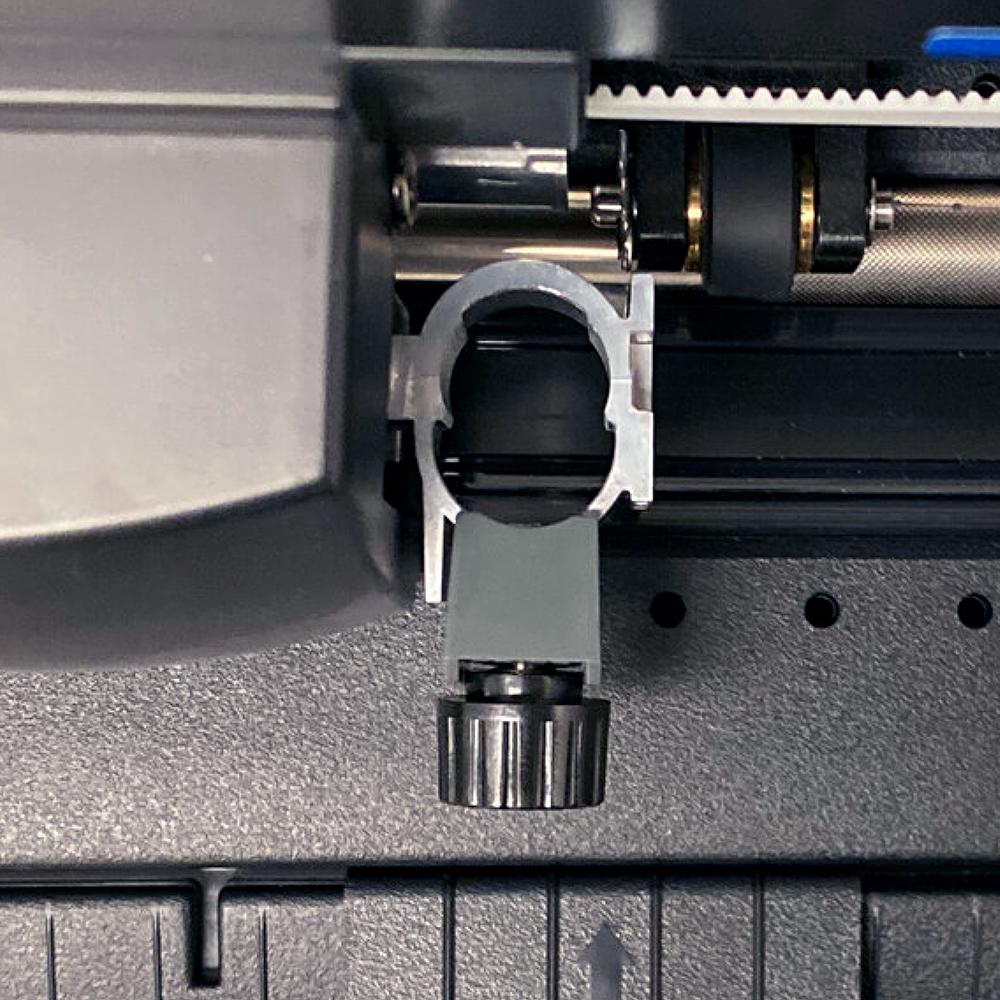

      • Precise Loupe for Easy Blade Adjustment
      • Open Software Platform
      • Ethernet Connectivity
      • USB Thumb Drive Connectivity - No Computer Needed!

      Includes:

      • Standard Media Roll Rack
      • Specialty Tint Blade
      • Heavy Duty Stand
      • Anti-Static Kit
      • Dual Media Catch Basket - Designed for dust free continuous tracking and/or repetitive job operations.

        Specifications:

        • Maximum cutting area (W x L): 50" x 164'
        • Number of push rollers: 4
        • Maximum cutting speed: 39"/s, in all directions
        • Maximum acceleration: 45.60' (21.2 m/s²), at 45º direction
        • Maximum cutting force: 4.41 N (450 gf) in 38 steps
        • Media type: Self-adhesive Vinyl Film, Amberlith™, Rubylith™,
          Sandblast Resist Rubber, Window Tint Film,
          Paint Protection Film, Automotive Paint Protection Film

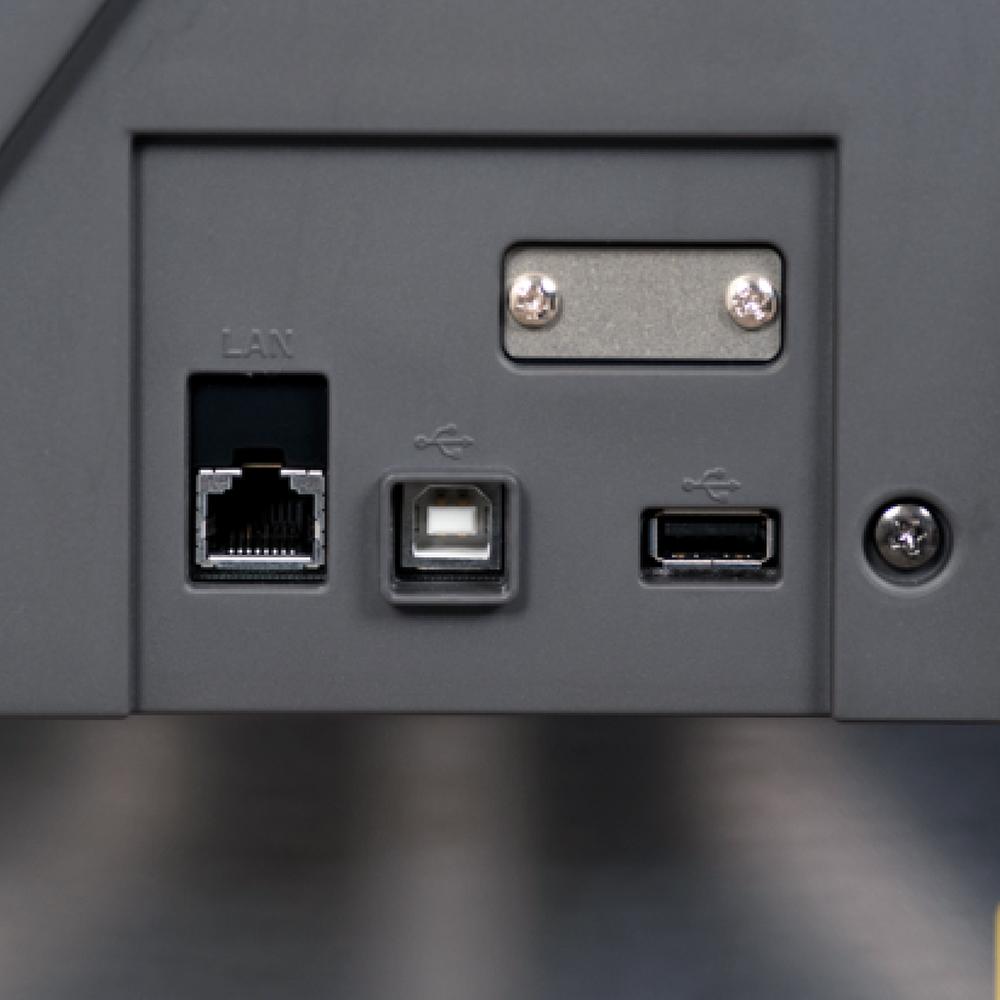

        • Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
        • Buffer memory: 2 MB
        • Registration mark sensing system: Marks are scanned by an optical sensor (ARMS 8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detect
        • Alignment accuracy: Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)
        • Power source: 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
        • Power consumption: 120 VA
        • External dimensions (W x D x H): Approx. 67" x 32" x 48"
        • Weight (Approx.): 112.4 lbs (13kg)
        • Compatible OS: Windows 10 / 8.1 / 7, Mac OSX 10.6 - 10.11 - 10.12 - 10.15
        • Included software: Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac), Windows driver
        • Bonus: (2) $100 HPN Design Store Credit Vouchers
        • Has Contour Cutting: Yes

          MyExpert Support Logo

          The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

          Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

          Our MyExpert Support will always be there for you so you can purchase with confidence!

          In addition, Graphtec CE7000 Vinyl Cutters come with a 2 Year Manufacturer Warranty from the original date of purchase. Warranty service does not include the cost of freight of the item to or from repair facilities.

          For warranty claims, we may need to involve the official Graphtec team depending on the reported issue.

           Graphtec's full warranty details are available for viewing: HERE


          The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

          Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

          Our MyExpert Support will always be there for you so you can purchase with confidence!
