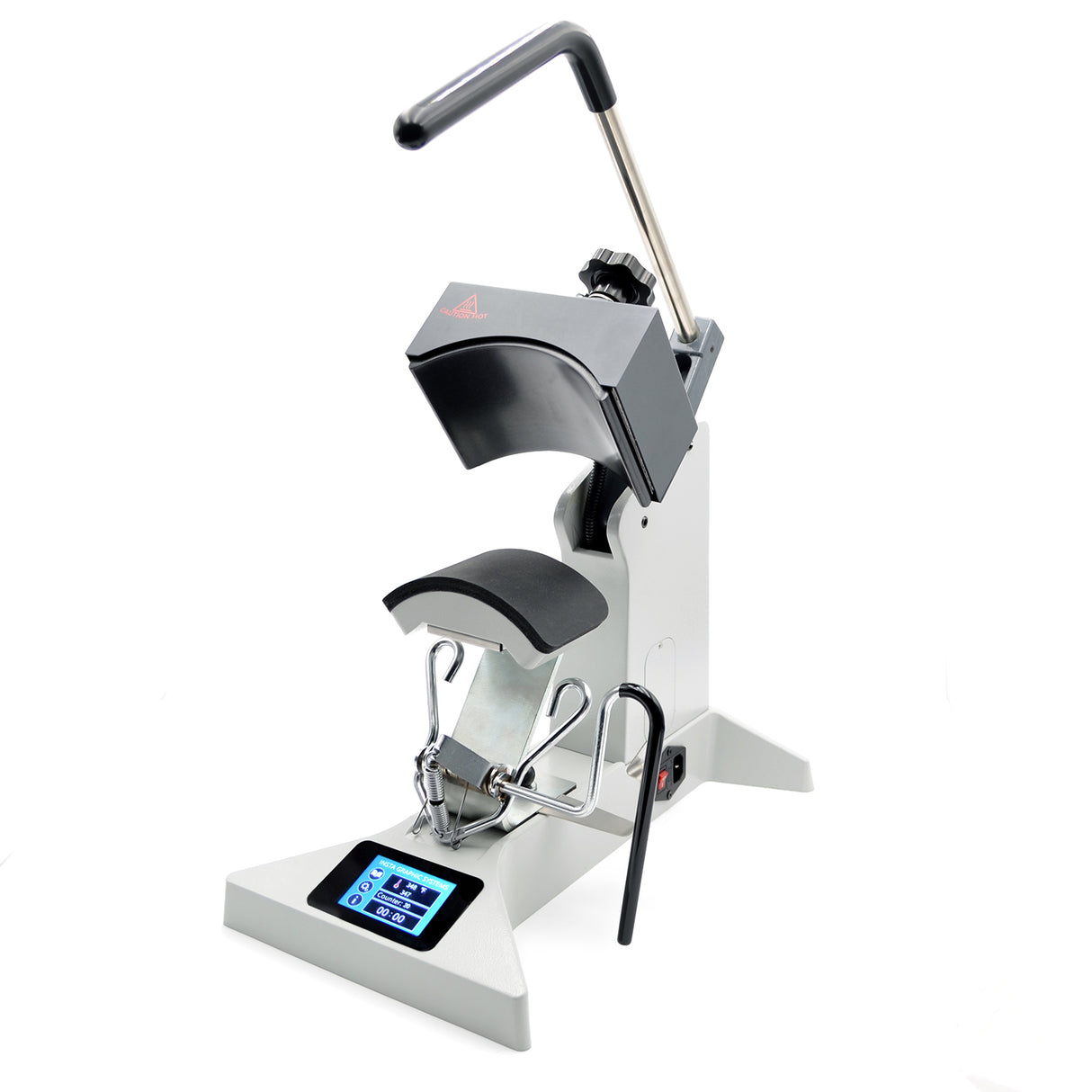

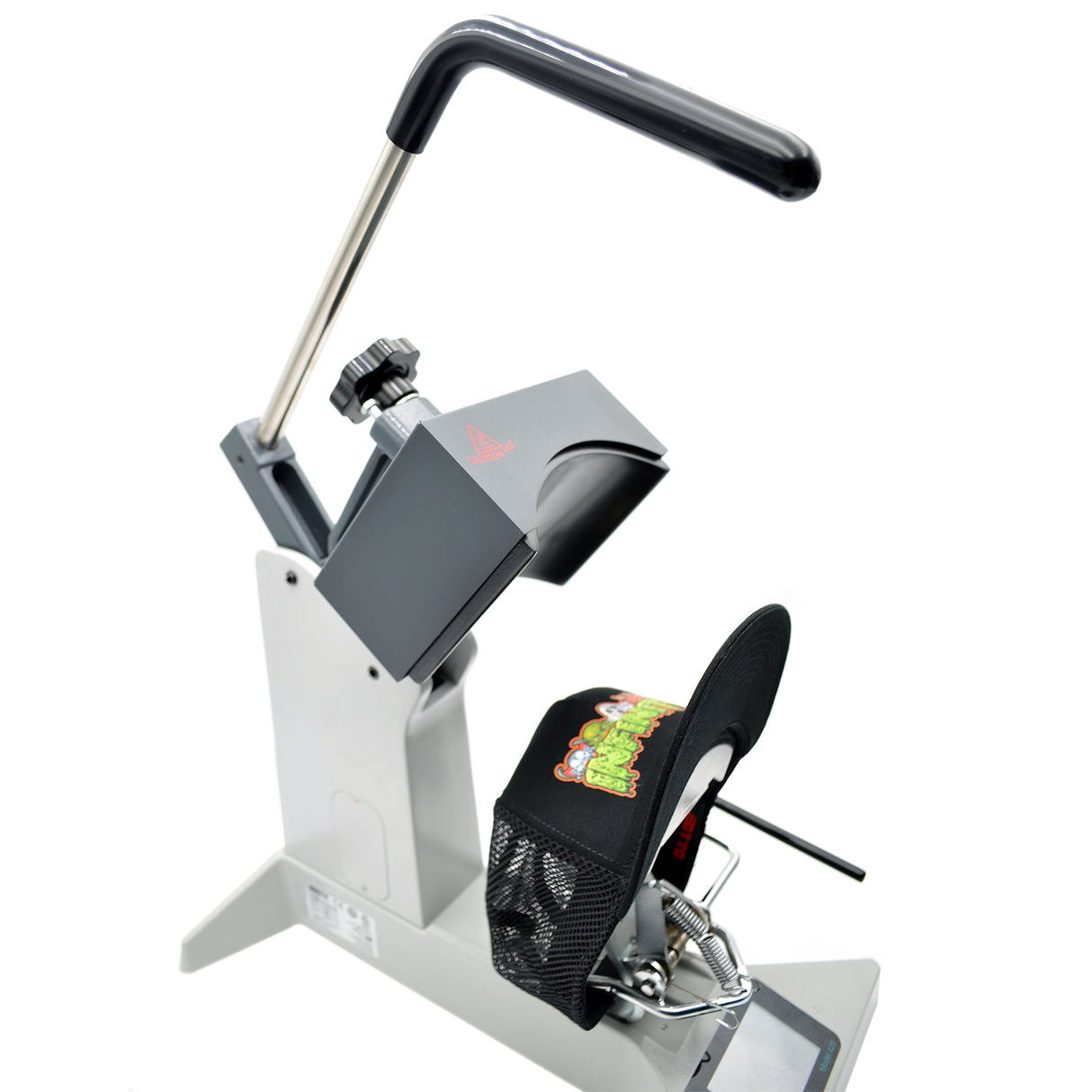

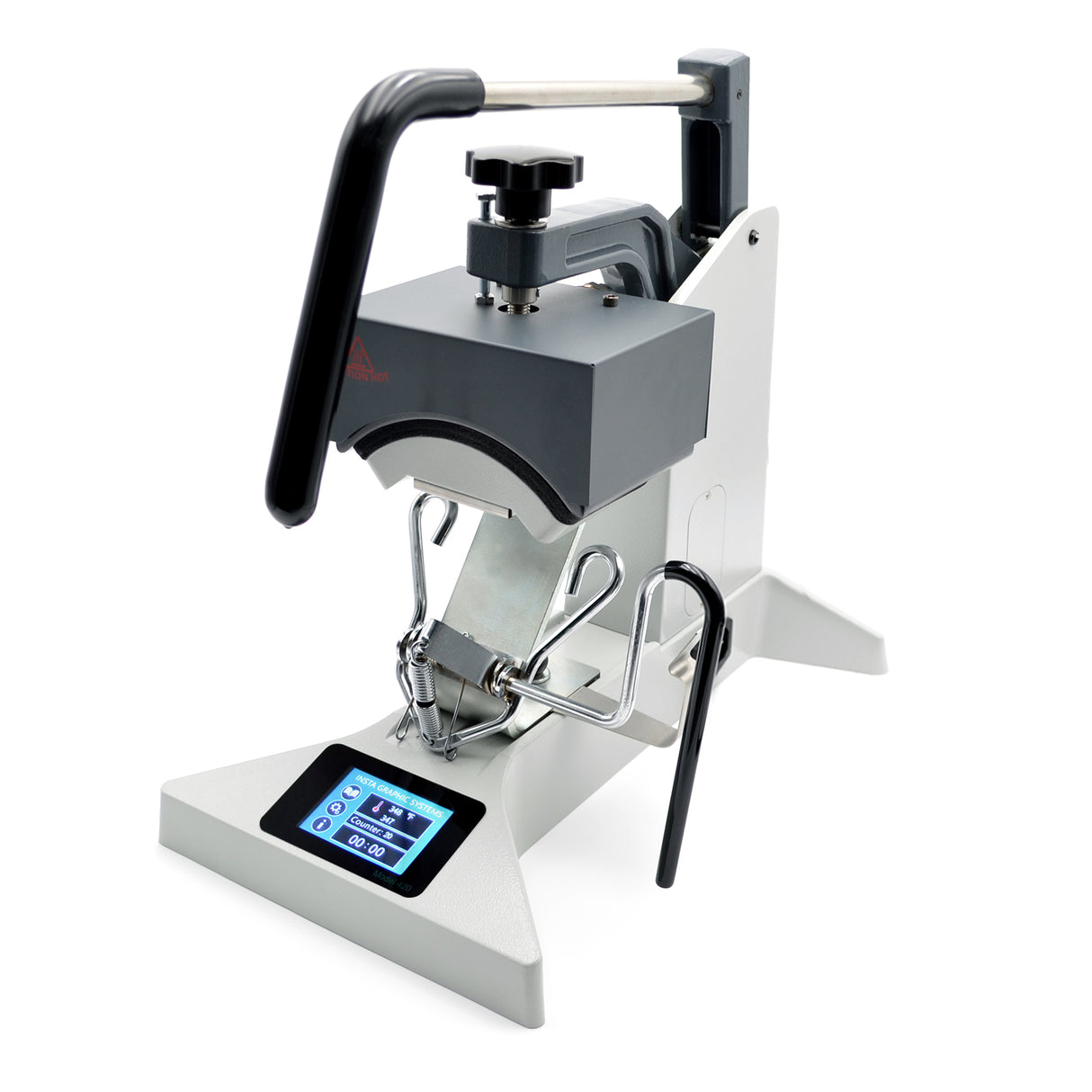

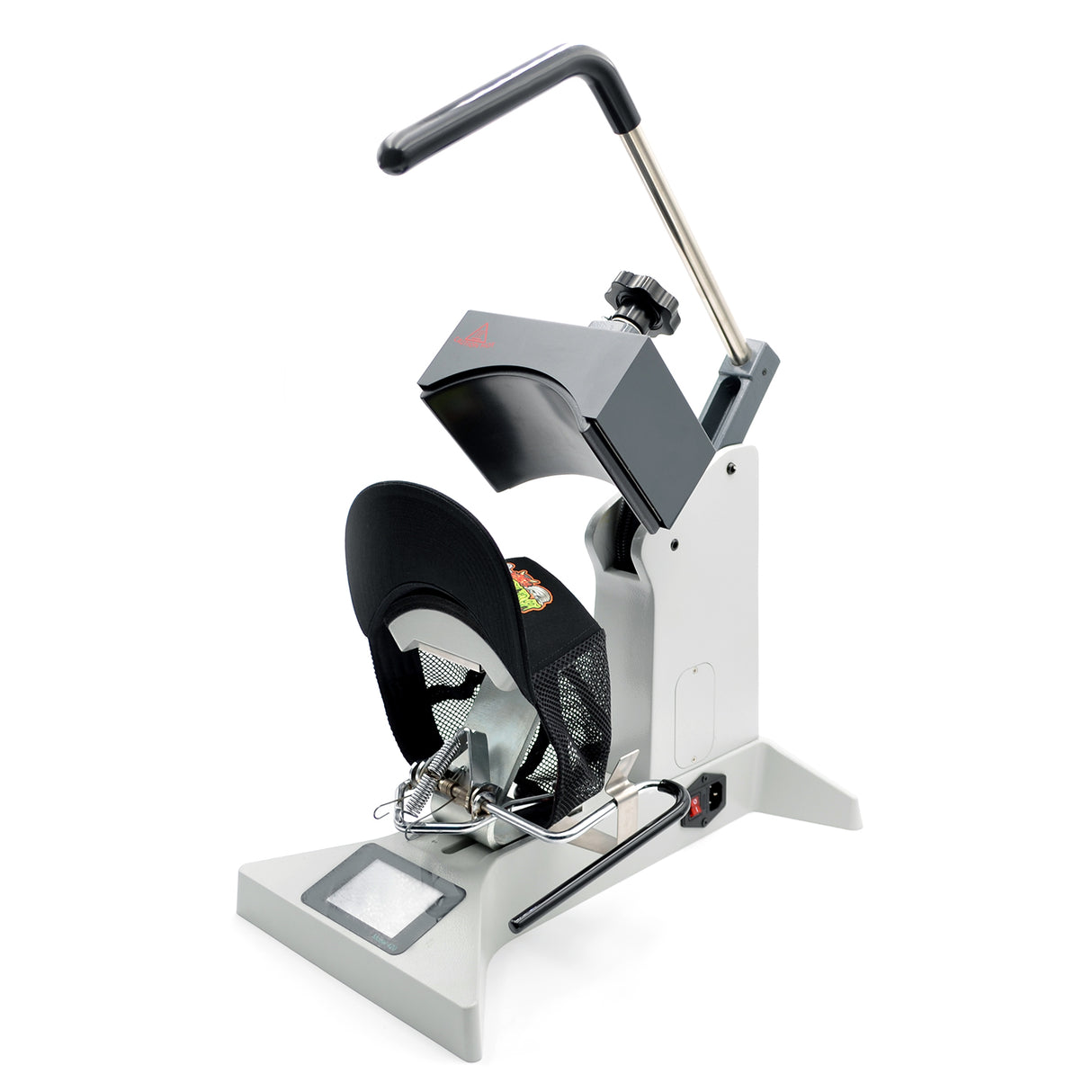

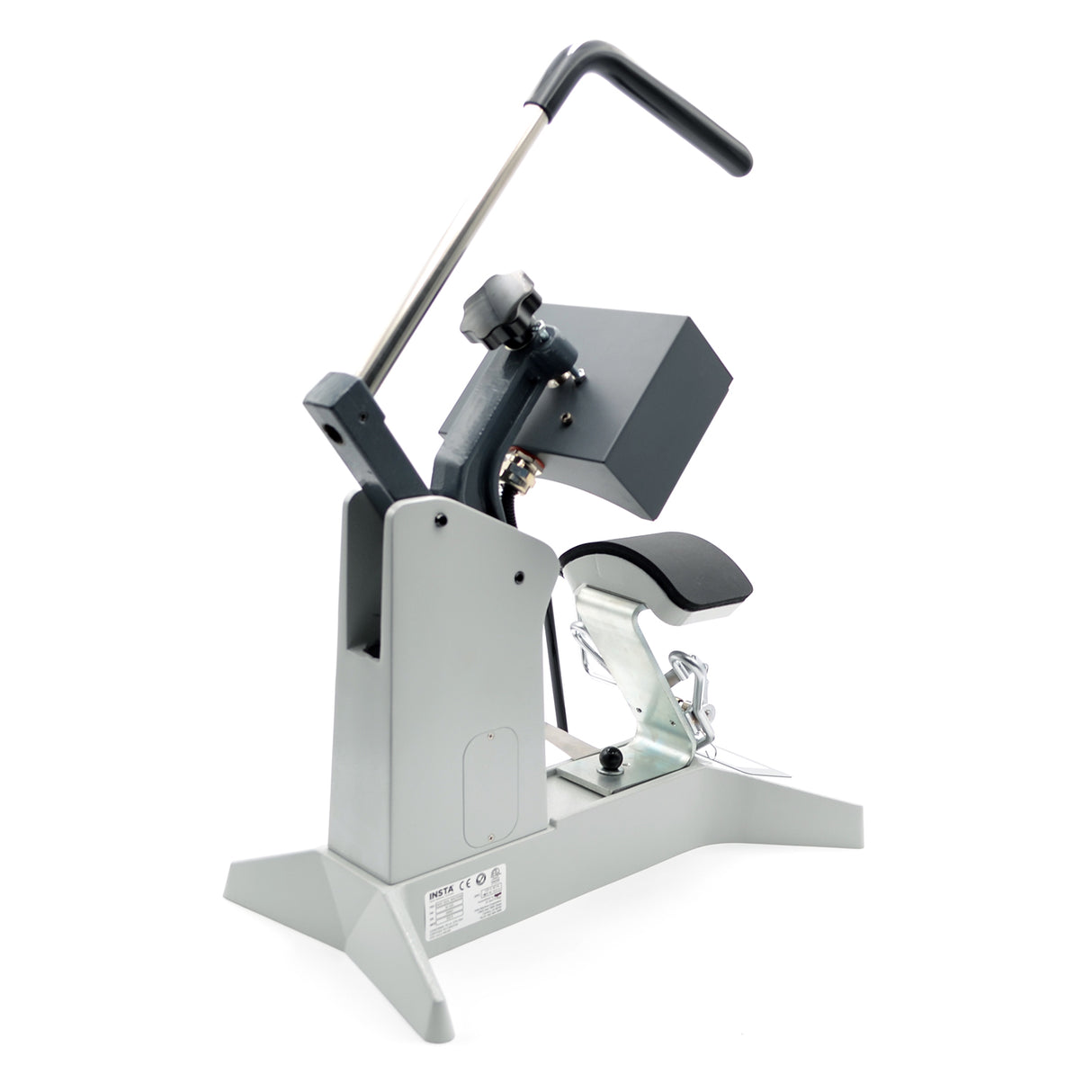

Insta Model 420 Cap Heat Press Machine

Insta’s Model 420 Digital Cap Press is a terrific multipurpose heat press. Its curved platens are perfectly molded to mirror the curves of a hat & are designed to apply heat transfers onto cap brims & bills. This machine not only features Insta’s world-renowned platens with the most even heat and pressure in the industry, but it also includes a digital, touch-screen controller where you can save multiple presets to quickly switch between different applications.

The 420 Heat Press has also proven to be an effective tool for printing logos and back-neck labels onto flat garments. Its portable, compact design and quiet operation make this heat press perfect for use in a home, retail, or production environment.

Insta’s Model 420 has been strategically designed to generate & evenly distribute tremendous pressure throughout the entire platen. Its heating element heats the metal from within, which produces constant and long-lasting heat. A successful heat transfer application requires 3 key elements to work in tandem: time, temperature, and pressure. The 420 brings those elements together in perfect harmony to achieve phenomenal results every time.

Features

• 4.5” x 6.75” upper platen and 3.25” x 6.75” lower platen
• Integrated touchscreen and five presets controller which features controls for time,
  temperature (Fahrenheit or Centigrade) & auto-off
• Curved Platen Design – hats are a breeze!
• Made of cast aluminum for maximum durability
• Strategically designed cap hold-down device
• Portable compact design
• Etl, CuL & CE approved. RoHS/WEE compliant
• Warranty – Lifetime warranty on the upper heating element, 1 year on parts & 90 days on labor


Specifications

• Width: 11” (27.94 cm)
• Length: 18” (45.72 cm)
• Height: 22” (55.88 cm)
• Power: 120 volt – 400 Watts, 3.4 Amps
• 230 volt – 400 Watts, 1.7 Amps
• Shipping Weight: 36 lbs.

The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, all INSTA Graphics heat press machines come with a 1 Year Parts and Service Warranty from the original date of purchase. We carry all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from our facilities. If parts and/or accessories are needed at any time during the warranty period, Heat Press Nation will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
