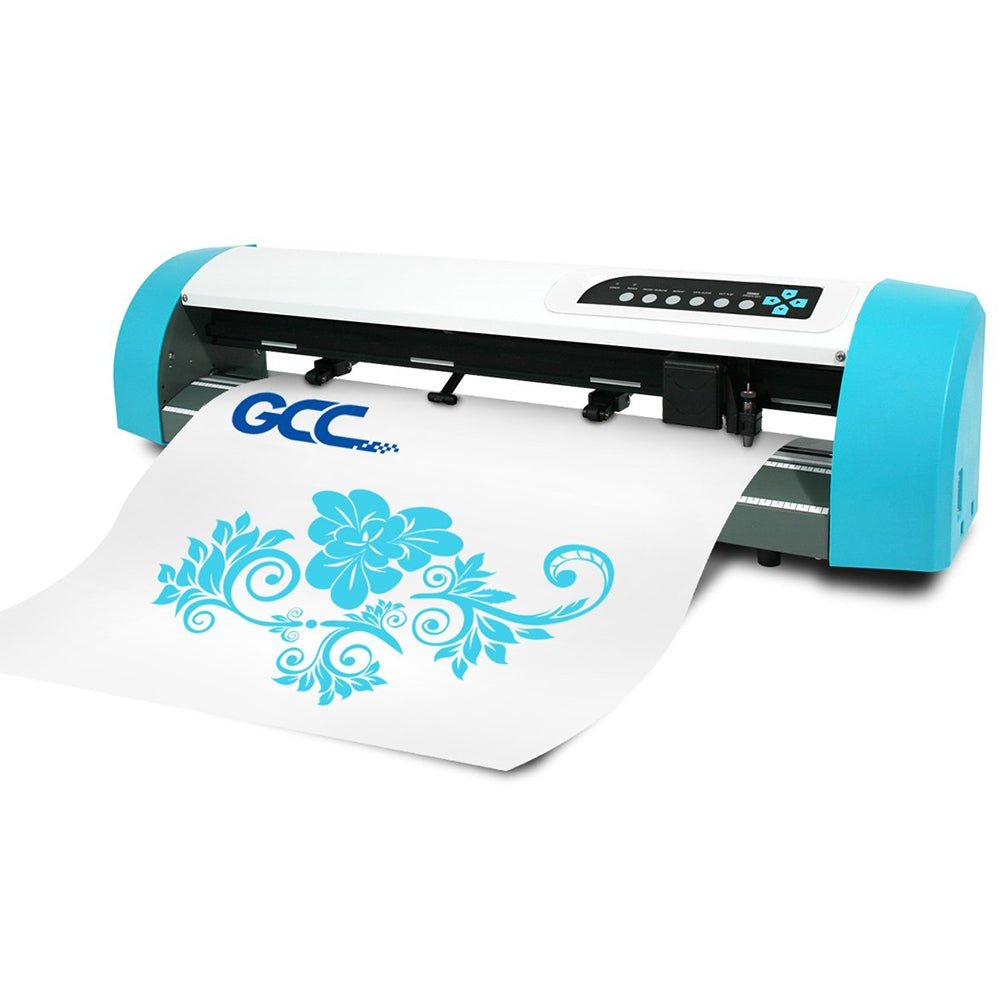

Open-Box GCC AR-24 Vinyl Cutter Plotter

Save 20%


This is an open-box unit and contains cosmetic blemishes. However, it is still functional and comes with a standard 1-year warranty.

With the possession of a posh style, AR-24 performs perfectly in cutting with its optimized cutting speed and force and leads to a stunning cutting quality, yet it is priced at a startup level and is worthy of return on investment.

Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894!


Wrench Icon

Superior Functionality: GCC AR-24 is built to achieve the optimized cutting abilities with a maximum of 15.7ips (400 mm/sec) cutting speed and 250 grams cutting force; moreover, the cutting width of up to 23.6" support a wide range of applications.

Windows Icon

Windows Drivers: GCC AR-24 includes a “one-click” Windows driver that allows sign makers to edit signs from CorelDraw and output directly to AR-24. It is very simple and easy to make signs with AR-24.


Guaranteed 1 Meter Tracking: GCC AR-24 is equipped with a stable drum that can guarantee 1-meter tracking to ensure quality outputs and saves you from wasted material and cost.

Friendly Icon

User-Friendly Interface: In addition to an easy to use control panel, AR-24 offers the special VLCD software, which provides a simple and intuitive workflow for users of all levels.

Dual Port Icon

Dual-Port Connectivity: GCC AR-24 supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and GCC AR-24. Dual-port connectivity provides sign makers with great flexibility for data transmission.


  • Maximum Cutting Width: 600mm (23.6")
  • Maximum Media Loading Width: 71.9cm (28.3")
  • Material Thickness: 0.8 mm
  • Drive: Stepping Motor
  • Cutting Force: 5~250 g
  • Maximum Cutting Speed (Diagonal): 552 mm /sec (21.7 ips) (at 45° direction)
  • Software Resolution: 0.025 mm
  • Repeatability: +/- 0.1 mm
  • Tracking: 1 M
  • Memory / Buffer: 1 MB
  • Interfaces: USB & RS-232
  • Type of Command: HP-GL, HP-GL/2
  • Configurable Origin: Yes
  • Control Panel: 10 Control keys and 2 LED
  • Included Software Compatibility: Windows 7, 8, 10 (32 or 64 Bit) (Not compatible with macOS)


  • 45 Degree Blade for standard vinyl cutting
  • Tweezers
  • Cutting Pad
  • Safe Media Cutter
  • USB Cable
  • GreatCut Cutting Software
