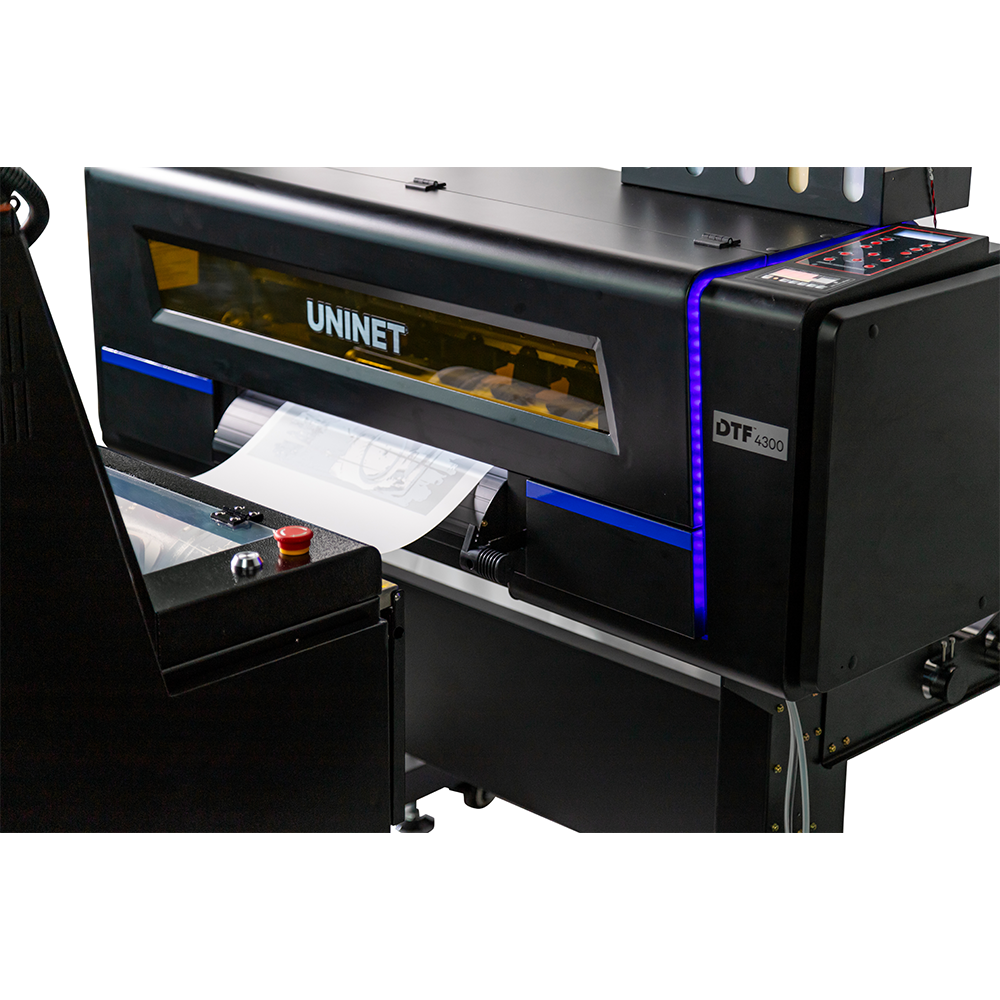

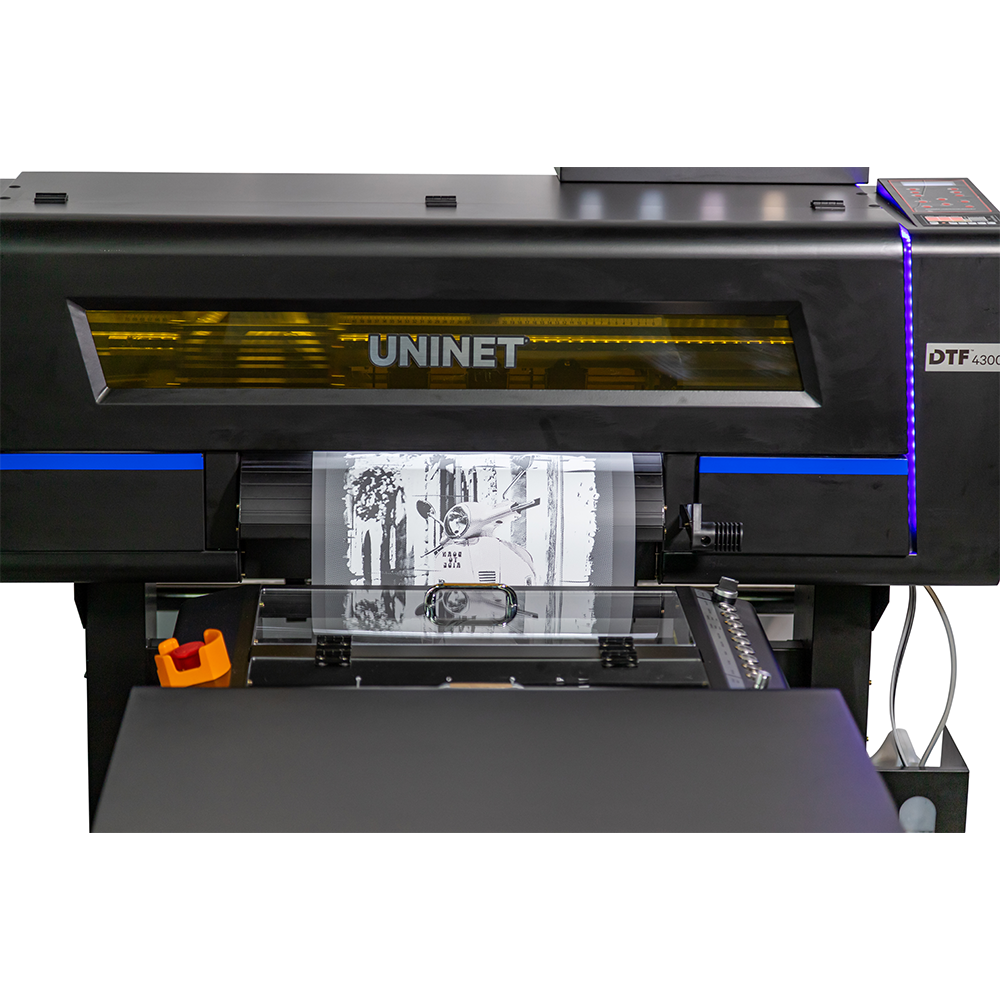

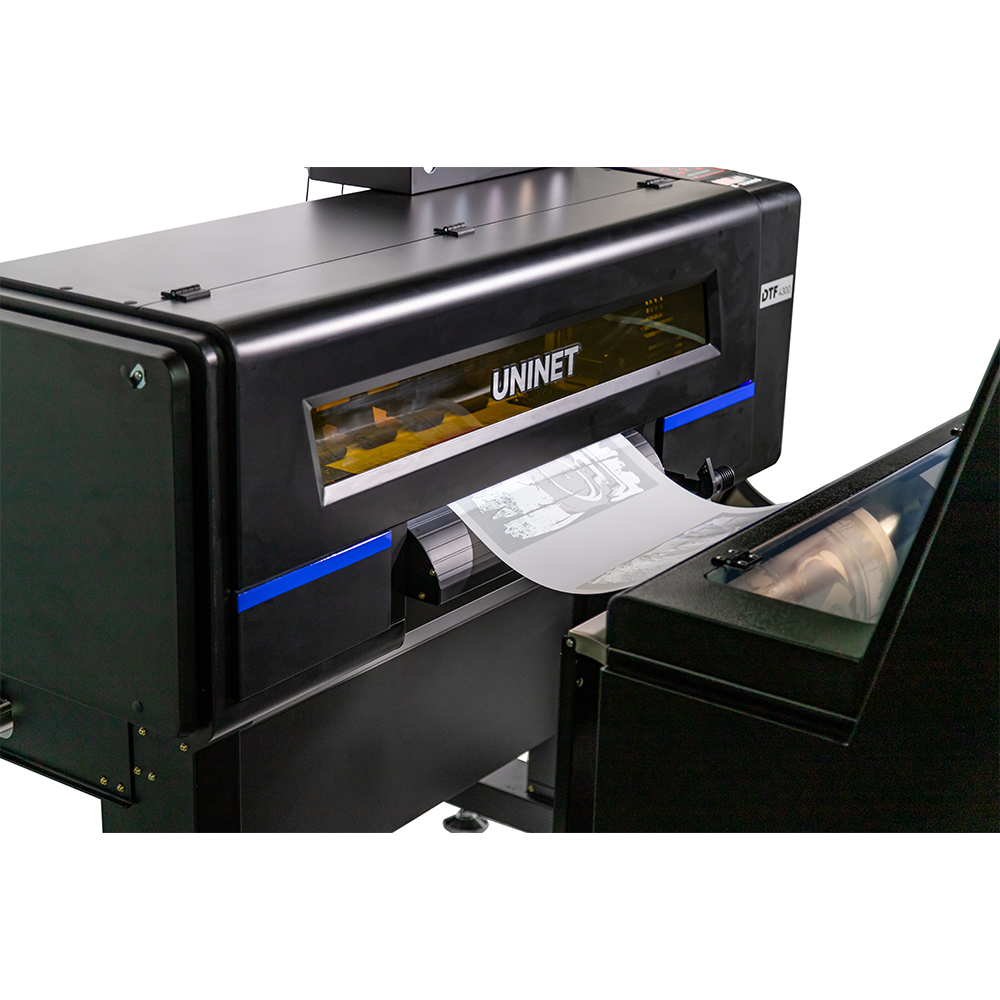

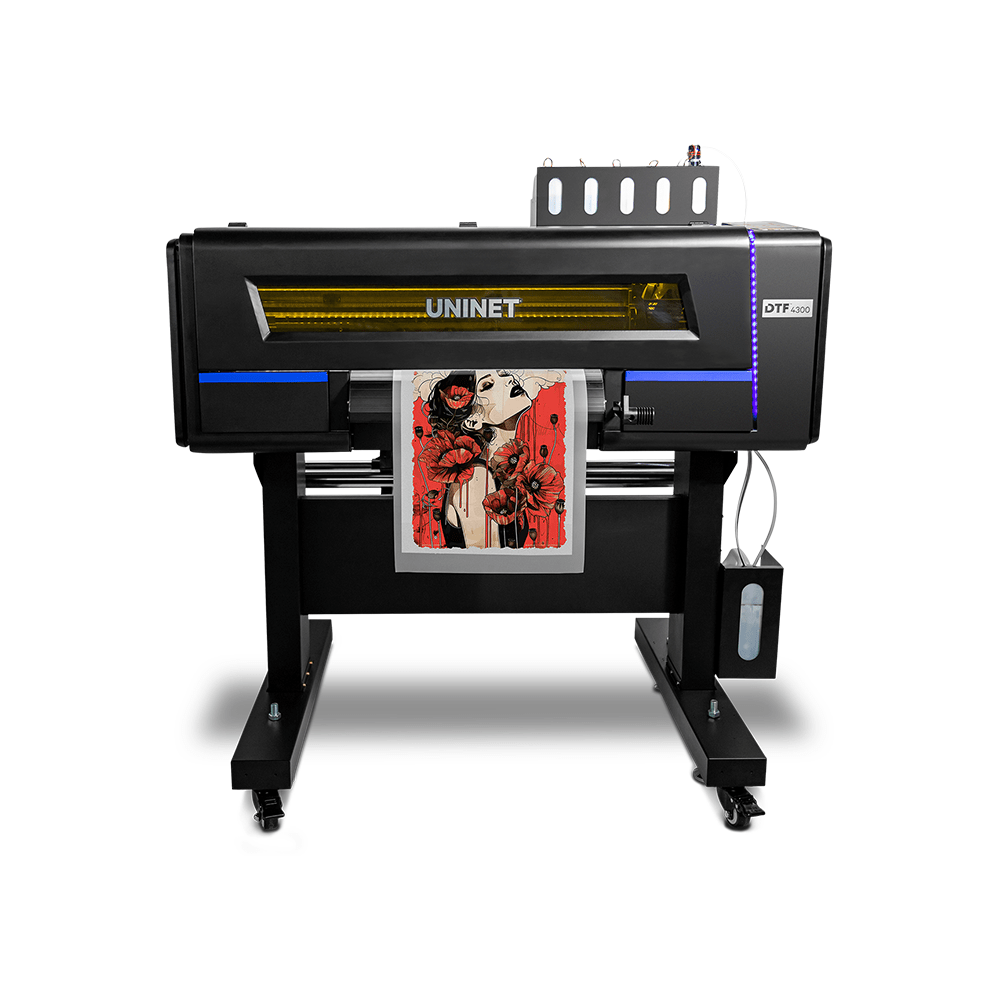

The Uninet DTF 4300 is a 17” wide roll feed printing direct-to-film printer, designed to produce durable and intense color DTF transfers. Built from the ground up as a professional, industrial-grade DTF printer, it boasts a DUAL printhead system, utilizing robust and reliable printheads, and is professionally enhanced. The DTF 4300 comes with RIP Software, Training, and Onboarding. It is an affordable A2 + sized DTF solution for multiple fabric types (cotton, poly, blends, leathers, jeans, and more), and works on both light and dark textiles. Choose this system if you require higher volume batch printing and/or need the convenience of a roll feed system with an automated powder and curing system. Print speeds over 40 sq ft/hr, fits through a standard 32” doorway, and runs on a regular 110v outlet.
- Accepts DTF rolls up to 17” wide
- Vacuum-enhanced printing area for better ink adhesion and avoidance of film buckling
- Print speed: up to 44 - 50 square ft/hr (~20 A2 pages/hr)
- WICS (White Ink Circulation System) to minimize clogging
- Dual Industrial, high-definition printheads
- Continuous XL Ink Tank Feed System
- Humidity Sensor
- Driver Software
- RIP Software Included (Built-in Ethernet Port on PC is Required)

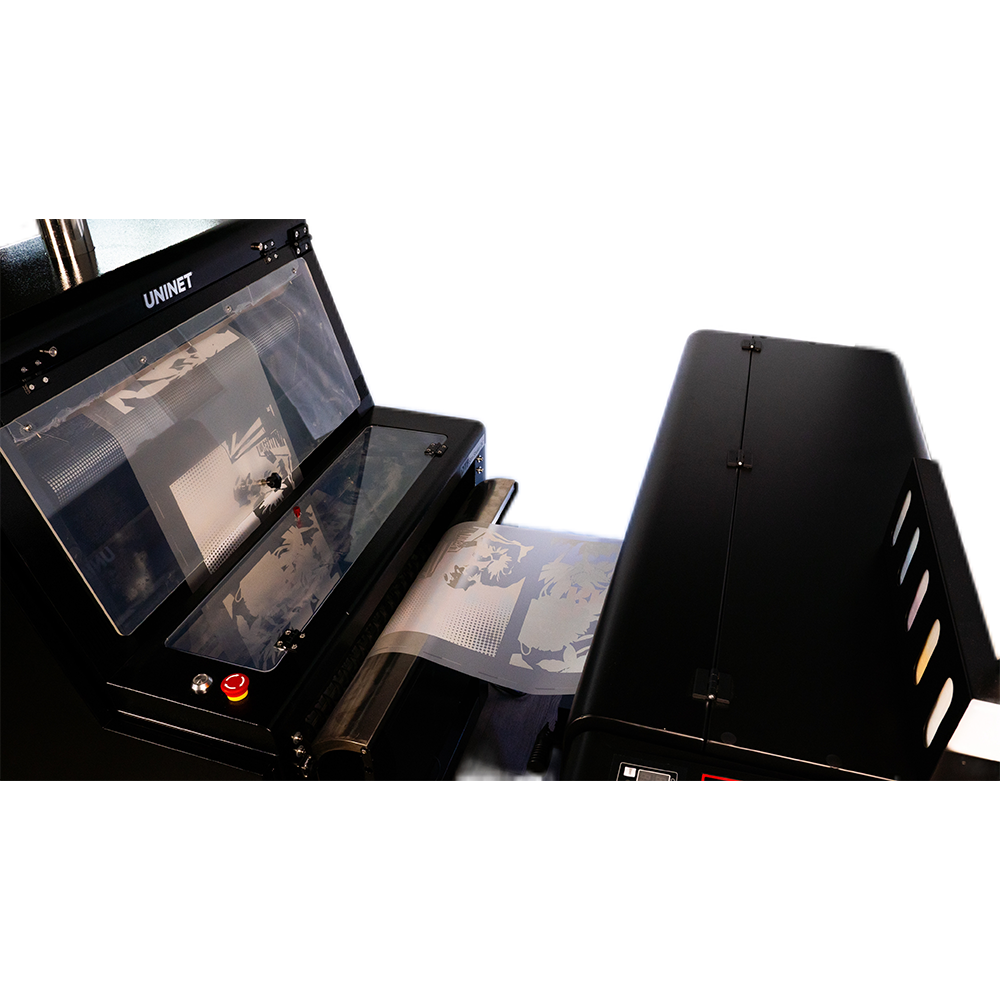

- Full automation system with the included Uninet 17" Slim Shaker
Benefits of Direct to Film Transfers:
Any Color, Any Material: DTF transfers seamlessly adhere to multiple fabric types, regardless of color. Decorate cotton, nylon, polyester, leather, denim, and more. Unlock a world of vibrant possibilities for your designs! |
|
Easy to Use: Heat and pressure are all you need to transfer your designs. No need for pretreatment spray or tricky adhesive sheets. The transfer process is so simple that you can even sell your transfers for customers to apply themselves. |
|
Durable: Engineered to withstand the test of time, DTF transfers boast unparalleled durability, ensuring that your designs remain vibrant and intact through countless washes and wears. |
|
Soft and Stretchable: DTF transfers offer a silky-smooth touch and unparalleled stretchability, ensuring maximum comfort and freedom of movement with every wear. |
|
Long Shelf Life: With proper storage, DTF transfers can last for 1 year or longer. Print your more popular designs ahead of time, and press them on your schedule. |

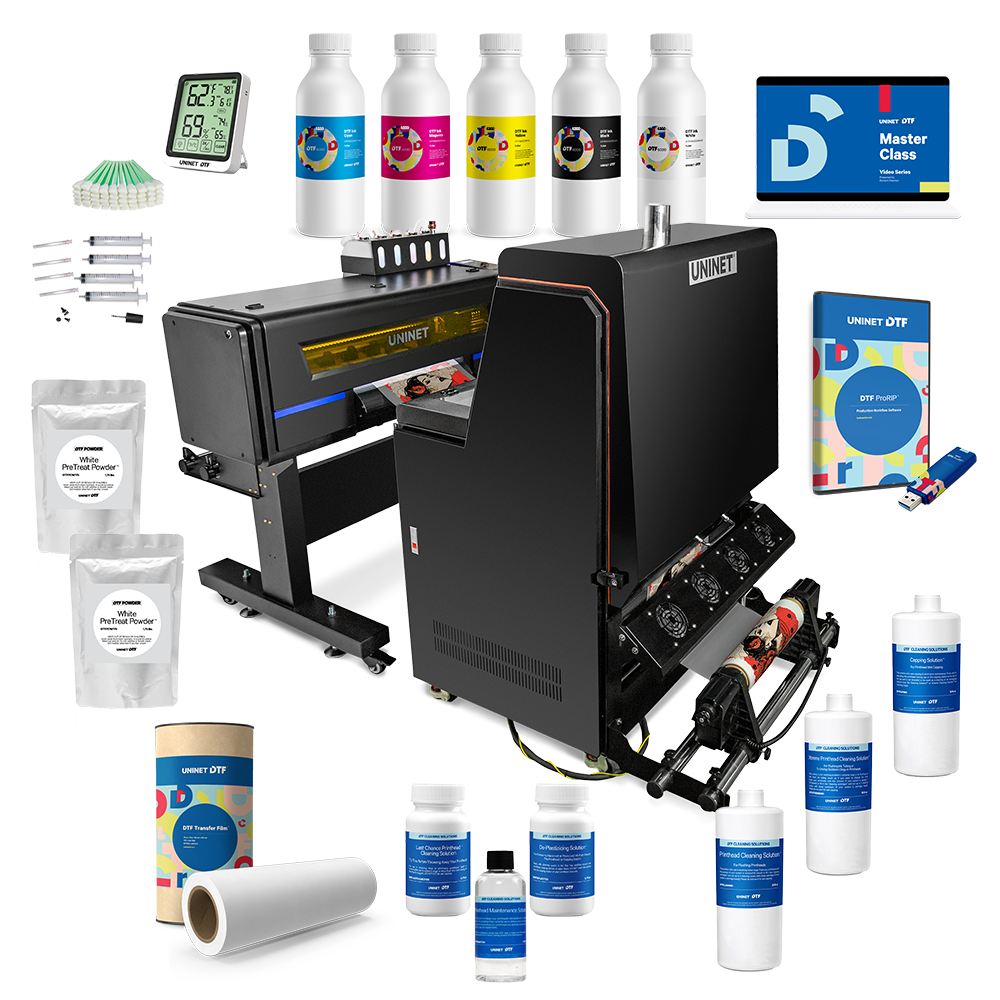

What's Included:
- Uninet DTF 4300 Direct to Film Printer

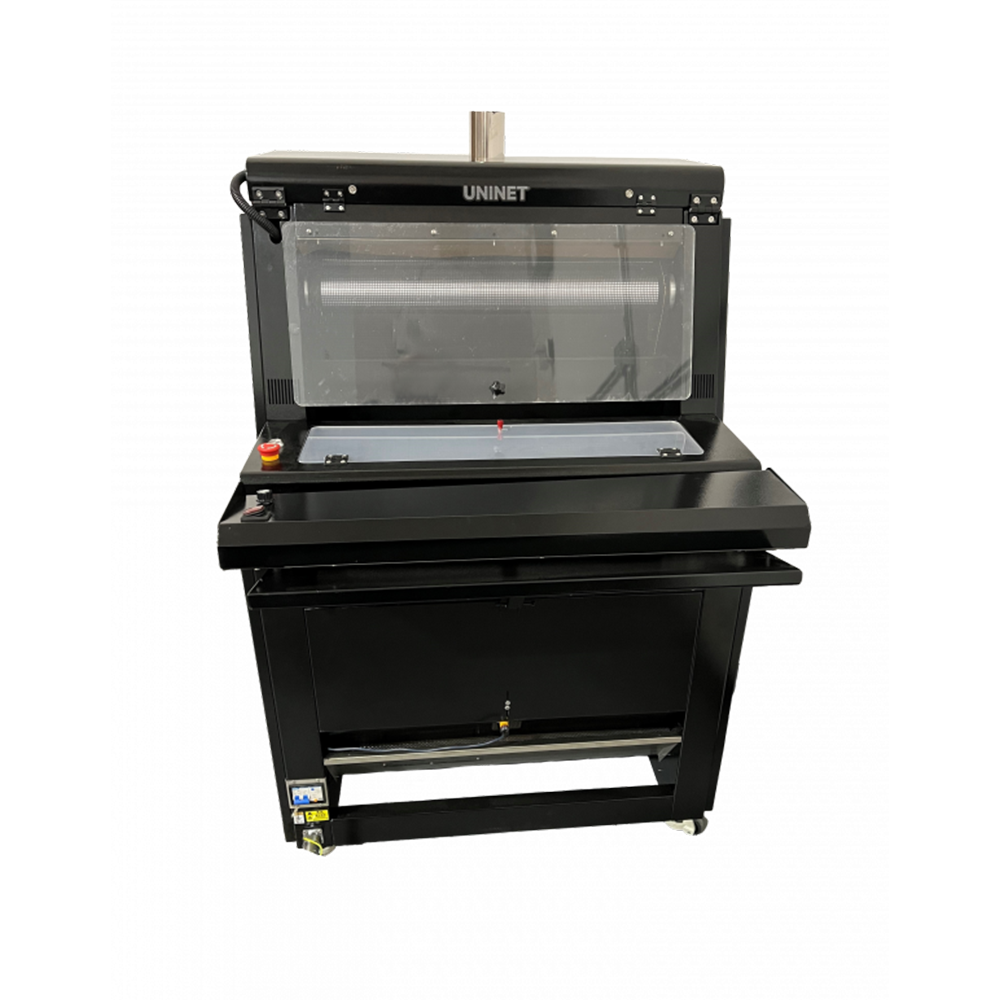

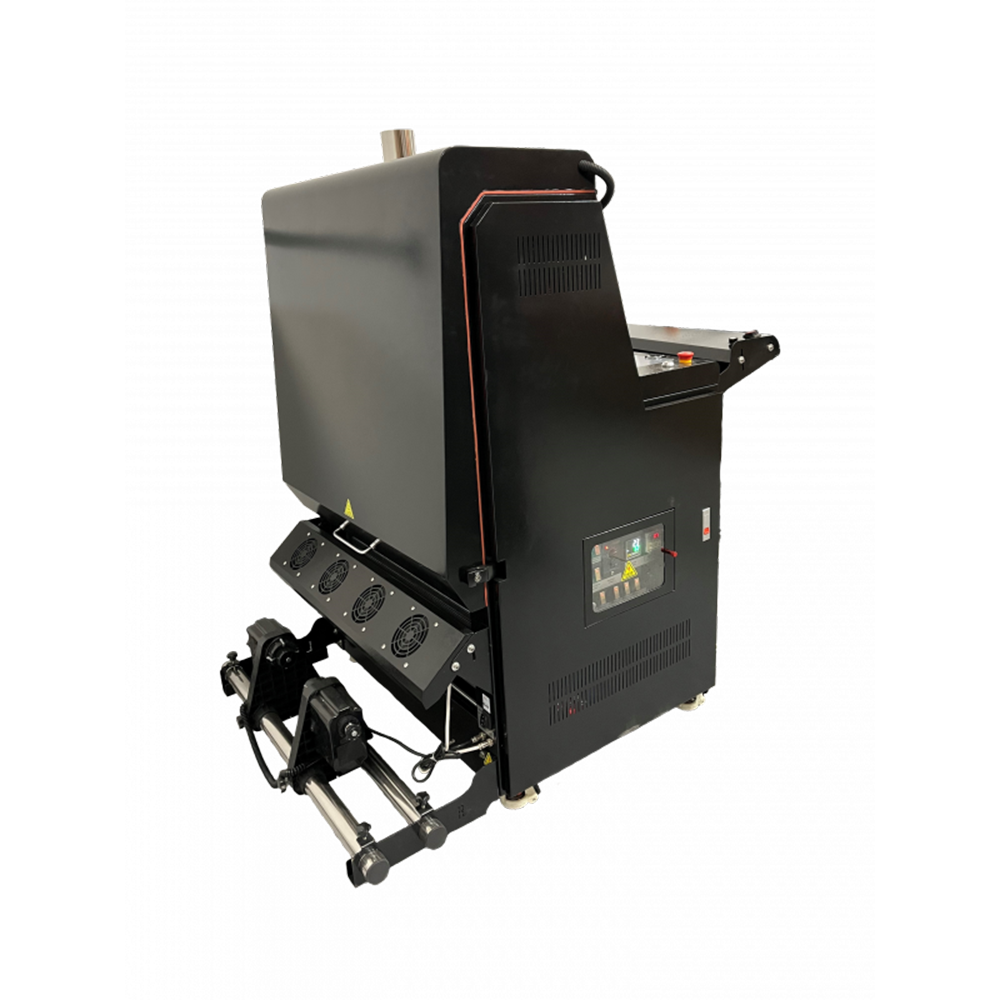

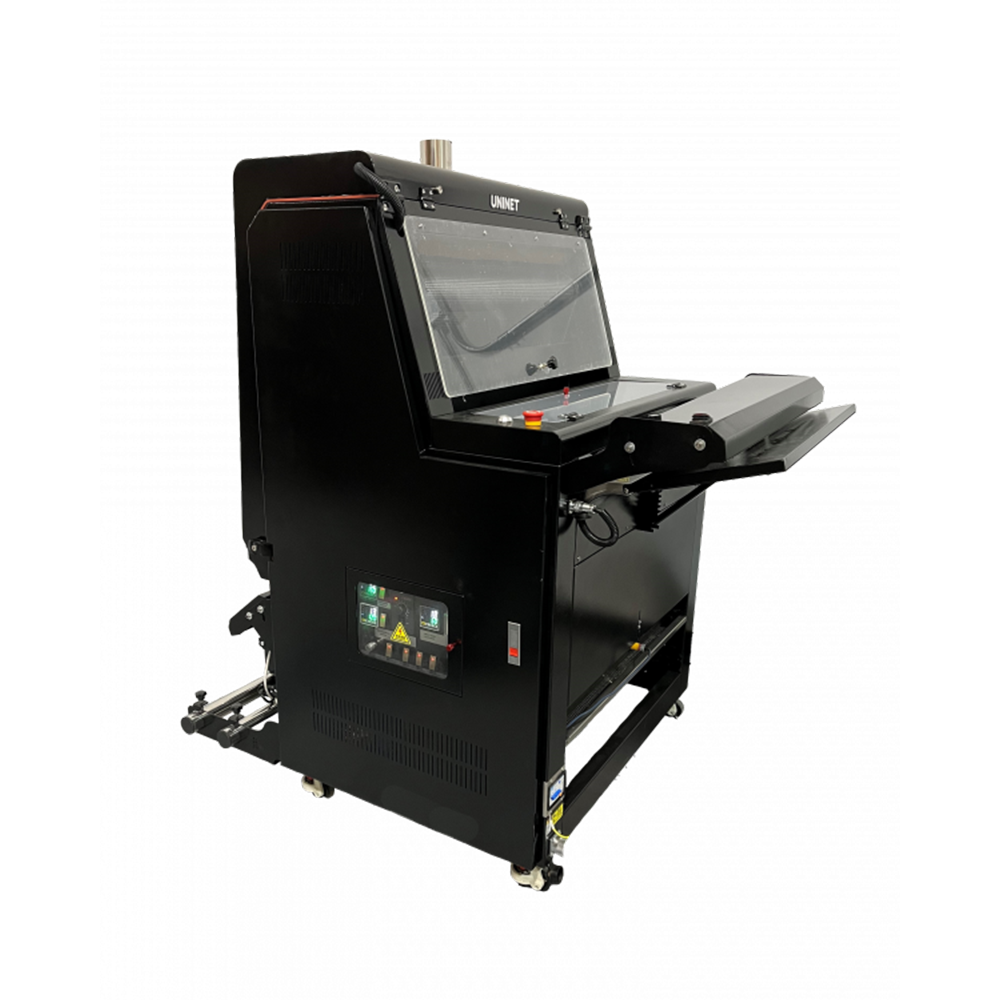

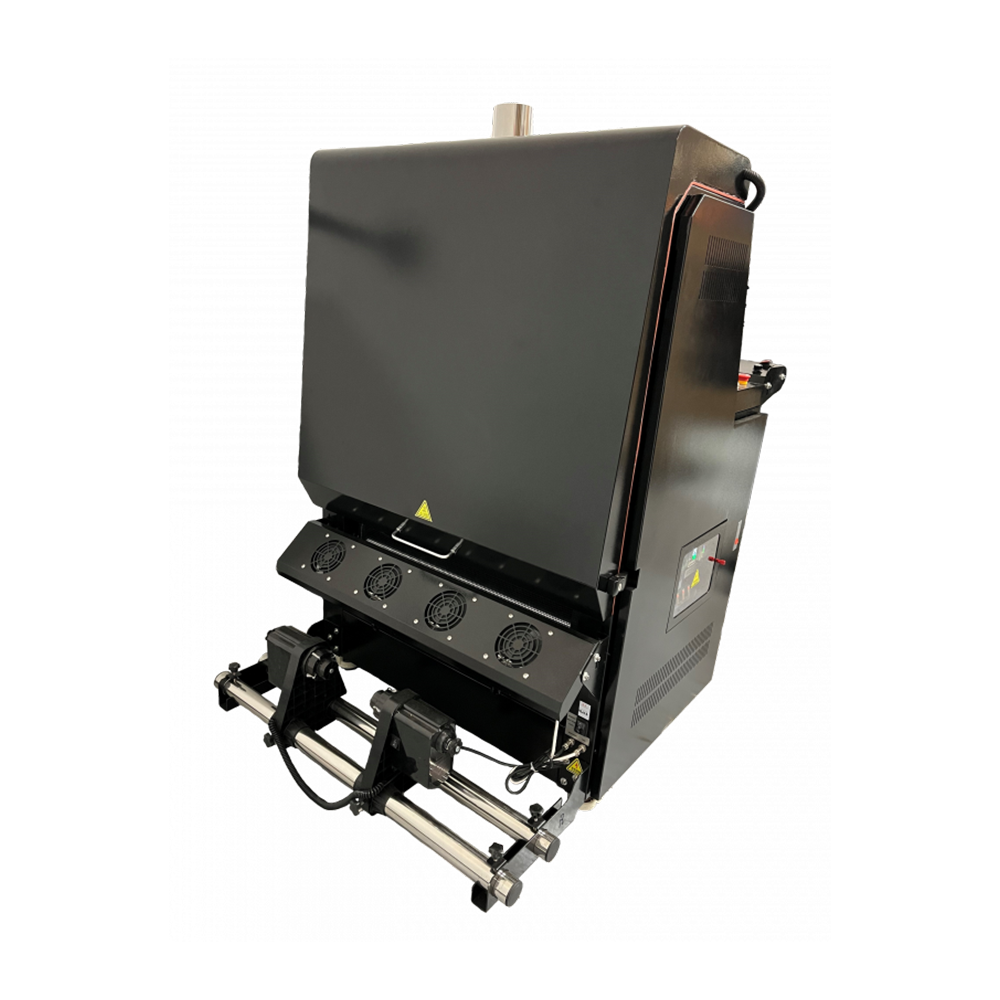

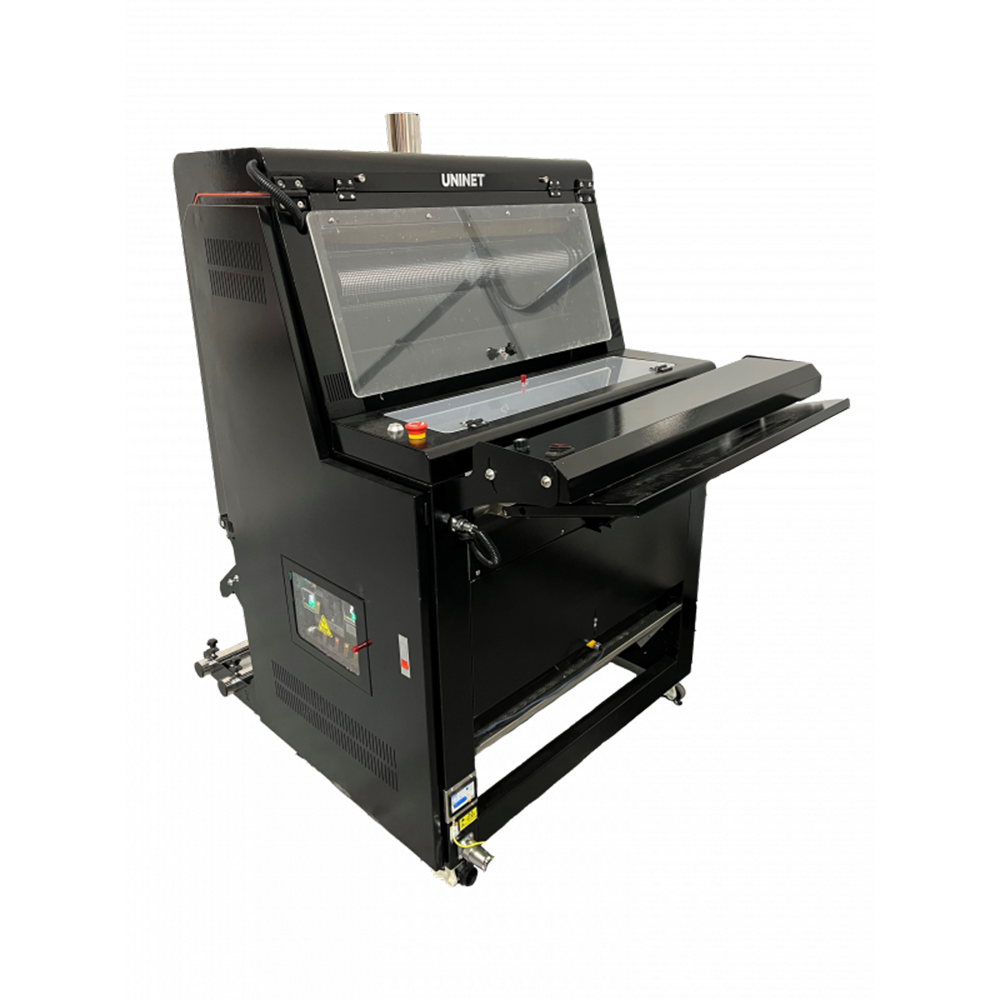

- Uninet DTF 17" Vertical Slim Shaker
- Uninet DTF ProRIP Software
- Uninet DTF Ink - 5, 1 Liter Bottles (1 each of Cyan, Magenta, Yellow, and Black, and 2 bottles of White)
- Uninet White DTF Adhesive PreTreat Powder - 2, 1.75 lb Pouches
-
Uninet DTF Triple Coated Transfer Film Roll - A2+ Width 17" x 328'
- Training:
- Uninet DTF Masterclass
- Onboarding Session with Uninet Tech
- Uninet Maintenence Flush Kit
- Uninet DTF Professional Printer Cleaning Foam Swabs - 50 Pack
- Uninet DTF Capping Solution - 950 ml
- Uninet DTF Printhead Cleaning Solution - 950 ml
- Uninet DTF Xtreme Uninet Printhead Cleaning Solution - 950 ml
- Uninet DTF Printhead Maintenance Solution - 100 ml
- Uninet DTF De-Plasticizing Solution - 100 ml
- Uninet Ink Refill Syringe Kit - Set of 4
- Digital Hydrometer (Bluetooth Humidity and Temperature Sensor)
- Ethernet Cable
- Power Cable
- Lifetime Technical Support
- 1 Year Warranty
Not Included, but Also Needed:
-
Fume Extractor for work area
-
Heat Press (used to press final print to garment - 16" x 20" recommended)
- Humidifier (to keep the humidity above 50% in the print room)
- Computer with Windows 10 or higher and an available ethernet port
Specifications:
- Print Speed: up to 44 - 50 square ft / hr (~20 A2 pages/hr)
- Resolution: up to 1440 dpi
- Printhead: Dual system
- Operating Systems: Microsoft Windows® 10 / 11
- Interfaces: Ethernet / Gigabit LAN - Requires a DEDICATED Ethernet port (No wired network can be used, the ethernet cable runs directly from the PC to the printer)
- Paper Capacity: Transfer film roll: Up to 17" x 328'
- Rated Current: 7A
-
Size:
- Uncrated: 53” x 35” x 53”
- Crated: 67” x 32” x 23”
-
Weight:
- Uncrated: 286 lbs
- Crated: 375 lbs
- Power: 120V
- Warranty: 1 year
*This product is FINAL SALE*
WARNING: Work in a WELL VENTILATED AREA and use protective equipment when working with DTF products and processes. It is highly recommended the use of a Fume Extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. It is not recommended to use DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize the risk of ink clogs and film buckling. Add a Fume Extractor to this package for sufficient fume extraction.
DTF printers require daily use/maintenance! You must perform a head cleaning, nozzle check and a test print every day to ensure the printer is running smoothly and to prevent printhead and capping station clogs. Printheads and capping stations are considered consumables and are not covered under warranty if they clog. Clogs can occur even after one print, so maintenance must start the moment you install ink.
The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support. No matter where you are in your product's life cycle, we will be here to provide support to your product and make sure you are fully covered.
Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.
Our MyExpert Support will always be there for you so you can purchase with confidence!
In addition, Uninet, the manufacturer, offers a 1-Year (parts and labor) warranty on this product. For warranty claims, we may need to involve the official Uninet team depending on the reported issue.
