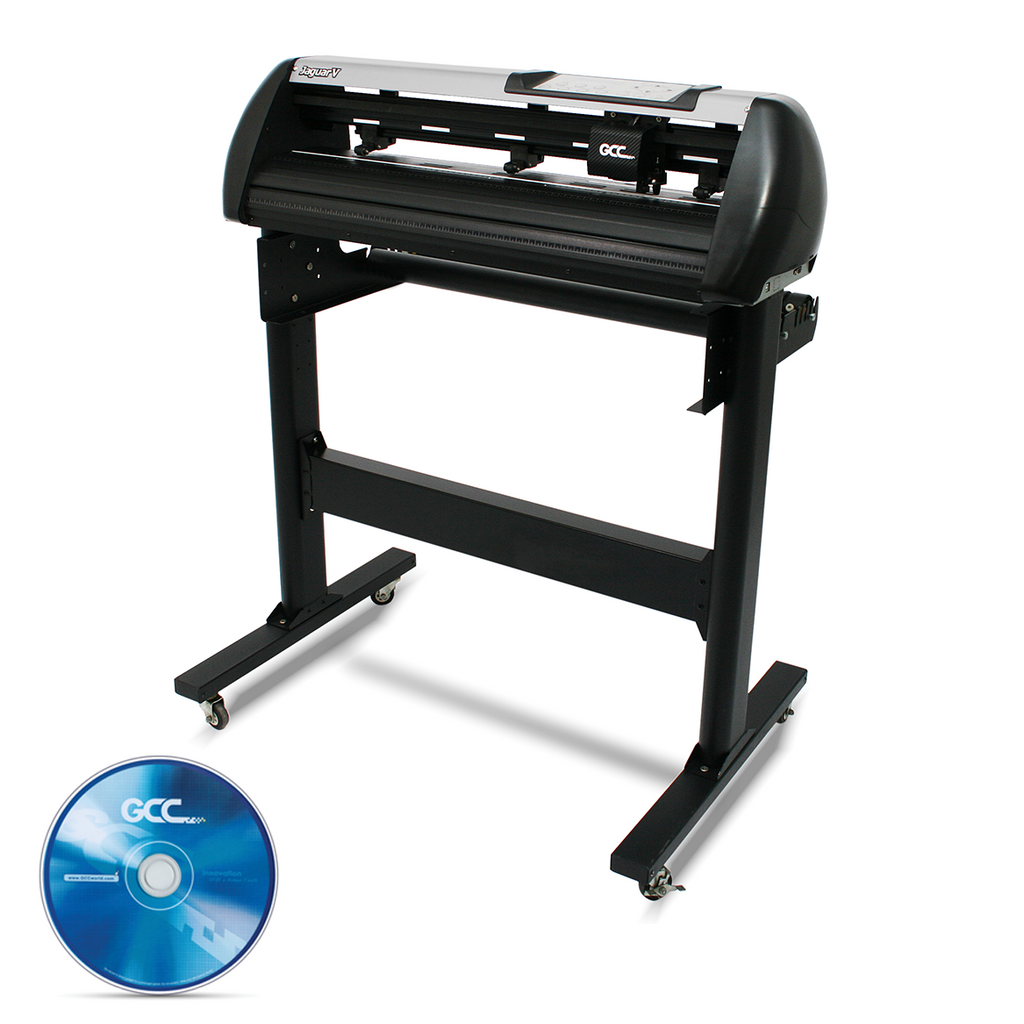

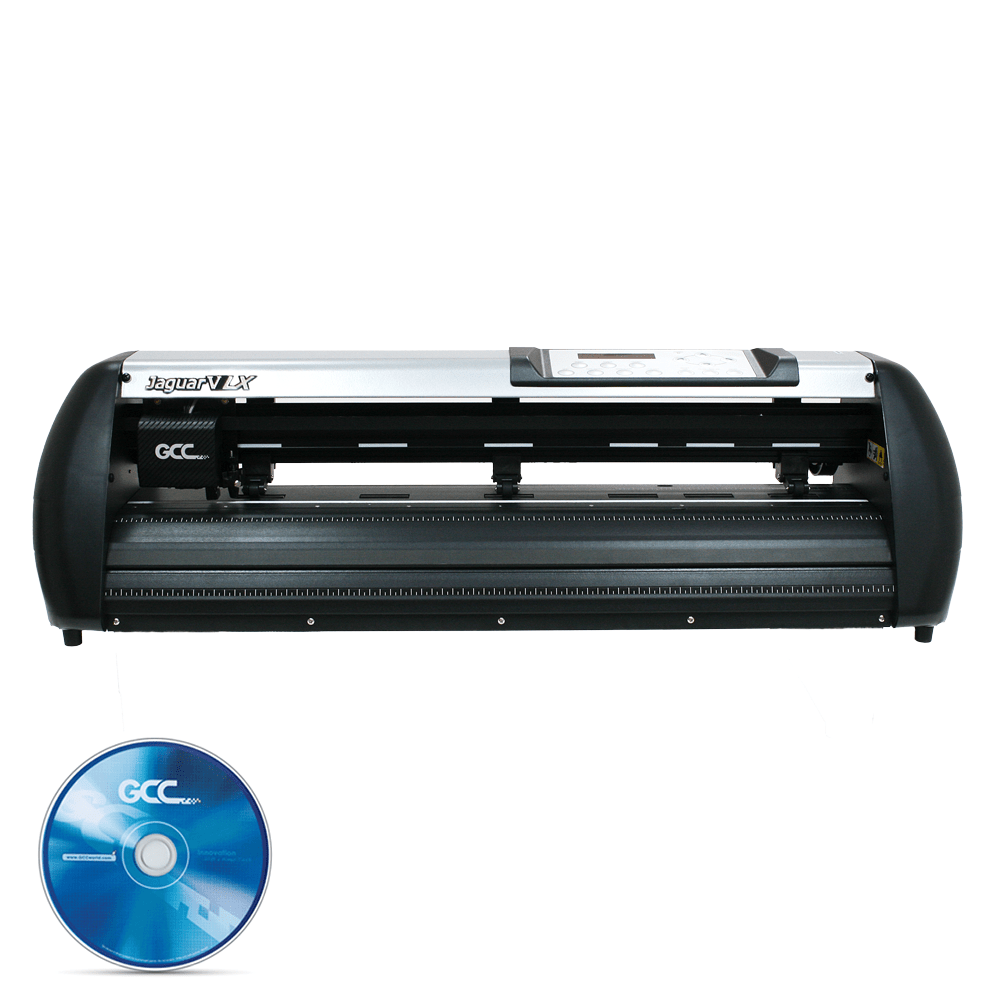

GCC Jaguar V LX Vinyl Cutter Plotter 24"

FG icon
SKU: 112800450G

Sale price$2,600.00

Found a Lower Price?


With the accurate Enhanced AAS II, reliable tracking capability, and intuitive features to meet the demands of today's professionals, the Jaguar V LX series represents the apex of vinyl cutting plotter technology.

Need help? Let our in house technical support staff assist you in setting up your GCC cutter. Call 1-800-215-0894


Contour Cutting Icon

Enhanced AAS II Contour Cutting System: Jaguar V LX series features an enhanced Automatic- Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.

Wrench Icon

Handy Grooved Cut-Off Tool: This handy and innovative design allows you to cut off a finished job in a straight line, easily reducing the possibility of wasting usable material.

Windows Icon

Windows Drivers: Jaguar includes a Windows driver that allows sign makers to edit signs from CorelDRAW and output directly to the Jaguar system. Easy-to-understand drivers make sign cutting with Jaguar simple.

Rhinestone Icon

600 Grams of Cutting Force: Selectable cutting forces, ranging from 0 to 600 g, accommodate a wide variety of materials, including fine and thin masking films to thick and hard reflective films.


Selective Pinch Roller Positioning: Each pinch roller can be positioned and operated individually, widening the Jaguar cutting plotter's range of applications.

Motor Icon

Media Handling System: The media handling system is fully adjustable. It handles media on standard cores and resolves media drifting and alignment problems to ensure better tracking.

Friendly Icon

User-Friendly Interface: The easy-to-use and multi-language control panel can remarkably simplify complex tasks. Available in 9 languages, including English, French, Italian, Spanish, Portuguese, Dutch, Japanese, Polish, and Turkish, it provides functional settings to meet users' needs.

Dual Port Icon

Tri-Port Connectivity: Jaguar supports tri-port connectivity with USB, serial and parallel ports. USB port provides faster and convenient data transmission between computer and Jaguar. Tri-port connectivity provides sign makers great flexibility for data transmission

Includes GreatCut Software:

  • Professional cut plug-in for Corel DRAW, Illustrator, Freehand, and AutoCAD
  • Cutting by color
  • Register marks with "Print & Cut" Support
  • Multiskin
  • Plot Manager


  • Operational Method: Roller-Type
  • Max. Cutting Width: 610 mm (24 in.)
  • Max. Media Loading Width: 770mm (30.3 in.)
  • Min. Media Loading Width: 50 mm (1.97 in.)
  • Maximum Media Thickness: 0.8 mm (0.03 in.)
  • Number of Pinch Rollers: 3
  • Acceptable Material Thickness: 0.8 mm (0.03 in.)
  • Motor Drive: DC Servo Control
  • Max. Cutting Speed: 1530 mm/sec (60 ips) (at 45° direction)
  • Acceleration: 4.2 G
  • Offset: 0 ~ 1.0 mm (with an increase of 0.025 mm)
  • Memory Buffer: 32MB
  • Interfaces: USB 2.0 (Full Speed), Serial (RS-232C) and Ethernet
  • Type of Command: HP-GL, HP-GL/2
  • Mechanical Resolution: 0.006 mm
  • Software Resolution: 0.025 mm
  • Included Software Compatibility: Windows 7, 8, 10 (32 or 64 Bit) (Not compatible with macOS)
  • Repeatability: ±0.1 mm
  • Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
  • Automatic-Aligning System (AAS II): Yes
  • Curve & Arc Smoothing: Yes
  • Configurable Origin : Yes
  • Tangential- emulation: Yes
  • Repeat: Yes
  • Copy: Yes
  • Pouncing: Optional
  • Control Panel: LCD (20 digits x 2 lines), 14 Keys, 1 Power LED
  • Diameter of Blade: 2.5 mm
  • Power Supply: AC 100-240V, 50~60 Hz (auto switching)
  • Stand: Optional
  • Media Basket: Optional
