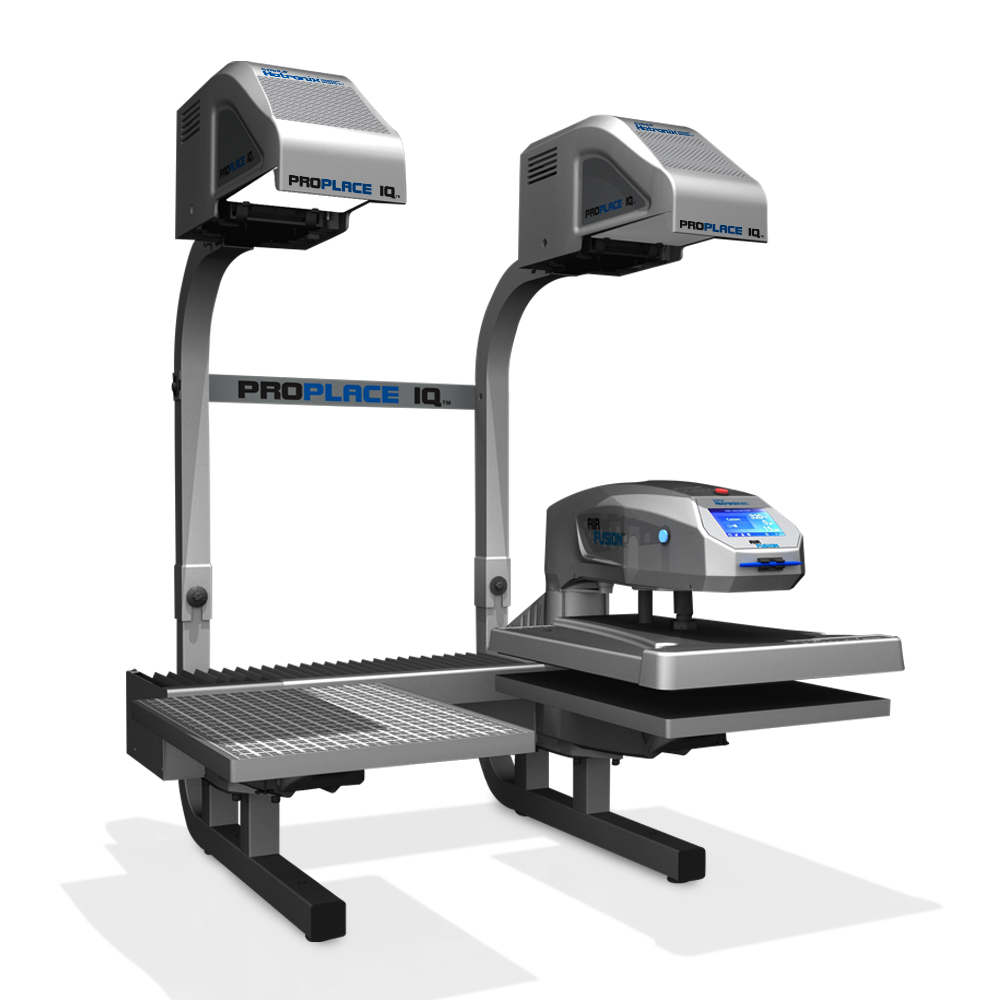

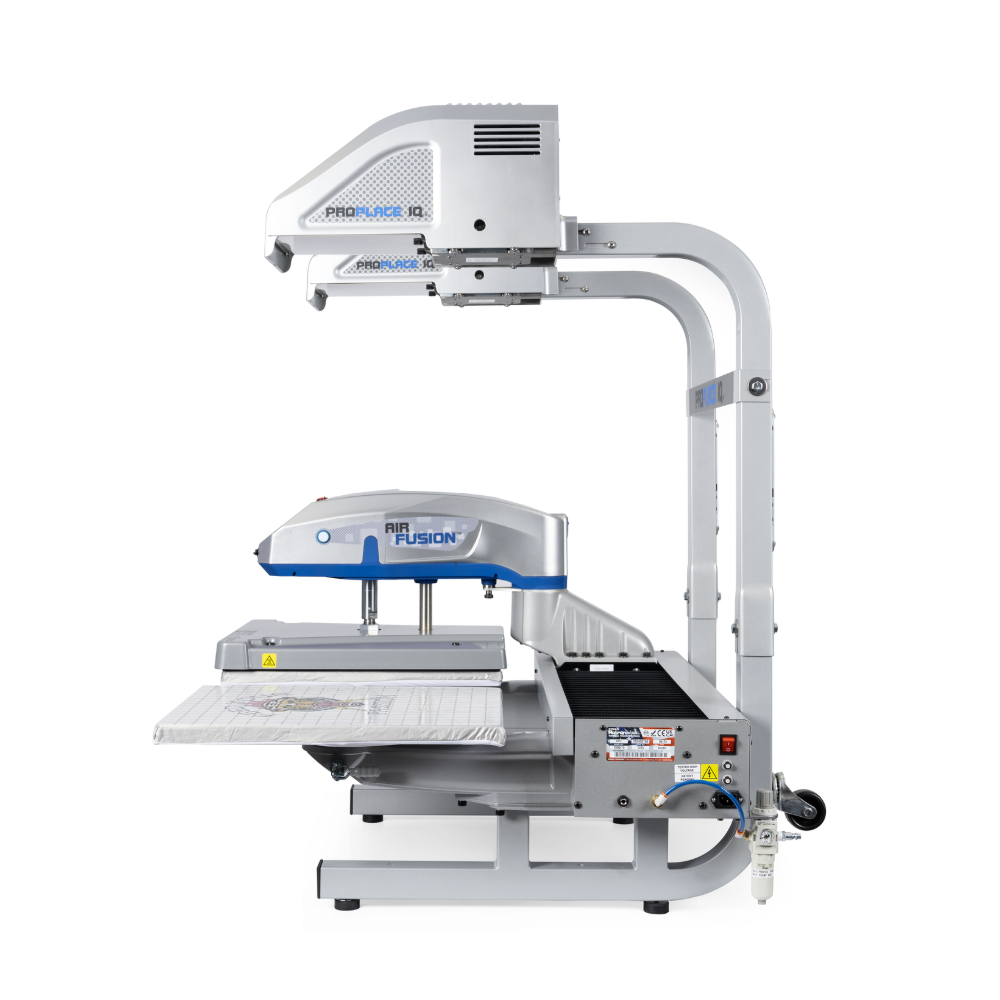

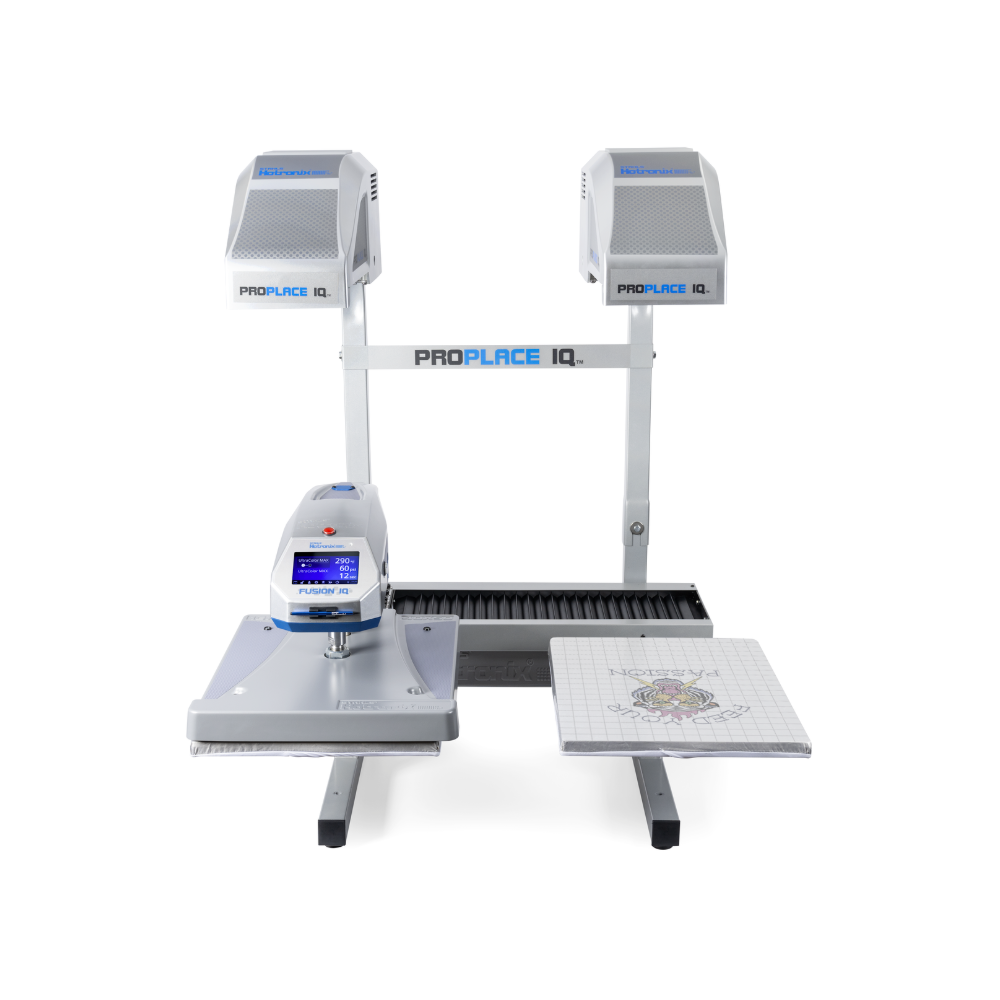

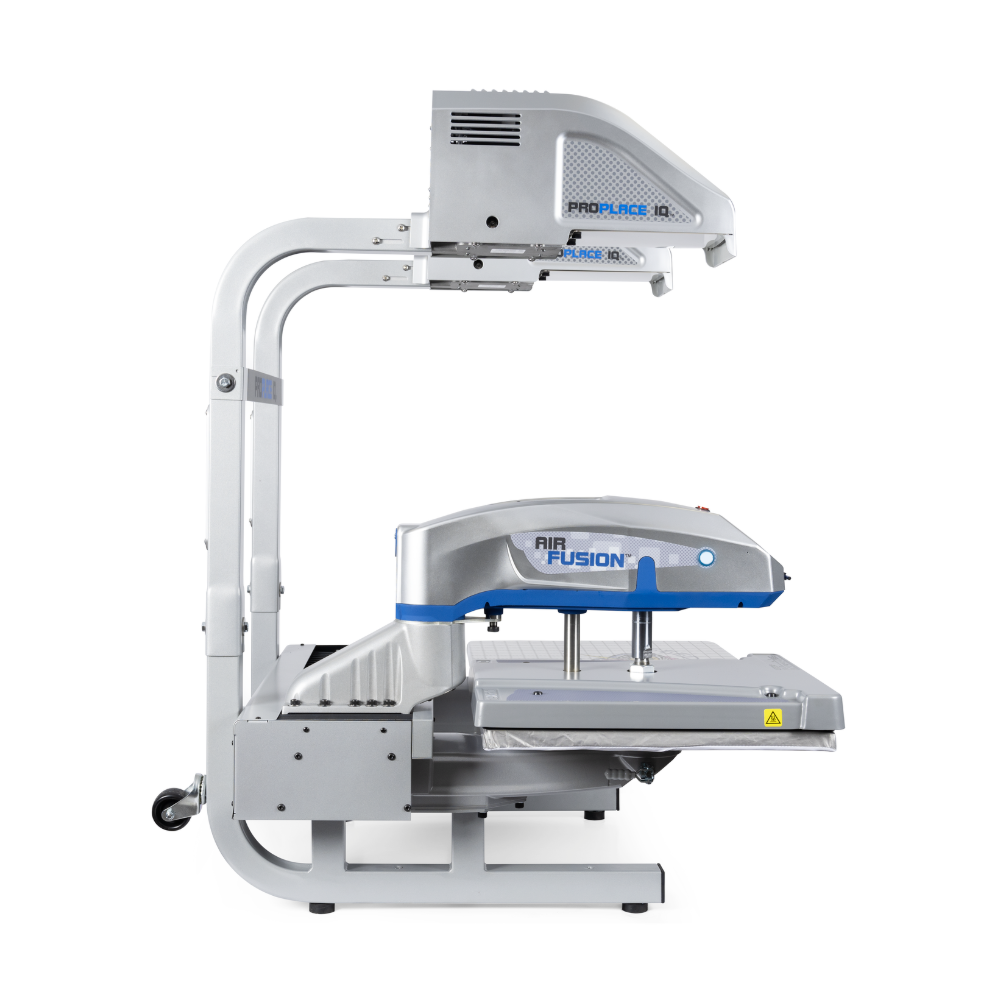

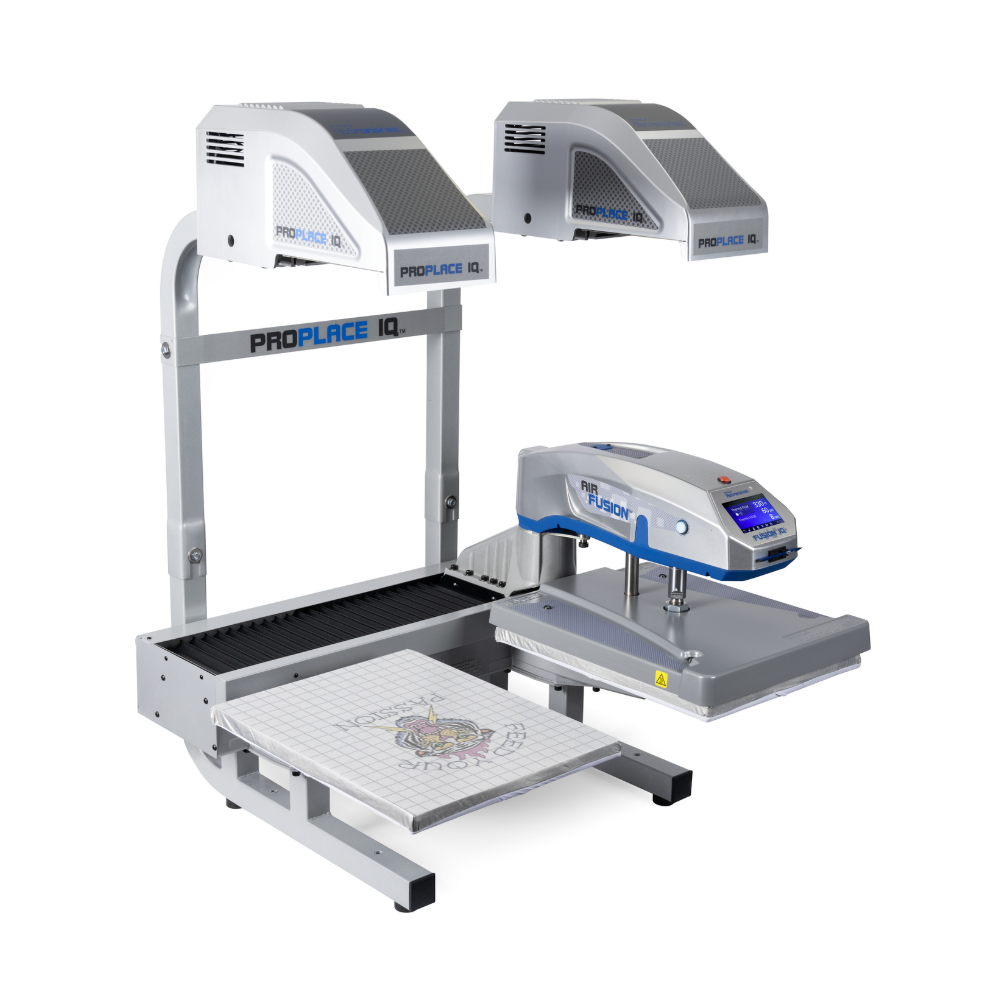

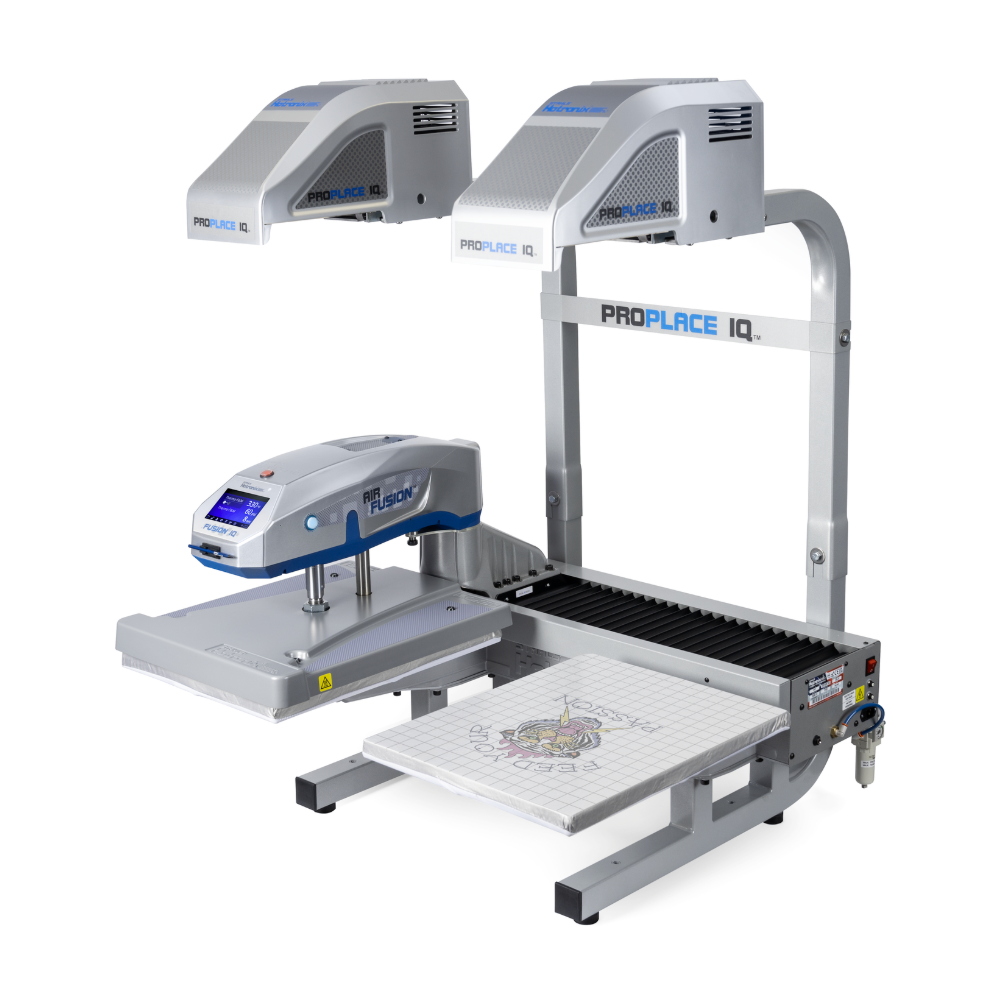

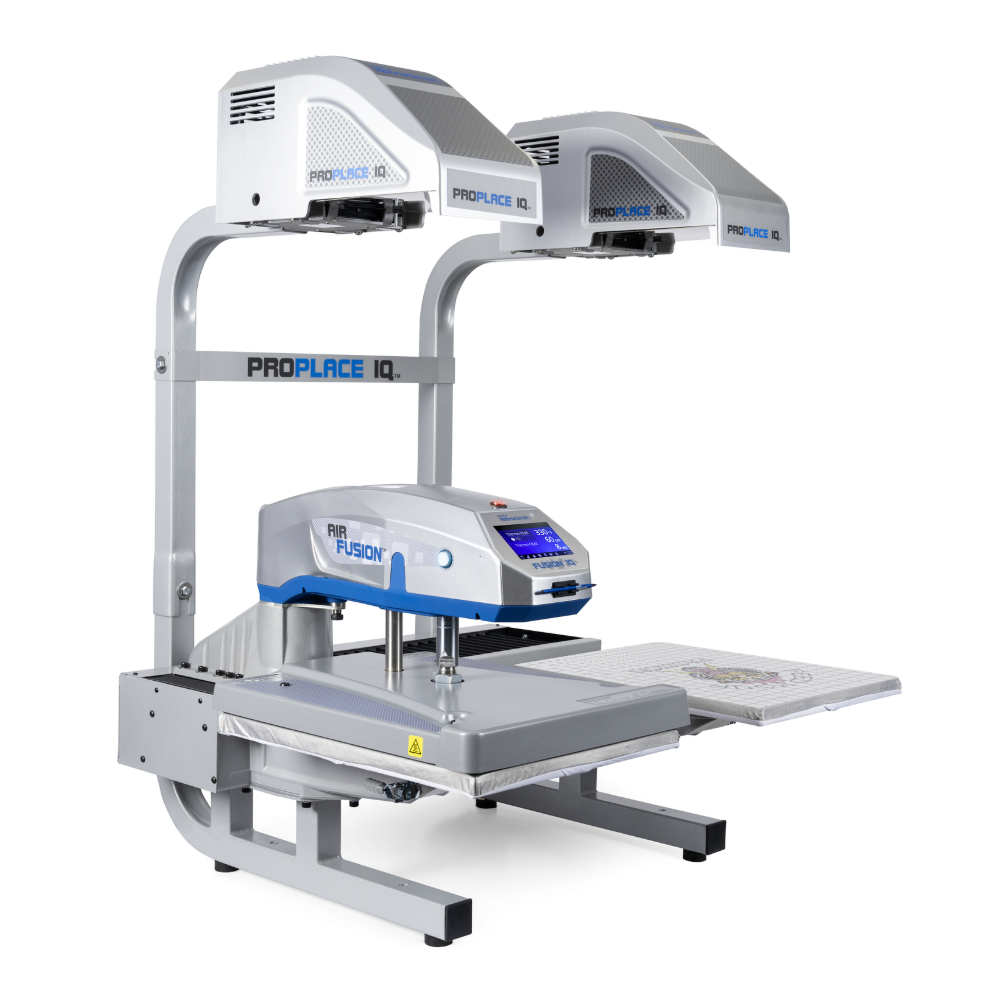

Stahls' Hotronix Dual Air Fusion ProPlace IQ Integrated System

SKU: PROPLACEIQ

Please choose: Without Liftgate Service
Price:
Sale price$9,995.00 USD

Found a Lower Price?

Open Video

Why Choose HeatPressNation?

With over 15 years of experience, HeatPressNation has established itself as the trusted industry leader in heat transfer solutions, earning the confidence of thousands of satisfied customers.

Description
Warranty
FAQs

Stahls' Hotronix Logo

*Coming soon*

Simplify your printing, and speed up your production. Perfectly align any design, every time with the revolutionary ProPlace IQ™ projection alignment system. Made to maximize efficiency with the Hotronix® Dual Air Fusion IQ® heat press, this groundbreaking solution allows anyone to be a precision printer, optimize output, and reduce waste.

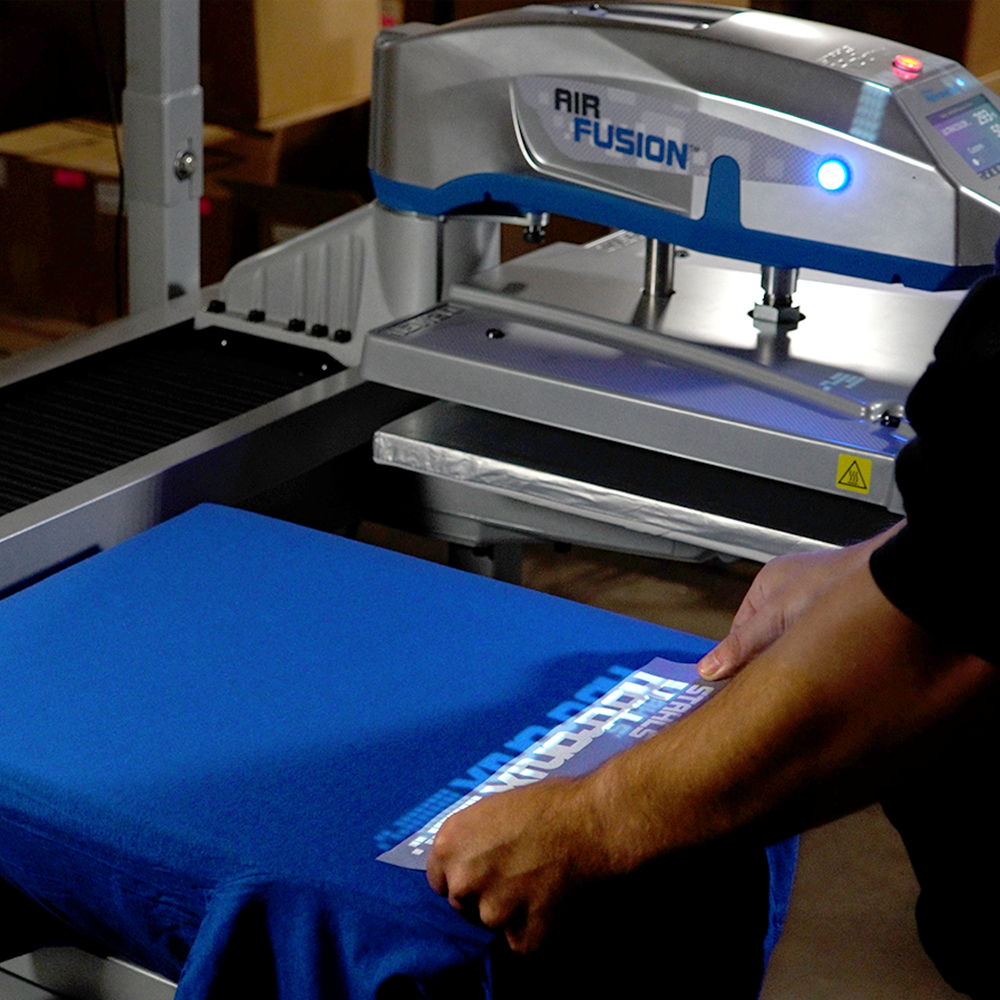

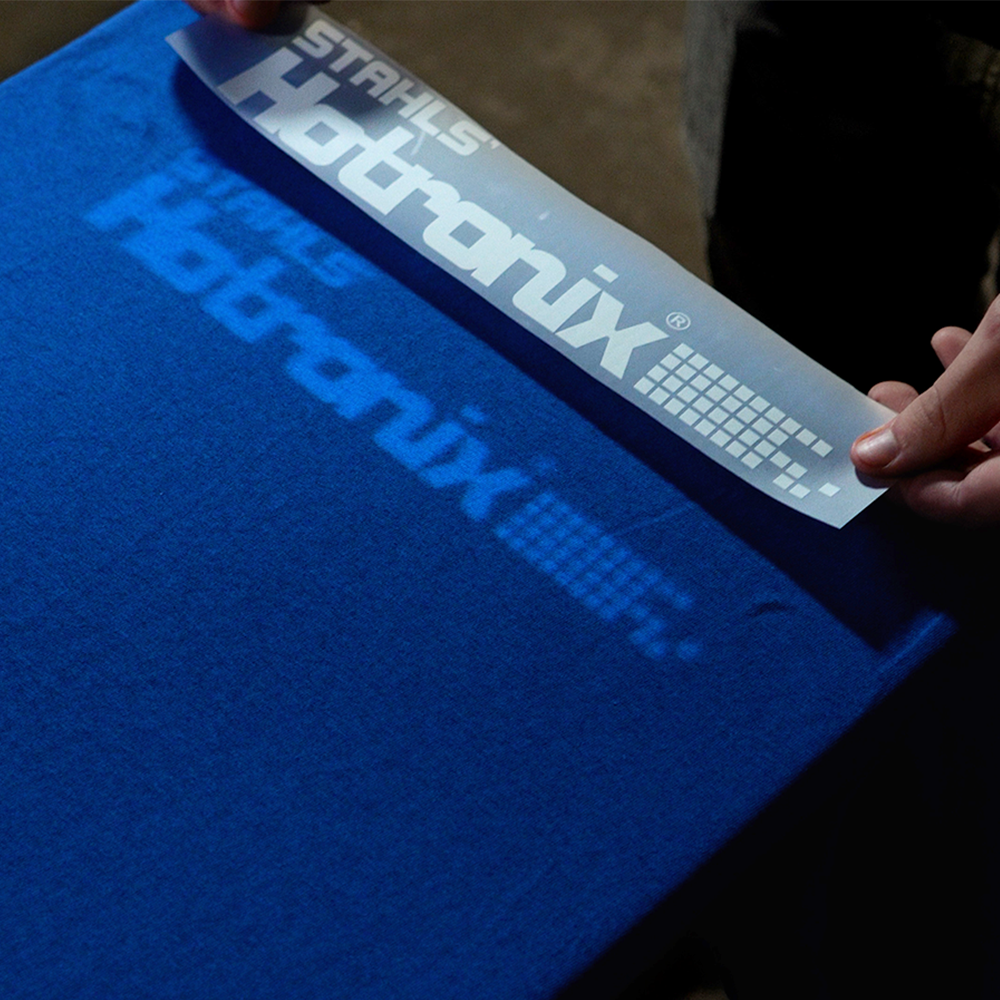

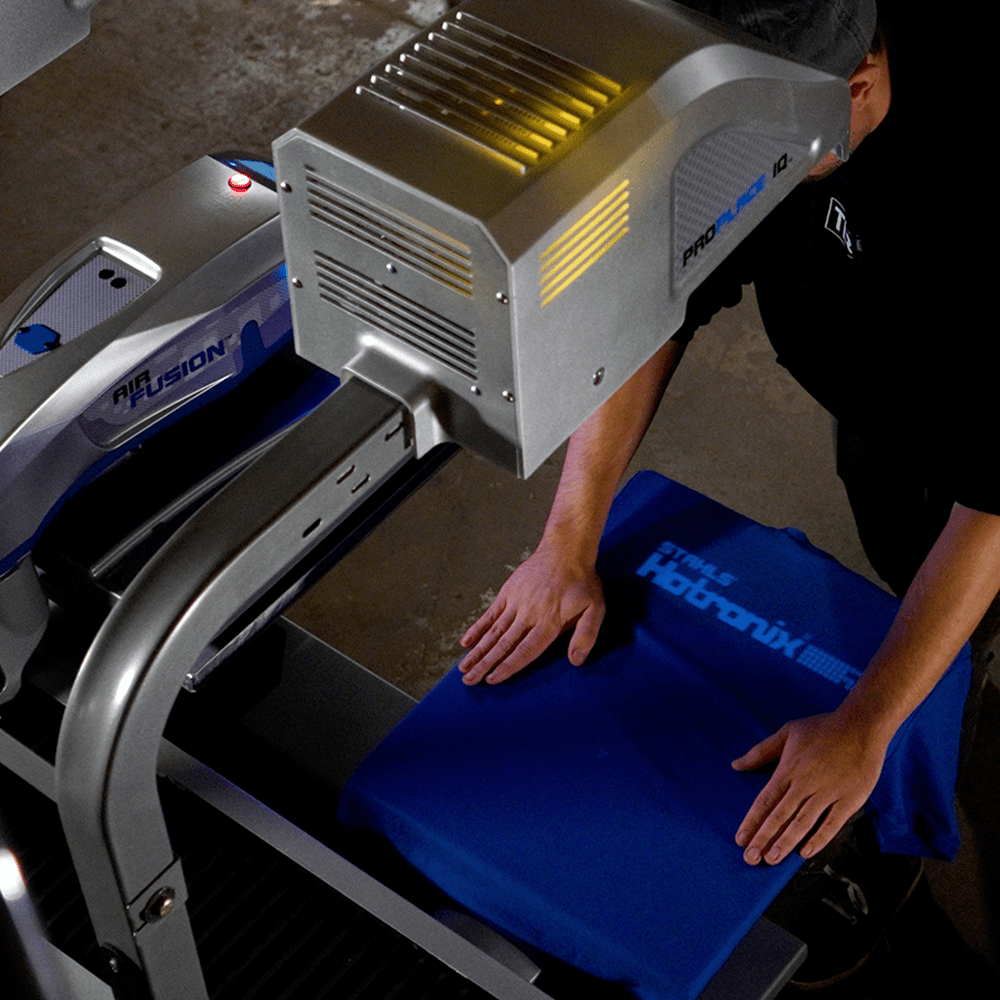

Simply upload your artwork to the Hotronix® Cloud system. With the click of a button, watch designs project onto the lower platen to streamline alignment, accelerate production, and minimize misprints. Just click, position, and press for unparalleled efficiency.

ProPlace IQ Benefits:

  • Streamlined Printing Process:
    • Simplify your printing workflow for a more efficient operation.
    • Achieve precision with the patented projection alignment system.
  • Rapid Production:
    • Take the guesswork out of design placement.
    • Accelerate production time by eliminating manual alignment steps.
  • Waste Reduction:
    • Reduce misprints and errors, ensuring each design is placed perfectly.
    • Minimize waste by optimizing alignment and eliminating guesswork.
  • Easy of Use:
    • Train anyone to be a precision printer in a fraction of the time.
    • Intuitive design placement for hassle-free operation.

ProPlace IQ Integrated System Features:

  • Wireless Communication via Fusion IQ® Portal
  • Navigation, Adjustment, & Storage of Projection Images
  • Connectivity to External Systems
  • Supported Power within Machine

Heat Press Features:

  • 16" x 20" Dual Quick Change Platens
  • Cloud based time and temperature settings for transfers
  • Bright, large LCD wide a wide viewing angle.
  • Self Diagnostic ability reduces guesswork and tech support calls
  • Password restricted machine settings
  • Machine statistics available via Fusion IQ website
  • Manage multiple Fusion IQs via web with minimal effort
  • Auto-Adjust Pressure automatically adjusts to the thickness of the item being printed
  • Fully Threadability on the lower platen: position the garment, rotate, and decorate any area
  • Dual platens allow a heat-free workspace on one platen while the other is being pressed
  • Perfect for Direct-to-Garment printing – cut production time in half by programming one station for pre-treatment and the other for curing
  • Rodless transmission for smooth, quiet operation
  • Operates in full-auto, semi-auto, or manual modes
  • 120 PSI for high pressure applications
  • Optional quick-change platens; no tools required
  • Program up to four different pressure and time settings
  • *Requires air compressor (not included) with minimum 1 horse power and 8 gallon hold tank, 120 PSI. Uses 2.6 CFM.
  • Recommended table size: 24" x 36" x 28" with 30" height
  • Not compatible with Hotronix Air Compressor

    SPECIFICATIONS

    • Shipping Weight: 443 lbs
    • Shipping Dimensions: 45" x 45" x 35"
    • Watts/Amps: 3500 watts / 15 amps (Powered through Dual Air Fusion 240 Volt)
    • Platen Size: 16" x 20"
    *An air compressor (NOT included) is required to operate this heat press. Minimum 1 horsepower and 8-gallon hold tank. Uses 2.6 CFM*

    ProPlace IQ™ FAQs

    The Hotronix® ProPlace IQ™ is a cutting-edge advancement to the Dual Air Fusion IQ® heat press, designed to help users place transfers onto apparel in a fast and accurate manner while also improving overall efficiency by reducing downtime, waste, and errors.

    The ProPlace IQ™ is particularly beneficial due to its demonstrated ability to improve production accuracy, reduce waste, and facilitate quick training of staff. Decorators will drastically minimize application errors such as upside-down logos or misspelled names.

    No, the ProPlace IQ™ can only be mounted to any existing Dual Air Fusion IQ® heat press.

    Yes, a Wi-Fi connection is needed for optimal performance of the ProPlace IQ™.

    Users can create projection images within the Hotronix® IQ Portal using their online account. This includes platen selection, grid line selection, importing graphics, and basic sizing and rotation features.

    Yes, users can store their graphics in a folder system within the Hotronix® IQ Portal for easy organization and recall.

    ProPlace IQ™ Integrated System FAQs

    The Hotronix® Dual Air Fusion ProPlace IQ™ can be purchased for $9,995, which includes the heat press machine complete with the projection alignment system.

    Yes, the Hotronix® Dual Air Fusion ProPlace IQ™ is an integrated solution to the Fusion IQ® control board on new heat press plus ProPlace IQ™ integrated systems.

    Users can wirelessly communicate via the Hotronix® IQ Portal for loading images for projection.

    Yes, users can make fine adjustments of image placement locally on the machine via XY movements from the Fusion IQ® Control Board.

    Yes, the integrated system includes a projector "Power Save" feature that enables the projector to not display when the heat press is over the top of the pressing station.

    No, the integrated ProPlace IQ™ system is supported within the power of the machine and does not require a separate plug and outlet.

    Yes, the integrated ProPlace IQ™ system can override the wireless connection and connect via HDMI, supporting all features of the Retro Mount system.

    ProPlace IQ™ Retro Mount System FAQs

    Yes, the ProPlace IQ™ is designed with ease of integration in mind. The equipment will be available later this summer as retrofitting piece that will fit current Dual Air Fusion IQ® systems. The retrofit system will require power from a wall source.

    Visual marketing materials, including photos and videos, demonstrating the ease of retroftting the ProPlace IQ™ onto the Dual Air Fusion IQ° will be availble soon on the Retro Mount System listing.

    The ProPlace IQ™ Retro Mount System is priced at $2,495.

    No, the retro mount ProPlace IQ™ is not integrated with the Fusion IQ® control board. Users need to connect to the projector via HDMI input to project images to the platen.

    ProPlace IQ™ works best with transfers that have a clear carrier or no carrier. Paper-backed transfers may pose a challenge.

    Yes, the retrofit ProPlace IQ™ system requires a separate plug and outlet, preferably not the same outlet the heat press is plugged into.

    Yes, ProPlace IQ™ technology can support the connectivity of external systems via HDMI.

    MyExpert Support Logo

    The HPN MyExpert Support guarantee is our commitment to Life Time Technical Support. No matter where you are in your products life cycle, we will be here to provide support to your product and make sure you are fully covered.

    Often imitated, never duplicated; our dedicated team of technicians are capable of providing support to your product at any point of its life. Whether it be during the setup process or even years down the line where troubleshooting may be required, they'll have your back and provide a solution.

    Our MyExpert Support will always be there for you so you can purchase with confidence!

    In addition, this Stahls' Hotronix heat press machine come with a Manufacturer Warranty that will cover the following from the original date of purchase:
    (5) year warranty on major components
    (2) year warranty on the circuit board
    (1) year warranty on all other components

    Stahls' full warranty policy is available here.

    Stahls' carries all parts necessary to complete warranty service with the speed and efficiency that your business deserves. Warranty service does not include the cost of freight of the item to or from repair facilities. If parts and/or accessories are needed at any time during the warranty period, we will send them to you at no charge upon receipt of the defective part. Once the warranty period has ended, parts will be available at market price.
